石英沃拉斯顿偏光片
Overview Specifications and Graphs Order Now!

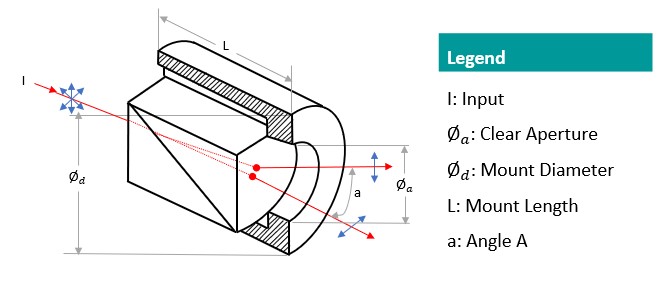

Wollaston Polarizer is used to separate incoming light beam into two polarized components, the extraordinary polarization which is symmetrical from the axis of propagation, and the ordinary polarization which is orthogonal. This is highly effective in lab experiments to achieve both polarizations. They are widely using in spectrometer and polarization analyzer, beamsplitter in optical applications.


Quartz Polarization Rotator makes use of natural rotation activity within quartz and allows the incoming light beam to be rotated at a special angle. The angle is determined by the thickness of the quartz crystal. The direction of rotation is customizable and dependent on your needs.


General Specifications

Type

Wollaston Polarizer

Material

Quartz

Mount Material

Black Anodized Aluminium

Diameter Tolerance (mm)

+0/-0.2

Length Tolerance(mm)

+0/-0.2

Angular Field

>2°

Extinction Ratio

<5x10-5

Beam Deviation(arcmin)

<3

Clear Aperture

>80%

Surface Quality

20/10

Transmitted Wavefront Distortion

<λ/4@633nm

Damage Threshold(pulsed)

>200MW/cm2@1064nm, 20ns, 20Hz



Update Coming soon!

As our website is in Soft Launch, we are currently updating our website to reflect our full capability.

This product line’s information/specification will be updated soon. The information is available upon request.

Apologies for the inconvenience caused.

Contact Us



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Clear Aperture

Design Wavelength (nm)


Search Reset
Compare Model Drawings & Specs Design Wavelength (nm) Clear Aperture Mount Diameter (mm) Availability Reference Price
(USD)
Q-WP-10-200-2300-M
Quartz, Wollaston Polarizer, CA= 10mm, DWL= 200-2300nm, Mount Ø= 25.4mm 		200-230010mm25.4 2-3 Weeks Request for quote
Q-WP-15-200-2300-M
Quartz, Wollaston Polarizer, CA= 15mm, DWL= 200-2300nm, Mount Ø= 30mm 		200-230015mm30 2-3 Weeks Request for quote
Q-WP-20-200-2300-M
Quartz, Wollaston Polarizer, CA= 20mm, DWL= 200-2300nm, Mount Ø= 38mm 		200-230020mm38 2-3 Weeks Request for quote
Q-WP-6-200-2300-M
Quartz, Wollaston Polarizer, CA= 6mm, DWL= 200-2300nm, Mount Ø= 15mm 		200-23006mm15 2-3 Weeks Request for quote

Q-WP-6-200-2300-M - Parameter

Type
Wollaston Polarizer

Material
Quartz

Coating
T> 85% @200-2300nm

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
200-2300

Surface Quality
20/10

Clear Aperture
6mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5*10-5

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
15

Beam Deviation (arcmin)
<3

Mount Length (mm)
20

Angular Field
>2°

Q-WP-20-200-2300-M - Parameter

Type
Wollaston Polarizer

Material
Quartz

Coating
T> 85% @200-2300nm

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
200-2300

Surface Quality
20/10

Clear Aperture
20mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5*10-5

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
38

Beam Deviation (arcmin)
<3

Mount Length (mm)
48

Angular Field
>2°

Q-WP-15-200-2300-M - Parameter

Type
Wollaston Polarizer

Material
Quartz

Coating
T> 85% @200-2300nm

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
200-2300

Surface Quality
20/10

Clear Aperture
15mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5*10-5

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
30

Beam Deviation (arcmin)
<3

Mount Length (mm)
38

Angular Field
>2°

Q-WP-10-200-2300-M - Parameter

Type
Wollaston Polarizer

Material
Quartz

Coating
T> 85% @200-2300nm

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
200-2300

Surface Quality
20/10

Clear Aperture
10mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5*10-5

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
25.4

Beam Deviation (arcmin)
<3

Mount Length (mm)
28

Angular Field
>2°

Q-WP-6-200-2300-M - Download

Q-WP-20-200-2300-M - Download

Q-WP-15-200-2300-M - Download

Q-WP-10-200-2300-M - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)
