YVO4 罗雄偏光片
Overview Specifications and Graphs Order Now!

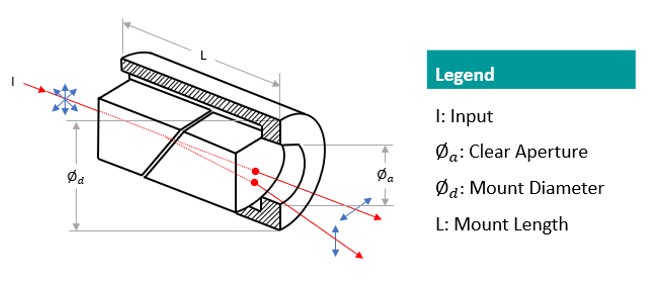

Rochon Polarizer is used to split an arbitrary polarized incoming light beam into two orthogonal and polarized outgoing light beams. The ordinary ray will continue along the same optical axis of the incoming light beam, whereas the extraordinary ray will have a slight deviation in its angle. This is dependent on the wavelength of the incoming light beam as well as the material of the Rochon Polarizer. The output beams have a high polarization extinction ratio accordingly to their material.


Nd:YVO4 is an efficient material used for laser crystals and diode lasers or solid-state lasers. Due to its high stability and high-power tolerance, it has a high damage threshold and optical properties. It can substitute Calcite crystals in many applications with its wide transparency range and birefringence properties.


General Specifications

Type

Rochon Polarizer

Material

YVO4

Mount Material

Black Anodized Aluminium

Diameter Tolerance (mm)

+0/-0.2

Length Tolerance(mm)

+0/-0.2

Angular Field

>10°

Extinction Ratio

<5x10-6

Beam Deviation(arcmin)

<3

Clear Aperture

>80%

Transmitted Wavefront Distortion

<λ/4@633nm

Damage Threshold(pulsed)

>200MW/cm2@1064nm, 20ns, 20Hz



Update Coming soon!

As our website is in Soft Launch, we are currently updating our website to reflect our full capability.

This product line’s information/specification will be updated soon. The information is available upon request.

Apologies for the inconvenience caused.

Contact Us



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Clear Aperture

Design Wavelength (nm)


Search Reset
Compare Model Drawings & Specs Design Wavelength (nm) Clear Aperture Mount Diameter (mm) Availability Reference Price
(USD)
Y-RP-10-500-4000-M
YVO4, Rochon Polarizer, CA= 10mm, DWL= 500-4000mm, Mount Ø= 25.4mm 		500-400010mm25.4 2-3 Weeks Request for quote
Y-RP-15-500-4000-M
YVO4, Rochon Polarizer, CA= 15mm, DWL= 500-4000mm, Mount Ø= 30mm 		500-400015mm30 2-3 Weeks Request for quote
Y-RP-20-500-4000-M
YVO4, Rochon Polarizer, CA= 20mm, DWL= 500-4000mm, Mount Ø= 38mm 		500-400020mm38 2-3 Weeks Request for quote
Y-RP-6-500-4000-M
YVO4, Rochon Polarizer, CA= 6mm, DWL= 500-4000mm, Mount Ø= 15mm 		500-40006mm15 2-3 Weeks Request for quote

Y-RP-6-500-4000-M - Parameter

Type
Rochon Polarizer

Material
YVO4

Coating
T> 85% @500-4000nm

Design Wavelength (nm)
500-4000

Clear Aperture
6mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5*10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
15

Mount Diameter Tolerance (mm)
+0/-0.2

Beam Deviation (arcmin)
<3

Mount Length (mm)
15

Angular Field
>10°

Polarizer Size
6.0*6.0*6.1

Y-RP-20-500-4000-M - Parameter

Type
Rochon Polarizer

Material
YVO4

Coating
T> 85% @500-4000nm

Design Wavelength (nm)
500-4000

Clear Aperture
20mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5*10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
38

Mount Diameter Tolerance (mm)
+0/-0.2

Beam Deviation (arcmin)
<3

Mount Length (mm)
29

Angular Field
>10°

Polarizer Size
20.0*20.0*18.0

Y-RP-15-500-4000-M - Parameter

Type
Rochon Polarizer

Material
YVO4

Coating
T> 85% @500-4000nm

Design Wavelength (nm)
500-4000

Clear Aperture
15mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5*10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
30

Mount Diameter Tolerance (mm)
+0/-0.2

Beam Deviation (arcmin)
<3

Mount Length (mm)
23

Angular Field
>10°

Polarizer Size
15.0*15.0*13.7

Y-RP-10-500-4000-M - Parameter

Type
Rochon Polarizer

Material
YVO4

Coating
T> 85% @500-4000nm

Design Wavelength (nm)
500-4000

Clear Aperture
10mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5*10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
25.4

Mount Diameter Tolerance (mm)
+0/-0.2

Beam Deviation (arcmin)
<3

Mount Length (mm)
19

Angular Field
>10°

Polarizer Size
10.0*10.0*9.5

Y-RP-6-500-4000-M - Download

Y-RP-20-500-4000-M - Download

Y-RP-15-500-4000-M - Download

Y-RP-10-500-4000-M - Download
