石英罗雄偏光片

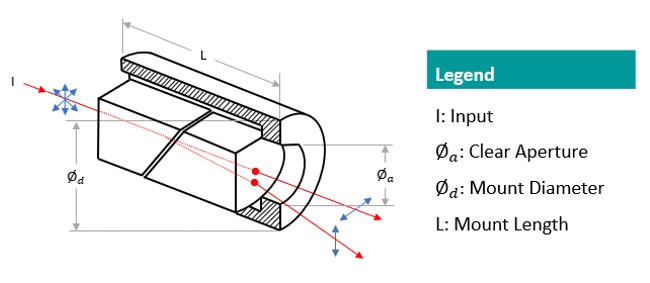

Rochon Polarizer is used to split an arbitrary polarized incoming light beam into two orthogonal and polarized outgoing light beams. The ordinary ray will continue along the same optical axis of the incoming light beam, whereas the extraordinary ray will have a slight deviation in its angle. This is dependent on the wavelength of the incoming light beam as well as the material of the Rochon Polarizer. The output beams have a high polarization extinction ratio accordingly to their material.


Quartz are excellent birefringent crystals. Due to its high UV, VIS, and NIR transmittance, and its ability to rotate polarized light and high damage threshold, it is very useful for transmittance from 190-2900nm wavelength. With high hardness properties, it is commonly used in the retardation plate. Quartz can exhibit circular birefringence allowing the ordinary and extraordinary beam to propagate with the same velocity using the same refractive index. Hence its effect is useful in rotators.


General Specifications

Type

Rochon Polarizer

Material

Quartz

Mount Material

Black Anodized Aluminium

Diameter Tolerance (mm)

+0/-0.2

Length Tolerance(mm)

+0/-0.2

Angular Field

>1°

Extinction Ratio

<5x10-5

Beam Deviation(arcmin)

<3

Clear Aperture

>80%

Transmitted Wavefront Distortion

<λ/4@633nm

Damage Threshold(pulsed)

>200MW/cm2@1064nm, 20ns, 20Hz



Update Coming soon!

As our website is in Soft Launch, we are currently updating our website to reflect our full capability.

This product line’s information/specification will be updated soon. The information is available upon request.

Apologies for the inconvenience caused.

Contact Us



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Clear Aperture

Design Wavelength (nm)


Search Reset
Compare Model Drawings & Specs Design Wavelength (nm) Clear Aperture Mount Diameter (mm) Availability Reference Price
(USD)
Q-RP-10-200-2300-M
Quartz, Rochon Polarizer, CA= 10mm, DWL= 200-2300mm, Mount Ø= 25.4mm
200-230010mm25.4 2-3 Weeks Request for quote
Q-RP-15-200-2300-M
Quartz, Rochon Polarizer, CA= 15mm, DWL= 200-2300mm, Mount Ø= 30mm
200-230015mm30 2-3 Weeks Request for quote
Q-RP-20-200-2300-M
Quartz, Rochon Polarizer, CA= 20mm, DWL= 200-2300mm, Mount Ø= 38mm
200-230020mm38 2-3 Weeks Request for quote
Q-RP-6-200-2300-M
Quartz, Rochon Polarizer, CA= 6mm, DWL= 200-2300mm, Mount Ø= 15mm
200-23006mm15 2-3 Weeks Request for quote

Q-RP-6-200-2300-M - Parameter

Type
Rochon Polarizer

Material
Quartz

Coating
T> 85% @200-2300nm

Design Wavelength (nm)
200-2300

Clear Aperture
6mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5*10-5

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
15

Mount Diameter Tolerance (mm)
+0/-0.2

Beam Deviation (arcmin)
<3

Mount Length (mm)
20

Angular Field
>1°

Polarizer Size
6.0*6.0*12.0

Q-RP-20-200-2300-M - Parameter

Type
Rochon Polarizer

Material
Quartz

Coating
T> 85% @200-2300nm

Design Wavelength (nm)
200-2300

Clear Aperture
20mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5*10-5

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
38

Mount Diameter Tolerance (mm)
+0/-0.2

Beam Deviation (arcmin)
<3

Mount Length (mm)
48

Angular Field
>1°

Polarizer Size
20.0*20.0*40.0

Q-RP-15-200-2300-M - Parameter

Type
Rochon Polarizer

Material
Quartz

Coating
T> 85% @200-2300nm

Design Wavelength (nm)
200-2300

Clear Aperture
15mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5*10-5

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
30

Mount Diameter Tolerance (mm)
+0/-0.2

Beam Deviation (arcmin)
<3

Mount Length (mm)
38

Angular Field
>1°

Polarizer Size
15.0*15*30.0

Q-RP-10-200-2300-M - Parameter

Type
Rochon Polarizer

Material
Quartz

Coating
T> 85% @200-2300nm

Design Wavelength (nm)
200-2300

Clear Aperture
10mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5*10-5

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
25.4

Mount Diameter Tolerance (mm)
+0/-0.2

Beam Deviation (arcmin)
<3

Mount Length (mm)
28

Angular Field
>1°

Polarizer Size
10.0*10.0*20.0

Q-RP-6-200-2300-M - Download

Q-RP-20-200-2300-M - Download

Q-RP-15-200-2300-M - Download

Q-RP-10-200-2300-M - Download
