方解石格兰汤普森偏光片

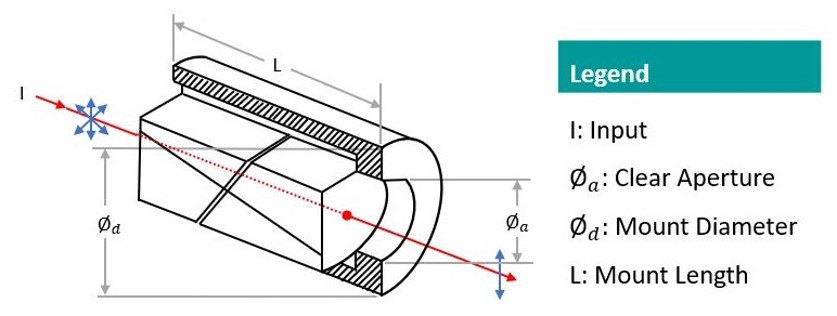

Glan Thompson Polarizer is constructed by two prisms using high optical grade crystals such as a-BBO or calcite. As an unpolarized light beam enters the front faces, the beam is split between the two interfaces. The extraordinary ray passes through the polarizer resulting in a polarized output reading. Whereas the ordinary rays are reflected from the interface, resulting in scattering and hence partially absorbed by the housing.


Calcite can be in the form of transparent to opaque with hints of phosphorescence or fluorescence. This type of crystal has birefringent properties and has an ordinary refractive index of 1.658 and an extraordinary refractive index of 1.486. It can target a wide spectrum of 190-1700nm, and it is a uniaxial crystal frequently use from visible to Near IR polarizers.


General Specifications

Type

Glan Thompson Polarizer

Material

Calcite

Mount Material

Black Anodized Aluminium

Transmission Range

Tp>85%@1064nm

Diameter Tolerance (mm)

+0/-0.2

Length Tolerance(mm)

±0.5

Extinction Ratio

<5x10-5

Beam Deviation(arcmin)

<3

Clear Aperture

>80%

Surface Quality

20/10

Transmitted Wavefront Distortion

<λ/4@633nm

Damage Threshold(pulsed)

>100MW/cm2@1064nm, 20ns, 20Hz




Update Coming soon!

As our website is in Soft Launch, we are currently updating our website to reflect our full capability.

This product line’s information/specification will be updated soon. The information is available upon request.

Apologies for the inconvenience caused.

Contact Us



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Clear Aperture

Design Wavelength (nm)


Search Reset
Compare Model Drawings & Specs Design Wavelength (nm) Clear Aperture Mount Diameter (mm) Availability Reference Price
(USD)
C-GTSP-10-350-2300-M
Calcite, Glan Thompson Polarizer, CA= 10mm, DWL= 350-2300nm, Mount Ø= 25.4mm
350-230010mm25.4 2-3 Weeks Request for quote
C-GTSP-10-350-2300-M
Calcite, Glan Thompson Polarizer, CA= 10mm, DWL= 350-2300nm, Mount Ø= 25.4mm
350-230010mm25.4 2-3 Weeks Request for quote
C-GTSP-12.7-350-2300-M
Calcite, Glan Thompson Polarizer, CA= 12.7mm, DWL= 350-2300nm, Mount Ø= 25.4mm
350-230012.7mm25.4 2-3 Weeks Request for quote
C-GTSP-12.7-350-2300-M
Calcite, Glan Thompson Polarizer, CA= 12.7mm, DWL= 350-2300nm, Mount Ø= 25.4mm
350-230012.7mm25.4 2-3 Weeks Request for quote
C-GTSP-15-350-2300-M
Calcite, Glan Thompson Polarizer, CA= 15mm, DWL= 350-2300nm, Mount Ø= 30mm
350-230015mm30 2-3 Weeks Request for quote
C-GTSP-15-350-2300-M
Calcite, Glan Thompson Polarizer, CA= 15mm, DWL= 350-2300nm, Mount Ø= 30mm
350-230015mm30 2-3 Weeks Request for quote
C-GTSP-6-350-2300-M
Calcite, Glan Thompson Polarizer, CA= 6mm, DWL= 350-2300nm, Mount Ø= 15mm
350-23006mm15 2-3 Weeks Request for quote
C-GTSP-6-350-2300-M
Calcite, Glan Thompson Polarizer, CA= 6mm, DWL= 350-2300nm, Mount Ø= 15mm
350-23006mm15 2-3 Weeks Request for quote

C-GTSP-6-350-2300-M - Parameter

Type
Glan Thompson Polarizer

Material
Calcite

Coating
T> 85% @350-2300

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
350-2300

Clear Aperture
6mm

Damage Threshold (pulsed)
>100MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
±0.5

Transmission Range
Tp>85%@1064nm

Extinction Ratio
<5*10-5

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
15

Beam Deviation (arcmin)
<3

Mount Length (mm)
26

Polarizer Size
6.0*6.0*18.0

Acceptance Angle
>15°

C-GTSP-6-350-2300-M - Parameter

Type
Glan Thompson Polarizer

Material
Calcite

Coating
T> 85% @350-2300

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
350-2300

Clear Aperture
6mm

Damage Threshold (pulsed)
>100MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
±0.5

Transmission Range
Tp>85%@1064nm

Extinction Ratio
<5*10-5

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
15

Beam Deviation (arcmin)
<3

Mount Length (mm)
22

Polarizer Size
6.0*6.0*15.0

Acceptance Angle
>15°

C-GTSP-15-350-2300-M - Parameter

Type
Glan Thompson Polarizer

Material
Calcite

Coating
T> 85% @350-2300

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
350-2300

Clear Aperture
15mm

Damage Threshold (pulsed)
>100MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
±0.5

Transmission Range
Tp>85%@1064nm

Extinction Ratio
<5*10-5

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
30

Beam Deviation (arcmin)
<3

Mount Length (mm)
53

Polarizer Size
15.0*15.0*45.0

Acceptance Angle
>15°

C-GTSP-15-350-2300-M - Parameter

Type
Glan Thompson Polarizer

Material
Calcite

Coating
T> 85% @350-2300

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
350-2300

Clear Aperture
15mm

Damage Threshold (pulsed)
>100MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
±0.5

Transmission Range
Tp>85%@1064nm

Extinction Ratio
<5*10-5

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
30

Beam Deviation (arcmin)
<3

Mount Length (mm)
45.5

Polarizer Size
15.0*15.0*37.5

Acceptance Angle
>15°

C-GTSP-12.7-350-2300-M - Parameter

Type
Glan Thompson Polarizer

Material
Calcite

Coating
T> 85% @350-2300

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
350-2300

Clear Aperture
12.7mm

Damage Threshold (pulsed)
>100MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
±0.5

Transmission Range
Tp>85%@1064nm

Extinction Ratio
<5*10-5

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
25.4

Beam Deviation (arcmin)
<3

Mount Length (mm)
46

Polarizer Size
12.7*12.7*38.2

Acceptance Angle
>15°

C-GTSP-12.7-350-2300-M - Parameter

Type
Glan Thompson Polarizer

Material
Calcite

Coating
T> 85% @350-2300

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
350-2300

Clear Aperture
12.7mm

Damage Threshold (pulsed)
>100MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
±0.5

Transmission Range
Tp>85%@1064nm

Extinction Ratio
<5*10-5

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
25.4

Beam Deviation (arcmin)
<3

Mount Length (mm)
39

Polarizer Size
12.7*12.7*31.7

Acceptance Angle
>15°

C-GTSP-10-350-2300-M - Parameter

Type
Glan Thompson Polarizer

Material
Calcite

Coating
T> 85% @350-2300

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
350-2300

Clear Aperture
10mm

Damage Threshold (pulsed)
>100MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
±0.5

Transmission Range
Tp>85%@1064nm

Extinction Ratio
<5*10-5

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
25.4

Beam Deviation (arcmin)
<3

Mount Length (mm)
38

Polarizer Size
10.0*10.0*30.0

Acceptance Angle
>15°

C-GTSP-10-350-2300-M - Parameter

Type
Glan Thompson Polarizer

Material
Calcite

Coating
T> 85% @350-2300

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
350-2300

Clear Aperture
10mm

Damage Threshold (pulsed)
>100MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
±0.5

Transmission Range
Tp>85%@1064nm

Extinction Ratio
<5*10-5

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
25.4

Beam Deviation (arcmin)
<3

Mount Length (mm)
33

Polarizer Size
10.0*10.0*25.0

Acceptance Angle
>15°
