a-BBO 格兰汤普森偏光片
Overview Specifications and Graphs Order Now!

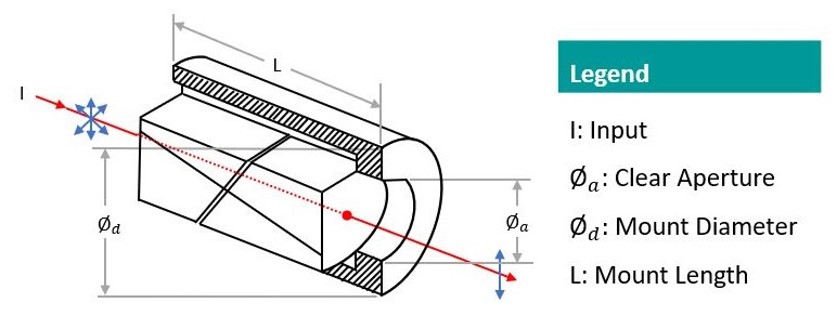

Glan Thompson Polarizer is constructed by two prisms using high optical grade crystals such as a-BBO or calcite. As an unpolarized light beam enters the front faces, the beam is split between the two interfaces. The extraordinary ray passes through the polarizer resulting in a polarized output reading. Whereas the ordinary rays are reflected from the interface, resulting in scattering and hence partially absorbed by the housing.


a-BBO Crystals are excellent birefringent crystals. They have a large birefringent coefficient and transmission spectrum from 189-3500nm. Due to its high chemical stability and moderate hardness, a-BBO can be fabricated into many optical components.


General Specifications

Type

Glan Thompson Polarizer

Material

a-BBO

Mount Material

Black Anodized Aluminium

Transmission (%)

Tp>85%@1064nm

Diameter Tolerance (mm)

+0/-0.2

Length Tolerance(mm)

±0.5

Acceptance Angle

>15°

Extinction Ratio

<5x10-6

Beam Deviation(arcmin)

<3

Clear Aperture

>80%

Surface Quality

20/10

Transmitted Wavefront Distortion

<λ/4@633nm

Damage Threshold(pulsed)

>100MW/cm2@1064nm, 20ns, 20Hz



Update Coming soon!

As our website is in Soft Launch, we are currently updating our website to reflect our full capability.

This product line’s information/specification will be updated soon. The information is available upon request.

Apologies for the inconvenience caused.

Contact Us



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Clear Aperture

Design Wavelength (nm)


Search Reset
Compare Model Drawings & Specs Design Wavelength (nm) Clear Aperture Mount Diameter (mm) Availability Reference Price
(USD)
a-GTSP-10-200-900-M
a-BBO, Glan Thompson Polarizer, CA= 10mm, DWL= 200-900nm, Mount Ø= 25.4mm 		200-90010mm25.4 2-3 Weeks Request for quote
a-GTSP-12.7-200-900-M
a-BBO, Glan Thompson Polarizer, CA= 12.7mm, DWL= 200-900nm, Mount Ø= 25.4mm 		200-90012.7mm25.4 2-3 Weeks Request for quote
a-GTSP-15-200-900-M
a-BBO, Glan Thompson Polarizer, CA= 15mm, DWL= 200-900nm, Mount Ø= 30mm 		200-90015mm30 2-3 Weeks Request for quote
a-GTSP-20-200-900-M
a-BBO, Glan Thompson Polarizer, CA= 20mm, DWL= 200-900nm, Mount Ø= 38mm 		200-90020mm38 2-3 Weeks Request for quote
a-GTSP-6-200-900-M
a-BBO, Glan Thompson Polarizer, CA= 6mm, DWL= 200-900nm, Mount Ø= 15mm 		200-9006mm15 2-3 Weeks Request for quote

a-GTSP-6-200-900-M - Parameter

Type
Glan Thompson Polarizer

Material
a-BBO

Coating
T> 85% @200-900

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
200-900

Clear Aperture
6mm

Damage Threshold (pulsed)
>100MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
±0.5

Transmission Range
Tp>85%@1064nm

Extinction Ratio
<5*10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
15

Beam Deviation (arcmin)
<3

Mount Length (mm)
18

Polarizer Size
6.0*6.0*10.2

Acceptance Angle
>15°

a-GTSP-20-200-900-M - Parameter

Type
Glan Thompson Polarizer

Material
a-BBO

Coating
T> 85% @200-900

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
200-900

Clear Aperture
20mm

Damage Threshold (pulsed)
>100MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
±0.5

Transmission Range
Tp>85%@1064nm

Extinction Ratio
<5*10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
38

Beam Deviation (arcmin)
<3

Mount Length (mm)
45.5

Polarizer Size
20.0*20.0*34.0

Acceptance Angle
>15°

a-GTSP-15-200-900-M - Parameter

Type
Glan Thompson Polarizer

Material
a-BBO

Coating
T> 85% @200-900

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
200-900

Clear Aperture
15mm

Damage Threshold (pulsed)
>100MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
±0.5

Transmission Range
Tp>85%@1064nm

Extinction Ratio
<5*10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
30

Beam Deviation (arcmin)
<3

Mount Length (mm)
33

Polarizer Size
15.0*15.0*25.6

Acceptance Angle
>15°

a-GTSP-12.7-200-900-M - Parameter

Type
Glan Thompson Polarizer

Material
a-BBO

Coating
T> 85% @200-900

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
200-900

Clear Aperture
12.7mm

Damage Threshold (pulsed)
>100MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
±0.5

Transmission Range
Tp>85%@1064nm

Extinction Ratio
<5*10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
25.4

Beam Deviation (arcmin)
<3

Mount Length (mm)
29

Polarizer Size
12.7*12.7*21.6

Acceptance Angle
>15°

a-GTSP-10-200-900-M - Parameter

Type
Glan Thompson Polarizer

Material
a-BBO

Coating
T> 85% @200-900

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
200-900

Clear Aperture
10mm

Damage Threshold (pulsed)
>100MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
±0.5

Transmission Range
Tp>85%@1064nm

Extinction Ratio
<5*10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
25.4

Beam Deviation (arcmin)
<3

Mount Length (mm)
24.5

Polarizer Size
10.0*10.0*17.0

Acceptance Angle
>15°

a-GTSP-6-200-900-M - Download

a-GTSP-20-200-900-M - Download

a-GTSP-15-200-900-M - Download

a-GTSP-12.7-200-900-M - Download

a-GTSP-10-200-900-M - Download
