YVO4 格兰·泰勒偏光镜 | 瑆创光学电子商店

Products / YVO4 格兰·泰勒偏光镜 /
YVO4 格兰·泰勒偏光镜
Overview Specifications and Graphs Order Now!

Glan Taylor Polarizer is made up of two birefringent materials that are bonded together. It is assembled using the air-spaced method to bond them to allow for better damage threshold and temperature range. Its length to aperture ratio is less than 1, hence it is considered as a thin polarizer. Since our polarizer has no windows for light to escape, it is much more useful for low to medium power applications.


Nd:YVO4 is an efficient material used for laser crystals and diode lasers or solid-state lasers. Due to its high stability and high-power tolerance, it has a high damage threshold and optical properties. It can substitute Calcite crystals in many applications with its wide transparency range and birefringence properties.


General Specifications

Type

Glan Taylor Polarizer

Material

YVO4

Mount Material

Black Anodized Aluminium

Diameter Tolerance (mm)

+0/-0.2

Length Tolerance(mm)

+0/-0.2

Angular Field

>6°

Extinction Ratio

<5x10-6

Beam Deviation(arcmin)

<3

Clear Aperture

>80%

Surface Quality

20/10

Transmitted Wavefront Distortion

<λ/4@633nm

Damage Threshold(pulsed)

>200MW/cm2@1064nm, 20ns, 20Hz



Update Coming soon!

As our website is in Soft Launch, we are currently updating our website to reflect our full capability.

This product line’s information/specification will be updated soon. The information is available upon request.

Apologies for the inconvenience caused.

Contact Us



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Clear Aperture

Design Wavelength (nm)


Search Reset

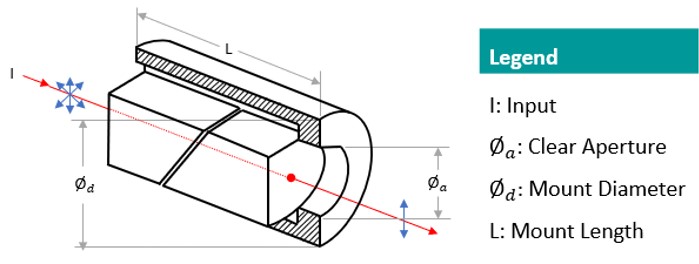

Compare Model Drawings & Specs Design Wavelength (nm) Clear Aperture Mount Diameter (mm) Availability Reference Price
(USD)
Y-GTLP-10-500-4000-M
YVO4, Glan Taylor Polarizer, CA= 10mm, DWL= 500-4000nm, Mount Ø=25.4mm 		500-400010mm25.4 2-3 Weeks Request for quote
Y-GTLP-15-500-4000-M
YVO4, Glan Taylor Polarizer, CA= 15mm, DWL= 500-4000nm, Mount Ø=30mm 		500-400015mm30 2-3 Weeks Request for quote
Y-GTLP-6-500-4000-M
YVO4, Glan Taylor Polarizer, CA= 6mm, DWL= 500-4000nm, Mount Ø=15mm 		500-40006mm15 2-3 Weeks Request for quote

Y-GTLP-6-500-4000-M - Parameter

Type
Glan Taylor Polarizer

Material
YVO4

Coating
T> 85%@500-4000nm

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
500-4000

Surface Quality
20/10

Clear Aperture
6mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5x10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
15

Beam Deviation (arcmin)
<3

Mount Length (mm)
15

Y-GTLP-15-500-4000-M - Parameter

Type
Glan Taylor Polarizer

Material
YVO4

Coating
T> 85%@500-4000nm

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
500-4000

Surface Quality
20/10

Clear Aperture
15mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5x10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
30

Beam Deviation (arcmin)
<3

Mount Length (mm)
23

Y-GTLP-10-500-4000-M - Parameter

Type
Glan Taylor Polarizer

Material
YVO4

Coating
T> 85%@500-4000nm

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
500-4000

Surface Quality
20/10

Clear Aperture
10mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5x10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
25.4

Beam Deviation (arcmin)
<3

Mount Length (mm)
19

Y-GTLP-6-500-4000-M - Download

Y-GTLP-15-500-4000-M - Download

Y-GTLP-10-500-4000-M - Download
