方解石格兰·泰勒偏光镜 | 瑆创光学电子商店

Products / 方解石格兰·泰勒偏光镜 /
方解石格兰·泰勒偏光镜
Overview Specifications and Graphs Order Now!

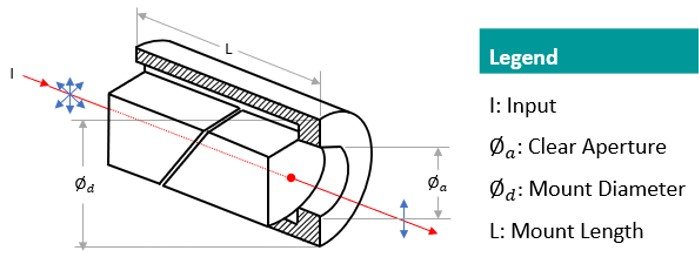

Glan Taylor Polarizer is made up of two birefringent materials that are bonded together. We have used the air-spaced method to bond them to allow for better damage threshold and temperature range. Its length to aperture ratio is less than 1, hence it is considered as a thin polarizer. Since our polarizer has no windows for light to escape, it is much more useful for low to medium power applications.


Calcite can be in the form of transparent to opaque with hints of phosphorescence or fluorescence. This type of crystal has birefringent properties and has an ordinary refractive index of 1.658 and an extraordinary refractive index of 1.486. It can target a wide spectrum of 190-1700nm, and it is a uniaxial crystal frequently use from visible to Near IR polarizers.


General Specifications

Type

Glan Taylor Polarizer

Material

Calcite

Mount Material

Black Anodized Aluminium

Diameter Tolerance (mm)

+0/-0.2

Length Tolerance(mm)

+0/-0.2

Angular Field

>6°

Extinction Ratio

<5x10-6

Beam Deviation(arcmin)

<3

Clear Aperture

>80%

Transmitted Wavefront Distortion

<λ/4@633nm

Damage Threshold(pulsed)

>200MW/cm2@1064nm, 20ns, 20Hz



Update Coming soon!

As our website is in Soft Launch, we are currently updating our website to reflect our full capability.

This product line’s information/specification will be updated soon. The information is available upon request.

Apologies for the inconvenience caused.

Contact Us



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Clear Aperture

Design Wavelength (nm)


Search Reset
Compare Model Drawings & Specs Design Wavelength (nm) Clear Aperture Mount Diameter (mm) Availability Reference Price
(USD)
C-GTLP-10-220-2500-M
Calcite, Glan Taylor Polarizer, CA= 10mm, DWL= 220-2500nm, Mount Ø=25.4mm 		220-250010mm25.4 2-3 Weeks Request for quote
C-GTLP-10-350-2300-M
Calcite, Glan Taylor Polarizer, CA= 10mm, DWL= 350-2300nm, Mount Ø=25.4mm 		350-230010mm25.4 2-3 Weeks Request for quote
C-GTLP-12.7-220-2500-M
Calcite, Glan Taylor Polarizer, CA= 12.7mm, DWL= 220-2500nm, Mount Ø=25.4mm 		220-250012.7mm25.4 2-3 Weeks Request for quote
C-GTLP-15-220-2500-M
Calcite, Glan Taylor Polarizer, CA= 15mm, DWL= 220-2500nm, Mount Ø=30mm 		220-250015mm30 2-3 Weeks Request for quote
C-GTLP-15-350-2300-M
Calcite, Glan Taylor Polarizer, CA= 15mm, DWL= 350-2300nm, Mount Ø=30mm 		350-230015mm30 2-3 Weeks Request for quote
C-GTLP-18-220-2500-M
Calcite, Glan Taylor Polarizer, CA= 18mm, DWL= 220-2500nm, Mount Ø=38mm 		220-250018mm38 2-3 Weeks Request for quote
C-GTLP-20-350-2300-M
Calcite, Glan Taylor Polarizer, CA= 20mm, DWL= 350-2300nm, Mount Ø=38mm 		350-230020mm38 2-3 Weeks Request for quote
C-GTLP-5-220-2500-M
Calcite, Glan Taylor Polarizer, CA= 5mm, DWL= 220-2500nm, Mount Ø=15mm 		220-25005mm15 2-3 Weeks Request for quote
C-GTLP-6-350-2300-M
Calcite, Glan Taylor Polarizer, CA= 6mm, DWL= 350-2300nm, Mount Ø=15mm 		350-23006mm15 2-3 Weeks Request for quote
C-GTLP-8-220-2500-M
Calcite, Glan Taylor Polarizer, CA= 8mm, DWL= 220-2500nm, Mount Ø=25.4mm 		220-25008mm25.4 2-3 Weeks Request for quote

C-GTLP-8-220-2500-M - Parameter

Type
Glan Taylor Polarizer

Material
Calcite

Coating
T> 85%@220-2500nm

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
220-2500

Surface Quality
20/10

Clear Aperture
8mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5x10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
25.4

Beam Deviation (arcmin)
<3

Mount Length (mm)
24.5

C-GTLP-6-350-2300-M - Parameter

Type
Glan Taylor Polarizer

Material
Calcite

Coating
T> 85%@350-2300nm

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
350-2300

Surface Quality
20/10

Clear Aperture
6mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5x10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
15

Beam Deviation (arcmin)
<3

Mount Length (mm)
15

C-GTLP-5-220-2500-M - Parameter

Type
Glan Taylor Polarizer

Material
Calcite

Coating
T> 85%@220-2500nm

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
220-2500

Surface Quality
20/10

Clear Aperture
5mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5x10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
15

Beam Deviation (arcmin)
<3

Mount Length (mm)
21

C-GTLP-20-350-2300-M - Parameter

Type
Glan Taylor Polarizer

Material
Calcite

Coating
T> 85%@350-2300nm

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
350-2300

Surface Quality
20/10

Clear Aperture
20mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5x10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
38

Beam Deviation (arcmin)
<3

Mount Length (mm)
29

C-GTLP-18-220-2500-M - Parameter

Type
Glan Taylor Polarizer

Material
Calcite

Coating
T> 85%@220-2500nm

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
220-2500

Surface Quality
20/10

Clear Aperture
18mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5x10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
38

Beam Deviation (arcmin)
<3

Mount Length (mm)
42.3

C-GTLP-15-350-2300-M - Parameter

Type
Glan Taylor Polarizer

Material
Calcite

Coating
T> 85%@350-2300nm

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
350-2300

Surface Quality
20/10

Clear Aperture
15mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5x10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
30

Beam Deviation (arcmin)
<3

Mount Length (mm)
23

C-GTLP-15-220-2500-M - Parameter

Type
Glan Taylor Polarizer

Material
Calcite

Coating
T> 85%@220-2500nm

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
220-2500

Surface Quality
20/10

Clear Aperture
15mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5x10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
30

Beam Deviation (arcmin)
<3

Mount Length (mm)
33.3

C-GTLP-12.7-220-2500-M - Parameter

Type
Glan Taylor Polarizer

Material
Calcite

Coating
T> 85%@220-2500nm

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
220-2500

Surface Quality
20/10

Clear Aperture
12.7mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5x10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
25.4

Beam Deviation (arcmin)
<3

Mount Length (mm)
27.5

C-GTLP-10-350-2300-M - Parameter

Type
Glan Taylor Polarizer

Material
Calcite

Coating
T> 85%@350-2300nm

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
350-2300

Surface Quality
20/10

Clear Aperture
10mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5x10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
25.4

Beam Deviation (arcmin)
<3

Mount Length (mm)
19

C-GTLP-10-220-2500-M - Parameter

Type
Glan Taylor Polarizer

Material
Calcite

Coating
T> 85%@220-2500nm

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
220-2500

Surface Quality
20/10

Clear Aperture
10mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5x10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
25.4

Beam Deviation (arcmin)
<3

Mount Length (mm)
26.2

C-GTLP-8-220-2500-M - Download

C-GTLP-6-350-2300-M - Download

C-GTLP-5-220-2500-M - Download

C-GTLP-20-350-2300-M - Download

C-GTLP-18-220-2500-M - Download

C-GTLP-15-350-2300-M - Download

C-GTLP-15-220-2500-M - Download

C-GTLP-12.7-220-2500-M - Download

C-GTLP-10-350-2300-M - Download

C-GTLP-10-220-2500-M - Download
