a-BBO格兰-泰勒偏振器
Overview Specifications and Graphs Order Now!

Glan Taylor Polarizer is made up of two birefringent materials that are bonded together. We have used the air-spaced method to bond them to allow for better damage threshold and temperature range. Its length to aperture ratio is less than 1, hence it is considered as a thin polarizer. Since our polarizer has no windows for light to escape, it is much more useful for low to medium power applications.


a-BBO Crystals are excellent birefringent crystals. They have a large birefringent coefficient and transmission spectrum from 189-3500nm. Due to its high chemical stability and moderate hardness, a-BBO can be fabricated

into many optical components.


General Specifications

Type

Glan Taylor Polarizer

Material

a-BBO

Mount Material

Black Anodized Aluminium

Diameter Tolerance (mm)

+0/-0.2

Length Tolerance(mm)

+0/-0.2

Angular Field

>6°

Extinction Ratio

<5x10-6

Beam Deviation(arcmin)

<3

Clear Aperture

>80%

Surface Quality

20/10

Transmitted Wavefront Distortion

<λ/4@633nm

Damage Threshold(pulsed)

>200MW/cm2@1064nm, 20ns, 20Hz



Update Coming soon!

As our website is in Soft Launch, we are currently updating our website to reflect our full capability.

This product line’s information/specification will be updated soon. The information is available upon request.

Apologies for the inconvenience caused.

Contact Us



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Clear Aperture

Design Wavelength (nm)


Search Reset

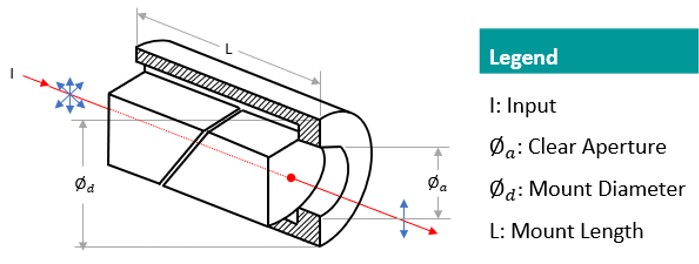

Compare Model Drawings & Specs Design Wavelength (nm) Clear Aperture Mount Diameter (mm) Availability Reference Price
(USD)
a-GTLP-10-200-300-M
a-BBO, Glan Taylor Polarizer, CA= 10mm, DWL= 200-300nm, Mount Ø=25.4mm 		200-30010mm25.4 2-3 Weeks Request for quote
a-GTLP-10-300-700-M
a-BBO, Glan Taylor Polarizer, CA= 10mm, DWL= 300-700nm, Mount Ø=25.4mm 		300-70010mm25.4 2-3 Weeks Request for quote
a-GTLP-10-700-3500-M
a-BBO, Glan Taylor Polarizer, CA= 10mm, DWL= 700-3500nm, Mount Ø=25.4mm 		700-350010mm25.4 2-3 Weeks Request for quote
a-GTLP-15-200-300-M
a-BBO, Glan Taylor Polarizer, CA= 15mm, DWL= 200-300nm, Mount Ø=30mm 		200-30015mm30 2-3 Weeks Request for quote
a-GTLP-15-300-700-M
a-BBO, Glan Taylor Polarizer, CA= 15mm, DWL= 300-700nm, Mount Ø=30mm 		300-70015mm30 2-3 Weeks Request for quote
a-GTLP-15-700-3500-M
a-BBO, Glan Taylor Polarizer, CA= 15mm, DWL= 700-3500nm, Mount Ø=30mm 		700-350015mm30 2-3 Weeks Request for quote
a-GTLP-20-200-300-M
a-BBO, Glan Taylor Polarizer, CA= 20mm, DWL= 200-300nm, Mount Ø=38mm 		200-30020mm38 2-3 Weeks Request for quote
a-GTLP-20-300-700-M
a-BBO, Glan Taylor Polarizer, CA= 20mm, DWL= 300-700nm, Mount Ø=38mm 		300-70020mm38 2-3 Weeks Request for quote
a-GTLP-20-700-3500-M
a-BBO, Glan Taylor Polarizer, CA= 20mm, DWL= 700-3500nm, Mount Ø=38mm 		700-350020mm38 2-3 Weeks Request for quote
a-GTLP-6-200-300-M
a-BBO, Glan Taylor Polarizer, CA= 6mm, DWL= 200-300nm, Mount Ø=15mm 		200-3006mm15 2-3 Weeks Request for quote
a-GTLP-6-300-700-M
a-BBO, Glan Taylor Polarizer, CA= 6mm, DWL= 300-700nm, Mount Ø=15mm 		300-7006mm15 2-3 Weeks Request for quote
a-GTLP-6-700-3500-M
a-BBO, Glan Taylor Polarizer, CA= 6mm, DWL= 700-3500nm, Mount Ø=15mm 		700-35006mm15 2-3 Weeks Request for quote

a-GTLP-6-700-3500-M - Parameter

Type
Glan Taylor Polarizer

Material
a-BBO

Coating
T> 85%@700-3500nm

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
700-3500

Surface Quality
20/10

Clear Aperture
6mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5x10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
15

Beam Deviation (arcmin)
<3

Mount Length (mm)
15

a-GTLP-6-300-700-M - Parameter

Type
Glan Taylor Polarizer

Material
a-BBO

Coating
T> 85%@300-700nm

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
300-700

Surface Quality
20/10

Clear Aperture
6mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5x10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
15

Beam Deviation (arcmin)
<3

Mount Length (mm)
15

a-GTLP-6-200-300-M - Parameter

Type
Glan Taylor Polarizer

Material
a-BBO

Coating
T> 85%@200-300nm

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
200-300

Surface Quality
20/10

Clear Aperture
6mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5x10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
15

Beam Deviation (arcmin)
<3

Mount Length (mm)
15

a-GTLP-20-700-3500-M - Parameter

Type
Glan Taylor Polarizer

Material
a-BBO

Coating
T> 85%@700-3500nm

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
700-3500

Surface Quality
20/10

Clear Aperture
20mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5x10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
38

Beam Deviation (arcmin)
<3

Mount Length (mm)
29

a-GTLP-20-300-700-M - Parameter

Type
Glan Taylor Polarizer

Material
a-BBO

Coating
T> 85%@300-700nm

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
300-700

Surface Quality
20/10

Clear Aperture
20mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5x10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
38

Beam Deviation (arcmin)
<3

Mount Length (mm)
29

a-GTLP-20-200-300-M - Parameter

Type
Glan Taylor Polarizer

Material
a-BBO

Coating
T> 85%@200-300nm

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
200-300

Surface Quality
20/10

Clear Aperture
20mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5x10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
38

Beam Deviation (arcmin)
<3

Mount Length (mm)
29

a-GTLP-15-700-3500-M - Parameter

Type
Glan Taylor Polarizer

Material
a-BBO

Coating
T> 85%@700-3500nm

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
700-3500

Surface Quality
20/10

Clear Aperture
15mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5x10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
30

Beam Deviation (arcmin)
<3

Mount Length (mm)
23

a-GTLP-15-300-700-M - Parameter

Type
Glan Taylor Polarizer

Material
a-BBO

Coating
T> 85%@300-700nm

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
300-700

Surface Quality
20/10

Clear Aperture
15mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5x10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
30

Beam Deviation (arcmin)
<3

Mount Length (mm)
23

a-GTLP-15-200-300-M - Parameter

Type
Glan Taylor Polarizer

Material
a-BBO

Coating
T> 85%@200-300nm

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
200-300

Surface Quality
20/10

Clear Aperture
15mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5x10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
30

Beam Deviation (arcmin)
<3

Mount Length (mm)
23

a-GTLP-10-700-3500-M - Parameter

Type
Glan Taylor Polarizer

Material
a-BBO

Coating
T> 85%@700-3500nm

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
700-3500

Surface Quality
20/10

Clear Aperture
10mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5x10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
25.4

Beam Deviation (arcmin)
<3

Mount Length (mm)
19

a-GTLP-10-300-700-M - Parameter

Type
Glan Taylor Polarizer

Material
a-BBO

Coating
T> 85%@300-700nm

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
300-700

Surface Quality
20/10

Clear Aperture
10mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5x10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
25.4

Beam Deviation (arcmin)
<3

Mount Length (mm)
19

a-GTLP-10-200-300-M - Parameter

Type
Glan Taylor Polarizer

Material
a-BBO

Coating
T> 85%@200-300nm

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
200-300

Surface Quality
20/10

Clear Aperture
10mm

Damage Threshold (pulsed)
>200MW/cm2@1064nm, 20ns, 20Hz

Length Tolerance (mm)
+0.0/-0.2

Extinction Ratio
<5x10-6

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
25.4

Beam Deviation (arcmin)
<3

Mount Length (mm)
19

a-GTLP-6-700-3500-M - Download

a-GTLP-6-300-700-M - Download

a-GTLP-6-200-300-M - Download

a-GTLP-20-700-3500-M - Download

a-GTLP-20-300-700-M - Download

a-GTLP-20-200-300-M - Download

a-GTLP-15-700-3500-M - Download

a-GTLP-15-300-700-M - Download

a-GTLP-15-200-300-M - Download

a-GTLP-10-700-3500-M - Download

a-GTLP-10-300-700-M - Download

a-GTLP-10-200-300-M - Download
