标准铝制后视镜支架，2个调节器

产品概述相关产品选型指南联系下单！

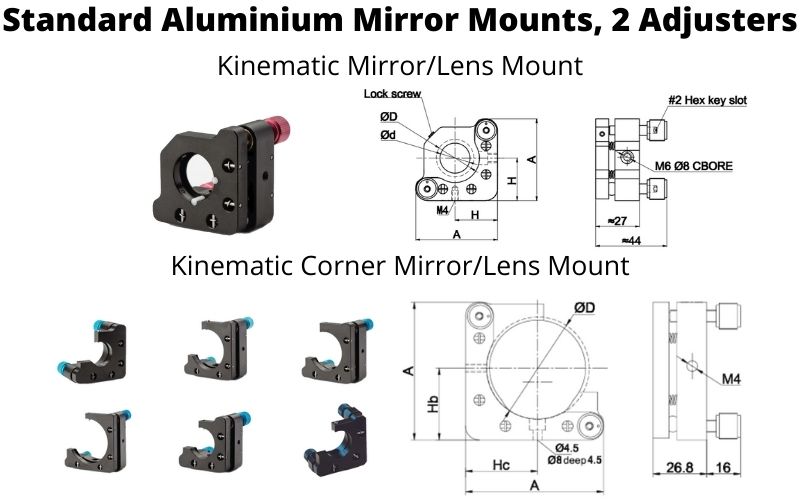

Standard Aluminium Mirror Mounts, 2 Adjusters.jpg

•牢固安装 ⌀20mm、⌀25.4mm、⌀30mm、⌀38.1mm、⌀40mm、⌀50.8mm 光学元件

• 允许 ±4° 俯仰角和偏航角度调整

• 适用于≥2mm光学厚度

12.7mm 光学柱

12.7mm 光学柱架

镜子

Simtrum 零件编号	AxA (mm)	外径 (mm)	内径 (mm)	孔尺寸	厚度 (mm)	Pack Deal (Pack of 5)
KML-20-M4	50x50	20	18.5	M4	≥2mm	No
KML-25.4-M4	50x50	25.4	23.9	M4	≥2mm	No
KML-30-M4	52x52	30	28.5	M4	≥2mm	No
KML-38.1-M4	62x62	38.1	36.6	M4	≥2mm	No
KML-40-M4	62x62	40	38.5	M4	≥2mm	No
KML-50.8-M4	69x69	50.8	48.8	M4	≥2mm	No
KCML-20-M4	50x50	-	20	M4	≥2mm	No
KCML-25.4-M4	50x50	-	25.4	M4	≥2mm	No
KCML-30-M4	52x52	-	30	M4	≥2mm	No
KCML-38.1-M4	62x62	-	38.1	M4	≥2mm	No
KCML-40-M4	62x62	-	40	M4	≥2mm	No
KCML-50.8-M4	69x69	-	50.8	M4	≥2mm	No
上图中的信息是为您的光机械设置选择合适的标准铝制镜架的一般指南，该镜架带有 2 个调节器。如需帮助，请随时致电 +65-6996 0391 联系 Simtrum Pte Ltd 或发送电子邮件至 info@simtrum.com。我们的产品团队将很乐意帮助您做出正确的产品选择。

我们在这里为您服务！


给我们发电子邮件 info@simtrum.com 以获得今天最优惠的价格。		想要更多的技术信息?点击这里获取专业定制系统/解决方案。


没有时间逐个搜索产品?不用担心。您可以下载全系列的瑆创产品线卡，现在点击它。		想要更接近市场动态和技术发展吗?只需花5秒钟作为会员登录，我们将为您带来最新的新闻。(屏幕右上方的登录按钮)

A x A

Search Reset

Compare	Model		Drawings & Specs	Thickness (mm)	Hole size (mm)	Outer Diameter	Inner Diameter	A x A	Availability	Reference Price (USD)

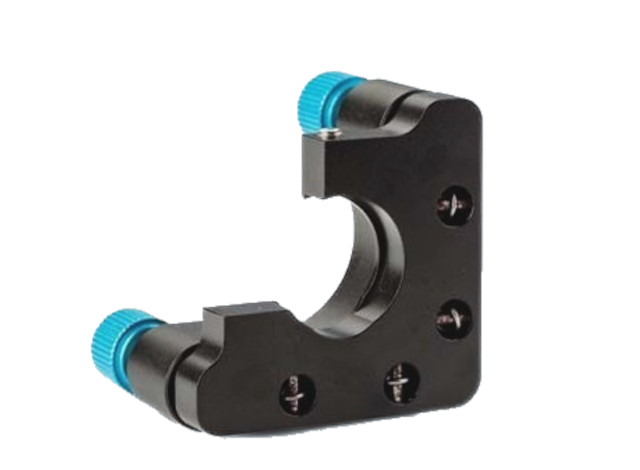

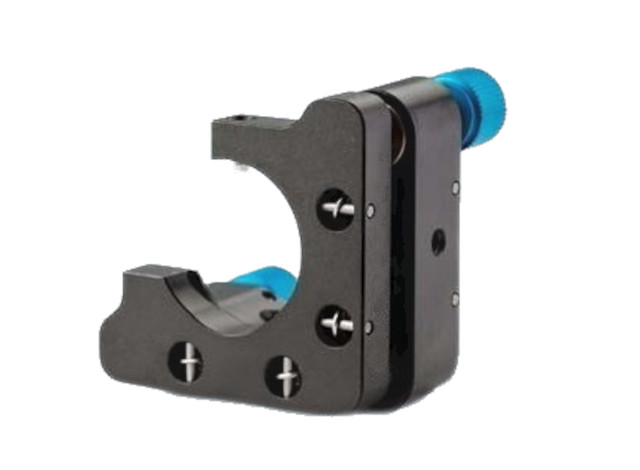

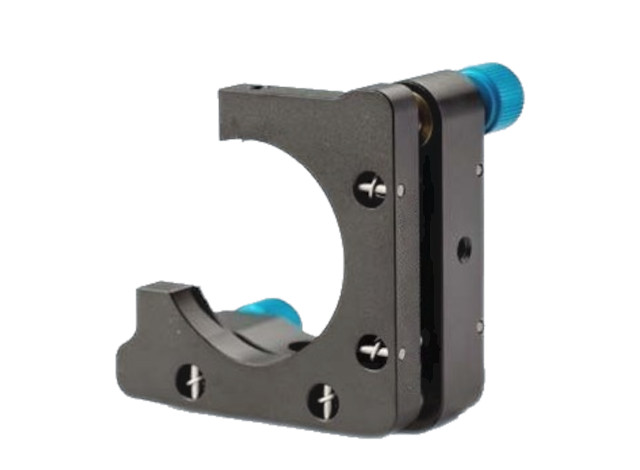

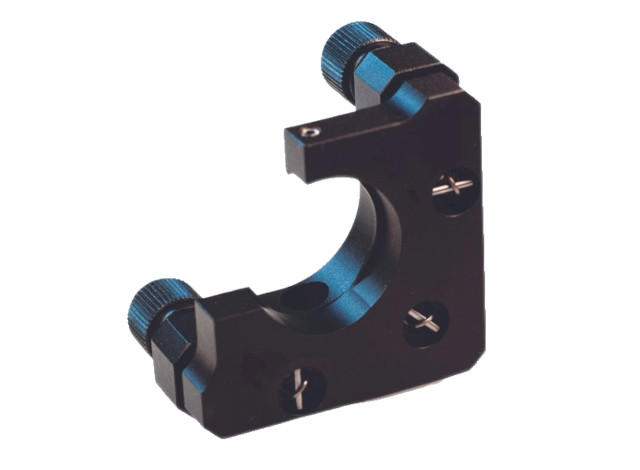

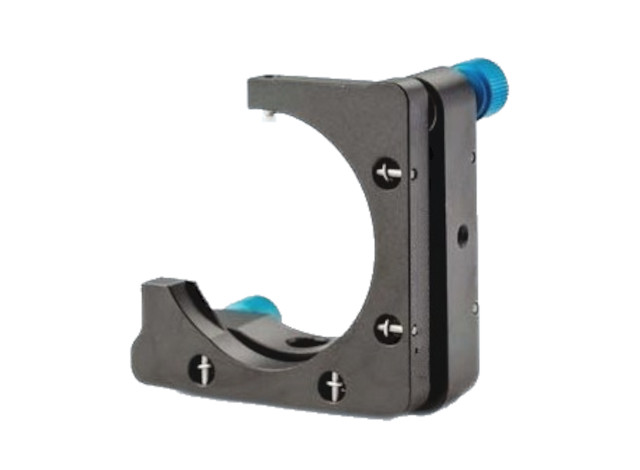

		KCML-20-M4 Kinematic Corner Mirror/Lens Mount ⌀20mm Optics,M4 Tapped Holes		≥2mm	M4	-		50x50	4-6 Weeks	$40.00
		KCML-25.4-M4 Kinematic Corner Mirror/Lens Mount ⌀25.4mm Optics,M4 Tapped Holes		≥2mm	M4	-		50x50	4-6 Weeks	$40.00
		KCML-30-M4 Kinematic Corner Mirror/Lens Mount ⌀30mm Optics,M4 Tapped Holes		≥2mm	M4	-		52x52	4-6 Weeks	$40.00
		KCML-38.1-M4 Kinematic Corner Mirror/Lens Mount ⌀38.1mm Optics,M4 Tapped Holes		≥2mm	M4	-		62x62	4-6 Weeks	$40.00
		KCML-40-M4 Kinematic Corner Mirror/Lens Mount ⌀40mm Optics,M4 Tapped Holes		≥2mm	M4	-		62x62	4-6 Weeks	$40.00
		KCML-50.8-M4 Kinematic Corner Mirror/Lens Mount ⌀50.8mm Optics,M4 Tapped Holes		≥2mm	M4	-		69x69	4-6 Weeks	$48.00

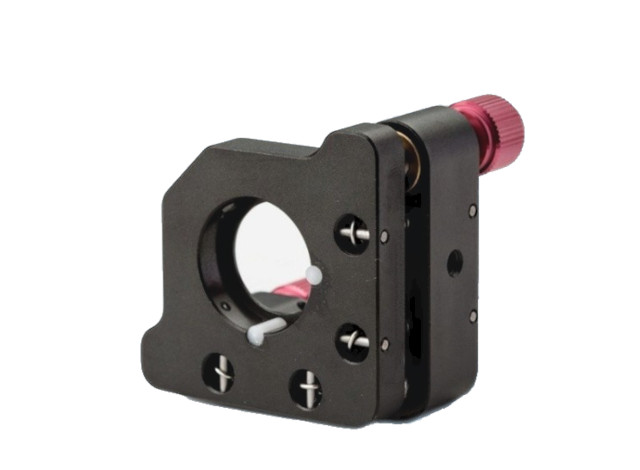

		KML-20-M4 Kinematic Mirror/Lens Mount for ⌀20mm Optics,M4 Tapped Holes		≥2mm	M4	20	18.5	50x50	4-6 Weeks	$40.00
		KML-25.4-M4 Kinematic Mirror/Lens Mount for ⌀25.4mm Optics,M4 Tapped Holes		≥2mm	M4	25.4	23.9	50x50	4-6 Weeks	$40.00
		KML-30-M4 Kinematic Mirror/Lens Mount for ⌀30mm Optics,M4 Tapped Holes		≥2mm	M4	30	28.5	52x52	4-6 Weeks	$40.00
		KML-38.1-M4 Kinematic Mirror/Lens Mount for ⌀38.1mm Optics,M4 Tapped Holes		≥2mm	M4			62x62	4-6 Weeks	$40.00
		KML-40-M4 Kinematic Mirror/Lens Mount for ⌀40mm Optics,M4 Tapped Holes		≥2mm	M4	40	38.5	62x62	4-6 Weeks	$40.00
		KML-50.8-M4 Kinematic Mirror/Lens Mount for ⌀50.8mm Optics,M4 Tapped Holes		≥2mm	M4	50.8	48.8	69x69	4-6 Weeks	$48.00

KML-50.8-M4 - Parameter

Thickness (mm)

≥2mm

Weight (g)

Hole size (mm)

M4

Outer Diameter

50.8

Inner Diameter

48.8

A x A

69x69

KML-40-M4 - Parameter

Thickness (mm)

≥2mm

Weight (g)

Hole size (mm)

M4

Outer Diameter

40

Inner Diameter

38.5

A x A

62x62

KML-38.1-M4 - Parameter

Thickness (mm)

≥2mm

Weight (g)

Hole size (mm)

M4

Outer Diameter

Inner Diameter

A x A

62x62

KML-30-M4 - Parameter

Thickness (mm)

≥2mm

Weight (g)

95

Hole size (mm)

M4

Outer Diameter

30

Inner Diameter

28.5

A x A

52x52

KML-25.4-M4 - Parameter

Thickness (mm)

≥2mm

Weight (g)

95

Hole size (mm)

M4

Outer Diameter

25.4

Inner Diameter

23.9

A x A

50x50

KML-20-M4 - Parameter

Thickness (mm)

≥2mm

Weight (g)

95

Hole size (mm)

M4

Outer Diameter

20

Inner Diameter

18.5

A x A

50x50

KCML-50.8-M4 - Parameter

Thickness (mm)

≥2mm

Weight (g)

Hole size (mm)

M4

Outer Diameter

-

Inner Diameter

A x A

69x69

KCML-40-M4 - Parameter

Thickness (mm)

≥2mm

Weight (g)

Hole size (mm)

M4

Outer Diameter

-

Inner Diameter

A x A

62x62

KCML-38.1-M4 - Parameter

Thickness (mm)

≥2mm

Weight (g)

Hole size (mm)

M4

Outer Diameter

-

Inner Diameter

A x A

62x62

KCML-30-M4 - Parameter

Thickness (mm)

≥2mm

Weight (g)

95

Hole size (mm)

M4

Outer Diameter

-

Inner Diameter

A x A

52x52

KCML-25.4-M4 - Parameter

Thickness (mm)

≥2mm

Weight (g)

Hole size (mm)

M4

Outer Diameter

-

Inner Diameter

A x A

50x50

KCML-20-M4 - Parameter

Thickness (mm)

≥2mm

Weight (g)

Hole size (mm)

M4

Outer Diameter

-

Inner Diameter

A x A

50x50

KML-50.8-M4 - Download

KML-40-M4 - Download

KML-38.1-M4 - Download

KML-30-M4 - Download

KML-25.4-M4 - Download

KML-20-M4 - Download

KCML-50.8-M4 - Download

KCML-40-M4 - Download

KCML-38.1-M4 - Download

KCML-30-M4 - Download

KCML-25.4-M4 - Download

KCML-20-M4 - Download
