Products / 光机械件 /光学支架 /镜架 /固定镜支架 /

固定镜支架

产品概述相关产品选型指南联系下单！

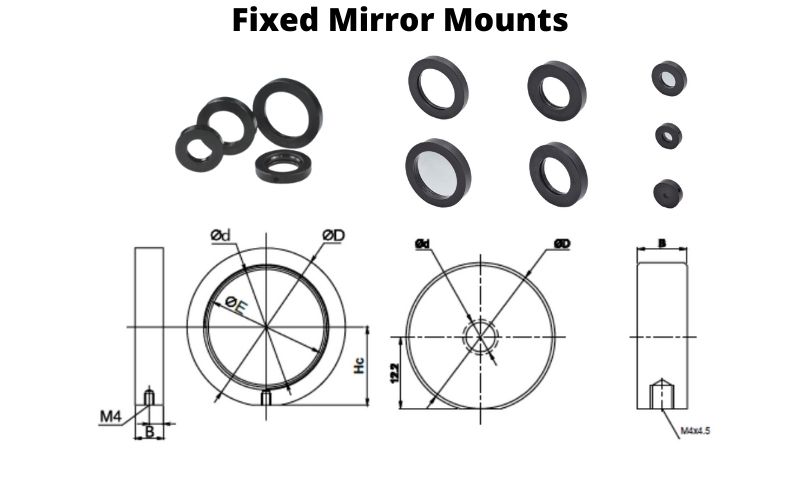

Fixed Position Lens Mounts.jpg

• 适用于不同光学直径的固定位置安装

• M4 螺纹孔，用于安装到其他机械部件上

镜头	12.7mm 光学柱架

Simtrum零件编号	光学直径 (mm)	外径 (mm)	ØE	孔/螺纹尺寸	厚度 (mm)
SLM-6-M4	6	25.4	5	M4	8
SLM-10-M4	10	25.4	8.5	M4	8
SLM-12.7-M4	12.7	25.4	11	M4	8
SLM-20-M4	20	36	18	M4	8
SLM-25.4-M4	25.4	41.5	23.5	M4	8
SLM-30-M4	30	46	28	M4	8
SLM-40-M4	40	56	38	M4	8
SLM-50.8-M4	50.8	67	49	M4	12
上图中的信息是为您的光机械设置选择合适的固定镜支架的一般指南。如需帮助，请随时致电 +65-6996 0391 联系 Simtrum Pte Ltd 或发送电子邮件至 info@simtrum.com。我们的产品团队将很乐意帮助您做出正确的产品选择。

我们在这里为您服务！


给我们发电子邮件 info@simtrum.com 以获得今天最优惠的价格。		想要更多的技术信息?点击这里获取专业定制系统/解决方案。


没有时间逐个搜索产品?不用担心。您可以下载全系列的瑆创产品线卡，现在点击它。		想要更接近市场动态和技术发展吗?只需花5秒钟作为会员登录，我们将为您带来最新的新闻。(屏幕右上方的登录按钮)

Optic Diameter (mm)

Search Reset

Compare	Model		Drawings & Specs	Thickness (mm)	Hole size (mm)	Outer Diameter	Optic Diameter (mm)	Availability	Reference Price (USD)
		SLM-10-M4 Fixed Lens/Mirror Mount for ⌀10mm Optics,M4 Tap		8	M4	25.4		4-6 Weeks	$10.50
		SLM-12.7-M4 Fixed Lens/Mirror Mount for ⌀12.7mm Optics,M4 Tap		8	M4	25.4		4-6 Weeks	$10.50
		SLM-20-M4 Fixed Lens/Mirror Mount for ⌀20mm Optics,M4 Tap		8	M4		20	4-6 Weeks	$10.50
		SLM-25.4-M4 Fixed Lens/Mirror Mount for ⌀25.4mm Optics,M4 Tap		8	M4		25.4	4-6 Weeks	$10.50
		SLM-30-M4 Fixed Lens/Mirror Mount for ⌀30mm Optics,M4 Tap		8	M4			4-6 Weeks	$10.50
		SLM-40-M4 Fixed Lens/Mirror Mount for ⌀40mm Optics,M4 Tap		8	M4			4-6 Weeks	$10.50
		SLM-50.8-M4 Fixed Lens/Mirror Mount for ⌀50.8mm Optics,M4 Tap		12	M4			4-6 Weeks	$13.00
		SLM-6-M4 Fixed Lens/Mirror Mount for ⌀6mm Optics,M4 Tap		8	M4	25.4		4-6 Weeks	$10.50

SLM-6-M4 - Parameter

Thickness (mm)

8

Weight (g)

Hole size (mm)

M4

Outer Diameter

25.4

Optic Diameter (mm)

SLM-50.8-M4 - Parameter

Thickness (mm)

12

Weight (g)

Hole size (mm)

M4

Outer Diameter

Optic Diameter (mm)

SLM-40-M4 - Parameter

Thickness (mm)

8

Weight (g)

Hole size (mm)

M4

Outer Diameter

Optic Diameter (mm)

SLM-30-M4 - Parameter

Thickness (mm)

8

Weight (g)

Hole size (mm)

M4

Outer Diameter

Optic Diameter (mm)

SLM-25.4-M4 - Parameter

Thickness (mm)

8

Weight (g)

20

Hole size (mm)

M4

Outer Diameter

Optic Diameter (mm)

25.4

SLM-20-M4 - Parameter

Thickness (mm)

8

Weight (g)

Hole size (mm)

M4

Outer Diameter

Optic Diameter (mm)

20

SLM-12.7-M4 - Parameter

Thickness (mm)

8

Weight (g)

10

Hole size (mm)

M4

Outer Diameter

25.4

Optic Diameter (mm)

SLM-10-M4 - Parameter

Thickness (mm)

8

Weight (g)

10

Hole size (mm)

M4

Outer Diameter

25.4

Optic Diameter (mm)
