UVFS激光线无偏振分束器板

UVFS Laser Line Non-Polarization Beamsplitter Plate, Beamsplitter Plate www.simtrum.com

Laser Line Non-Polarization Beamsplitter Plate is used to split or combine laser beams of a targeted wavelength. As it is a non-polarizing beamsplitter, the polarization of the outgoing beams remains the same when the incoming beam is a varied polarized light. Being partial-reflective coated mirrors, but often used with the incident of angle at 45°, plate beam splitters consist of a thin plate of optical glass with a different type of coatings.


Fused Silica is made with materials of high purity, making it ideal for UV or higher energy applications as it is transparent over a wider range of wavelengths. It is scratch resistant and has low thermal expansion coefficient alongside good optical qualities. For high-energy applications, the extreme purity of fused silica eliminates microscopic defect sites that could lead to laser damage. Has excellent transmission in the UV dimension.



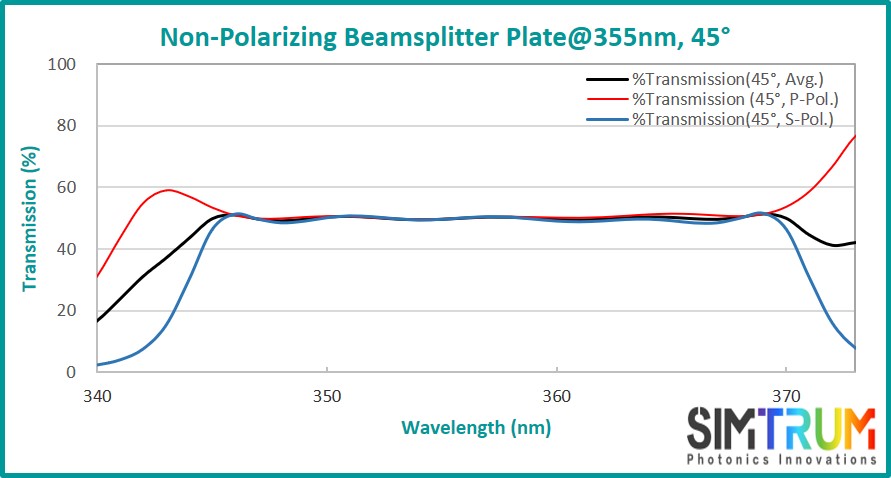

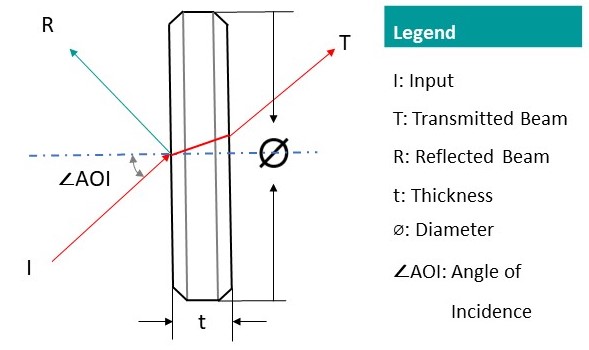

General Specifications

Material

UVFS

Type

Laser Line Non-polarizing Beamsplitter Plate

Diameter Tolerance(mm)

±0.2

Thickness Tolerance(mm)

±0.2

Thickness(mm)

3

Surface Quality

40/20 scratch and dig

Clear Aperture

>90%

Surface Flatness

<λ/4@633nm

Parallelism(arcmin)

<3

Angle of Incidence(degree)

45

Polarization

|Rs-Rp|<5%

Chamfer

0.5mmx45°

Damage Threshold(pulsed)

3J/cm²(20ns 20Hz 1064nm)



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Wavelength (nm)

Diameter (mm)


Search Reset
Compare Model Drawings & Specs Coating Wavelength (nm) Split Ratio Diameter (mm) Availability Reference Price
(USD)
UVFS-LNPBSP-12.7-355
UVFS, Laser Line Non-Pol Beamsplitter Plate, Ø=12.7mm, AR Coating: R<0.5% @ 355nm
R<0.5% AR Coating @ 355nm35550:50±5%12.7 2-3 Weeks Request for quote
UVFS-LNPBSP-25.4-355
UVFS, Laser Line Non-Pol Beamsplitter Plate, Ø=25.4mm, AR Coating: R<0.5% @ 355nm
R<0.5% AR Coating @ 355nm35550:50±5%25.4 2-3 Weeks Request for quote
UVFS-LNPBSP-50.8-355
UVFS, Laser Line Non-Pol Beamsplitter Plate, Ø=50.8mm, AR Coating: R<0.5% @ 355nm
R<0.5% AR Coating @ 355nm35550:50±5%50.8 2-3 Weeks Request for quote

UVFS-LNPBSP-50.8-355 - Parameter

Type
Laser Line Non-Polarizing Beamsplitter Plate

Material
UVFS

Coating
R<0.5% AR Coating @ 355nm

Diameter (mm)
50.8

Wavelength (nm)
355

Diameter Tolerance (mm)
± 0.2

Thickness Tolerance (mm)
± 0.2

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
>3J/cm²(20ns 20Hz @1064nm)

Thickness (mm)
3

Parallelism (arcmin)
<3

Angle of Incidence (degree)
45

Flatness
<4λ@633nm

Split Ratio
50:50±5%

Polarization
|Rs-Rp|<5%

Beam Deviation (arcmin)
<3

UVFS-LNPBSP-25.4-355 - Parameter

Type
Laser Line Non-Polarizing Beamsplitter Plate

Material
UVFS

Coating
R<0.5% AR Coating @ 355nm

Diameter (mm)
25.4

Wavelength (nm)
355

Diameter Tolerance (mm)
± 0.2

Thickness Tolerance (mm)
± 0.2

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
>3J/cm²(20ns 20Hz @1064nm)

Thickness (mm)
3

Parallelism (arcmin)
<3

Angle of Incidence (degree)
45

Flatness
<4λ@633nm

Split Ratio
50:50±5%

Polarization
|Rs-Rp|<5%

Beam Deviation (arcmin)
<3

UVFS-LNPBSP-12.7-355 - Parameter

Type
Laser Line Non-Polarizing Beamsplitter Plate

Material
UVFS

Coating
R<0.5% AR Coating @ 355nm

Diameter (mm)
12.7

Wavelength (nm)
355

Diameter Tolerance (mm)
± 0.2

Thickness Tolerance (mm)
± 0.2

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
>3J/cm²(20ns 20Hz @1064nm)

Thickness (mm)
3

Parallelism (arcmin)
<3

Angle of Incidence (degree)
45

Flatness
<4λ@633nm

Split Ratio
50:50±5%

Polarization
|Rs-Rp|<5%

Beam Deviation (arcmin)
<3

UVFS-LNPBSP-50.8-355 - Download

UVFS-LNPBSP-25.4-355 - Download

UVFS-LNPBSP-12.7-355 - Download
