UV带通滤波器 | 瑆创光学电子商店

UV带通滤波器
Chroma UV 滤光片 采用 磁控溅射金属镀膜 单一基材实现透过率高阻隔深度 OD4 可见光-IR 膜层密度极高各种环境具有很强抵抗力 因素各种光谱指标不受温度湿度影响

在热测试实验中,将过滤器置于300 ° C下两小时后,未检测到光谱指示器的损坏或退化。Chroma的先进质量​​​​​​​​​​​​​​​​​​​​​ 控制 和 管理 方法 确保 所有 出厂的过滤器都符合ISO、NIST 、MIL等标准。​

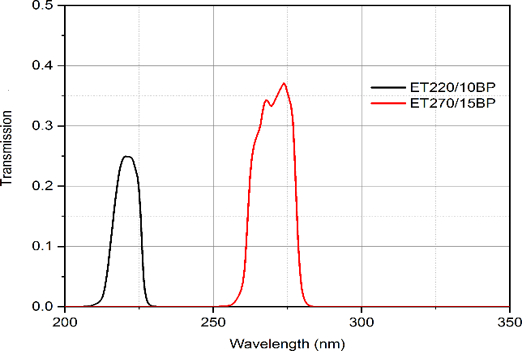

中心波长220 nm270 nm紫外滤光片透射率OD 曲线测量结果



滤光片 中心波长 (nm) 带宽 (nm) 透光率 截止深度 (nm) 光谱透射曲线
ET214/20BP 214 20 峰值 >/= 25% OD3-6 @ 200 - 1200










ET220/10BP 220 10 峰值 >/= 22% OD4-6 @ 200 - 1200
ET250/20BP 250 20 峰值 >/= 30% OD4-6 @ 200 - 1200
ET254/10BP 254 10 峰值 >/= 30% OD4-6 @ 200 - 1200
ET270/15BP 270 15 峰值 >/= 32% OD4-6 @ 200 - 1200
ET300/10BP  300 10 峰值 >/= 35% OD4-6 @ 200 - 1200
ET313/25BP 313 25 峰值 >/= 35% OD4-6 @ 200 - 1200
ET325/20BP 325 20 峰值 >/= 35% OD4-6 @ 200 - 1200
ET337/10BP 337 10 峰值 >/= 40% OD4-6 @ 200 - 1200
ET365/10BP 365 10 峰值 >/= 40% OD4-6 @ 200 - 1200
ET375/10BP 375 10 峰值 >/= 40% OD4-6 @ 200 - 1200

二向色分光镜(镜子)用作导光光学器件,用于反射指定范围的波长,并在指定的 AOI(通常为 45 度)处传输不同的指定范围的波长。Chroma  目录中的大多数二向色镜均适用于 45 度 AOI,如果不确定,请咨询我们。  二向色镜是落射荧光配置中使用的滤光片组的必要组件。

Chroma 制造 UltraFlat 二向色镜片,用于要求高水平表面平整度的激光应用,例如 TIRF 和其他超分辨率技术。我们提供 UltraFlat 二向色镜片,可用作单独部件或包含在组装的滤光片组中。

然而,平面二向色镜的秘诀在于它们需要在您的成像系统中保持平坦。使用夹子、弹簧或螺钉固定二向色镜的滤光块会使其失去平坦度。  Chroma  的 TIRF 和超分辨率滤光块 让您的二向色镜在显微镜中保持与我们制造时一样平坦。

我们的大多数二向色镜适用于更常规的宽场荧光应用,既没​​有也不需要高水平的表面平整度,但仍具有溅射干涉滤光片涂层的其他性能优势。

用于单波段滤光片组的二向色镜:

型号 波长 (CWL): nm  一系列滤光片: 光谱透射曲线
T412lpxt 412 T412lpxt 属于以下系列:49027 - ET
AT415DC
415
AT415DC 属于以下系列:39000 - AT /19000 - AT /19012 - AT
T425lpxr 425 T425lpxr 属于以下系列:49021 - ET /49301 - ET /49028 - ET /49053 - ET
AT440DC 440 AT440DC 属于以下系列:19011 - AT
T455lp 455 T455lp 属于以下系列:49001 - ET/49052 - ET /49302 - ET/49032 - ET
T470lpxr 470 T470lpxr 属于以下系列:49013 - ET /49026 - ET
AT485DC 485 AT485DC 属于以下系列:19008 - AT /39101 - AT- Qdot /39102 - AT- Qdot /39103 - AT- Qdot/39104 - AT- Qdot /39105 - AT- Qdot /39106 - AT- Qdot /39107 - AT- Qdot /39108 - AT- Qdot /39109 - AT- Qdot
T495lpxr 495 T495lpxr 属于以下系列:49002 - ET /49020 - ET /49024 - ET /49054 - ET
T495lpxt T495lpxt 属于以下系列:49018 - ET
AT505DC 505 AT505DC 属于以下系列:39002 - AT /39009 - AT /19002 - AT /19010 - AT
T510lpxrxt 510 T510lpxrxt 属于以下系列:49012 - ET /49011 - ET
T515lp 515 T515lp 属于以下系列:49003 - ET /49029 - ET /49303 - ET
T525lpxr 525 T525lpxr 属于以下系列:49023 - ET
T550lpxr 550 T550lpxr 属于以下系列:49014 - ET
T560lpxr 560 T560lpxr 属于以下系列:49010 - ET
T562lpxr 562 T562lpxr 属于以下系列:49016 - ET
T565lpxr 565 T565lpxr 属于以下系列:49004 - ET/49305 - ET
T570lp 570 T570lp 属于以下系列:49005 - ET
T570lpxr T570lpxr 属于以下系列:79009 - ET /79010 - ET /49063 - ET
T585lpxr 585 T585lpxr 属于以下系列:49008 - ET
T588lpxr 588 T588lpxr 属于以下系列:49031 - ET
T590lpxr 590 T590lpxr 属于以下系列:49017 - ET
AT600DC 600 AT600DC 属于以下系列:39010 - AT /19006 - AT
T635lpxr 635 T635lpxr 属于以下系列:49015 - ET
AT655DC 655 AT655DC 属于以下系列:39007 - AT
T660lpxr 660 T660lpxr 属于以下系列:49006 - ET /49009 - ET /49019 - ET
T685lpxr 685 T685lpxr 属于以下系列:49022 - ET
T760lpxr 760 T760lpxr 属于以下系列:49007 - ET
T770lpxr 770 T770lpxr 属于以下系列:49037 - ET
T810lpxr 810 T810lpxr 属于以下系列:49030 - ET

我们在这里为您服务!





给我们发电子邮件 info@simtrum.com 以获得今天最优惠的价格。   想要更多的技术信息?点击这里 获取专业定制系统/解决方案。




没有时间逐个搜索产品?不用担心。您可以下载全系列的瑆创产品线卡现在点击它。



想要更接近市场动态和技术发展吗?只需花5秒钟作为会员登录,我们将为您带来最新的新闻。​(屏幕右上方的登录按钮)



Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
ET214/20BP Filter
ET214/20BP, UV Narrow Bandpass Filter , Center Wavelength 214 nm,Bandwidth 20 nm,Transmittance Tpeak >/= 25%
4-6 Weeks $375.00
ET220/10BP Filter
ET220/10BP, UV Narrow Bandpass Filter Center Wavelength 220 nm,Bandwidth 10 nm,Transmittance Tpeak >/= 22%
4-6 Weeks $375.00
ET250/20BP Filter
ET250/20BP, UV Narrow Bandpass Filter, Center Wavelength 250 nm,Bandwidth 20 nm,Transmittance Tpeak >/= 30%
4-6 Weeks $375.00
ET254/10BP Filter
ET254/10BP, UV Narrow Bandpass Filter , Center Wavelength 254 nm,Bandwidth 10 nm,Transmittance Tpeak >/= 30%
4-6 Weeks $375.00
ET270/15BP Filter
ET270/15BP, UV Narrow Bandpass Filter, Center Wavelength 270 nm,Bandwidth 15 nm,Transmittance Tpeak >/= 32%
4-6 Weeks $375.00
ET300/10BP Filter
ET300/10BP, UV Narrow Bandpass Filter, Center Wavelength 300 nm,Bandwidth 10 nm,Transmittance Tpeak >/= 35%
4-6 Weeks $375.00
ET313/25BP Filter
ET313/25BP, UV Narrow Bandpass Filter, Center Wavelength 315 nm,Bandwidth 25 nm,Transmittance Tpeak >/= 35%
4-6 Weeks $375.00
ET325/20BP Filter
ET325/20BP, UV Narrow Bandpass Filter, Center Wavelength 325 nm,Bandwidth 20 nm,Transmittance Tpeak >/= 35%
4-6 Weeks $375.00
ET337/10BP Filter
ET337/10BP, UV Narrow Bandpass Filter, Center Wavelength 337 nm,Bandwidth 10 nm,Transmittance Tpeak >/= 40%
4-6 Weeks $375.00
ET365/10BP Filter
ET365/10BP, UV Narrow Bandpass Filter, Center Wavelength 365 nm,Bandwidth 10 nm,Transmittance Tpeak >/= 40%
4-6 Weeks $375.00
ET375/10BP Filter
ET375/10BP, UV Narrow Bandpass Filter, Center Wavelength 375 nm,Bandwidth 10 nm,Transmittance Tpeak >/= 40%
4-6 Weeks $375.00
T412lpxt
Dichroic beamsplitters (mirrors),Wavelength (CWL): 412 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
AT415DC
Dichroic beamsplitters (mirrors),Wavelength (CWL): 415 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $175.00
AT440DC
Dichroic beamsplitters (mirrors),Wavelength (CWL): 440 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $175.00
T510lpxrxt
Dichroic beamsplitters (mirrors),Wavelength (CWL): 510 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $300.00
T525lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 525 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T550lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 550nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T560lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 560 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T562lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL):562 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T570lp
Dichroic beamsplitters (mirrors),Wavelength (CWL): 570 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T570lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 570 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T585lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 585 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T588lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 588 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T590lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 590 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T635lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 635 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
AT655DC
Dichroic beamsplitters (mirrors),Wavelength (CWL): 655 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $175.00
T660lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 660 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T685lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 685 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T760lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 760 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T770lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 770 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T810lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 810 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T425lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 425 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T455lp
Dichroic beamsplitters (mirrors),Wavelength (CWL): 455 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
AT505DC
Dichroic beamsplitters (mirrors),Wavelength (CWL): 505 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $175.00
T515lp
Dichroic beamsplitters (mirrors),Wavelength (CWL): 515 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T565lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 565 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
AT600DC
Dichroic beamsplitters (mirrors),Wavelength (CWL): 600 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $175.00
