楔形光束发射器

Overview Coating Graph Order Now!

Wedged Beamsplitter, Beamsplitter Plate www.simtrum.com

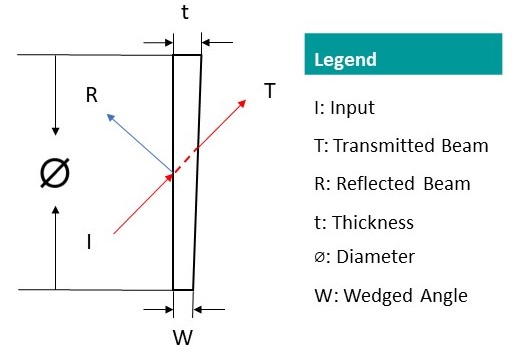

In order to eliminate the interference of the reflected light from the back surface, the large-sized beam splitter plates will generally be made into a wedge form with a small angle. The reflected light from the rear surface deviates from the normal optical path at an angle.

BK7 is the most common optical glass used in high-quality optical components as it is a hard glass that can withstand a variety of physical and chemical exposure. Relatively scratch and chemical resistant, it has a low bubble and inclusion content, therefore making it an ideal choice for precision lenses. It is the ideal choice for general purpose visual and NIR applications as it has excellent transmission.

General Specifications
Material	BK 7
Type	Wedged Beamsplitter
Coating	Uncoated
Wavelength(nm)	450-650
Diameter Tolerance(mm)	±0.2
Thickness Tolerance(mm)	±0.2
Thickness(mm)	6
Surface Quality	40/20 scratch and dig
Clear Aperture	85%
Surface Flatness	2.5λ@633nm
Wedged Angle Tolerance(arcmin)	3
Angle of Incidence(degree)	45
Chamfer	0.5mmx45°
Damage Threshold(pulsed)	7.5J/cm²(10ns 10Hz)

Update Coming soon!

As our website is in Soft Launch, we are currently updating our website to reflect our full capability.

This product line's information/specification will be updated soon. The information is available upon request.

Apologies for the inconvenience caused.

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Split Ratio

Wedge Angle (degree)

Diameter (mm)

Search Reset

	Wedge Angle (degree)	Wavelength (nm)	Split Ratio	Diameter (mm)	Availability	Reference Price (USD)
BK7-WBSP-50.8-2-450-650-50:50 BK7, Wedged Beamsplitter Plate, Diameter=50.8mm, Wedge Angle=2degree, Split Ratio: 50:50	2	450-650	50:50	50.8	2-3 Weeks	Request for quote
BK7-WBSP-50.8-2-450-650-70:30 BK7, Wedged Beamsplitter Plate, Diameter=50.8mm, Wedge Angle=2degree, Split Ratio: 70:30	2	450-650		50.8	2-3 Weeks	Request for quote
BK7-WBSP-50.8-2-450-650-90:10 BK7, Wedged Beamsplitter Plate, Diameter=50.8mm, Wedge Angle=2degree, Split Ratio: 90:10	2	450-650		50.8	2-3 Weeks	Request for quote
BK7-WBSP-50.8-2-450-650-30:70 BK7, Wedged Beamsplitter Plate, Diameter=50.8mm, Wedge Angle=2degree, Split Ratio: 30:70	2	450-650	30:70	50.8	2-3 Weeks	Request for quote
BK7-WBSP-50.8-2-450-650-10:90 BK7, Wedged Beamsplitter Plate, Diameter=50.8mm, Wedge Angle=2degree, Split Ratio: 10:90	2	450-650	10:90	50.8	2-3 Weeks	Request for quote
BK7-WBSP-100-4-450-650-50:50 BK7, Wedged Beamsplitter Plate, Diameter=100mm, Wedge Angle=4degree, Split Ratio: 50:50	4	450-650	50:50	100	2-3 Weeks	Request for quote
BK7-WBSP-100-4-450-650-70:30 BK7, Wedged Beamsplitter Plate, Diameter=100mm, Wedge Angle=4degree, Split Ratio: 70:30	4	450-650		100	2-3 Weeks	Request for quote
BK7-WBSP-100-4-450-650-90:10 BK7, Wedged Beamsplitter Plate, Diameter=100mm, Wedge Angle=4degree, Split Ratio: 90:10	4	450-650		100	2-3 Weeks	Request for quote
BK7-WBSP-100-4-450-650-30:70 BK7, Wedged Beamsplitter Plate, Diameter=100mm, Wedge Angle=4degree, Split Ratio: 30:70	4	450-650	30:70	100	2-3 Weeks	Request for quote
BK7-WBSP-100-4-450-650-10:90 BK7, Wedged Beamsplitter Plate, Diameter=100mm, Wedge Angle=4degree, Split Ratio: 10:90	4	450-650	10:90	100	2-3 Weeks	Request for quote

BK7-WBSP-100-4-450-650-10:90 - Parameter

Type

Wedged Beam Splitter Plate

Material

BK7

Coating

Uncoated

Diameter (mm)

100

Wavelength (nm)

450-650

Diameter Tolerance (mm)

± 0.2

Thickness Tolerance (mm)

± 0.2

Surface Quality

40/20

Clear Aperture

85%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

Angle of Incidence (degree)

Flatness

2.5λ@633nm

Wedge Angle (degree)

Wedge Angle Tolerance (arcmin)

Split Ratio

10:90

BK7-WBSP-100-4-450-650-30:70 - Parameter

Type

Wedged Beam Splitter Plate

Material

BK7

Coating

Uncoated

Diameter (mm)

100

Wavelength (nm)

450-650

Diameter Tolerance (mm)

± 0.2

Thickness Tolerance (mm)

± 0.2

Surface Quality

40/20

Clear Aperture

85%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

Angle of Incidence (degree)

Flatness

2.5λ@633nm

Wedge Angle (degree)

Wedge Angle Tolerance (arcmin)

Split Ratio

30:70

BK7-WBSP-100-4-450-650-90:10 - Parameter

Type

Wedged Beam Splitter Plate

Material

BK7

Coating

Uncoated

Diameter (mm)

100

Wavelength (nm)

450-650

Diameter Tolerance (mm)

± 0.2

Thickness Tolerance (mm)

± 0.2

Surface Quality

40/20

Clear Aperture

85%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

Angle of Incidence (degree)

Flatness

2.5λ@633nm

Wedge Angle (degree)

Wedge Angle Tolerance (arcmin)

Split Ratio

BK7-WBSP-100-4-450-650-70:30 - Parameter

Type

Wedged Beam Splitter Plate

Material

BK7

Coating

Uncoated

Diameter (mm)

100

Wavelength (nm)

450-650

Diameter Tolerance (mm)

± 0.2

Thickness Tolerance (mm)

± 0.2

Surface Quality

40/20

Clear Aperture

85%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

Angle of Incidence (degree)

Flatness

2.5λ@633nm

Wedge Angle (degree)

Wedge Angle Tolerance (arcmin)

Split Ratio

BK7-WBSP-100-4-450-650-50:50 - Parameter

Type

Wedged Beam Splitter Plate

Material

BK7

Coating

Uncoated

Diameter (mm)

100

Wavelength (nm)

450-650

Diameter Tolerance (mm)

± 0.2

Thickness Tolerance (mm)

± 0.2

Surface Quality

40/20

Clear Aperture

85%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

Angle of Incidence (degree)

Flatness

2.5λ@633nm

Wedge Angle (degree)

Wedge Angle Tolerance (arcmin)

Split Ratio

50:50

BK7-WBSP-50.8-2-450-650-10:90 - Parameter

Type

Wedged Beam Splitter Plate

Material

BK7

Coating

Uncoated

Diameter (mm)

50.8

Wavelength (nm)

450-650

Diameter Tolerance (mm)

± 0.2

Thickness Tolerance (mm)

± 0.2

Surface Quality

40/20

Clear Aperture

85%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

Angle of Incidence (degree)

Flatness

2.5λ@633nm

Wedge Angle (degree)

Wedge Angle Tolerance (arcmin)

Split Ratio

10:90

BK7-WBSP-50.8-2-450-650-30:70 - Parameter

Type

Wedged Beam Splitter Plate

Material

BK7

Coating

Uncoated

Diameter (mm)

50.8

Wavelength (nm)

450-650

Diameter Tolerance (mm)

± 0.2

Thickness Tolerance (mm)

± 0.2

Surface Quality

40/20

Clear Aperture

85%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

Angle of Incidence (degree)

Flatness

2.5λ@633nm

Wedge Angle (degree)

Wedge Angle Tolerance (arcmin)

Split Ratio

30:70

BK7-WBSP-50.8-2-450-650-90:10 - Parameter

Type

Wedged Beam Splitter Plate

Material

BK7

Coating

Uncoated

Diameter (mm)

50.8

Wavelength (nm)

450-650

Diameter Tolerance (mm)

± 0.2

Thickness Tolerance (mm)

± 0.2

Surface Quality

40/20

Clear Aperture

85%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

Angle of Incidence (degree)

Flatness

2.5λ@633nm

Wedge Angle (degree)

Wedge Angle Tolerance (arcmin)

Split Ratio

BK7-WBSP-50.8-2-450-650-70:30 - Parameter

Type

Wedged Beam Splitter Plate

Material

BK7

Coating

Uncoated

Diameter (mm)

50.8

Wavelength (nm)

450-650

Diameter Tolerance (mm)

± 0.2

Thickness Tolerance (mm)

± 0.2

Surface Quality

40/20

Clear Aperture

85%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

Angle of Incidence (degree)

Flatness

2.5λ@633nm

Wedge Angle (degree)

Wedge Angle Tolerance (arcmin)

Split Ratio

BK7-WBSP-50.8-2-450-650-50:50 - Parameter

Type

Wedged Beam Splitter Plate

Material

BK7

Coating

Uncoated

Diameter (mm)

50.8

Wavelength (nm)

450-650

Diameter Tolerance (mm)

± 0.2

Thickness Tolerance (mm)

± 0.2

Surface Quality

40/20

Clear Aperture

85%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

Angle of Incidence (degree)

Flatness

2.5λ@633nm

Wedge Angle (degree)

Wedge Angle Tolerance (arcmin)

Split Ratio

50:50
