纳米粒子线性偏振片

Overview Specifications and Graphs Order Now!

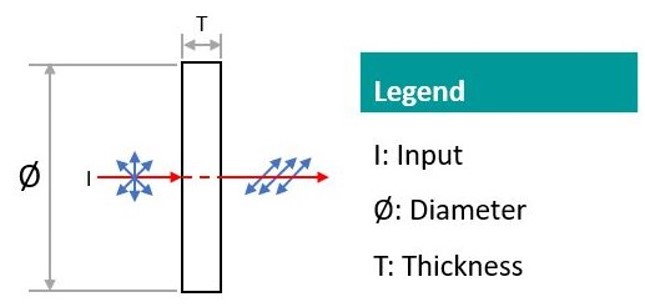

Nanoparticle Linear Polarizers are made of silver particles that is embedded in sodium-silicate glass. As the silver particles absorbs incoming light radiation, the non-polarized light will be polarized linearly and the polarized light will either transmit or be blocked dependent on the polarizer orientation. Due to high damage threshold and better extinction ratio, Nanoparticle Linear Polarizer has a much better performance in comparison to traditional polymer linear polarizers. Each polarizer will have their specific transmission axis which is marked by the dots present on the edge of the polarizer.

General Specifications
Type	Nano Particle Linear Polarizer
Material	Soda Lime Glass
Diameter Tolerance (mm)	+0/-0.2
Thickness Tolerance(mm)	±0.05
Acceptance Angle	>20°
Parallelism(arcmin)	<20
Clear Aperture	>90%
Surface Quality	40/20
Damage Threshold(pulsed)	>25W/cm²

Update Coming soon!

As our website is in Soft Launch, we are currently updating our website to reflect our full capability.

This product line’s information/specification will be updated soon. The information is available upon request.

Apologies for the inconvenience caused.

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Design Wavelength (nm)

Diameter (mm)

Search Reset

Compare	Model		Drawings & Specs	Coating	Design Wavelength (nm)	Extinction Ratio	Diameter (mm)	Availability	Reference Price (USD)
		SLG-NPLP-12.7-550-1500 Soda Lime Glass, Nanoparticle Linear Polarizer, Ø= 12.7mm, DWL= 550-1500nm		Uncoated			12.7	2-3 Weeks	Request for quote
		SLG-NPLP-12.7-550-900 Soda Lime Glass, Nanoparticle Linear Polarizer, Ø= 12.7mm, DWL= 550-900nm		Uncoated		>1000:1	12.7	2-3 Weeks	Request for quote
		SLG-NPLP-12.7-650-2000 Soda Lime Glass, Nanoparticle Linear Polarizer, Ø= 12.7mm, DWL= 650-2000nm		Uncoated			12.7	2-3 Weeks	Request for quote
		SLG-NPLP-25.4-550-1500 Soda Lime Glass, Nanoparticle Linear Polarizer, Ø= 25.4mm, DWL= 550-1500nm		Uncoated			25.4	2-3 Weeks	Request for quote
		SLG-NPLP-25.4-550-900 Soda Lime Glass, Nanoparticle Linear Polarizer, Ø= 25.4mm, DWL= 550-900nm		Uncoated		>1000:1	25.4	2-3 Weeks	Request for quote
		SLG-NPLP-25.4-650-2000 Soda Lime Glass, Nanoparticle Linear Polarizer, Ø= 25.4mm, DWL= 650-2000nm		Uncoated			25.4	2-3 Weeks	Request for quote

SLG-NPLP-25.4-650-2000 - Parameter

Type

Nanoparticle Linear Polarizer

Material

Soda Lime Glass

Coating

Uncoated

Diameter (mm)

25.4

Diameter Tolerance (mm)

+0.0/-0.2

Thickness Tolerance (mm)

± 0.05

Design Wavelength (nm)

Surface Quality

40/20

Clear Aperture

>90%

Damage Threshold (pulsed)

>25W/cm2

Thickness (mm)

0.2

Parallelism (arcmin)

<20

Transmission Range

Extinction Ratio

Acceptance Angle

>20°

SLG-NPLP-25.4-550-900 - Parameter

Type

Nanoparticle Linear Polarizer

Material

Soda Lime Glass

Coating

Uncoated

Diameter (mm)

25.4

Diameter Tolerance (mm)

+0.0/-0.2

Thickness Tolerance (mm)

± 0.05

Design Wavelength (nm)

Surface Quality

40/20

Clear Aperture

>90%

Damage Threshold (pulsed)

>25W/cm2

Thickness (mm)

0.2

Parallelism (arcmin)

<20

Transmission Range

Extinction Ratio

>1000:1

Acceptance Angle

>20°

SLG-NPLP-25.4-550-1500 - Parameter

Type

Nanoparticle Linear Polarizer

Material

Soda Lime Glass

Coating

Uncoated

Diameter (mm)

25.4

Diameter Tolerance (mm)

+0.0/-0.2

Thickness Tolerance (mm)

± 0.05

Design Wavelength (nm)

Surface Quality

40/20

Clear Aperture

>90%

Damage Threshold (pulsed)

>25W/cm2

Thickness (mm)

Parallelism (arcmin)

<20

Transmission Range

Extinction Ratio

Acceptance Angle

>20°

SLG-NPLP-12.7-650-2000 - Parameter

Type

Nanoparticle Linear Polarizer

Material

Soda Lime Glass

Coating

Uncoated

Diameter (mm)

12.7

Diameter Tolerance (mm)

+0.0/-0.2

Thickness Tolerance (mm)

± 0.05

Design Wavelength (nm)

Surface Quality

40/20

Clear Aperture

>90%

Damage Threshold (pulsed)

>25W/cm2

Thickness (mm)

0.2

Parallelism (arcmin)

<20

Transmission Range

Extinction Ratio

Acceptance Angle

>20°

SLG-NPLP-12.7-550-900 - Parameter

Type

Nanoparticle Linear Polarizer

Material

Soda Lime Glass

Coating

Uncoated

Diameter (mm)

12.7

Diameter Tolerance (mm)

+0.0/-0.2

Thickness Tolerance (mm)

± 0.05

Design Wavelength (nm)

Surface Quality

40/20

Clear Aperture

>90%

Damage Threshold (pulsed)

>25W/cm2

Thickness (mm)

0.2

Parallelism (arcmin)

<20

Transmission Range

Extinction Ratio

>1000:1

Acceptance Angle

>20°

SLG-NPLP-12.7-550-1500 - Parameter

Type

Nanoparticle Linear Polarizer

Material

Soda Lime Glass

Coating

Uncoated

Diameter (mm)

12.7

Diameter Tolerance (mm)

+0.0/-0.2

Thickness Tolerance (mm)

± 0.05

Design Wavelength (nm)

Surface Quality

40/20

Clear Aperture

>90%

Damage Threshold (pulsed)

>25W/cm2

Thickness (mm)

Parallelism (arcmin)

<20

Transmission Range

Extinction Ratio

Acceptance Angle

>20°

SLG-NPLP-25.4-650-2000 - Download

SLG-NPLP-25.4-550-900 - Download

SLG-NPLP-25.4-550-1500 - Download

SLG-NPLP-12.7-650-2000 - Download

SLG-NPLP-12.7-550-900 - Download

SLG-NPLP-12.7-550-1500 - Download
