陷波滤波器 | 瑆创光学电子商店

陷波滤波器
Chroma的尖端磁控溅射涂层工艺确保涂层机连续精确运行超过30小时,能够制造出具有高透过率、超宽透过范围、高截止深度/高反射率、窄带宽和高损伤阈值的缺口滤光片和二色镜。

它适用于各种激光系统,如激光诱导荧光、拉曼、激光诱导击穿光谱学和生物光子学。Chroma有两种类型的缺口滤光片:缺口滤光片和TopNotchTM滤光片。TopNotchTM滤光片是Chroma的高端缺口滤光片,提供以下特性:
  • 超宽透过范围(350 - 1600 纳米)
  • 窄带宽(缺口中心波长的3%)
  • 高截止深度(OD > 6)
  • 宽截止范围(> 6 纳米)
  • 高损伤阈值(532纳米,10纳秒,10赫兹时为1.75焦耳/平方厘米)

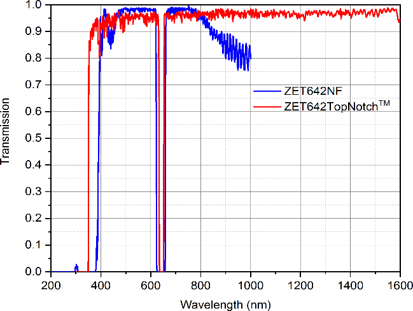

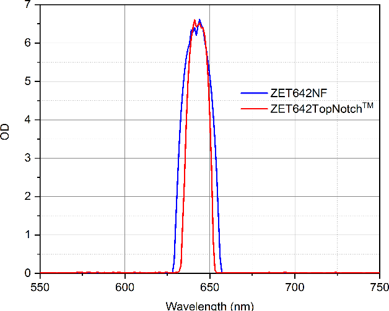

两种陷波滤光片ZET642NF  ZET642TopNottchTM)的测量射率 OD 曲线

陷波滤波器
光谱透射曲线
激光波长(nm)
陷波滤波器 陷波带宽(典型值)nm 激光切断深度 工作波段范围(nm)
457 ZET457NF 22 OD >/= 6 410 - 750
473 ZET473NF 25 OD >/= 6 415 - 750
488 ZET488NF 23 OD >/= 6 410 - 800
ZET488TopNotch™ < 17  OD >/= 6 350 - 1600
514 ZET514TopNotch™ < 18  OD >/= 6 350 - 1600
532 ZET532TopNotch™ < 19  OD >/= 6 350 - 1600
561 ZET561NF 27 OD >/= 6 410 - 800
ZET561TopNotch™ < 20  OD >/= 6 350 - 1600
594 ZET594TopNotch™ </= 21  OD >/= 6 350 - 1600
633 ZET633TopNotch™ </= 22  OD >/= 6 350 - 1600
635 ZET635NF 32 OD >/= 6 410 - 800
642 ZET642NF 37 OD >/= 6 412 - 800
ZET642TopNotch™ </= 22  OD >/= 6 350 - 1600
647 ZET647NF 34 OD >/= 6 410 - 800
685 ZET685NF 36 OD >/= 5.5 435 - 850
785 ZET785NF 38 OD >/= 5 485 - 1000
ZET785TopNotch™ </= 27  OD >/= 6 350 - 1600

*注意:价格不包括任何运费、税费或清关费用


缺口二色镜
光谱透射曲线
二向色镜模型 陷波中心波长 中心波长反射率 工作频段范围
ZT442dcrb 442 nm >/= 98% 350 - 700 nm
ZT457dcrb 457 nm >/= 98% 360 - 700 nm
ZT473dcrb 473 nm >/= 98% 385 - 800 nm
ZT488dcrb 488 nm >/= 98% 365 - 750 nm
ZT532dcrb 532 nm >/= 98% 405 - 830 nm
ZT543dcrb 543 nm >/= 98% 410 - 850 nm
ZT550dcrb 550 nm >/= 98% 450 - 680 nm
ZT561dcrb 561 nm >/= 98% 350 - 800 nm
ZT594dcrb 594 nm >/= 98% 400 - 700 nm
ZT635dcrb 635 nm >/= 98% 410 - 780 nm
ZT656dcrb 656 nm >/= 98% 400 - 1100 nm

*注意:价格不包括任何运费、税费或清关费用


我们在这里为您服务!





给我们发电子邮件 info@simtrum.com 以获得今天最优惠的价格。   想要更多的技术信息?点击这里 获取专业定制系统/解决方案。




没有时间逐个搜索产品?不用担心。您可以下载全系列的瑆创产品线卡现在点击它。



想要更接近市场动态和技术发展吗?只需花5秒钟作为会员登录,我们将为您带来最新的新闻。​(屏幕右上方的登录按钮)



Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
ZET457NF Filter
ZET457NF Notch filter,Laser wavelength 457 nm,Notch bandwidth 22 nm
4-6 Weeks $495.00
ZET473NF Filter
ZET473NF Notch filter,Laser wavelength 473 nm,Notch bandwidth 25 nm
4-6 Weeks $495.00
ZET488NF Filter
ZET488NF Notch filter,Laser wavelength 488 nm,Notch bandwidth 23 nm
4-6 Weeks $495.00
ZET488TopNotch™Notch Filter
ZET488TopNotch™Notch filter,Laser wavelength 488 nm,Notch bandwidth < 17 nm
4-6 Weeks $825.00
ZET514TopNotch™ Filter
ZET514TopNotch™ Notch filter,Laser wavelength 514 nm,Notch bandwidth < 18 nm
4-6 Weeks $825.00
ZET532TopNotch™Filter
ZET532TopNotch™Notch filter,Laser wavelength 532 nm,Notch bandwidth < 19 nm
4-6 Weeks $825.00
ZET561NF Filter
ZET561NF Notch filter,Laser wavelength 561 nm,Notch bandwidth 27 nm
4-6 Weeks $495.00
ZET561TopNotch™Filter
ZET561TopNotch™Notch filter,Laser wavelength 561 nm,Notch bandwidth < 20 nm
4-6 Weeks $825.00
ZET594TopNotch™ Filter
ZET594TopNotch™Notch filter,Laser wavelength 594 nm,Notch bandwidth
4-6 Weeks $825.00
ZET633TopNotch™ Filter
ZET633TopNotch™ Notch filter,Laser wavelength 633 nm,Notch bandwidth
4-6 Weeks $825.00
ZET635NF Filter
ZET635NF Notch filter,Laser wavelength 635 nm,Notch bandwidth 32 nm
4-6 Weeks $495.00
ZET642NF Filter
ZET642NF Notch filter,Laser wavelength 642 nm,Notch bandwidth 37 nm
4-6 Weeks $495.00
ZET642TopNotch™ Filter
ZET642TopNotch™ Notch filter,Laser wavelength 642 nm,Notch bandwidth
4-6 Weeks $825.00
ZET647NF Filter
ZET647NF Notch filter,Laser wavelength 647 nm,Notch bandwidth 34 nm
4-6 Weeks $495.00
ZET685NF Filter
ZET685NF Notch filter,Laser wavelength 685 nm,Notch bandwidth 36 nm
4-6 Weeks $495.00
ZET785NF Filter
ZET785NF Notch filter,Laser wavelength 785 nm,Notch bandwidth 38 nm
4-6 Weeks $495.00
ZET785TopNotch™ Filter
ZET785TopNotch™ Notch filter,Laser wavelength 785 nm,Notch bandwidth
4-6 Weeks $825.00
ZT442dcrb
ZT442dcrb Notch Dichroic Mirror,Notch Center Wavelength 442 nm,Center Wavelength reflectivity >/= 98%
4-6 Weeks $550.00
ZT457dcrb
ZT457dcrb Notch Dichroic Mirror,Notch Center Wavelength 457 nm,Center Wavelength reflectivity >/= 98%
4-6 Weeks $650.00
ZT473dcrb
ZT473dcrb Notch Dichroic Mirror,Notch Center Wavelength 473 nm,Center Wavelength reflectivity >/= 98%
4-6 Weeks $730.00
ZT488dcrb
ZT488dcrb Notch Dichroic Mirror,Notch Center Wavelength 488 nm,Center Wavelength reflectivity >/= 98%
4-6 Weeks $550.00
ZT532dcrb
ZT532dcrb Notch Dichroic Mirror,Notch Center Wavelength 532 nm,Center Wavelength reflectivity >/= 98%
4-6 Weeks $550.00
ZT543dcrb
ZT543dcrb Notch Dichroic Mirror,Notch Center Wavelength 543 nm,Center Wavelength reflectivity >/= 98%
4-6 Weeks $730.00
ZT550dcrb
ZT550dcrb Notch Dichroic Mirror,Notch Center Wavelength 550 nm,Center Wavelength reflectivity >/= 98%
4-6 Weeks $730.00
ZT561dcrb
ZT561dcrb Notch Dichroic Mirror,Notch Center Wavelength 561 nm,Center Wavelength reflectivity >/= 98%
4-6 Weeks $550.00
ZT594dcrb
ZT594dcrb Notch Dichroic Mirror,Notch Center Wavelength 594 nm,Center Wavelength reflectivity >/= 98%
4-6 Weeks $550.00
ZT635dcrb
ZT635dcrb Notch Dichroic Mirror,Notch Center Wavelength 635 nm,Center Wavelength reflectivity >/= 98%
4-6 Weeks $550.00
ZT656dcrb
ZT656dcrb Notch Dichroic Mirror,Notch Center Wavelength 656 nm,Center Wavelength reflectivity >/= 98%
4-6 Weeks $550.00
