多光子显微镜的滤光片
由于多光子系统使用非常的脉冲激光器因此它们需要在激光波段范围内具有 OD8+ 深度通常为 680 - 1064 nm二向色,在波段范围内具有反射率可见光区域具有透射率  避免激光探测器造成 损伤,建议多路滤波器的检测路径永久放置一个OD8+滤光片-光子系统 然后相应的滤光片 激光波段中的OD6+截止深度放在前面 检测器根据 具体要求

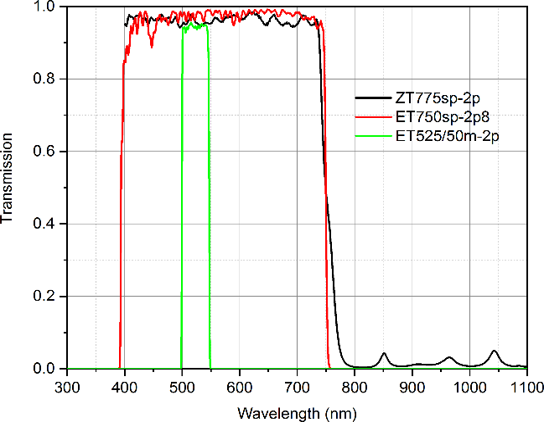

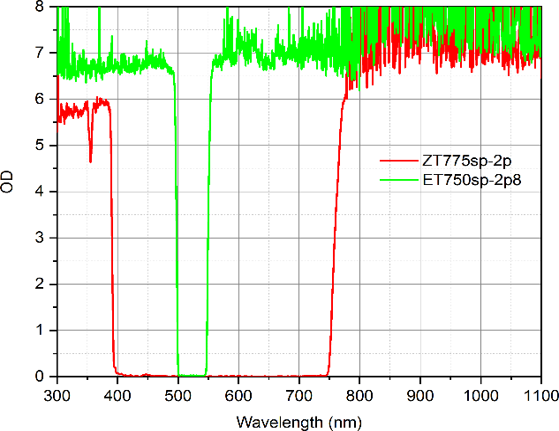

GFP光子成像滤光片配置ZT775sp-2p  反射2p激光透射荧光二向色ET750sp-2p8 可用于 2p 激光波段发射器截止深度 OD8+ 而 ET525/50m-2p  一种带通发射器,可接收 GFP 荧光同时在 2p 激光波段 提供 OD6+ 截止深度

ET 系列 - 多光子带通滤光片
光谱透射曲线
过滤 器 中心波长(nm) 透光 率
截止深度nm)
ET460/50m 460/50 Tpeak >/= 90% OD >/= 6 @ 690 - 1100
ET480/40m 480/40 Tpeak >/= 90% OD >/= 6 @ 690 - 1100
ET510/80m 510/80 Tpeak >/= 90% OD >/= 6 @ 690 - 1100
ET520/40m 520/40 Tpeak >/= 90% OD >/= 6 @ 690 - 1100
ET525/50m 525/50 Tpeak >/= 88% OD >/= 6 @ 690 – 1100
ET535/50m 535/50 Tpeak >/= 90% OD >/= 6 @ 690 - 1100
ET550/50m 550/50 Tpeak >/= 90% OD >/= 6 @ 690 - 1100
ET560/80m 560/80 Tpeak >/= 90% OD >/= 6 @ 690 - 1100
ET575/50m 575/50 Tpeak >/= 90% OD >/= 8 @ 730 - 1050
ET595/50m 595/50 Tpeak >/= 90% OD >/= 6 @ 690 - 1100
ET610/75m 610/75 Tpeak >/= 90% OD >/= 6 @ 690 - 1100

ET 系列 - 多光子短波通滤光片
光谱透射曲线
过滤 器

透光率(nm)
截止深度nm)
ET680sp-2p8 >/= 95% avg @ 400 - 670 OD >/= 7 @ 705 - 1080
ET850sp-2p >/= 95% avg @ 400 - 840 OD >/= 8 avg @ 890 - 1490
*注意:价格不包括任何运费、税费或清关费用

多光子二向色
过滤器 透光率(nm)
截止深度(nm)
平整 度 厚度(mm)

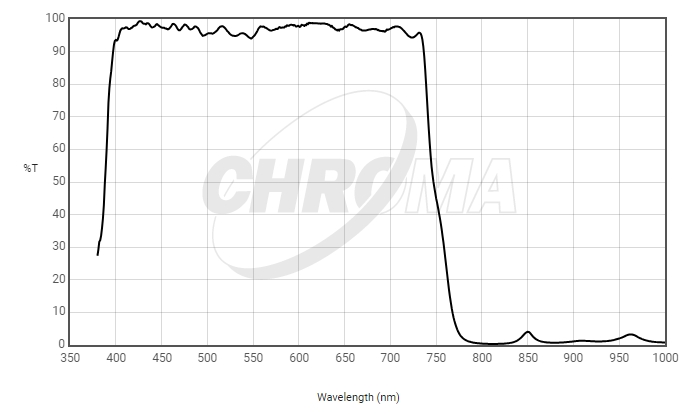

ZT775sp-2p >/= 95% avg @ 400 - 740  >/= 98% avg @ 775 - 1200  </= 2 waves/inch P-V 1




我们在这里为您服务!





给我们发电子邮件 info@simtrum.com 以获得今天最优惠的价格。   想要更多的技术信息?点击这里 获取专业定制系统/解决方案。




没有时间逐个搜索产品?不用担心。您可以下载全系列的瑆创产品线卡现在点击它。



想要更接近市场动态和技术发展吗?只需花5秒钟作为会员登录,我们将为您带来最新的新闻。​(屏幕右上方的登录按钮)



Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
ET460/50m Filter
ET460/50m ET Series Multiphoton Bandpass Filter,Center wavelength / bandwidth 460/50 nm,Transmittance Tpeak >/= 90%,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $365.00
ET480/40m Filter
ET480/40m ET Series Multiphoton Bandpass Filter,Center wavelength / bandwidth 480/40 nm,Transmittance Tpeak >/= 90%,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $365.00
ET510/80m Filter
ET510/80m ET Series Multiphoton Bandpass Filter,Center wavelength / bandwidth 510/80 nm,Transmittance Tpeak >/= 90%,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $365.00
ET520/40m Filter
ET520/40m ET Series Multiphoton Bandpass Filter,Center wavelength / bandwidth 520/40 nm,Transmittance Tpeak >/= 90%,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $365.00
ET525/50m Filter
ET525/50m ET Series Multiphoton Bandpass Filter,Center wavelength / bandwidth 525/50 nm,Transmittance Tpeak >/= 88%,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $365.00
ET550/50m Filter
ET550/50m ET Series Multiphoton Bandpass Filter,Center wavelength / bandwidth 550/50 nm,Transmittance Tpeak >/= 90%,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $365.00
ET535/50m Filter
ET535/50m ET Series Multiphoton Bandpass Filter,Center wavelength / bandwidth 535/50 nm,Transmittance Tpeak >/= 90%,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $365.00
ET560/80m Filter
ET560/80m ET Series Multiphoton Bandpass Filter,Center wavelength / bandwidth 560/80 nm,Transmittance Tpeak >/= 90%,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $365.00
ET575/50m Filter
ET575/50m ET Series Multiphoton Bandpass Filter,Center wavelength / bandwidth 575/50 nm,Transmittance Tpeak >/= 90%,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $365.00
ET595/50m Filter
ET595/50m ET Series Multiphoton Bandpass Filter,Center wavelength / bandwidth 595/50 nm,Transmittance Tpeak >/= 90%,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $365.00
ET610/75m Filter
ET610/75m ET Series Multiphoton Bandpass Filter,Center wavelength / bandwidth 610/75 nm,Transmittance Tpeak >/= 90%,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $365.00
ET680sp-2p8 Filter
ET680sp-2p8 ET Series Multiphoton Shortpass Filters,Transmittance >/= 95% avg @ 400 - 670 nm,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $725.00
ET850sp-2p Filter
ET850sp-2p ET Series Multiphoton Shortpass Filters,Transmittance >/= 95% avg @ 400 - 840 nm,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $775.00
ZT775sp-2p Filter
ZT775sp-2p Multiphoton short-pass dichroic mirrors,,Transmittance >/= 95% avg @ 400 - 740 nm,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $475.00

ZT775sp-2p Filter - Parameter

ET850sp-2p Filter - Parameter

ET680sp-2p8 Filter - Parameter

ET610/75m Filter - Parameter

ET595/50m Filter - Parameter

ET575/50m Filter - Parameter

ET560/80m Filter - Parameter

ET535/50m Filter - Parameter

ET550/50m Filter - Parameter

ET525/50m Filter - Parameter

ET520/40m Filter - Parameter

ET510/80m Filter - Parameter

ET480/40m Filter - Parameter

ET460/50m Filter - Parameter

ZT775sp-2p Filter - Download

ET850sp-2p Filter - Download

ET680sp-2p8 Filter - Download

ET610/75m Filter - Download

ET595/50m Filter - Download

ET575/50m Filter - Download

ET560/80m Filter - Download

ET535/50m Filter - Download

ET550/50m Filter - Download

ET525/50m Filter - Download

ET520/40m Filter - Download

ET510/80m Filter - Download

ET480/40m Filter - Download

ET460/50m Filter - Download
