c++波段宽带ASE光源(1524-1572nm)

C++ Band Broadband ASE Light Source



The C++ band broadband ASE light source is a high-performance light source with a wider spectral range and spectral flatness better than 2.5dB. It is output via single-mode fiber or polarization-maintaining fiber and is suitable for applications such as fiber sensing.



This light source also has pigtail interface type and pigtail type optional, the operating temperature range is -5~55℃, the operating humidity is 0~70%, the storage humidity is -20~65℃. In general, the C++ band ASE broadband light source is a high-performance, versatile light source with wide spectrum, high power, good stability and other advantages, which is very suitable for fiber sensing and other optical applications.

Key Features

  • Flat Spectrum
  • Power Adjustable
  • Wider Spectral Range

Applications

  • Optical Fiber Sensing
  • Medical Imaging
  • Production Test






Product Specifications and Brochures

Product Brochure Link:



Optical Parameters Unit Typical Value   Remarks

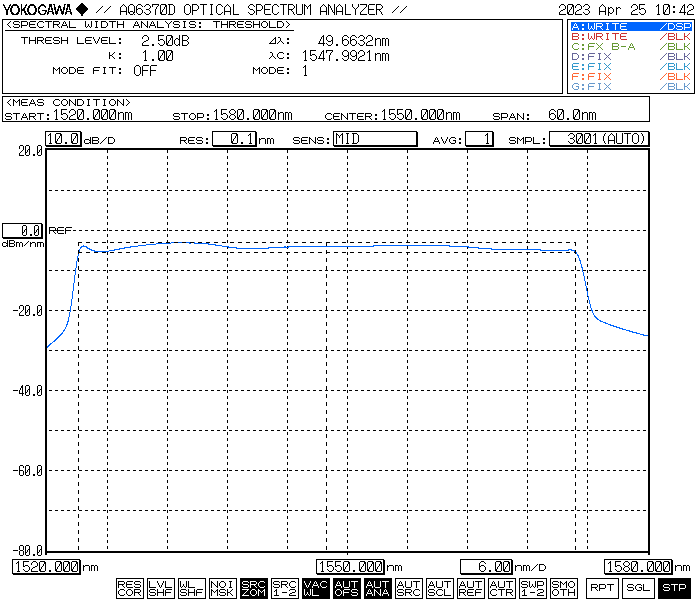

Spectral Range nm 1524~1572    2.5dB Range
Output Optical Power mW 10/20/50/100/200
Power Djustable (Optional) 10%~100%   Spectral Flatness Maintenance
Spectral Flatness dB  2.5(Typical)
Output Isolation dB >35
Short-term Stability (15 minutes) dB ≤ ±0.02   Equivalent ≤±0.5%
Long-term Stability (8 hours) dB ≤ ±0.05   Equivalent ≤±1.2%
Polarization Extinction Ratio PER dB ≤ 0.2 ≥23
Optical Fiber& Connnector SMF-28  PM1550  FC/APC



General Parameters Desktop Module Module
Control Function Keystroke RS232 Serial Port Communication
Remote Control Port Optional DB9 Female
Power Supply 100~240V AC, <30W 5V DC, <15W
Dimensions 260(W)×280(D)×120(H)mm 125(W)x150(D)x31.5(H)mm
Operating Temperature  -5~+35°C
Operating Humidity 0~70%



Ordering Information/Product Code
ASE Spectral Range Saturation output power (mW) * Power Djustable (Optional) Fiber Type Packaging
  C++ 10/20/50/100/200 *T SM= SMF-28
PM=PM1550
M=Module
B=Table Model




Type Spectral Range (nm) Output Optical Power(mW)
C-Band Broadband ASE Light Source 1528 - 1563 10/20/50/100/200/400
L-Band Broadband ASE Light Source 1567 - 1603 10/20/50/100
C+L Band Boardband ASE Light Source 1528 - 1603 10/20/50/100/200
C++ Band Boardband ASE Light Source 1524 - 1572 10/20/50/100/200
1060nm Broadband ASE Light Source 1030 - 1080 10/20/30/50
2000nm Broadband ASE Light Source 1850 - 2000 10




We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
ASE-C++-10-SM-B
C++ Band Broadband ASE Light Source,spectral range 1524~1572nm,output power 10mW
4-6 Weeks Request for quote
ASE-C++-20-SM-B
C++ Band Broadband ASE Light Source,spectral range 1524~1572nm,output power 20mW
4-6 Weeks Request for quote
ASE-C++-50-SM-B
C++ Band Broadband ASE Light Source,spectral range 1524~1572nm,output power 50mW
4-6 Weeks Request for quote
ASE-C++-100-SM-B
C++ Band Broadband ASE Light Source,spectral range 1524~1572nm,output power 100mW
4-6 Weeks Request for quote
ASE-C++-200-SM-B
C++ Band Broadband ASE Light Source,spectral range 1524~1572nm,output power 200mW
4-6 Weeks Request for quote

ASE-C++-200-SM-B - Parameter

ASE-C++-100-SM-B - Parameter

ASE-C++-50-SM-B - Parameter

ASE-C++-20-SM-B - Parameter

ASE-C++-10-SM-B - Parameter

ASE-C++-200-SM-B - Download

ASE-C++-100-SM-B - Download

ASE-C++-50-SM-B - Download

ASE-C++-20-SM-B - Download

ASE-C++-10-SM-B - Download
