工业高分辨率摄像机

产品概述规格参数 Order Now!

工业高分辨率摄像机

该工业高分辨率相机系列具有高达9K的高分辨率。产品已广泛应用于高精度机械测量、平板显示检测、半导体检测、天文观测等工业检测领域。

产品特征

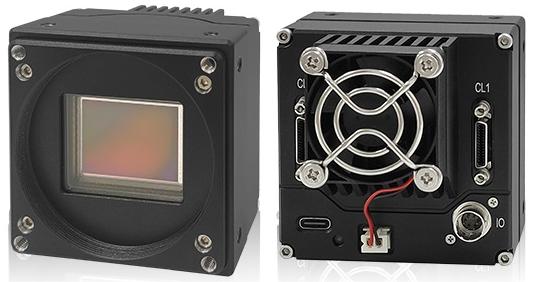

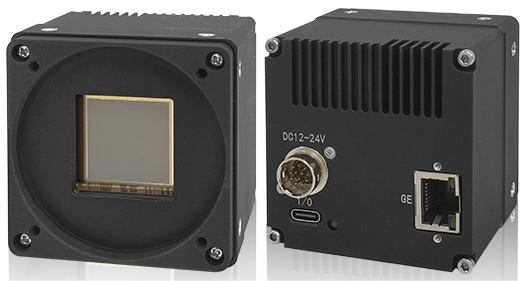

STS25MGV-10M STS31MSGV-6M/C	STS65MCL-12M/C
-全局快门CMOS -灵敏度高，噪音低 -ROI/Binning/LUT/自动白平衡 -模拟增益/数字增益/失调控制 -扫描方向可配置 -温度监控 -千兆视觉接口，支持远距离传输 -支持Gige vision 2.0和GenlCam标准	-ROI -全局快门CMOS -灵敏度高，噪音低 -丰富的曝光控制模式 -缺陷像素校正/FFC -模拟增益/数字增益/失调控制 -自动白平衡 -温度监控

应用

STS25MGV-10M / STS65MCL-12M/C

STS31MSGV-6M/C

-高精度机械测量

-平板显示检测

-半导体检验

-电子检验

-天文观测

-科学实验

-高精度机械测量

-火焰/ 3C检查

-晶圆片表面检查

-科学实验

-天文观测

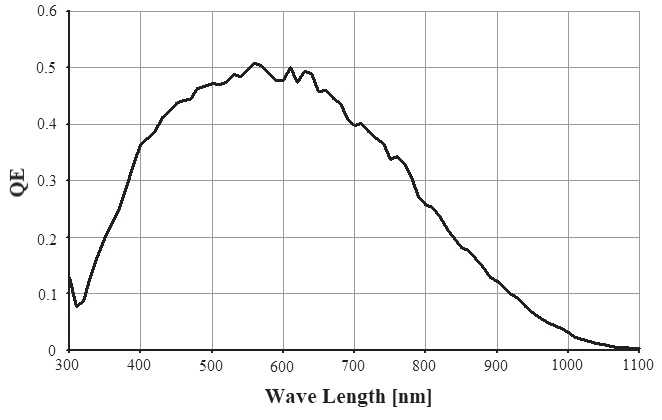

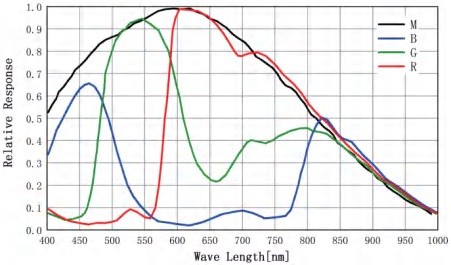

光谱响应

STS65MCL-12M/C

STS31MSGV-6M/C

STS25MGV-10M

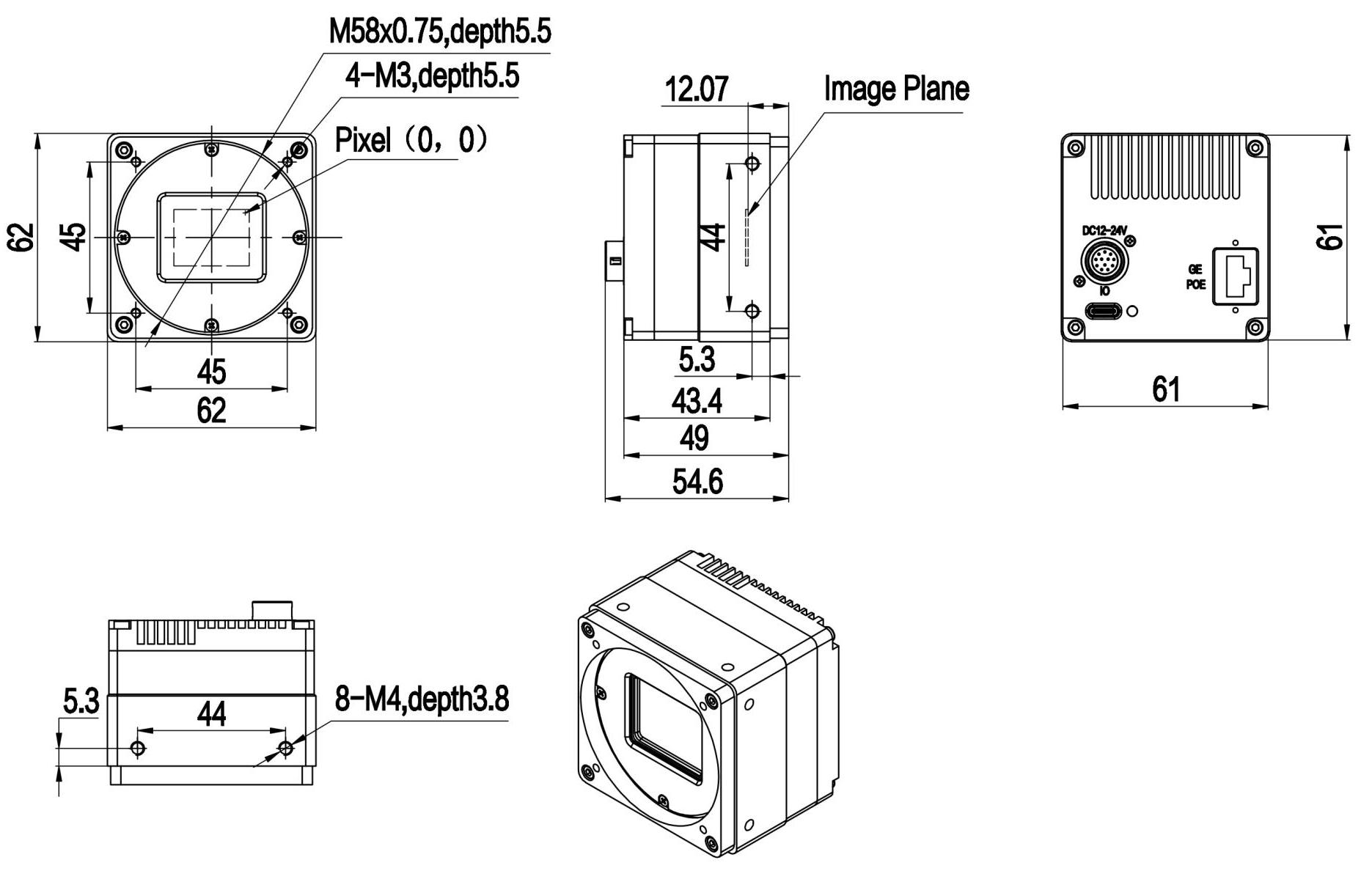

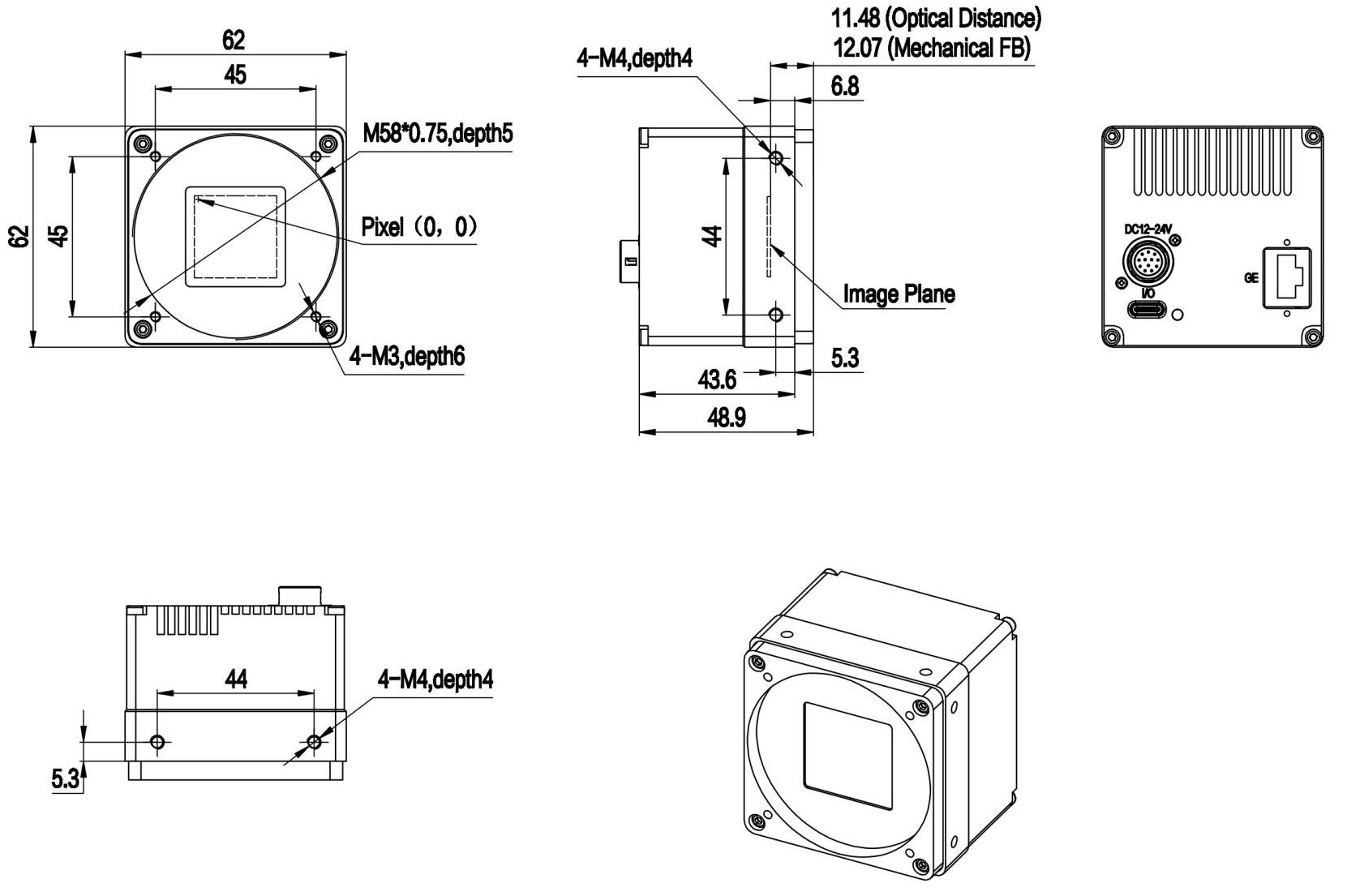

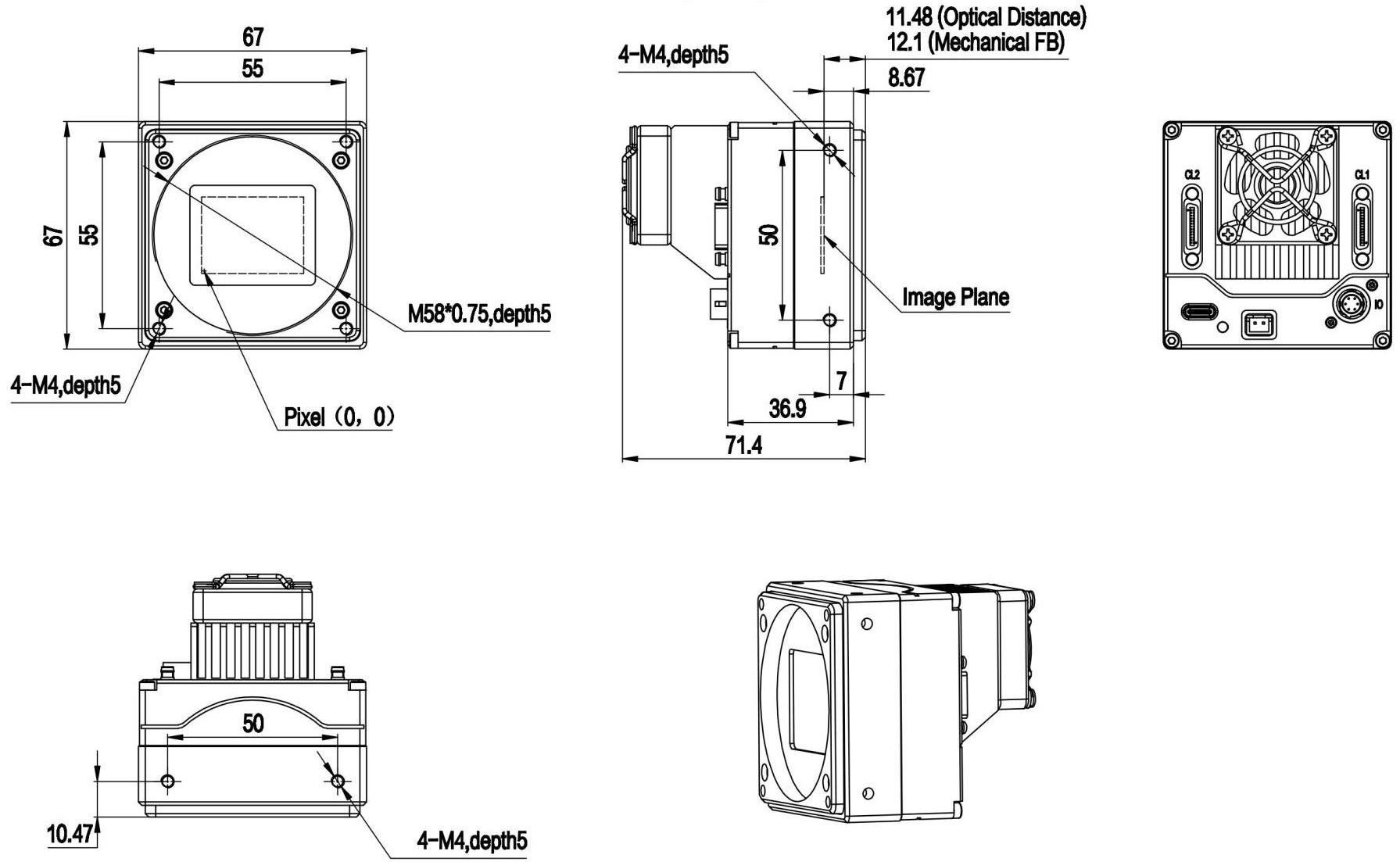

图纸

STS25MGV-10M	STS31MSGV-6M/C


STS65MCL-12M/C

产品规格及说明书

产品简介链接：

型号	STS25MGV-10M	STS31MSGV-6M/C	STS65MCL-12M/C
图像
传感器	全局快门CMOS
图像模式	单色	单色/彩色	单色/彩色
光学尺寸	32.58 mm	27.88 mm	37.36 mm
分辨率	5120 * 5120	6464* 4852	9344*7000
像素大小	4.5μm * 4.5μm	3.45μm*3.45μm	3.2μm*3.2μm
最大帧率	4.72fps(10fps with SAccel™)	4fps(10fps with SAccel™)	12.47fps@8bit, 10.16fps@10bit, 5.08fps@12bit
数字格式	8/10/10 packed	8/10/12 packed/unpacked	8/10/12 bit
动态范围	≥55 dB	≥71dB	≥62 dB
数据速率	124 MB/s	124 MB/s	850 MB/s
触发模式	自由运行/外部触发
触发源	/	软件触发/外部IO	摄像机链路CC/外部IO
曝光控制	程序/脉冲宽度
曝光时间	1μs - 10s(Step:1μs ）	lμs-10s(Step:lus)	14μs-10s(Step:lus)
模拟增益	1/1.26/1.87/3.17x	0-24dB	0-12dB
数字增益	0.004-8.000x	0.004-8.000x	0.01-8.00x
镜头接口	M58 / M42 / F mount	M42 / F mount	M58* 0.75
数据接口	GigE Vision	GigE Vision	Camera Link
电源接口	HR10A-10R-12PB(71)(Male)		Hirose HR10A-7R-6PB(Male)
电源	DC12-24V(±10%)1A or PoE power supply		DC12V±10% 1.5A
功耗	6.6W(DC power supply)/ 7.3W(PoE power supply)	5.5W (DC power supply)/ 6W（PoE power supply）	8.6 W
尺寸(WHD)(mm)	62.0x62.0x49.0(无适配器)	62.0x 62.0x55.1	67.0 x 67.0 x 71.4
工作温度	0-50℃	0-65℃	0-65℃
储存温度	-20-75℃

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

	Availability	Reference Price (USD)
STS25MGV-10M Industry High Resolution Camera, Sensor Global Shutter CMOS, Image Mode Mono,Optical Size 32.58MM, Resolution 5120 * 5120, Pixel Size 4.5 * 4.5μm, Max Frame Rate 4.72fps(10fps With SAccel™), Date Format 8/10/10 packed, Dynamic Range ≥55 dB, Data Rate 124 MB/s	6-8 weeks	Request for quote
STS31MSGV-6M/C Industry High Resolution Camera, Sensor Global Shutter CMOS, Image Mode Color/Mono, Optical Size 27.88MM, Resolution 6464* 4852, Pixel Size 3.45*3.45μm, Max Frame Rate 4fps(10fps With SAccel™), Date Format 8/10/12 Packed / Unpacked, Dynamic Range ≥71dB, Data Rate 124 MB/s	6-8 weeks	Request for quote
STS65MCL-12M/C Industry High Resolution Camera, Sensor Global Shutter CMOS, Image Mode Color/Mono, Optical Size 37.36MM, Resolution 93447000, Pixel Size 3.2 3.2μm, Max Frame Rate 12.47fps@8Bit, 10.16fps@10Bit, 5.08fps@12Bit, Date Format 8/10/12 Bit, Dynamic Range ≥62 dB, Data Rate 850 MB/s	6-8 weeks	Request for quote

STS65MCL-12M/C - Parameter

STS31MSGV-6M/C - Parameter

STS25MGV-10M - Parameter

STS65MCL-12M/C - Download

STS31MSGV-6M/C - Download

STS25MGV-10M - Download
