Products / 成像 /工业机器视觉相机 /高速线扫描摄像机 /单线扫描摄像机 /

单线扫描摄像机

7μm x 7μm 5.6μm x 5.6μm 3.5 μm x 3.5 μm 规格参数 Order Now!

单线扫描相机7μm × 7μm像素尺寸

这些单线扫描相机采用单线CMOS，像素尺寸为7μm x 7μm。我们的产品已应用于印刷，包装，文件扫描，物流分拣，锂电池和太阳能电池板的检测。

产品特征

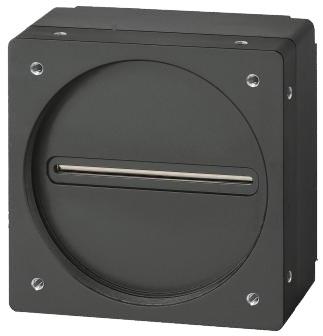

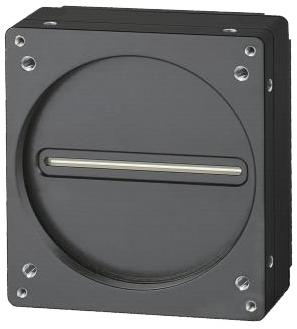

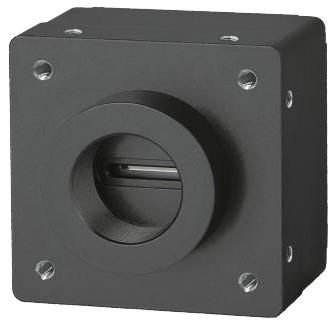

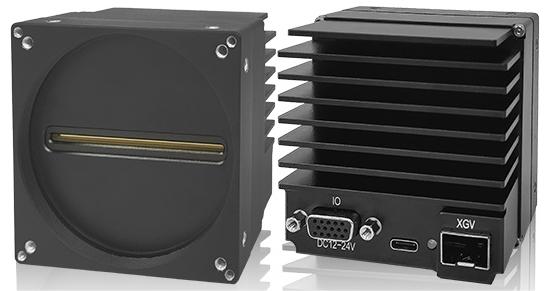

STA8KCL-80KM	STA8KXGV-80KM	STA2KGV-8OK STA8KGV-45KM
-全局快门CMOS -摄像头链接接口和LUT -水平装箱:2 x1 -灵敏度高，噪音低 -串口控制/GUI配置工具可选	-全局快门CMOS -GigE视觉接口 -灵敏度高，噪音低 -绑定和GUI配置工具 -SFP+兼容光/电接口	-全局快门CMOS -GigE视觉接口 -灵敏度高，噪音低 -LUT/FFC

Application

STA2KGV-8OKM / STA8KGV-45KM / STA8KCL-80KM

-印刷和包装检查

-文件扫描/物流整理

-食品和药品检验

-钢板和腹板检验

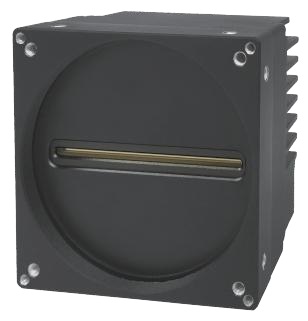

TA8KXGV-80KM

-印刷电路板检查

-平板显示检测

-锂电池/太阳能电池板检测

-半导体检验

-钢板和腹板检验

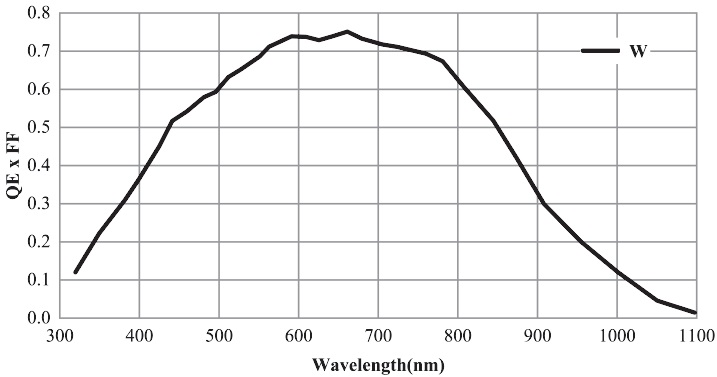

光谱响应

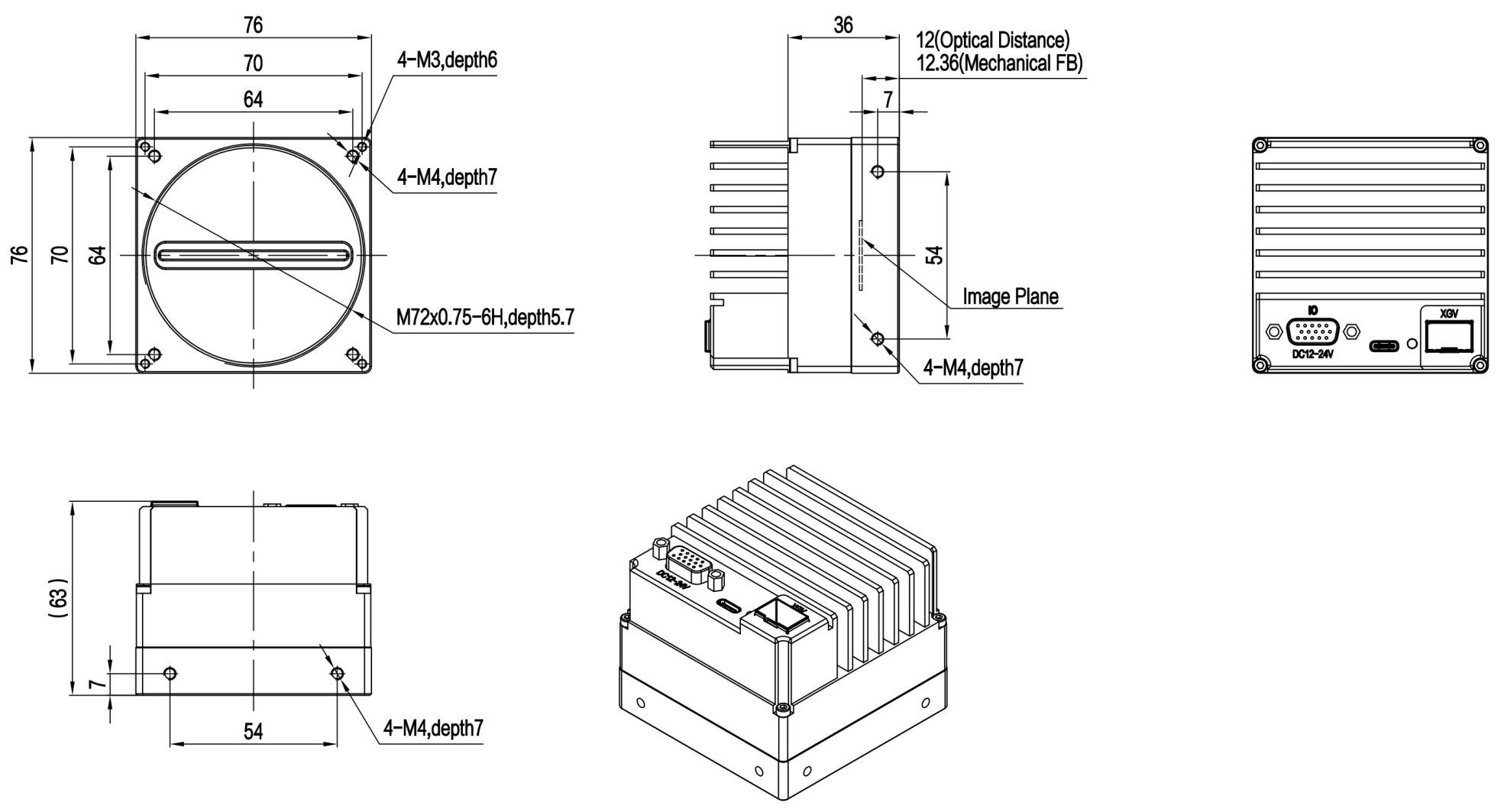

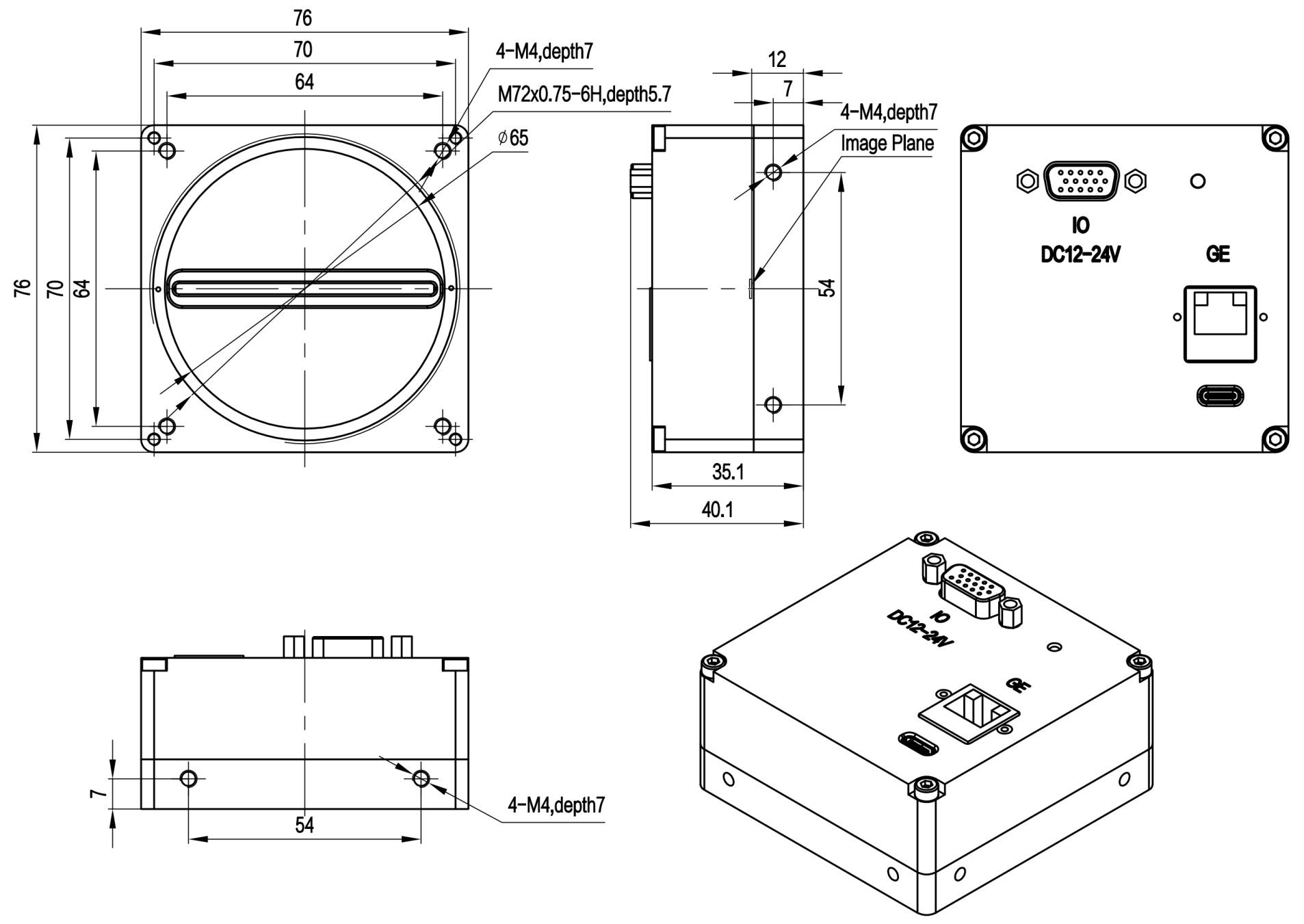

图纸

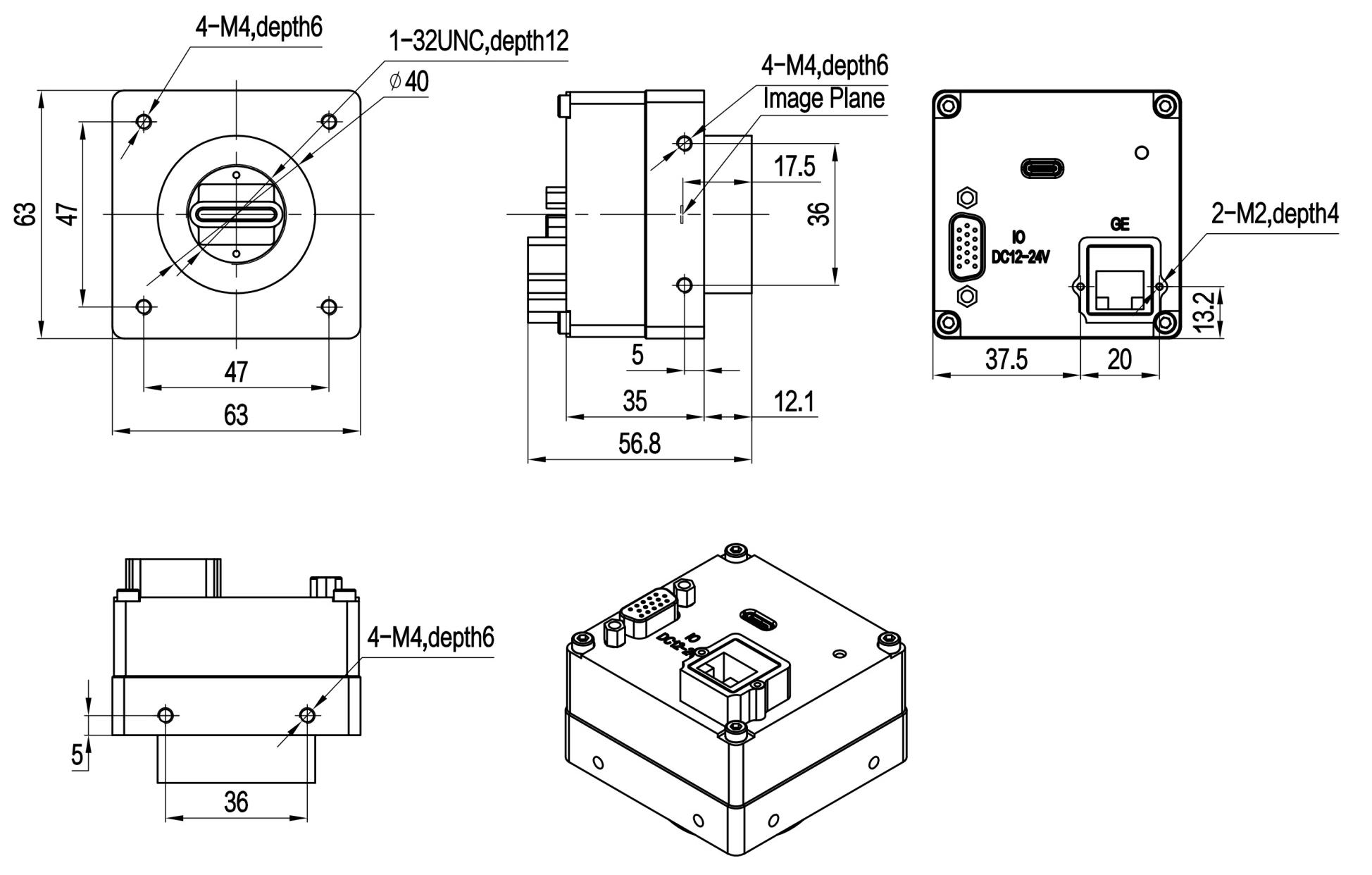

STA2KGV-8OKM	STA8KGV-45KM

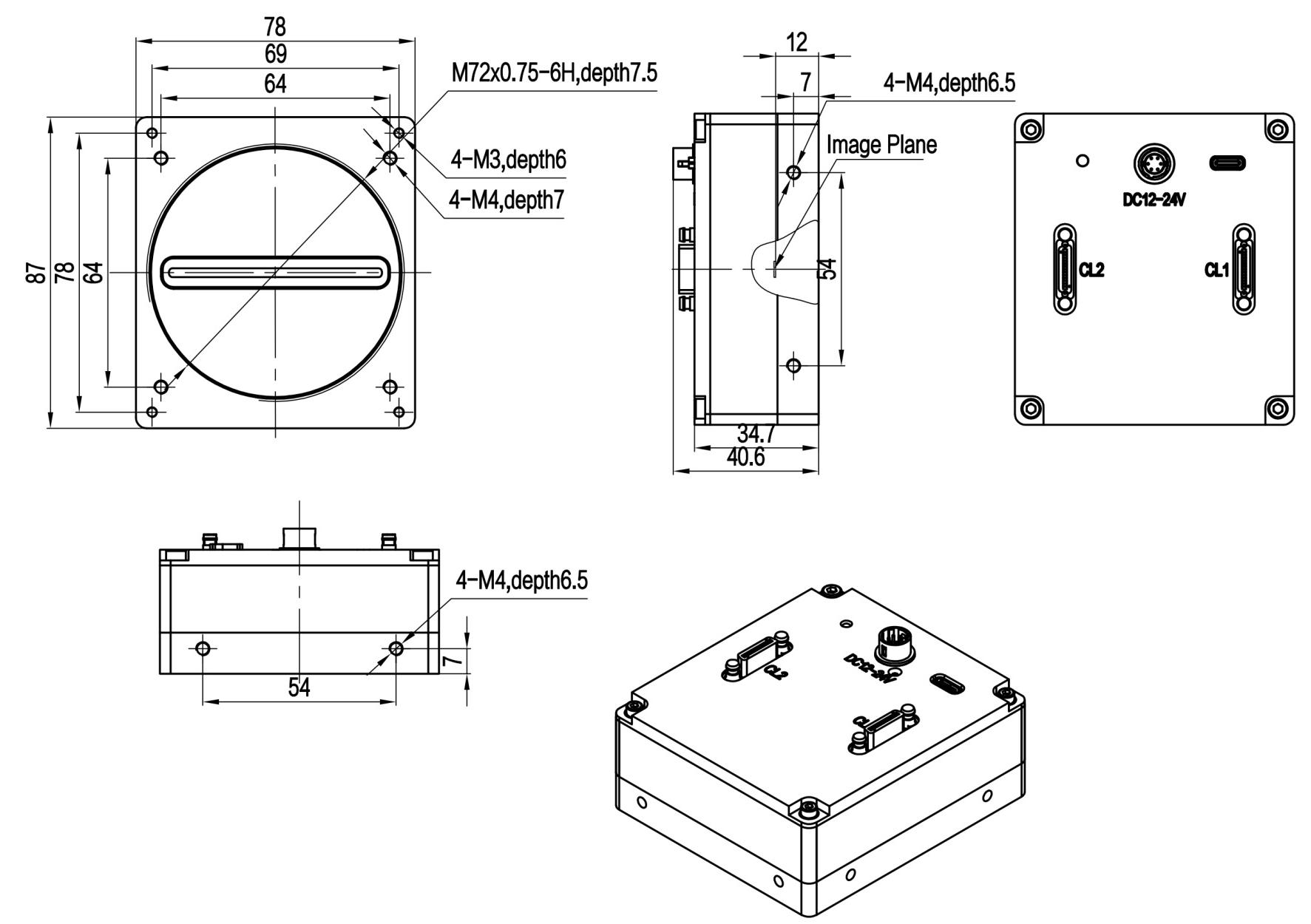

STA8KCL-80KM	STA8KXGV-80KM

单线扫描相机，5.6μm x 5.6μm像素尺寸

这款单线扫描相机采用单线CMOS，像素尺寸为5.6μm x 5.6μm。产品广泛应用于印刷电路板、半导体、印刷、包装、食品、医药等行业的检测。

产品特征
-全局快门CMOS -摄像头链路接口 -Bi-directional扫描 -FFC/自动白平衡 -灵敏度高，噪音低串口控制/GUI配置工具可选 -内部触发器/外部触发器可选	STA15KCL-18KC

应用
-印刷电路板检查 -半导体检验 -印刷和包装检查 -食品和药品检验

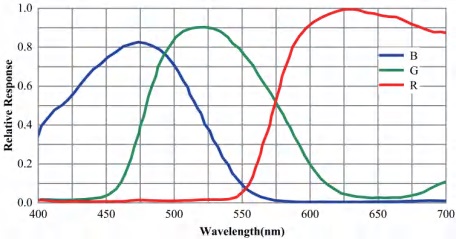

光谱响应

单线扫描相机，3.5 μm x 3.5 μm像素尺寸

这些单线扫描相机采用单线CMOS，像素尺寸为3.5 μm x 3.5 μm。我们的产品已应用于印刷、包装、文件扫描、物流分拣等行业检验。

Feature

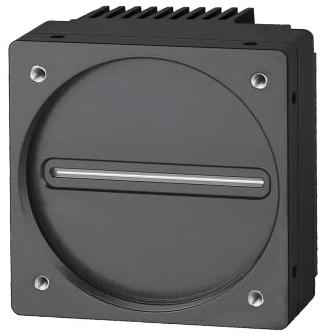

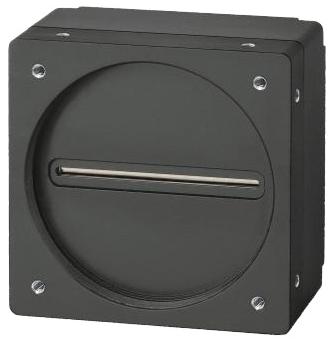

STA16KCL-40KM	STA16KCXP-80KM	STA4KGV-80KM
-全局快门CMOS -摄像头链路接口 -FFC/LUT -水平装箱:2 x1 -灵敏度高，噪音低	-ROI / FFC -全局快门CMOS -Coaxpress接口 -灵敏度高，噪音低 -实时温度监测 -扫描方向可配置	-全局快门CMOS -GigE视觉接口 -灵敏度高，噪音低 -LUT/FFC

应用
STA16KCL-40KM / STA16KCXP-80KM -印刷电路板检查 -平板显示检测 -锂电池/太阳能电池板检测 -半导体检验 -钢板和腹板检验	STA4KGV-80KM -印刷和包装检查 -文件扫描/物流整理 -食品和药品检验 -钢板和腹板检验
光谱响应

图纸

STA4KGV-80KM	STA16KCL-40KM



STA16KCXP-80KM

产品规格及说明书

产品简介链接：

型号	STA2KGV-80KM	STA4KGV-80KM	STA8KGV-45KM	STA8KXGV-80KM	STA8KCL-80KM	STA15KCL-18KC	STA16KCL-40KM	STA16KCXP-80KM
图像
传感器	全局快门CMOS
图像模式	Mono	Mono	Mono	Mono	Mono	Color	Mono	Mono
光学尺寸	14.33mm	14.33mm	57.34 mm	57.34mm	57.34mm	86.38mm	57.34mm	57.34 mm
分辨率	2048*1	4096*1	8192*1	8192*1	8192*1	1/2Tap:154243; 3Tap:154203	16384*1	16384* 1
像素大小	7μm*7μm	3.5μm*3.5μm	7μm*7μm	7μm*7μm	7μm*7μm	5.6μm*5.6μm	3.5μm*3.5μm	3.5μm*3.5μm
最大线路速率	60kHz (80kHz with SAccel^TM)	30kHz(80kHz with SAccel^TM)	15kHz(45kHz with SAccel^TM)	80kHz	80kHz	18kHz@3Tap; 10kHz@2Tap; 5kHz@1Tap	51kHz	80 kHz
位深	8bit	8bit	8bit	8/10bit	8/10bit	8/10bit	8/10bit	8/10 bit
动态范围	≥54dB	≥54dB	≥54dB	≥66dB	≥69.4dB	≥45dB	≥66dB	≥66 dB
数据速率	123 MB/s	123 MB/s	123 MB/s	1225MB/s	680MB/s	820MB/s(3Tap)	835MB/s	1638.4 MB/s
触发模式	Free-run/line trigger control/frame trigger control				Free-run/external pulse/external PWM
曝光控制	Pulse width/program
曝光时间	2.5μs-1s（Step：0.1μs）	2.5μs-1s（Step：0.1μs）	2.5μs-1s（Step：0.1μs）	2μs-0.1s (Step:0.01μs)	2.5μs-10s (Step:0.1μs)	1μs-49998μs (Step:1μs)	2.5μs-1s (Step:0.1μs)	2μs-10s (Step:0.0117μs)
模拟增益	1/2/4/8x	1/2/4/8x	1/2/4/8x	1/2/4/8x	1/2/4/8x	1/1.67/2/3.34x	1/4x	1/2/4/8x
数字增益	0.001-8.000x	0.001-8.000x	0.001-8.000x	0.001-8.000x	0.01-8.00x	0.01-8.00x	0.01-8.00x	0.001-8.000x
数据接口	GigE Vision	GigE Vision	GigE Vision	10GigE Vision(UsingSFP+)	Camera Link	Camera Link	Camera Link	CoaXPress
镜头接口	C Mount	C Mount	M72*0.75	M72*0.75	M72*0.75	M95 * 1	M72*0.75	M72*0.75
电源接口	HD15(Female)	HD15(Female)	HD15(Female)	HD15(Female)	Hirose HR 10A-7R-6PB(Male)	Hirse HR10A-7R-6PB(Male)	Hirose HR10A-7R-6PB(Male)	Hirose HR10A-7R-6PB(Male)
电源	C12-24V(±10%)0.5A	DC12-24V(±10%)0.5A	DC12-24V(±10%)0.5A	DC12-24V(±10%)0.5A	DC12-24V(±10%)1A	DC12V±10% 2A	DC12-24V(±10%)1A	DC12-24V(±10%) 1.5A
功耗	3.0 W	3.4 W	4.2 W	12.0W	<5.0W	15.0W	6.0W	8.4W
尺寸 (WHD)(mm)	63.0x63.0x56.8	63.0x63.0x56.8	76.0x76.0x40.1	76.0x76.0x63.0	78.0x87.0x40.6	120.0x110.0x66.0	82.0x82.0x49.7	82.0x 82.0x51.5
工作温度	0-65℃	0-65℃	0-65℃	0-65℃	0-65℃	0-45℃	0-65℃	0-65℃
储存温度	-20-75℃

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Pixel Size (μm)

Search Reset

	Availability	Reference Price (USD)
STA2KGV-80KM Single Line Scan Camera, Sensor Global shutter CMOS, Image Mode Mono, Optical Size 14.33MM, Resolution 2048*1, Pixel Size 7μm x 7μm, Max Line Rate 60kHz (80kHz with SAccelTM), Bit Depth 8Bit, Dynamic Range ≥54dB, Data Rate 123 MB/s	6-8 weeks	Request for quote
STA4KGV-80KM Single Line Scan Camera, Sensor Global shutter CMOS, Image Mode Mono, Optical Size 14.33MM, Resolution 40961, Pixel Size 3.5μm3.5μm, Max Line Rate 30kHz(80kHz with SAccelTM), Bit Depth 8Bit, Dynamic Range ≥54dB, Data Rate 123 MB/s	6-8 weeks	Request for quote
STA8KGV-45KM Single Line Scan Camera, Sensor Global Shutter CMOS, Image Mode Mono, Optical Size 57.34MM, Resolution 81921, Pixel Size 7μm7μm, Max Line Rate 15kHz(45kHz with SAccelTM), Bit Depth 8Bit, Dynamic Range ≥54dB, Data Rate 123 MB/s	6-8 weeks	Request for quote
STA8KXGV-80KM Single Line Scan Camera, Sensor Global Shutter CMOS, Image Mode Mono, Optical Size 57.34MM, Resolution 81921, Pixel Size 7μm7μm, Max Line Rate 80kHz, Bit Depth 8/10Bit, Dynamic Range ≥66dB, Data Rate 1225MB/s	6-8 weeks	Request for quote
STA8KCL-80KM Single Line Scan Camera, Sensor Global Shutter CMOS, Image Mode Mono, Optical Size 57.34MM, Resolution 81921, Pixel Size 7μm7μm, Max Line Rate 80kHz, Bit Depth 8/10Bit, Dynamic Range ≥69.4dB, Data Rate 680MB/s	6-8 weeks	Request for quote
STA15KCL-18KC Single Line Scan Camera, Sensor Global Shutter CMOS, Image Mode Color, Optical Size 86.38mm, Resolution 1/2Tap 154243, 3Tap 154203, Pixel Size 5.6μm*5.6μm, Max Line Rate 18kHz@3Tap, 10kHz@2Tap, 5kHz@1Tap, Bit Depth 8/10Bit, Dynamic Range ≥45dB, Data Rate 820MB/s(3Tap)	6-8 weeks	Request for quote
STA16KCL-40KM Single Line Scan Camera, Sensor Global Shutter CMOS, Image Mode Mono, Optical Size 57.34MM, Resolution 163841, Pixel Size 3.5μm3.5μm, Max Line Rate 51kHz, Bit Depth 8/10Bit, Dynamic Range ≥66dB, Data Rate 835MB/s	6-8 weeks	Request for quote
STA16KCXP-80KM Single Line Scan Camera, Sensor Global Shutter CMOS, Optical Size 57.34MM, Resolution 16384* 1, Pixel Size 3.5μm*3.5μm, Max Line Rate 80 kHz, Bit Depth 8/10 Bit, Dynamic Range ≥66 dB, Data Rate 1638.4 MB/s	6-8 weeks	Request for quote
