相位调制器

Phase Modulators

Modulator for laser interference, frequency stabilization, atomic cooling and other precision optical systems.

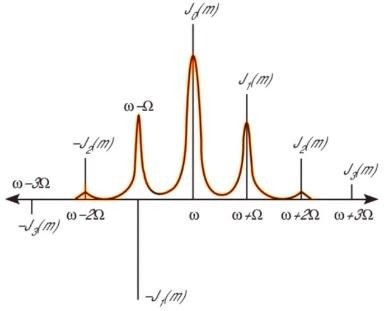

A phase modulator is a modulation device developed based on the electro-optic effect and high-frequency resonator theory, which can phase modulate polarized light. It is often used in precision optics systems such as laser interference, optical frequency combs, laser frequency stabilization, atomic cooling, and the quantum state controlling. When an electrical signal of a specific frequency is injected into the high-frequency resonant cavity, the electromagnetic wave will be continuously reflected in the cavity to form a standing wave, resulting in electromagnetic resonance. The electro-optic crystal produces a birefringence effect under the action of electromagnetic resonance, which eventually leads to the phase change of the light. Our modulators use a variety of electro-optical crystals such as MLN, DKDP, KTP, LT, etc. The wavelength covers 350-3000 nm, the frequency covers 1-4 GHz, and the modulation depth is up to 2 π rad.





Applications

Laser frequency stabilization

Laser interference

Optical frequency comb

Atomic cooling

Quantum state control
















Product specifications and Brochures

Product Brochure Link:


General Specifications
Interaction MaterialMLN / KDP / DKDP
Operating Wavelength280 ~ 960 nm
PolarizationLinear, horizontal
Transmission> 98% ~ 99.2%
Active Aperture*2 mm / 3mm
Center Frequency (Fc)132 kHz ~ 3.07 GHz
Max Modulation Depth1  πrad ~ 1.5  πrad
Shell MaterialAluminium alloy
CoolingConduction-cooled

*   The beam diameter is recommended to be less than 70% of the clear aperture.


Ordering Information



Product CodeWavelengthActive Aperture*Operating FrequencyOptical MaterialMAX Modulation DepthCooling
STPMR0001-L03G-030-780780 nm3 mm2.5 GHzMLN1 πradConduction-cooled
STPMR0002-K01G-030-280280 nm3 mm1.2 GHzKDP1 πradConduction-cooled
STPMR0003-L02G-020-532532 nm2 mm1.8 GHzMLN1 πradConduction-cooled
STPMR0012-L03G-030-935935 nm3 mm3.07 GHzMLN1.5 πradConduction-cooled
STPMR0005-L02G-020-370370 nm2 mm1.75 GHzMLN1.5 πradConduction-cooled
STPMR0013-L02M-030-780780 nm3 mm25 MHzMLN1.2 πradConduction-cooled
STPMN0003-L00M-030-461461 nm3 mm132 kHzMLN1 πradConduction-cooled
STPMR0017-L02M-030-650650 nm2 mm20 MHzMLN1.3 πradConduction-cooled
STPMR0006-D20M-030-355355 nm3 mm20 MHzDKDP1 πradConduction-cooled
STPMR0007-L42M-030-355960 nm3 mm42 MHzMLN1 πradConduction-cooled
STPMR0014-L02M-030-420420 nm2 mm25 MHzMLN1.4 πradConduction-cooled

*   The beam diameter is recommended to be less than 70% of the clear aperture.



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
STPMR0001-L03G-030-780
Phase Modulators, wavelength 780nm, active aperture 3mm, operating frequency 2.5GHz, optical material MLN, max modulation depth 1πrad, conduction-cooled, provide AOM-matched RF driver
6 - 8 Weeks Request for quote
STPMR0002-K01G-030-280
Phase Modulators, wavelength 280nm, active aperture 3mm, operating frequency 1.2GHz, optical material KDP, max modulation depth 1πrad, conduction-cooled, provide AOM-matched RF driver
6 - 8 Weeks Request for quote
STPMR0003-L02G-020-532
Phase Modulators, wavelength 532nm, active aperture 2mm, operating frequency 1.8GHz, optical material MLN, max modulation depth 1πrad, conduction-cooled, provide AOM-matched RF driver
6 - 8 Weeks Request for quote
STPMR0012-L03G-030-935
Phase Modulators, wavelength 935nm, active aperture 3mm, operating frequency 3.07GHz, optical material MLN, max modulation depth 1.5πrad, conduction-cooled, provide AOM-matched RF driver
6 - 8 Weeks Request for quote
STPMR0005-L02G-020-370
Phase Modulators, wavelength 370nm, active aperture 2mm, operating frequency 1.75GHz, optical material MLN, max modulation depth 1.5πrad, conduction-cooled, provide AOM-matched RF driver
6 - 8 Weeks Request for quote
STPMR0013-L02M-030-780
Phase Modulators, wavelength 780nm, active aperture 3mm, operating frequency 25MHz, optical material MLN, max modulation depth 1.2πrad, conduction-cooled, provide AOM-matched RF driver
6 - 8 Weeks Request for quote
STPMN0003-L00M-030-461
Phase Modulators, wavelength 461nm, active aperture 3mm, operating frequency 132kHz, optical material MLN, max modulation depth 1πrad, conduction-cooled, provide AOM-matched RF driver
6 - 8 Weeks Request for quote
STPMR0017-L02M-030-650
Phase Modulators, wavelength 650nm, active aperture 2mm, operating frequency 20MHz, optical material MLN, max modulation depth 1.3πrad, conduction-cooled, provide AOM-matched RF driver
6 - 8 Weeks Request for quote
STPMR0006-D20M-030-355
Phase Modulators, wavelength 355nm, active aperture 3mm, operating frequency 20MHz, optical material DKDP, max modulation depth 1πrad, conduction-cooled, provide AOM-matched RF driver
6 - 8 Weeks Request for quote
STPMR0007-L42M-030-355
Phase Modulators, wavelength 960nm, active aperture 3mm, operating frequency 42MHz, optical material MLN, max modulation depth 1πrad, conduction-cooled, provide AOM-matched RF driver
6 - 8 Weeks Request for quote
STPMR0014-L02M-030-420
Phase Modulators, wavelength 420nm, active aperture 2mm, operating frequency 25MHz, optical material MLN, max modulation depth 1.4πrad, conduction-cooled, provide AOM-matched RF driver
6 - 8 Weeks Request for quote

STPMR0014-L02M-030-420  - Parameter

STPMR0007-L42M-030-355 - Parameter

STPMR0006-D20M-030-355 - Parameter

STPMR0017-L02M-030-650 - Parameter

STPMN0003-L00M-030-461  - Parameter

STPMR0013-L02M-030-780 - Parameter

STPMR0005-L02G-020-370 - Parameter

STPMR0012-L03G-030-935  - Parameter

STPMR0003-L02G-020-532 - Parameter

STPMR0002-K01G-030-280  - Parameter

STPMR0001-L03G-030-780 - Parameter

STPMR0014-L02M-030-420  - Download

STPMR0007-L42M-030-355 - Download

STPMR0006-D20M-030-355 - Download

STPMR0017-L02M-030-650 - Download

STPMN0003-L00M-030-461  - Download

STPMR0013-L02M-030-780 - Download

STPMR0005-L02G-020-370 - Download

STPMR0012-L03G-030-935  - Download

STPMR0003-L02G-020-532 - Download

STPMR0002-K01G-030-280  - Download

STPMR0001-L03G-030-780 - Download
