连续波三重光纤耦合激光管 (RGB)

激光模组激光源选型指南联系下单！

三重(RGB)光纤耦合白光激光器模块

瑆创科技SIMTRUM提供三重(RGB)光纤耦合白光激光器模块。我们将红色(635nm)，绿色(520nm)和蓝色(445nm)激光耦合到一根光纤中，以获得白色彩色激光器。光纤类型可以是单模光纤（SMF）、多模光纤（MMF）和保偏光纤 (PMF)。纤芯可以是4um，9um，105um等。输出功率可达200mW。通过控制RGB激光器的比例，我们可以获得完美的白光激光器。同时，通过调整比例，也可以获得各种颜色的激光。

瑆创科技SIMTRUM还为三重激光器模块提供定制解决方案，如定制波长，定制功率和定制光纤芯，以满足客户的特殊需求。

SIMTRUM使用激光焊接技术来保证激光结构的长期可靠性。为了确保长期可靠性，每个半导体激光管都将在工厂进行严格的测试和老化。同时，每个半导体激光管也需要高低温的存储温度循环。我们将存储温度范围设置为-40°C至+85°C，可持续10次循环，这将确保耦合结构的长期可靠性。

产品手册链接：

特点应用

- RGB(635nm+520nm+445nm) 解决方案 - 内窥镜

- SMF/MMF/PMF 可选 - 瞄准光束

- 白色激光输出 - 生物科学

- 内置TE冷却器可选 - 照明

- 使用寿命长

- 高稳定性

包装信息

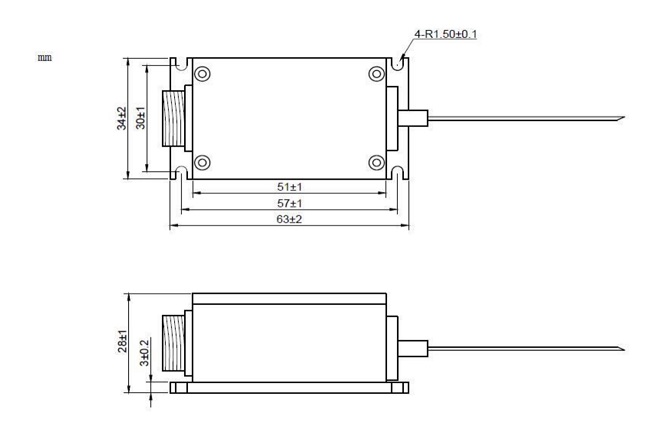

三重 HHL-01 封装视图

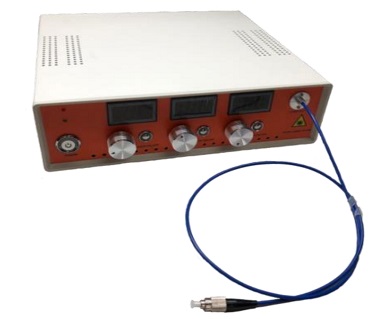

三重(RGB) 光纤耦合白光激光源

瑆创科技SIMTRUM提供三重(RGB)光纤耦合白光激光源。三联激光源包含光纤耦合激光模块、LD 驱动器和温度控制系统。输入90V~240V AC输入，激光源可以轻松开始工作。同时，635nm，520nm和445nm激光器独立控制。

我们将红色（635nm），绿色（520nm）和蓝色（445nm）激光器耦合到一根光纤中，以获得白色激光器。

光纤类型可以是单模光纤（SMF）、多模光纤（MMF）和保偏光纤（PMF）。纤芯可以是4um，9um，105um等。通过控制RGB激光的比例，我们可以得到完美的白色激光。同时，通过调整比例，也可以获得各种颜色的激光。

为了确保长期的可靠性和功率稳定性，每个激光源都将在工厂经过严格的测试和老化。

SIMTRUM还提供三重激光源的定制解决方案，如定制波长，定制功率和定制光纤芯，以满足客户的特殊需求。

产品手册链接：

特点

- RGB（635nm+520nm+445nm）交钥匙激光系统

- SMF/MMF/PMF 可选

- 白色激光输出

- 每个波长独立控制

- 内置驱动器和TE冷却器

- 90V ~ 240V 交流输入

- TTL/模拟调制

- 定制波长/功率/光纤类型

包装信息

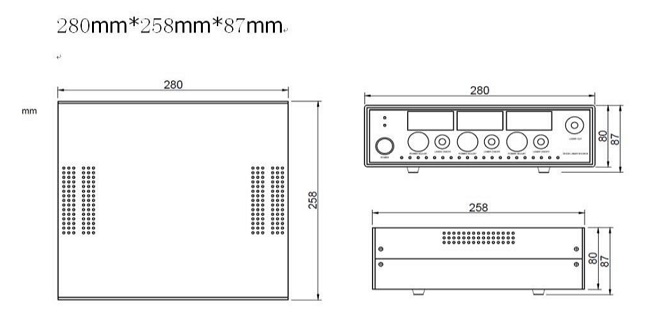

三重激光系统包装视图（A200）

三重 (RGB) 光纤耦合激光模块选择指南

光纤类型	零件号	端口1	端口2	端口 3	包裹	纤芯	电气规格			TEC	连接器
光纤类型	零件号	端口1	端口2	端口 3	包裹	纤芯	阈值电流	工作电流（典型值）	工作电压	TEC	连接器
单模光纤	三重-STLX-RGB-010m-4-H-T	638nm/10mW	520nm/10mW	445nm/10mW	HHL-01	3um	端口 1 - 50mA 端口 2 - 40mA 端口 3 - 30mA	端口 1 - 160mA 端口 2 - 180mA 端口 3 - 120mA	端口 1 - 2.7V 端口 2 - 7.0V 端口 3 - 6.0V	V	FC/SMA905
	三重-STLX-RGB-015m-4-H-T	638nm/15mW	520nm/15mW	445nm/15mW	HHL-01	3um	端口 1 - 50mA 端口 2 - 45mA 端口 3 - 30mA	端口 1 - 180mA 端口 2 - 200mA 端口 3 - 120mA	端口 1 - 2.7V 端口 2 - 7.0V 端口 3 - 6.0V	V	FC/SMA905
	三重-STLX-RGB-020m-4-H-T	638nm/20mW	520nm/20mW	445nm/20mW	HHL-01	3um	端口 1 - 60mA 端口 2 - 60mA 端口 3 - 25mA	端口 1 - 200mA 端口 2 - 240mA 端口 3 - 140mA	端口 1 - 3.0V 端口 2 - 7.5V 端口 3 - 6.5V	V	FC/SMA905
SMF-28	Triplex-STLX-RGB-030m-9-H-T	638nm/30mW	520nm/30mW	445nm/30mW	HHL-01	9um	端口 1 - 50mA 端口 2 - 40mA 端口 3 - 30mA	端口 1 - 160mA 端口 2 - 180mA 端口 3 - 120mA	端口 1 - 2.7V 端口 2 - 7.5V 端口 3 - 6.0V	V	FC/SMA905
SMF-28	Triplex-STLX-RGB-050m-9-H-T	638nm/50mW	520nm/50mW	445nm/50mW	HHL-01	9um	端口 1 - 65mA 端口 2 - 65mA 端口 3 - 25mA	端口 1 - 220mA 端口 2 - 270mA 端口 3 - 140mA	端口 1 - 3.0V 端口 2 - 7.5V 端口 3 - 6.5V	V	FC/SMA905
MMF	Triplex-STLX-RGB-030m-M-H-T	638nm/30mW	520nm/30mW	445nm/30mW	HHL-01	105um	端口 1 - 50mA 端口 2 - 40mA 端口 3 - 30mA	端口 1 - 150mA 端口 2 - 180mA 端口 3 - 100mA	端口 1 - 2.7V 端口 2 - 7.0V 端口 3 - 6.0V	V	FC/SMA905
	Triplex-STLX-RGB-050m-M-H-T	638nm/50mW	520nm/50mW	445nm/50mW	HHL-01	105um	端口 1 - 50mA 端口 2 - 40mA 端口 3 - 30mA	端口 1 - 160mA 端口 2 - 200mA 端口 3 - 120mA	端口 1 - 2.7V 端口 2 - 7.0V 端口 3 - 6.0V	V	FC/SMA905
	Triplex-STLX-RGB-080m-M-H-T	638nm/80mW	520nm/80mW	445nm/80mW	HHL-01	105um	端口 1 - 65mA 端口 2 - 65mA 端口 3 - 25mA	端口 1 - 220mA 端口 2 - 270mA 端口 3 - 140mA	端口 1 - 3.0V 端口 2 - 7.5V 端口 3 - 6.5V	V	FC/SMA905
	Triplex-STLX-RGB-100m-M-H-T	638nm/100mW	520nm/100mW	445nm/100mW	HHL-01	105um	端口 1 - 70mA 端口 2 - 70mA 端口 3 - 30mA	端口 1 - 230mA 端口 2 - 280mA 端口 3 - 150mA	端口 1 - 3.0V 端口 2 - 7.5V 端口 3 - 6.5V	V	FC/SMA905
	Triplex-STLX-RGB-001-M-H-T	638nm/1W	520nm/1W	445nm/1W	HHL-03	105um	端口 1 - 30mA 端口 2 - 30mA 端口 3 - 30mA	端口 1 - 160mA 端口 2 - 210mA 端口 3 - 130mA	端口 1 - 2.5V 端口 2 - 5.0V 端口 3 - 6.0V	V	FC/SMA905
模拟调制可选 \| TTL调制可选\| 机箱型号：A-200 / A-300

三重 (RGB) 光纤耦合激光源选择指南

光纤类型	零件号	波长-1	波长-2	波长-3	纤芯	连接器	电源	TE 冷却	外壳型号
单模光纤	Triplex-STLS-RG B-010m-4	638nm/10mW	520nm/10mW	445nm/10mW	3um	FC/SMA905	90V—240VAC	V	A-200
	Triplex-STLS-RG B-015m-4	638nm/15mW	520nm/15mW	445nm/15mW	3um	FC/SMA905	90V—240VAC	V	A-200
	Triplex-STLS-RG B-020m-4	638nm/20mW	520nm/20mW	445nm/20mW	3um	FC/SMA905	90V—240VAC	V	A-200
SMF-28	Triplex-STLS-RG B-030m-9	638nm/30mW	520nm/30mW	445nm/30mW	9um	FC/SMA905	90V—240VAC	V	A-200
SMF-28	Triplex-STLS-RG B-050m-9	638nm/50mW	520nm/50mW	445nm/50mW	9um	FC/SMA905	90V—240VAC	V	A-200
MMF	Triplex-STLS-RGB-030m-M	638nm/30mW	520nm/30mW	445nm/30mW	105um	FC/SMA905	90V—240VAC	V	A-200
	Triplex-STLS-RG B-050m-M	638nm/50mW	520nm/50mW	445nm/50mW	105um	FC/SMA905	90V—240VAC	V	A-200
	Triplex-STLS-RG B-080m-M	638nm/80mW	520nm/80mW	445nm/80mW	105um	FC/SMA905	90V—240VAC	V	A-200
	Triplex-STLS-RG B-100m-M	638nm/100mW	520nm/100mW	445nm/100mW	105um	FC/SMA905	90V—240VAC	V	A-200
	Triplex-STLS-RGB-001-M	638nm/1W	520nm/1W	445nm/1W	105um	FC/SMA905	90V—240VAC	V	A-300
模拟调制可选 \| TTL调制可选\| 机箱型号：A-200 / A-300

注：√ - 是，X - 否，O - 可选

多种波长可选		多种波长可选
端口-1 405nm \| 445nm		单模 3um
端口-2 488nm \| 505nm \| 520nm \| 525nm		保偏光纤 3um
端口-3 638nm \| 658nm \| 670nm \| 685nm \| 785nm		MMF 9um \| 50um \| 105um \| 200um

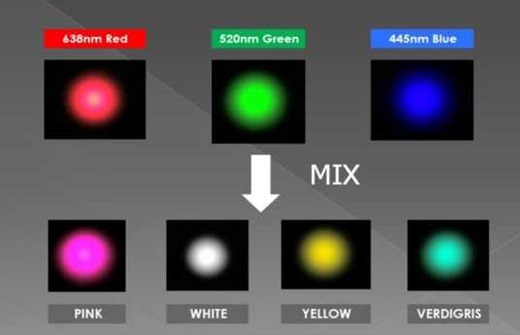

SMF 激光束

我们在这里为您服务！


给我们发电子邮件 info@simtrum.com 以获得今天最优惠的价格。		想要更多的技术信息?点击这里获取专业定制系统/解决方案。


没有时间逐个搜索产品?不用担心。您可以下载全系列的瑆创产品线卡，现在点击它。		想要更接近市场动态和技术发展吗?只需花5秒钟作为会员登录，我们将为您带来最新的新闻。(屏幕右上方的登录按钮)
