连续波尾纤半导体多模式激光器(700-1920nm)
概述 760-915 940-1920 现在下单!

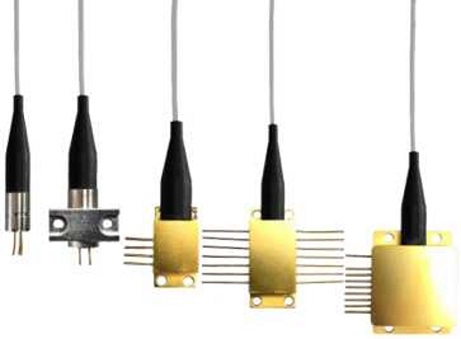

连续尾纤半导体激光管多模 （700 - 1920nm）



SIMTRUM为700nm~1920nm尾纤激光器模块提供高耦合效率解决方案，具有50um，105um，200um和400um光纤芯，输出功率范围为5mW至50W。同时，TE 冷却器和光电二极管对客户是可选的，绿色或红色瞄准光束对于红外激光器也是可选的。我们可以根据客户的要求将这些功能集成到激光模块中。激光器的标准封装可以是同轴、2 针、4 针、14 针和 9 针。



SIMTRUM还为尾纤激光器模块提供定制解决方案，例如定制波长，定制功率，定制光纤芯和定制封装，以满足客户的特殊需求。



SIMTRUM使用激光焊接技术来保证激光结构的长期可靠性。为了确保长期可靠性，每个半导体激光管都将在工厂进行严格的测试和老化。同时，每个半导体激光管也需要高低温的存储温度循环。







Product Brochure Link:
特征

- 700nm~1920nm

- 5mW~50W输出功率

- 50um/ 105um/ 200um/ 400um光纤芯

- 同轴/ 2 针/ 4 针/ 14 针/ 9 针封装

- 内置TE冷却器可选

- 内置光电二极管可选

- 红外激光可选配红/绿瞄准光束

- 使用寿命长

- 高稳定性

- 定制波长

- 定制输出功率

- 定制光纤芯





包装信息
同轴封装视图

B8 封装视图（带散热器）

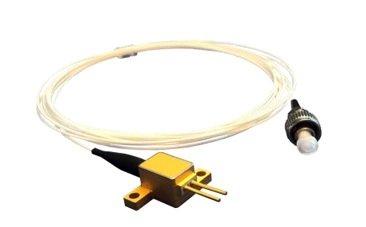

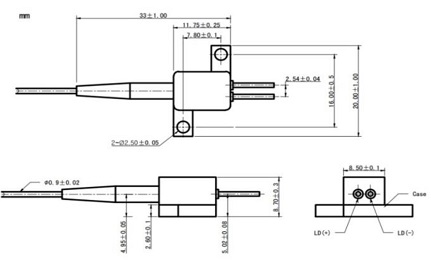

2-Pin封装视图

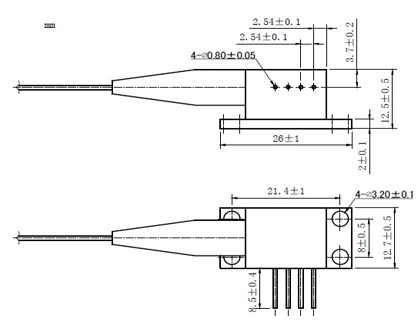

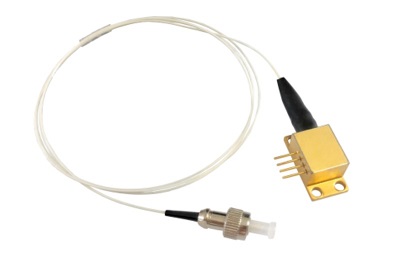

4-Pin封装视图

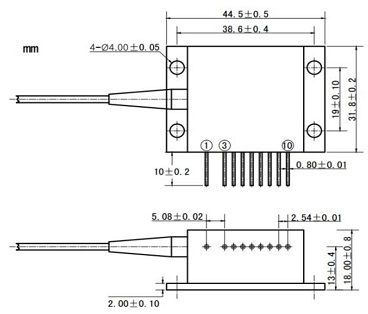

9-Pin封装视图

14-Pin封装视图（内置 TEC）

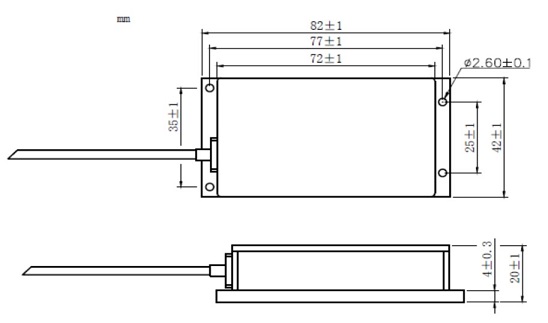

B4包视图

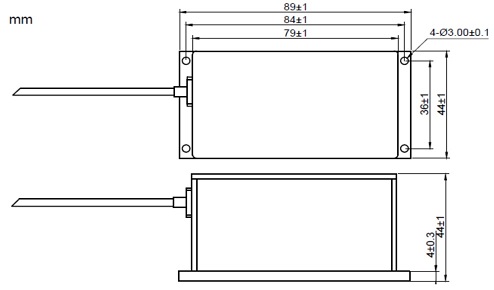

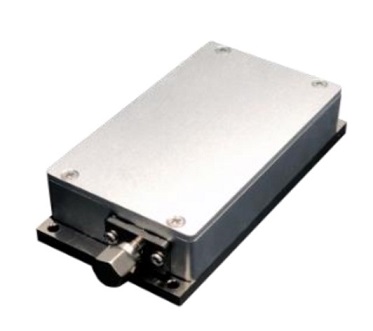

P5封装视图




订购信息





选型指南 760 至 915 nm

Wavelength Part Number Output Power Fiber Type Fiber Core Package Connector PD TEC
760nm STLX-760-1500m-M-H2 1.5W MMF 105um 2-Pin FC/PC X X
STLX-760-1500m-M-H14-T-PD 1.5W MMF 105um 14-Pin FC/PC V V
STLX-760-003-200M-H2 3W MMF 200um 2-Pin FC/PC X X
STLX-760-003-200M-H9-T-PD 3W MMF 200um 9-Pin FC/PC V V
770nm STLX-770-003-M-H2 3W MMF 105um 2-Pin FC/PC X X
STLX-770-003-M-H9-T-PD 3W MMF 105um 9-Pin FC/PC V V
785nm STLP-785-050m-M-PD 50mW MMF 105um Coaxial FC/PC V X
STLX-785-050m-M-H8-T-PD 50mW MMF 105um 8-Pin FC/PC V V
STLX-785-1500m-50M-H2 1.5W MMF 50um 2-Pin FC/PC X X
STLX-785-1500m-50M-H14-T-PD 1.5W MMF 50um 14-Pin FC/PC V V
ST LX-785-002-M- H14-T-PD 2W MMF 105um 14-Pin FC/PC V V
STLX-785-003-M-H2 3W MMF 105um 2-Pin FC/PC X X
STLX-785-003-M-H9-T-PD 3W MMF 105um 9-Pin FC/PC V V
STLX-785-007-M-H2 7W MMF 105um 2-Pin FC/PC X X
STLX-785-007-M-H9-T-PD 7W MMF 105um 9-Pin FC/PC V V
808nm STLP-808-150m-62M-PD 150mW MMF 62.5um Coaxial FC/PC V X
STLX-808-150m-62M-H8-T-PD 150mW MMF 62.5um 8-Pin FC/PC V V
STLP-808-200m-M-PD 200mW MMF 105um Coaxial FC/PC V X
STLX-808-200m-M-H8-T-PD 200mW MMF 105um 8-Pin FC/PC V V
STLP-808-300m-M-PD 300mW MMF 105um Coaxial FC/PC V X
STLX-808-300m-M-H8-T-PD 300mW MMF 105um 8-Pin FC/PC V V
STLX-808-002-50M-H14-T-PD 2W MMF 50um 14-Pin FC/PC V V
STLX-808-002-M- H 14-T-PD 2W MMF 105um 14-Pin FC/PC V V
STLX-808-004-M-H2 4W MMF 105um 2-Pin FC/PC X X
ST LX-808-004- M-H9-T-PD 4W MMF 105um 9-Pin FC/PC V V
STLX-808-005-M-H2 5W MMF 105um 2-Pin FC/PC X X
STLX-808-008-M-H2 8W MMF 105um 2-Pin FC/PC X X
ST LX-808-008-M-H9-T-PD 8W MMF 105um 9-Pin FC/PC V V
STLX-808-010-200M-H2 10W MMF 200um 2-Pin FC/PC X X
STLX-808-025-200M-HH2 25W MMF 200um 2-Pin FC/PC X X
830nm STLP-830-150m-M-PD 150mW MMF 105um Coaxial FC/PC V X
STLX-830-150m-M-H8-T-PD 150mW MMF 105um 8-Pin FC/PC V V
STLP-830-200m-M-PD 200mW MMF 105um Coaxial FC/PC V X
STLX-830-200m-M-H8-T-PD 200mW MMF 105um 8-Pin FC/PC V V
STLX-830-001-50M-H2 1W MMF 50um 2-Pin FC/PC X X
STLX-830-002-50M-H2 (0.15) 2W MMF 50um 2-Pin FC/PC X X
STLX-830-002-50M-H14-T-PD 2W MMF 50um 14-Pin FC/PC V V
ST LX-830-002-M- H 14-T-PD 2W MMF 105um 14-Pin FC/PC V V
STLX-830-003-M-H2 3W MMF 105um 2-Pin FC/PC X X
850nm STLP-850-050m-M-PD 50mW MMF 105um Coaxial FC/PC V X
STLX-850-050m-M-H8-T-PD 50mW MMF 105um 8-Pin FC/PC V V
STLP-850-150m-M-PD 150mW MMF 105um Coaxial FC/PC V X
STLX-850-150m-M-H8-T-PD 150mW MMF 105um 8-Pin FC/PC V V
STLP-850-200m-M-PD 200mW MMF 105um Coaxial FC/PC V X
STLX-850-200m-M-H8-T-PD 200mW MMF 105um 8-Pin FC/PC V V
880nm STLP-880-005m-M-PD 5mW MMF 105um Coaxial FC/PC V X
STLX-880-005m-M-H8-T-PD 5mW MMF 105um 8-Pin FC/PC V V
STLX-880-002-M- H14-T-PD 2W MMF 105um 14-Pin FC/PC V V
STLX-880-003-M-H2 3W MMF 105um 2-Pin FC/PC X X
905nm STLP-905-120m-M-PD 120mW MMF 105um Coaxial FC/PC V X
STLX-905-120m-M-H8-T-PD 120mW MMF 105um 8-Pin FC/PC V V
STLP-905-150m-M-PD 150mW MMF 105um Coaxial FC/PC V X
STLX-905-150m-M-H8-T-PD 150mW MMF 105um 8-Pin FC/PC V V
915nm STLX-915-002- M-H14-T-PD 2W MMF 105um 14-Pin FC/PC V V
STLX-915-010-M-H2 10W MMF 105um 2-Pin FC/PC X X
STLX-915-010-M-H9-T-PD 10W MMF 105um 9-Pin FC/PC V V
ST LX-915-020-M-HH2 20W MMF 105um 2-Pin FC/PC X X
ST LX-915-030-M-HH2 30W MMF 105um 2-Pin FC/PC X X
ST LX-915-055- M-HH2 55W MMF 105um 2-Pin FC/PC X X
注意:  V - 是,   X - 否,   O - 可选

订购信息





选型指南 940 至 1920 nm

波长 型号 输出功率 光纤类型 纤芯 包装 连接器 PD TEC
940nm STLP-940-200m-M-PD 200mW MMF 105um Coaxial FC/PC V X
STLX-940-200m-M-H8-T-PD 200mW MMF 105um 8-Pin FC/PC V V
STLX-940-002-M-H14-T-PD 2W MMF 105um 14-Pin FC/PC V V
STLX-940-010-M-H2 10W MMF 105um 2-Pin FC/PC X X
STLX-940-010-M-H9-T-PD 10W MMF 105um 9-Pin FC/PC V V
STLX-940-020-M-HH2 20W MMF 105um 2-Pin FC/PC X X
STLX-940-030-M-HH2 30W MMF 105um 2-Pin FC/PC X X
980nm STLP-980-100m-M-PD 100mw MMF 105um Coaxial FC/PC V X
STLX-980-100m-M-H8-T-PD 100mW MMF 105um 8-Pin FC/PC V V
STLP-980-150m-M-PD 150mw MMF 105um Coaxial FC/PC V X
STLX-980-150m-M-H8-T-PD 150mW MMF 105um 8-Pin FC/PC V V
STLX-980-002-M-H14-T-PD 2W MMF 105um 14-Pin FC/PC V V
STLX-980-010-M-H2 10W MMF 105um 2-Pin FC/PC X X
STLX-980-010-M-H9-T-PD 10W MMF 105um 9-Pin FC/PC V V
STLX-980-020-M-HH2 20W MMF 105um 2-Pin FC/PC X X
STLX-980-030-M-HH2 30W MMF 105um 2-Pin FC/PC X X
STLX-980-055-M-HH2 55W MMF 105um 2-Pin FC/PC X X
1064nm STLX-1064-001-M-H14-T-PD 1W MMF 105um 14-Pin FC/PC V V
STLX-1064-008-M-H2 8W MMF 105um 2-Pin FC/PC X X
STLX-1064-008-M-H9-T-PD 8W MMF 105um 9-Pin FC/PC V V
STLX-1064-025-M-H2 25W MMF 105um 2-Pin FC/PC X X
1310nm STLX-1310-001-M-H14-T-PD 1W MMF 105um 14-Pin FC/PC V V
STLX-1310-001-M-H2 1W MMF 105um 2-Pin FC/PC X X
1330nm STLX-1330-001-M-H14-T-PD 1W MMF 105um 14-Pin FC/PC V V
STLX-1330-001-M-H2 1W MMF 105um 2-Pin FC/PC X X
1450nm STLX-1450-002-M-H2 2W MMF 105um 2-Pin FC/PC X X
STLX-1450-002-M-H9-T-PD 2W MMF 105um 9-Pin FC/PC V V
1470nm STLX- 1470-800m-M-H14-T-PD 800mW MMF 105um 14-Pin FC/PC V V
STLX-1470-001-M-H2 1W MMF 105um 2-Pin FC/PC X X
STLX-1470-2500m-M-H2 2.5W MMF 105um 2-Pin FC/PC X X
STLX-1470-2500m-M-H9-T-PD 2.5W MMF 105um 9-Pin FC/PC V V
STLX-1470-003-M-H2 3W MMF 105um 2-Pin FC/PC X X
STLX-1470-003-M-H9-T-PD 3W MMF 105um 9-Pin FC/PC V V
1490nm STLX-1490-002-M-H2 2W MMF 105um 2-Pin FC/PC X X
STLX-1490-002-M-H9-T-PD 2W MMF 105um 9-Pin FC/PC V V
1530nm STLX-1530-1500m-M-H2 1.5W MMF 105um 2-Pin FC/PC X X
STLX-1530-1500m-M-H9-T-PD 1.5W MMF 105um 9-Pin FC/PC V V
1550nm STLX-1550-1500m-M-H2 1.5W MMF 105um 2-Pin FC/PC X X
STLX-1550-1500m-M-H9-T-PD 1.5W MMF 105um 9-Pin FC/PC V V
STLX-1550-2500m-M-H2 2.5W MMF 105um 2-Pin FC/PC X X
STLX-1550-2500m-M-H9-T-PD 2.5W MMF 105um 9-Pin FC/PC V V
1570nm STLX-1570-1500m-M-H2 1.5W MMF 105um 2-Pin FC/PC X X
STLX-1570-1500m-M-H9-T-PD 1.5W MMF 105um 9-Pin FC/PC V V
1920nm STLX-1920-400m-M-H2 400mW MMF 105um 2-Pin FC/PC X X
注意:  V - 是,   X - 否,   O - 可选

我们在这里为您服务！





给我们发电子邮件 info@simtrum.com 以获得今天最优惠的价格。   想要更多的技术信息?点击这里 获取专业定制系统/解决方案。




没有时间逐个搜索产品?不用担心。您可以下载全系列的瑆创产品线卡，现在点击它。



想要更接近市场动态和技术发展吗?只需花5秒钟作为会员登录，我们将为您带来最新的新闻。​(屏幕右上方的登录按钮)


Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
STLX-760-003-200M-H2
CW Pigtailed Laser Diode Multi-Mode(700-1920nm), Wavelength 760nm, output power 3W, package 2pin 		2-3 Weeks Request for quote
STLX-770-003-M-H2
CW Pigtailed Laser Diode Multi-Mode(700-1920nm), Wavelength 770nm, output power 3W, package 2pin 		2-3 Weeks Request for quote
STLP-850-150m-M-PD
CW Pigtailed Laser Diode Multi-Mode(700-1920nm), Wavelength 850nm, output power 150mW, package coaxial, with Photodiode 		2-3 Weeks Request for quote
STLX-880-003-M-H2
CW Pigtailed Laser Diode Multi-Mode(700-1920nm), Wavelength 880nm, output power 3W, package 2pin 		2-3 Weeks Request for quote
STLP-905-120m-M-PD
CW Pigtailed Laser Diode Multi-Mode(700-1920nm), Wavelength 905nm, output power 120mW, package coaxial, with Photodiode 		2-3 Weeks Request for quote
STLP-940-200m-M-PD
CW Pigtailed Laser Diode Multi-Mode(700-1920nm), Wavelength 940nm, output power 200mW, package coaxial, with Photodiode 		2-3 Weeks Request for quote
STLX-1310-001-M-H14-T-PD
CW Pigtailed Laser Diode Multi-Mode(700-1920nm), Wavelength 1310nm, output power 1W, package 14pin, with TE cooler and Photodiode 		2-3 Weeks Request for quote
STLX-1470-2500m-M-H2
CW Pigtailed Laser Diode Multi-Mode(700-1920nm), Wavelength 1470nm, output power 2.5W, package 2pin 		2-3 Weeks Request for quote
STLX-1550-1500m-M-H9-T-PD
CW Pigtailed Laser Diode Multi-Mode(700-1920nm), Wavelength 1550nm, output power 1.5W, package 9pin, with TE cooler and Photodiode 		2-3 Weeks Request for quote
