连续波尾式半导体激光器单模 (700-1650nm) | 瑆创光学电子商店

Products / 激光/光源 /DPSS / 二极管激光器 /连续尾纤激光二极管(400-1920nm) /连续波尾式半导体激光器单模 (700-1650nm) /
连续波尾式半导体激光器单模 (700-1650nm)
产品概述 700-830 830-905 905-1064 1270-1330 1350-1430 1450-1530 1550-1650 联系下单！

连续尾纤半导体激光管单模（700-1650nm）



SIMTRUM为700nm~1650nm尾纤激光器模块提供高耦合效率解决方案，采用单模光纤和保偏光纤，输出功率可达100mW。我们采用独特的技术来获得高偏振消光比（PER），低噪声激光输出高达20dB。



使用SM和PM光纤，它可以得到高斯光束，即单横模光束，M2值小于1.3。同时，TE冷却器和光电二极管是可选的，我们可以根据客户的要求将它们集成到激光模块中。瑆创科技还为尾纤激光器模块提供定制解决方案，例如定制波长和定制功率，以满足客户的特殊需求。



SIMTRUM使用激光焊接技术来保证激光结构的长期可靠性。为了确保长期可靠性，每个半导体激光管都将在工厂进行严格的测试和老化。

产品手册链接:



特征

- 700 nm 至 1650 nm

- SM和PM光纤

- 1 mW 至 100 mW 输出功率

- 每高达 20 dB

- 内置TE冷却器可选

 - 内置光电二极管可选

- 使用寿命长

- 高稳定性

- 定制波长

- 定制输出功率

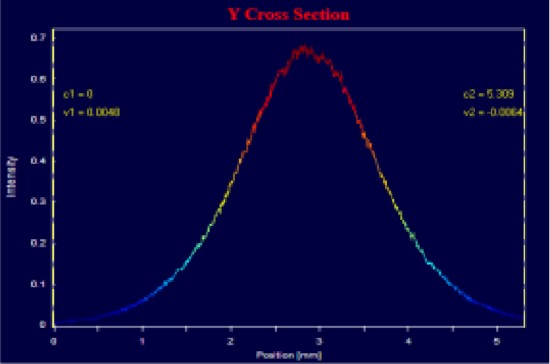

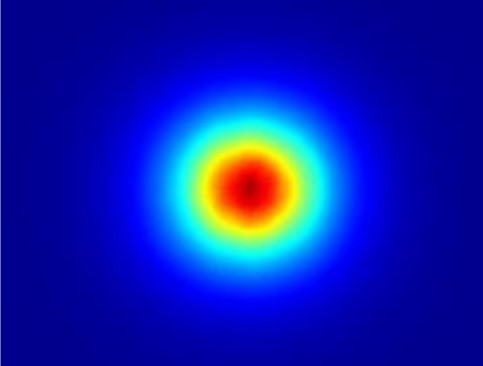

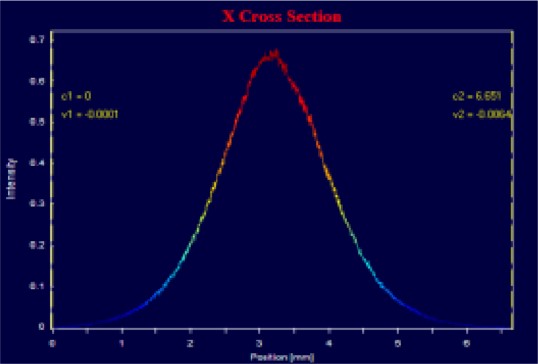

激光束轮廓

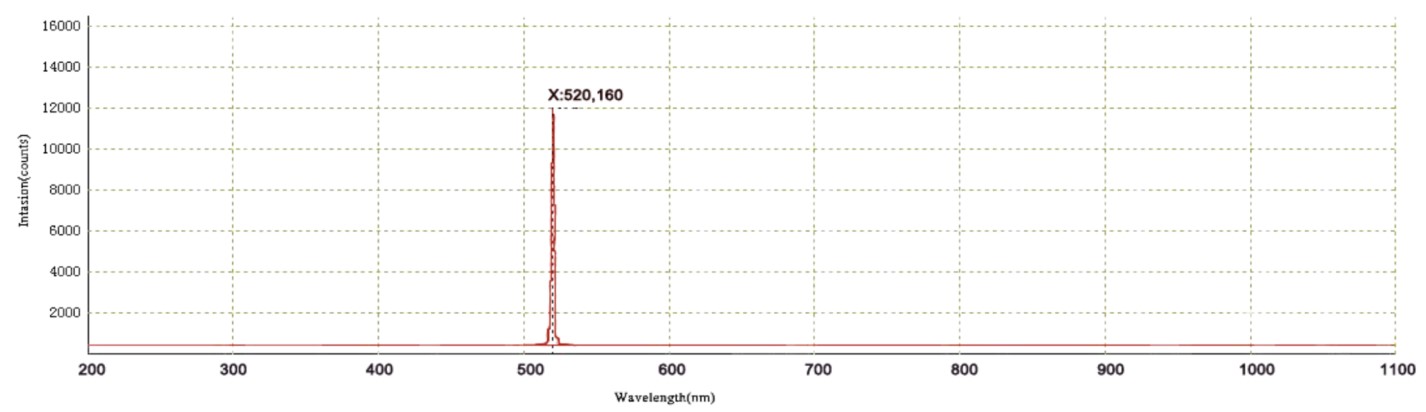

频谱样本



包装信息

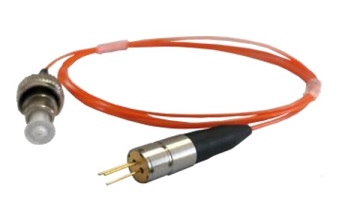

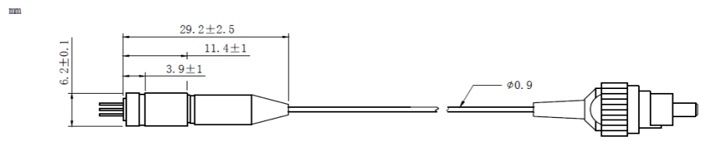

同轴封装视图

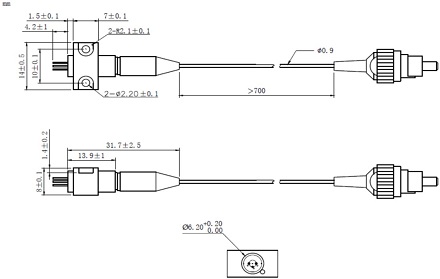

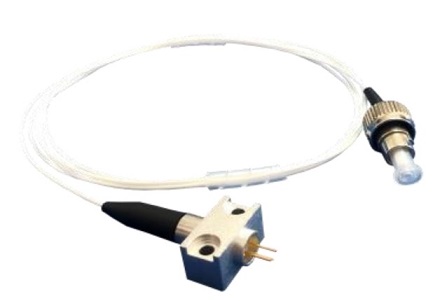

B8 封装视图（带散热器）

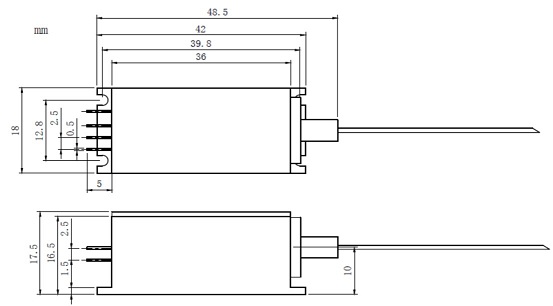

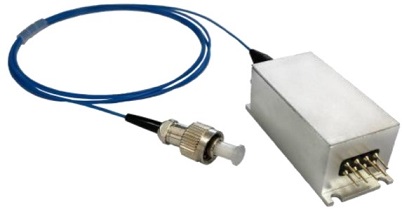

8 引脚封装视图（内置 TEC）

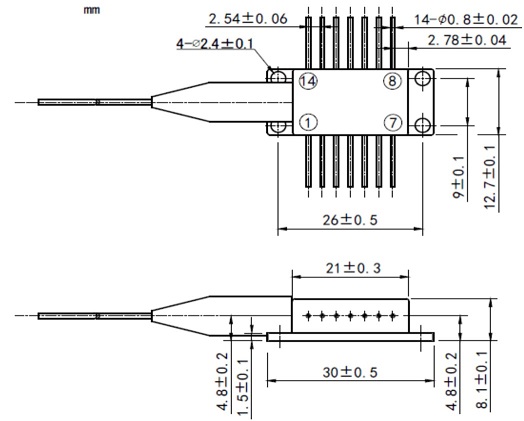

14 引脚封装视图（内置 TEC）

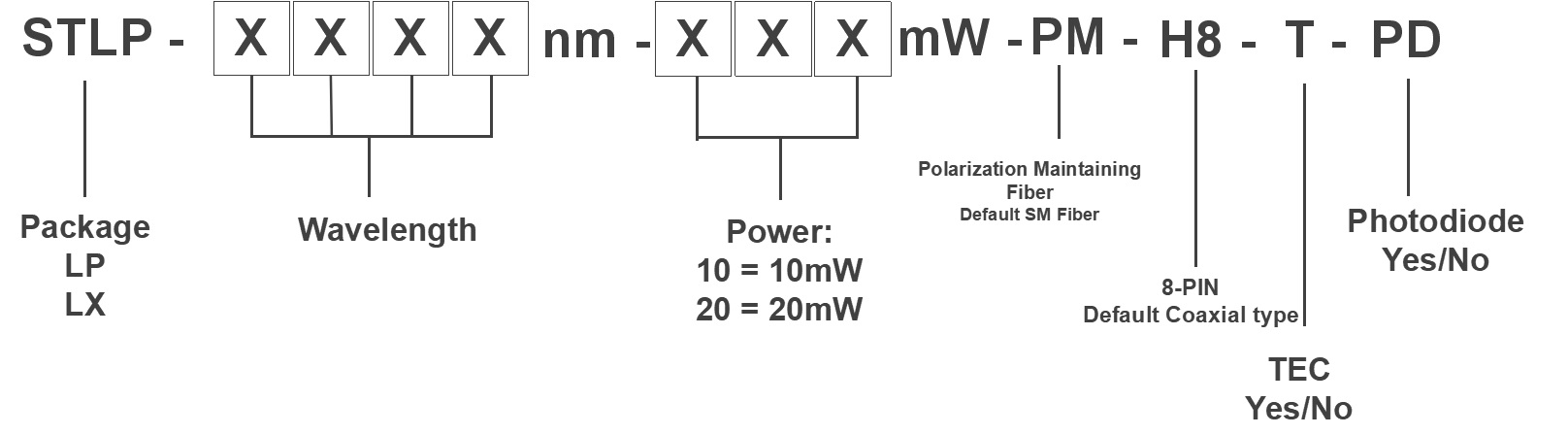

订购信息





选型指南 700 to 830 nm

波长 型号 输出功率 光纤型号 纤芯 Package Connector PD TEC
705nm STLP-705-010m-PD 10mW SMF 4um Coaxial FC/PC V X
STLX-705-010m-H8-T-PD 10mW SMF 4um 8-Pin FC/PC V V
STLP-705-015m-PD 15mW SMF 4um Coaxial FC/PC V X
STLX-705-015m-H8-T-PD 15mW SMF 4um 8-Pin FC/PC V V
STLP-705-010m-PM-PD 10mW PMF 4um Coaxial FC/APC V X
STLX-705-010m-PM-H8-T-PD 10mW PMF 4um 8-Pin FC/APC V V
STLP-705-015m-PM-PD 15mW PMF 4um Coaxial FC/APC V X
STLX-705-015m-PM-H8-T-PD 15mW PMF 4um 8-Pin FC/APC V V
730nm STLP-730-010m-PD 10mW SMF 4um Coaxial FC/PC V X
STLX-730-010m-H8-T-PD 10mW SMF 4um 8-Pin FC/PC V V
STLP-730-015m-PD 15mW SMF 4um Coaxial FC/PC V X
STLX-730-015m-H8-T-PD 15mW SMF 4um 8-Pin FC/PC V V
STLP-730-010m-PM-PD 10mW PMF 4um Coaxial FC/APC V X
STLX-730-010m-PM-H8-T-PD 10mW PMF 4um 8-Pin FC/APC V V
STLP-730-015m-PM-PD 15mW PMF 4um Coaxial FC/APC V X
STLX-730-015m-PM-H8-T-PD 15mW PMF 4um 8-Pin FC/APC V V
785nm STLP-785-005m-PD 5mW SMF 5um Coaxial FC/PC V X
STLX-785-005m-H8-T-PD 5mW SMF 5um 8-Pin FC/PC V V
STLP-785-030m-PD 30mW SMF 5um Coaxial FC/PC V X
STLX-785-030m-H8-T-PD 30mW SMF 5um 8-Pin FC/PC V V
STLP-785-040m-PD 40mW SMF 5um Coaxial FC/PC V X
STLX-785-040m-H8-T-PD 40mW SMF 5um 8-Pin FC/PC V V
STLP-785-050m-PD 50mW SMF 5um Coaxial FC/PC V X
STLX-785-050m-H8-T-PD 50mW SMF 5um 8-Pin FC/PC V V
STLP-785-020m-PM-PD 20mW PMF 5um Coaxial FC/APC V X
STLX-785-020m-PM-H8-T-PD 20mW PMF 5um 8-Pin FC/APC V V
STLP-785-030m-PM-PD 30mW PMF 5um Coaxial FC/APC V X
STLX-785-030m-PM-H8-T-PD 30mW PMF 5um 8-Pin FC/APC V V
STLP-785-040m-PM-PD 40mW PMF 5um Coaxial FC/APC V X
STLX-785-040m-PM-H8-T-PD 40mW PMF 5um 8-Pin FC/APC V V
STLP-785-030m-PD 30mW SMF-28 9um Coaxial FC/PC V X
808nm STLP-808-020m-PD 20mW SMF 5um Coaxial FC/PC V X
STLX-808-020m-H-T-PD 20mW SMF 5um HHL-01 FC/PC V V
STLP-808-030m-PD 30mW SMF 5um Coaxial FC/PC V X
STLX-808-030m-H-T-PD 30mW SMF 5um HHL-01 FC/PC V V
STLP-808-040m-PD 40mW SMF 5um Coaxial FC/PC V X
STLX-808-040m-H-T-PD 40mW SMF 5um HHL-01 FC/PC V V
STLP-808-050m-PD 50mW SMF 5um Coaxial FC/PC V X
STLX-808-050m-H-T-PD 50mW SMF 5um HHL-01 FC/PC V V
STLP-808-015m-PM-PD 15mW PMF 5um Coaxial FC/APC V X
STLX-808-015m-PM-H-T-PD 15mW PMF 5um HHL-01 FC/APC V V
STLP-808-030m-PM-PD 30mW PMF 5um Coaxial FC/APC V X
STLX-808-030m-PM-H-T-PD 30mW PMF 5um HHL-01 FC/APC V V
STLP-808-040m-PM-PD 40mW PMF 5um Coaxial FC/APC V X
STLX-808-040m-PM-H-T-PD 40mW PMF 5um HHL-01 FC/APC V V
820nm STLP-820-030m-PD 30mW SMF 5um Coaxial FC/PC V X
STLX-820-030m-H8-T-PD 30mW SMF 5um 8-Pin FC/PC V V
STLP-820-050m-PD 50mW SMF 5um Coaxial FC/PC V X
STLX-820-050m-H8-T-PD 50mW SMF 5um 8-Pin FC/PC V V
STLP-820-030m-PM-PD 30mW PMF 5um Coaxial FC/APC V X
STLX-820-030m-PM-H8-T-PD 30mW PMF 5um 8-Pin FC/APC V V
STLP-820-050m-PM-PD 50mW PMF 5um Coaxial FC/APC V X
STLX-820-050m-PM-H8-T-PD 50mW PMF 5um 8-Pin FC/APC V V
830nm STLP-830-005m-PD 5mW SMF 5um Coaxial FC/PC V X
STLX-830-005m-H8-T-PD 5mW SMF 5um 8-Pin FC/PC V V
STLP-830-030m-PD 30mW SMF 5um Coaxial FC/PC V X
STLX-830-030m-H8-T-PD 30mW SMF 5um 8-Pin FC/PC V V
STLP-830-050m-PD 50mW SMF 5um Coaxial FC/PC V X
STLX-830-050m-H8-T-PD 50mW SMF 5um 8-Pin FC/PC V V
STLP-830-080m-PD 80mW SMF 5um Coaxial FC/PC V X
STLX-830-080m-H8-T-PD 80mW SMF 5um 8-Pin FC/PC V V
STLP-830-100m-PD 100mW SMF 5um Coaxial FC/PC V X
STLX-830-100m-H8-T-PD 100mW SMF 5um 8-Pin FC/PC V V

注意：V - 是，X - 否，O - 可选


订购信息





选型指南 830 to 905 nm

波长 型号 输出功率 光纤类型 纤芯 包装 连接器 PD TEC
830nm STLP-830-030m-PM-PD 30mW PMF 5um Coaxial FC/APC V X
STLX-830-030m-PM-H8-T-PD 30mW PMF 5um 8-Pin FC/APC V V
STLP-830-050m-PM-PD 50mW PMF 5um Coaxial FC/APC V X
STLX-830-050m-PM-H8-T-PD 50mW PMF 5um 8-Pin FC/APC V V
STLP-830-080m-PM-PD 80mW PMF 5um Coaxial FC/APC V X
STLX-830-080m-PM-H8-T-PD 80mW PMF 5um 8-Pin FC/APC V V
STLP-830-100m-PM-PD 100mW PMF 5um Coaxial FC/APC V X
STLX-830-100m-PM-H8-T-PD 100mW PMF 5um 8-Pin FC/APC V V
STLP-830-050m-PD 50mW SMF-28 9um Coaxial FC/PC V X
STLP-830-100m-PD 100mW SMF-28 9um Coaxial FC/PC V X
850nm STLP-850-002m-PD 2mW SMF 5um Coaxial FC/PC V X
STLX-850-002m-H8-T-PD 2mW SMF 5um 8-Pin FC/PC V V
STLP-850-010m-PD 10mW SMF 5um Coaxial FC/PC V X
STLX-850-010m-H8-T-PD 10mW SMF 5um 8-Pin FC/PC V V
STLP-850-030m-PD 30mW SMF 5um Coaxial FC/PC V X
STLX-850-030m-H8-T-PD 30mW SMF 5um 8-Pin FC/PC V V
STLP-850-050m-PD 50mW SMF 5um Coaxial FC/PC V X
STLX-850-050m-H8-T-PD 50mW SMF 5um 8-Pin FC/PC V V
STLP-850-070m-PD 70mW SMF 5um Coaxial FC/PC V X
STLX-850-070m-H8-T-PD 70mW SMF 5um 8-Pin FC/PC V V
STLP-850-030m-PM-PD 30mW PMF 5um Coaxial FC/APC V X
STLX-850-030m-PM-H8-T-PD 30mW PMF 5um 8-Pin FC/APC V V
STLP-850-050m-PM-PD 50mW PMF 5um Coaxial FC/APC V X
STLX-850-050m-PM-H8-T-PD 50mW PMF 5um 8-Pin FC/APC V V
STLP-850-070m-PM-PD 70mW PMF 5um Coaxial FC/APC V X
STLX-850-070m-PM-H8-T-PD 70mW PMF 5um 8-Pin FC/APC V V
STLP-850-002m-PD 2mW SMF-28 9um Coaxial FC/PC V X
STLP-850-020m-PD 20mW SMF-28 9um Coaxial FC/PC V X
STLP-850-050m-PD 50mW SMF-28 9um Coaxial FC/PC V X
880nm STLP-880-001m-PD 1mW SMF 5um Coaxial FC/PC V X
STLX-880-001m-H8-T-PD 1mW SMF 5um 8-Pin FC/PC V V
STLP-880-001m-PM-PD 1mW PMF 5um Coaxial FC/APC V X
STLX-880-001m-PM-H8-T-PD 1mW PMF 5um 8-Pin FC/APC V V
STLP-880-002m-PD 2mW SMF-28 9um Coaxial FC/PC V X
905nm STLP-905-002m-PD 2mW SMF 5um Coaxial FC/PC V X
STLX-905-002m-H8-T-PD 2mW SMF 5um 8-Pin FC/PC V V
STLP-905-030m-PD 30mW SMF 5um Coaxial FC/PC V X
STLX-905-030m-H8-T-PD 30mW SMF 5um 8-Pin FC/PC V V
STLP-905-050m-PD 50mW SMF 5um Coaxial FC/PC V X
STLX-905-050m-H8-T-PD 50mW SMF 5um 8-Pin FC/PC V V
STLP-905-070m-PD 70mW SMF 5um Coaxial FC/PC V X
STLX-905-070m-H8-T-PD 70mW SMF 5um 8-Pin FC/PC V V
注意：V - 是，X - 否，O - 可选

订购信息





选型指南 905 to 1064 nm

波长 型号 输出功率 光纤类型 纤芯 包装 连接器 PD TEC
905nm STLP-905-030m-PM-PD 30mW PMF 5um Coaxial FC/APC V X
STLX-905-030m-PM-H8-T-PD 30mW PMF 5um 8-Pin FC/APC V V
STLP-905-050m-PM-PD 50mW PMF 5um Coaxial FC/APC V X
STLX-905-050m-PM-H8-T-PD 50mW PMF 5um 8-Pin FC/APC V V
STLP-905-070m-PM-PD 70mW PMF 5um Coaxial FC/APC V X
STLX-905-070m-PM-H8-T-PD 70mW PMF 5um 8-Pin FC/APC V V
STLP-905-050m-PD 50mW SMF-28 9um Coaxial FC/PC V X
STLP-905-080m-PD 80mW SMF-28 9um Coaxial FC/PC V X
940nm STLP-940-030m-PD 30mW SMF 5um Coaxial FC/PC V X
STLX-940-030m-H8-T-PD 30mW SMF 5um 8-Pin FC/PC V V
STLP-940-050m-PD 50mW SMF 5um Coaxial FC/PC V X
STLX-940-050m-H8-T-PD 50mW SMF 5um 8-Pin FC/PC V V
STLP-940-080m-PD 80mW SMF 5um Coaxial FC/PC V X
STLX-940-080m-H8-T-PD 80mW SMF 5um 8-Pin FC/PC V V
STLP-940-100m-PD 100mW SMF 5um Coaxial FC/PC V X
STLX-940-100m-H8-T-PD 100mW SMF 5um 8-Pin FC/PC V V
STLP-940-030m-PM-PD 30mW PMF 5um Coaxial FC/APC V X
STLX-940-030m-PM-H8-T-PD 30mW PMF 5um 8-Pin FC/APC V V
STLP-940-050m-PM-PD 50mW PMF 5um Coaxial FC/APC V X
STLX-940-050m-PM-H8-T-PD 50mW PMF 5um 8-Pin FC/APC V V
STLP-940-080m-PM-PD 80mW PMF 5um Coaxial FC/APC V X
STLX-940-080m-PM-H8-T-PD 80mW PMF 5um 8-Pin FC/APC V V
STLP-940-100m-PM-PD 100mW PMF 5um Coaxial FC/APC V X
STLX-940-100m-PM-H8-T-PD 100mW PMF 5um 8-Pin FC/APC V V
STLP-940-050m-PD 50mW SMF-28 9um Coaxial FC/PC V X
STLP-940-100m-PD 100mW SMF-28 9um Coaxial FC/PC V X
980nm STLP-980-005m-PD 5mW SMF 6um Coaxial FC/PC V X
STLX-980-005m-H8-T-PD 5mW SMF 6um 8-Pin FC/PC V V
STLP-980-010m-PD 10mW SMF 6um Coaxial FC/PC V X
STLX-980-010m-H8-T-PD 10mW SMF 6um 8-Pin FC/PC V V
STLP-980-010m-PD 10mW SMF-28 9um Coaxial FC/PC V X
STLP-980-015m-PD 15mW SMF-28 9um Coaxial FC/PC V X
1064nm STLP-1064-010m-PD 10mW SMF 6um Coaxial FC/PC V X
STLP-1064-015m-PD 15mW SMF 6um Coaxial FC/PC V X
STLP-1064-030m-PD 30mW SMF 6um Coaxial FC/PC V X
STLP-1064-050m-PD 50mW SMF 6um Coaxial FC/PC V X
STLP-1064-005m-PM-PD 5mW PMF 6um Coaxial FC/APC V X
STLP-1064-010m-PM-PD 10mW PMF 6um Coaxial FC/APC V X
STLP-1064-020m-PM-PD 20mW PMF 6um Coaxial FC/APC V X
STLP-1064-040m-PM-PD 40mW PMF 6um Coaxial FC/APC V X
STLP-1064-010m-PD 10mW SMF-28 9um Coaxial FC/PC V X
STLP-1064-020m-PD 20mW SMF-28 9um Coaxial FC/PC V X
STLP-1064-050m-PD 50mW SMF-28 9um Coaxial FC/PC V X
注意：V - 是，X - 否，O - 可选

订购信息





选型指南 1270 to 1330 nm

波长 型号 输出功率 光纤类型 纤芯 包装 连接器 PD TEC
1270nm STLP-1270-002m-DFB 2mW SMF-28 9um Coaxial FC/PC V X
STLP-1270-005m-DFB 5mW SMF-28 9um Coaxial FC/PC V X
STLP-1270-005m-T-DFB 5mW SMF-28 9um Coaxial FC/PC V V
STLX-1270-005m-H8-T-DFB 5mW SMF-28 9um 8-Pin FC/PC V V
STLP-1270-010m-DFB 10mW SMF-28 9um Coaxial FC/PC V X
STLX-1270-010m-H8-T-DFB 10mW SMF-28 9um 8-Pin FC/PC V V
STLP-1270-005m-PM-DFB 5mW PMF 9um Coaxial FC/APC V X
STLP-1270-005m-PM-T-DFB 5mW PMF 9um Coaxial FC/APC V V
STLX-1270-005m-PM-H8-T-DFB 5mW PMF 9um 8-Pin FC/APC V V
STLP-1270-010m-PM-DFB 10mW PMF 9um Coaxial FC/APC V X
STLX-1270-010m-PM-H8-T-DFB 10mW PMF 9um 8-Pin FC/APC V V
1290nm STLP-1290-002m-DFB 2mW SMF-28 9um Coaxial FC/PC V X
STLP-1290-005m-DFB 5mW SMF-28 9um Coaxial FC/PC V X
STLP-1290-005m-T-DFB 5mW SMF-28 9um Coaxial FC/PC V V
STLX-1290-005m-H8-T-DFB 5mW SMF-28 9um 8-Pin FC/PC V V
STLP-1290-010m-DFB 10mW SMF-28 9um Coaxial FC/PC V X
STLX-1290-010m-H8-T-DFB 10mW SMF-28 9um 8-Pin FC/PC V V
STLP-1290-005m-PM-DFB 5mW PMF 9um Coaxial FC/APC V X
STLP-1290-005m-PM-T-DFB 5mW PMF 9um Coaxial FC/APC V V
STLX-1290-005m-PM-H8-T-DFB 5mW PMF 9um 8-Pin FC/APC V V
STLP-1290-010m-PM-DFB 10mW PMF 9um Coaxial FC/APC V X
STLX-1290-010m-PM-H8-T-DFB 10mW PMF 9um 8-Pin FC/APC V V
1310nm STLP-1310-002m-FP 2mW SMF-28 9um Coaxial FC/PC V X
STLP-1310-003m-DFB 3mW SMF-28 9um Coaxial FC/PC V X
STLP-1310-005m-DFB 5mW SMF-28 9um Coaxial FC/PC V X
STLX-1310-005m-H8-T-DFB 5mW SMF-28 9um 8-Pin FC/PC V V
STLP-1310-010m-DFB 10mW SMF-28 9um Coaxial FC/PC V X
STLP-1310-010m-T-DFB 10mW SMF-28 9um Coaxial FC/PC V V
STLX-1310-010m-H8-T-DFB 10mW SMF-28 9um 8-Pin FC/PC V V
STLP-1310-015m-DFB 15mW SMF-28 9um Coaxial FC/PC V X
STLX-1310-015m-H8-T-DFB 15mW SMF-28 9um 8-Pin FC/PC V V
STLP-1310-010m-PM-DFB 10mW PMF 9um Coaxial FC/APC V X
STLP-1310-010m-PM-T-DFB 10mW PMF 9um Coaxial FC/APC V V
STLX-1310-010m-PM-H8-T-DFB 10mW PMF 9um 8-Pin FC/APC V V
STLP-1310-015m-PM-DFB 15mW PMF 9um Coaxial FC/APC V X
STLX-1310-015m-PM-H8-T-DFB 15mW PMF 9um 8-Pin FC/APC V V
1330nm STLP-1330-002m-DFB 2mW SMF-28 9um Coaxial FC/PC V X
STLP-1330-005m-DFB 5mW SMF-28 9um Coaxial FC/PC V X
STLP-1330-005m-T-DFB 5mW SMF-28 9um Coaxial FC/PC V V
STLX-1330-005m-H8-T-DFB 5mW SMF-28 9um 8-Pin FC/PC V V
STLP-1330-010m-DFB 10mW SMF-28 9um Coaxial FC/PC V X
STLX-1330-010m-H8-T-DFB 10mW SMF-28 9um 8-Pin FC/PC V V
STLP-1330-005m-PM-DFB 5mW PMF 9um Coaxial FC/APC V X
STLP-1330-005m-PM-T-DFB 5mW PMF 9um Coaxial FC/APC V V
STLX-1330-005m-PM-H8-T-DFB 5mW PMF 9um 8-Pin FC/APC V V
STLP-1330-010m-PM-DFB 10mW PMF 9um Coaxial FC/APC V X
STLX-1330-010m-PM-H8-T-DFB 10mW PMF 9um 8-Pin FC/APC V V

注意：V - 是，X - 否，O - 可选


订购信息





选型指南 1350 to 1430 nm

波长 型号 输出功率 光纤类型 纤芯 包装 连接器 PD TEC
1350nm STLP-1350-002m-DFB 2mW SMF-28 9um Coaxial FC/PC V X
STLP-1350-005m-DFB 5mW SMF-28 9um Coaxial FC/PC V X
STLP-1350-005m-T-DFB 5mW SMF-28 9um Coaxial FC/PC V V
STLX-1350-005m-H8-T-DFB 5mW SMF-28 9um 8-Pin FC/PC V V
STLP-1350-010m-DFB 10mW SMF-28 9um Coaxial FC/PC V X
STLX-1350-010m-H8-T-DFB 10mW SMF-28 9um 8-Pin FC/PC V V
STLP-1350-005m-PM-DFB 5mW PMF 9um Coaxial FC/APC V X
STLP-1350--005m-PM-T-DFB 5mW PMF 9um Coaxial FC/APC V V
STLX-1350-005m-PM-H8-T-DFB 5mW PMF 9um 8-Pin FC/APC V V
STLP-1350-010m-PM-DFB 10mW PMF 9um Coaxial FC/APC V X
STLX-1350-010m-PM-H8-T-DFB 10mW PMF 9um 8-Pin FC/APC V V
1370nm STLP-1370-002m-DFB 2mW SMF-28 9um Coaxial FC/PC V X
STLP-1370-005m-DFB 5mW SMF-28 9um Coaxial FC/PC V X
STLP-1370-005m-T-DFB 5mW SMF-28 9um Coaxial FC/PC V V
STLX-1370-005m-H8-T-DFB 5mW SMF-28 9um 8-Pin FC/PC V V
STLP-1370-010m-DFB 10mW SMF-28 9um Coaxial FC/PC V X
STLX-1370-010m-H8-T-DFB 10mW SMF-28 9um 8-Pin FC/PC V V
STLP-1370-005m-PM-DFB 5mW PMF 9um Coaxial FC/APC V X
STLP-1370--005m-PM-T-DFB 5mW PMF 9um Coaxial FC/APC V V
STLX-1370-005m-PM-H8-T-DFB 5mW PMF 9um 8-Pin FC/APC V V
STLP-1370-010m-PM-DFB 10mW PMF 9um Coaxial FC/APC V X
STLX-1370-010m-PM-H8-T-DFB 10mW PMF 9um 8-Pin FC/APC V V
1390nm STLP-1390-002m-DFB 2mW SMF-28 9um Coaxial FC/PC V X
STLP-1390-005m-DFB 5mW SMF-28 9um Coaxial FC/PC V X
STLP-1390-005m-T-DFB 5mW SMF-28 9um Coaxial FC/PC V V
STLX-1390-005m-H8-T-DFB 5mW SMF-28 9um 8-Pin FC/PC V V
STLP-1390-010m-DFB 10mW SMF-28 9um Coaxial FC/PC V X
STLX-1390-010m-H8-T-DFB 10mW SMF-28 9um 8-Pin FC/PC V V
STLP-1390-005m-PM-DFB 5mW PMF 9um Coaxial FC/APC V X
STLP-1390--005m-PM-T-DFB 5mW PMF 9um Coaxial FC/APC V V
STLX-1390-005m-PM-H8-T-DFB 5mW PMF 9um 8-Pin FC/APC V V
STLP-1390-010m-PM-DFB 10mW PMF 9um Coaxial FC/APC V X
STLX-1390-010m-PM-H8-T-DFB 10mW PMF 9um 8-Pin FC/APC V V
1410nm STLP-1410-002m-DFB 2mW SMF-28 9um Coaxial FC/PC V X
STLP-1410-005m-DFB 5mW SMF-28 9um Coaxial FC/PC V X
STLP-1410-005m-T-DFB 5mW SMF-28 9um Coaxial FC/PC V V
STLX-1410-005m-H8-T-DFB 5mW SMF-28 9um 8-Pin FC/PC V V
STLP-1410-010m-DFB 10mW SMF-28 9um Coaxial FC/PC V X
STLX-1410-010m-H8-T-DFB 10mW SMF-28 9um 8-Pin FC/PC V V
STLP-1410-005m-PM-DFB 5mW PMF 9um Coaxial FC/APC V X
STLP-1410-005m-PM-T-DFB 5mW PMF 9um Coaxial FC/APC V V
STLX-1410-005m-PM-H8-T-DFB 5mW PMF 9um 8-Pin FC/APC V V
STLP-1410-010m-PM-DFB 10mW PMF 9um Coaxial FC/APC V X
STLX-1410-010m-PM-H8-T-DFB 10mW PMF 9um 8-Pin FC/APC V V
1430nm STLP-1430-002m-DFB 2mW SMF-28 9um Coaxial FC/PC V X
STLP-1430-005m-DFB 5mW SMF-28 9um Coaxial FC/PC V X
STLP-1430-005m-T-DFB 5mW SMF-28 9um Coaxial FC/PC V V
STLX-1430-005m-H8-T-DFB 5mW SMF-28 9um 8-Pin FC/PC V V
STLP-1430-010m-DFB 10mW SMF-28 9um Coaxial FC/PC V X
STLX-1430-010m-H8-T-DFB 10mW SMF-28 9um 8-Pin FC/PC V V
STLP-1430-005m-PM-DFB 5mW PMF 9um Coaxial FC/APC V X
STLP-1430-005m-PM-T-DFB 5mW PMF 9um Coaxial FC/APC V V
STLX-1430-005m-PM-H8-T-DFB 5mW PMF 9um 8-Pin FC/APC V V
STLP-1430-010m-PM-DFB 10mW PMF 9um Coaxial FC/APC V X
STLX-1430-010m-PM-H8-T-DFB 10mW PMF 9um 8-Pin FC/APC V V
注意：V - 是，X - 否，O - 可选

Ordering Information





Selection Guide 1450 to 1530 nm

Wavelength Part Number Output Power Fiber Type Fiber Core Package Connector PD TEC
1450nm STLP-1450-002m-DFB 2mW SMF-28 9um Coaxial FC/PC V X
STLP-1450-005m-DFB 5mW SMF-28 9um Coaxial FC/PC V X
STLP-1450-005m-T-DFB 5mW SMF-28 9um Coaxial FC/PC V V
ST LX- 1450-005m-H8-T-DFB 5mW SMF-28 9um 8-Pin FC/PC V V
STLP-1450-010m-DFB 10mW SMF-28 9um Coaxial FC/PC V X
STLX-1450-010m-H8-T-DFB 10mW SMF-28 9um 8-Pin FC/PC V V
STLP-1450-005m-PM-DFB 5mW PMF 9um Coaxial FC/APC V X
ST LP- 1450-005m-PM-T-DFB 5mW PMF 9um Coaxial FC/APC V V
STLX-1450-005m-PM-H8-T-DFB 5mW PMF 9um 8-Pin FC/APC V V
STLP-1450-010m-PM-DFB 10mW PMF 9um Coaxial FC/APC V X
STLX-1450-010m-PM-H8-T-DFB 10mW PMF 9um 8-Pin FC/APC V V
1470nm STLP-1470-002m-DFB 2mW SMF-28 9um Coaxial FC/PC V X
STLP-1470-005m-DFB 5mW SMF-28 9um Coaxial FC/PC V X
STLP-1470-005m-T-DFB 5mW SMF-28 9um Coaxial FC/PC V V
ST LX- 1470-005m-H8-T-DFB 5mW SMF-28 9um 8-Pin FC/PC V V
STLP-1470-010m-DFB 10mW SMF-28 9um Coaxial FC/PC V X
STLX-1470-010m-H8-T-DFB 10mW SMF-28 9um 8-Pin FC/PC V V
STLP-1470-005m-PM-DFB 5mW PMF 9um Coaxial FC/APC V X
STLP-1470-005m-PM-T-DFB 5mW PMF 9um Coaxial FC/APC V V
STLX-1470-005m-PM-H8-T-DFB 5mW PMF 9um 8-Pin FC/APC V V
STLP-1470-010m-PM-DFB 10mW PMF 9um Coaxial FC/APC V X
STLX-1470-010m-PM-H8-T-DFB 10mW PMF 9um 8-Pin FC/APC V V
1490nm STLP-1490-002m-DFB 2mW SMF-28 9um Coaxial FC/PC V X
STLP-1490-005m-DFB 5mW SMF-28 9um Coaxial FC/PC V X
STLP-1490-005m-T-DFB 5mW SMF-28 9um Coaxial FC/PC V V
ST LX- 1490-005m-H8-T-DFB 5mW SMF-28 9um 8-Pin FC/PC V V
STLP-1490-010m-DFB 10mW SMF-28 9um Coaxial FC/PC V X
STLX-1490-010m-H8-T-DFB 10mW SMF-28 9um 8-Pin FC/PC V V
STLP-1490-005m-PM-DFB 5mW PMF 9um Coaxial FC/APC V X
STLP-1490-005m-PM-T-DFB 5mW PMF 9um Coaxial FC/APC V V
STLX-1490-005m-PM-H8-T-DFB 5mW PMF 9um 8-Pin FC/APC V V
STLP-1490-010m-PM-DFB 10mW PMF 9um Coaxial FC/APC V X
STLX-1490-010m-PM-H8-T-DFB 10mW PMF 9um 8-Pin FC/APC V V
1510nm STLP-1510-002m-DFB 2mW SMF-28 9um Coaxial FC/PC V X
STLP-1510-005m-DFB 5mW SMF-28 9um Coaxial FC/PC V X
STLP-1510-005m-T-DFB 5mW SMF-28 9um Coaxial FC/PC V V
STLX-1510-005m-H8-T-DFB 5mW SMF-28 9um 8-Pin FC/PC V V
STLP-1510-010m-DFB 10mW SMF-28 9um Coaxial FC/PC V X
STLX-1510-010m-H8-T-DFB 10mW SMF-28 9um 8-Pin FC/PC V V
STLP-1510-005m-PM-DFB 5mW PMF 9um Coaxial FC/APC V X
STLP-1510--005m-PM-T-DFB 5mW PMF 9um Coaxial FC/APC V V
STLX-1510-005m-PM-H8-T-DFB 5mW PMF 9um 8-Pin FC/APC V V
STLP-1510-010m-PM-DFB 10mW PMF 9um Coaxial FC/APC V X
STLX-1510-010m-PM-H8-T-DFB 10mW PMF 9um 8-Pin FC/APC V V
1530nm STLP-1530-002m-DFB 2mW SMF-28 9um Coaxial FC/PC V X
STLP-1530-005m-DFB 5mW SMF-28 9um Coaxial FC/PC V X
STLP-1530-005m-T-DFB 5mW SMF-28 9um Coaxial FC/PC V V
STLX-1530-005m-H8-T-DFB 5mW SMF-28 9um 8-Pin FC/PC V V
STLP-1530-010m-DFB 10mW SMF-28 9um Coaxial FC/PC V X
STLX-1530-010m-H8-T-DFB 10mW SMF-28 9um 8-Pin FC/PC V V
STLP-1530-005m-PM-DFB 5mW PMF 9um Coaxial FC/APC V X
STLP-1530--005m-PM-T-DFB 5mW PMF 9um Coaxial FC/APC V V
STLX-1530-005m-PM-H8-T-DFB 5mW PMF 9um 8-Pin FC/APC V V
STLP-1530-010m-PM-DFB 10mW PMF 9um Coaxial FC/APC V X
STLX-1530-010m-PM-H8-T-DFB 10mW PMF 9um 8-Pin FC/APC V V
Note:  V - Yes,   X - No,   O - Optional

Ordering Information





Selection Guide 1550 to 1650 nm

Wavelength Part Number Output Power Fiber Type Fiber Core Package Connector PD TEC
1550nm STLP-1550-002m-FP 2mW SMF-28 9um Coaxial FC/PC V X
STLP-1550-003m-DFB 3mW SMF-28 9um Coaxial FC/PC V X
STLP-1550-005m-DFB 5mW SMF-28 9um Coaxial FC/PC V X
STLX-1550-005m-H8-T-DFB 5mW SMF-28 9um 8-Pin FC/PC V V
STLP-1550-010m-DFB 10mW SMF-28 9um Coaxial FC/PC V X
STLP-1550-010m-T-DFB 10mW SMF-28 9um Coaxial FC/PC V V
STLX-1550-010m-H8-T-DFB 10mW SMF-28 9um 8-Pin FC/PC V V
STLP-1550-005m-PM-DFB 5mW PMF 9um Coaxial FC/APC V X
STLX-1550-005m-PM-H8-T-DFB 5mW PMF 9um 8-Pin FC/APC V V
STLP-1550-010m-PM-DFB 10mW PMF 9um Coaxial FC/APC V X
STLP-1550-010m-PM-T-DFB 10mW PMF 9um Coaxial FC/APC V V
STLX-1550-010m-PM-H8-T-DFB 10mW PMF 9um 8-Pin FC/APC V V
1570nm STLP-1570-002m-DFB 2mW SMF-28 9um Coaxial FC/PC V X
STLP-1570-005m-DFB 5mW SMF-28 9um Coaxial FC/PC V X
STLP-1570-005m-T-DFB 5mW SMF-28 9um Coaxial FC/PC V V
STLX-1570-005m-H8-T-DFB 5mW SMF-28 9um 8-Pin FC/PC V V
STLP-1570-010m-DFB 10mW SMF-28 9um Coaxial FC/PC V X
STLX-1570-010m-H8-T-DFB 10mW SMF-28 9um 8-Pin FC/PC V V
STLP-1570-005m-PM-DFB 5mW PMF 9um Coaxial FC/APC V X
STLP-1570-005m-PM-T-DFB 5mW PMF 9um Coaxial FC/APC V V
STLX-1570-005m-PM-H8-T-DFB 5mW PMF 9um 8-Pin FC/APC V V
STLP-1570-010m-PM-DFB 10mW PMF 9um Coaxial FC/APC V X
STLX-1570-010m-PM-H8-T-DFB 10mW PMF 9um 8-Pin FC/APC V V
1590nm STLP-1590-002m-DFB 2mW SMF-28 9um Coaxial FC/PC V X
STLP-1590-005m-DFB 5mW SMF-28 9um Coaxial FC/PC V X
STLP-1590-005m-T-DFB 5mW SMF-28 9um Coaxial FC/PC V V
STLX-1590-005m-H8-T-DFB 5mW SMF-28 9um 8-Pin FC/PC V V
STLP-1590-008m-DFB 8mW SMF-28 9um Coaxial FC/PC V X
STLX-1590-008m-H8-T-DFB 8mW SMF-28 9um 8-Pin FC/PC V V
STLP-1590-005m-PM-DFB 5mW PMF 9um Coaxial FC/APC V X
STLP-1590-005m-PM-T-DFB 5mW PMF 9um Coaxial FC/APC V V
STLX-1590-005m-PM-H8-T-DFB 5mW PMF 9um 8-Pin FC/APC V V
STLP-1590-008m-PM-DFB 8mW PMF 9um Coaxial FC/APC V X
STLX-1590-008m-PM-H8-T-DFB 8mW PMF 9um 8-Pin FC/APC V V
1610nm STLP-1610-002m-DFB 2mW SMF-28 9um Coaxial FC/PC V X
STLP-1610-005m-DFB 5mW SMF-28 9um Coaxial FC/PC V X
STLP-1610-005m-T-DFB 5mW SMF-28 9um Coaxial FC/PC V V
STLX-1610-005m-H8-T-DFB 5mW SMF-28 9um 8-Pin FC/PC V V
STLP-1610-008m-DFB 8mW SMF-28 9um Coaxial FC/PC V X
STLX-1610-008m-H8-T-DFB 8mW SMF-28 9um 8-Pin FC/PC V V
STLP-1610-005m-PM-DFB 5mW PMF 9um Coaxial FC/APC V X
STLP-1610-005m-PM-T-DFB 5mW PMF 9um Coaxial FC/APC V V
STLX-1610-005m-PM-H8-T-DFB 5mW PMF 9um 8-Pin FC/APC V V
STLP-1610-008m-PM-DFB 8mW PMF 9um Coaxial FC/APC V X
STLX-1610-008m-PM-H8-T-DFB 8mW PMF 9um 8-Pin FC/APC V V
1625nm STLP-1625-002m-DFB 2mW SMF-28 9um Coaxial FC/PC V X
STLP-1625-005m-DFB 5mW SMF-28 9um Coaxial FC/PC V X
STLP-1625-005m-T-DFB 5mW SMF-28 9um Coaxial FC/PC V V
STLX-1625-005m-H8-T-DFB 5mW SMF-28 9um 8-Pin FC/PC V V
STLP-1625-008m-DFB 8mW SMF-28 9um Coaxial FC/PC V X
STLX-1625-008m-H8-T-DFB 8mW SMF-28 9um 8-Pin FC/PC V V
STLP-1625-005m-PM-DFB 5mW PMF 9um Coaxial FC/APC V X
STLP-1625-005m-PM-T-DFB 5mW PMF 9um Coaxial FC/APC V V
STLX-1625-005m-PM-H8-T-DFB 5mW PMF 9um 8-Pin FC/APC V V
STLP-1625-008m-PM-DFB 8mW PMF 9um Coaxial FC/APC V X
STLX-1625-008m-PM-H8-T-DFB 8mW PMF 9um 8-Pin FC/APC V V
1650nm STLP-1650-002m-DFB 2mW SMF-28 9um Coaxial FC/PC V X
STLP-1650-005m-DFB 5mW SMF-28 9um Coaxial FC/PC V X
STLP-1650-005m-T-DFB 5mW SMF-28 9um Coaxial FC/PC V V
STLX-1650-005m-H8-T-DFB 5mW SMF-28 9um 8-Pin FC/PC V V
STLP-1650-008m-DFB 8mW SMF-28 9um Coaxial FC/PC V X
STLX-1650-008m-H8-T-DFB 8mW SMF-28 9um 8-Pin FC/PC V V
STLP-1650-005m-PM-DFB 5mW PMF 9um Coaxial FC/APC V X
STLP-1650-005m-PM-T-DFB 5mW PMF 9um Coaxial FC/APC V V
STLX-1650-005m-PM-H8-T-DFB 5mW PMF 9um 8-Pin FC/APC V V
STLP-1650-008m-PM-DFB 8mW PMF 9um Coaxial FC/APC V X
STLX-1650-008m-PM-H8-T-DFB 8mW PMF 9um 8-Pin FC/APC V V
Note:  V - Yes,   X - No,   O - Optional

我们在这里为您服务！





给我们发电子邮件 info@simtrum.com 以获得今天最优惠的价格。   想要更多的技术信息?点击这里 获取专业定制系统/解决方案。




没有时间逐个搜索产品?不用担心。您可以下载全系列的瑆创产品线卡，现在点击它。



想要更接近市场动态和技术发展吗?只需花5秒钟作为会员登录，我们将为您带来最新的新闻。​(屏幕右上方的登录按钮)


Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
STLP-705-015m-PD
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 705 nm, output power 15mW, single mode, package coaxial, with photodiode 		2-3 Weeks Request for quote
STLP-730-015m-PM-PD
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 730 nm, output power 15mW, Polarization Maintaining, with photodiode 		2-3 Weeks Request for quote
STLX-785-030m-H8-T-PD
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 785 nm, output power 30mW, single mode, package 8pin, with TE cooler and photodiode 		2-3 Weeks Request for quote
STLX-808-020m-H-T-PD
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 808 nm, output power 20mW, single mode, package HHL-01, with TE cooler and Photodiode 		2-3 Weeks Request for quote
STLX-820-030m-PM-H8-T-PD
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 820 nm, output power 30mW, Polarization Maintaining, package 8pin, with TE cooler and photodiode 		2-3 Weeks Request for quote
STLP-830-080m-PD
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 830 nm, output power 80mW, single mode, package coaxial, with Photodiode 		2-3 Weeks Request for quote
STLP-850-002m-PD
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 850 nm, output power 2mW, single mode, package coaxial, with Photodiode 		2-3 Weeks Request for quote
STLX-880-001m-PM-H8-T-PD
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 880 nm, output power 1mW, Polarization Maintaining, package 8pin, with TE cooler and photodiode 		2-3 Weeks Request for quote
STLP-905-030m-PD
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 905 nm, output power 30mW, single mode, package coaxial, with Photodiode 		2-3 Weeks Request for quote
STLP-940-100m-PD
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 940 nm, output power 100mW, single mode, package coaxial, with Photodiode 		2-3 Weeks Request for quote
STLX-980-005m-H8-T-PD
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 980 nm, output power 5mW, single mode, package 8pin, with TE cooler and Photodiode 		2-3 Weeks Request for quote
STLP-1064-020m-PM-PD
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1064 nm, output power 20mW, Polarization Maintaining, package coaxial, with Photodiode 		2-3 Weeks Request for quote
STLP-1270-010m-DFB
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1270 nm, output power 10mW, single mode, package coaxial, Distributed feedback diodes 		2-3 Weeks Request for quote
STLP-1290-005m-PM-T-DFB
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1290 nm, output power 5mW, Polarization Maintaining, package coaxial, with TE cooler, Distributed feedback diodes 		2-3 Weeks Request for quote
STLP-1310-010m-DFB
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1310 nm, output power 10mW, single mode, package coaxial, Distributed feedback diodes 		2-3 Weeks Request for quote
STLX-1330-005m-PM-H8-T-DFB
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1330 nm, output power 5mW, Polarization Maintaining, package 8pin, with TE cooler, Distributed feedback diodes 		2-3 Weeks Request for quote
STLX-1350-005m-H8-T-DFB
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1350 nm, output power 5mW, single mode, package 8pin, with TE cooler, Distributed feedback diodes 		2-3 Weeks Request for quote
STLX-1370-005m-PM-H8-T-DFB
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1370 nm, output power 5mW, Polarization Maintaining, package 8pin, with TE cooler, Distributed feedback diodes 		2-3 Weeks Request for quote
STLX-1390-005m-PM-H8-T-DFB
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1390 nm, output power 5mW, Polarization Maintaining, package 8pin, with TE cooler, Distributed feedback diodes 		2-3 Weeks Request for quote
STLP-1410-005m-PM-T-DFB
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1410 nm, output power 5mW, Polarization Maintaining, package 8pin, with TE cooler, Distributed feedback diodes 		2-3 Weeks Request for quote
STLP-1430-005m-PM-DFB
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1430 nm, output power 5mW, Polarization Maintaining, package coaxial, Distributed feedback diodes 		2-3 Weeks Request for quote
STLP-1450-010m-DFB
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1450 nm, output power 10mW, single mode, package coaxial, Distributed feedback diodes 		2-3 Weeks Request for quote
STLX-1470-010m-H8-T-DFB
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1470 nm, output power 10mW, single mode, package 8pin, with TE cooler, Distributed feedback diodes 		2-3 Weeks Request for quote
STLP-1490-005m-PM-T-DFB
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1490 nm, output power 5mW, Polarization Maintaining, package coaxial, with TE cooler, Distributed feedback diodes 		2-3 Weeks Request for quote
STLP-1510--005m-PM-T-DFB
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1510 nm, output power 5mW, Polarization Maintaining, package coaxial, with TE cooler, Distributed feedback diodes 		2-3 Weeks Request for quote
STLP-1530-005m-T-DFB
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1530 nm, output power 5mW, single mode, package coaxial, with TE cooler, Distributed feedback diodes 		2-3 Weeks Request for quote
STLX-1550-005m-PM-H8-T-DFB
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1550 nm, output power 5mW, Polarization Maintaining, package coaxial, with TE cooler, Distributed feedback diodes 		2-3 Weeks Request for quote
STLP-1570-005m-PM-T-DFB
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1570 nm, output power 5mW, Polarization Maintaining, package coaxial, with TE cooler, Distributed feedback diodes 		2-3 Weeks Request for quote
STLX-1590-008m-H8-T-DFB
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1590 nm, output power 8mW, single mode, package 8pin, with TE cooler, Distributed feedback diodes 		2-3 Weeks Request for quote
STLP-1610-005m-T-DFB
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1610 nm, output power 5mW, single mode, package coaxial, with TE cooler, Distributed feedback diodes 		2-3 Weeks Request for quote
STLP-1625-008m-DFB
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1625 nm, output power 8mW, single mode, package coaxial, Distributed feedback diodes 		2-3 Weeks Request for quote
STLP-1650-005m-PM-T-DFB
CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1650 nm, output power 5mW, Polarization Maintaining, package coaxial, with TE cooler, Distributed feedback diodes 		2-3 Weeks Request for quote

STLP-1650-005m-PM-T-DFB - Parameter

STLP-1625-008m-DFB - Parameter

STLP-1610-005m-T-DFB - Parameter

STLX-1590-008m-H8-T-DFB - Parameter

STLP-1570-005m-PM-T-DFB - Parameter

STLX-1550-005m-PM-H8-T-DFB - Parameter

STLP-1530-005m-T-DFB - Parameter

STLP-1510--005m-PM-T-DFB - Parameter

STLP-1490-005m-PM-T-DFB - Parameter

STLX-1470-010m-H8-T-DFB - Parameter

STLP-1450-010m-DFB - Parameter

STLP-1430-005m-PM-DFB - Parameter

STLP-1410-005m-PM-T-DFB - Parameter

STLX-1390-005m-PM-H8-T-DFB - Parameter

STLX-1370-005m-PM-H8-T-DFB - Parameter

STLX-1350-005m-H8-T-DFB - Parameter

STLX-1330-005m-PM-H8-T-DFB - Parameter

STLP-1310-010m-DFB - Parameter

STLP-1290-005m-PM-T-DFB - Parameter

STLP-1270-010m-DFB - Parameter

STLP-1064-020m-PM-PD - Parameter

STLX-980-005m-H8-T-PD - Parameter

STLP-940-100m-PD - Parameter

STLP-905-030m-PD - Parameter

STLX-880-001m-PM-H8-T-PD - Parameter

STLP-850-002m-PD - Parameter

STLP-830-080m-PD - Parameter

STLX-820-030m-PM-H8-T-PD - Parameter

STLX-808-020m-H-T-PD - Parameter

STLX-785-030m-H8-T-PD - Parameter

STLP-730-015m-PM-PD - Parameter

STLP-705-015m-PD - Parameter

STLP-1650-005m-PM-T-DFB - Download

STLP-1625-008m-DFB - Download

STLP-1610-005m-T-DFB - Download

STLX-1590-008m-H8-T-DFB - Download

STLP-1570-005m-PM-T-DFB - Download

STLX-1550-005m-PM-H8-T-DFB - Download

STLP-1530-005m-T-DFB - Download

STLP-1510--005m-PM-T-DFB - Download

STLP-1490-005m-PM-T-DFB - Download

STLX-1470-010m-H8-T-DFB - Download

STLP-1450-010m-DFB - Download

STLP-1430-005m-PM-DFB - Download

STLP-1410-005m-PM-T-DFB - Download

STLX-1390-005m-PM-H8-T-DFB - Download

STLX-1370-005m-PM-H8-T-DFB - Download

STLX-1350-005m-H8-T-DFB - Download

STLX-1330-005m-PM-H8-T-DFB - Download

STLP-1310-010m-DFB - Download

STLP-1290-005m-PM-T-DFB - Download

STLP-1270-010m-DFB - Download

STLP-1064-020m-PM-PD - Download

STLX-980-005m-H8-T-PD - Download

STLP-940-100m-PD - Download

STLP-905-030m-PD - Download

STLX-880-001m-PM-H8-T-PD - Download

STLP-850-002m-PD - Download

STLP-830-080m-PD - Download

STLX-820-030m-PM-H8-T-PD - Download

STLX-808-020m-H-T-PD - Download

STLX-785-030m-H8-T-PD - Download

STLP-730-015m-PM-PD - Download

STLP-705-015m-PD - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)

Sales Enquiry：13326430008       Email：info@simtrum.com

Address:广州市黄埔区中新智慧一街7号1001

Copyright © 2024 瑆创科技（广州）有限公司. All right reserved. 粤ICP备2024272506号
