导光耦合LED光源(310-980nm)

Overview Specifications and Model Guide Accessories Order Now!

High-Power Lightguide Coupled

GCS-series high-power LED sources are designed for high-efficiency coupling of LED light into a liquid lightguide (LLG) or a fiber optic bundle. Virtually all lightguides with core diameters ranging from 3mm to 8mm can be used with the GCS-series light source. Please note that lightguides and adapters are sold separately. GCS series also features a locking electrical connector for secured connection. GCS series are designed as a universal light source for general lab use and OEM applications. All LED drivers such as the SLC series or other LED drivers and current sources can be used to drive the GCS-series light sources. The one-piece machined aluminum alloy housing features integrated heatsinks and multiple mounting holes.

Multi-chip LED emitters have been added to the product portfolio (Type-B). Some of these 7W to 15W LEDs have total optical power exceeding 1W, quadrupling the power of a single-chip LED (Type-A). Models with higher powers (i.e. Type-B with 7W and higher) feature a cooling fan, and have a different form factor compared to other models. Please examine the installation drawings carefully. Power supply for the cooling fan is included in the price of the LED sources.

To drive a GCS LED source, one can use any of the wide range of LED controllers:

· Software controlled LED controllers; or

· Manual LED drivers

Features:

· High output power

· Broad wavelength selections in VIS, UV and NIR

· Interchangeable liquid lightguides or fiber bundles

· Compact, machined metal housing with integrated heat sink

· Multiple mounting features for lab and OEM applications

· Locking electrical connector

Applications:

· Microscopy

· Fluorescence

· Machine vision

· Sensors

· Semiconductor equipment

· Testing instruments

· Medical instruments

Lightguide Collimators

Features:

· Aspherical lens

· Adjustable focus with locking ring

· Accepts various ferrule diameters

Applications:

· Coupling light into lightguides

· Collimating light from lightguides

Product Brochures: High-Power | Collimators

Type-A GCS (passively cooled with no cooling fan)
Type-B GCS (with a cooling fan)

Part Number	Wavelength Code	Type	Description	Wavelength (nm)	Iop(mA)	Vop(V)	Typical Radiant
Part Number	Wavelength Code	Type	Description	Wavelength (nm)	Iop(mA)	Vop(V)	Flux (mW)
GCS-0310-03-xxxx	310	A	DUV 310nm	310	350	5.8	18
GCS-0325-03-xxxx	325	A	DUV 325nm	325	500	5.4	9
GCS-0340-02-xxxx	340	A	DUV 340nm	340	500	4.3	12
GCS-0365-04-xxxx	365	A	UV 365nm	365	1000	3.65	220
GCS-0365-13-xxxx	365	B	UV 365nm, 13W	365	3500	3.85	950
GCS-0380-03-xxxx	380	A	UV 380nm, 3W	380	1000	3.2	80
GCS-0385-04-xxxx	385	A	UV 385nm	385	1000	3.65	300
GCS-0385-07-xxxx	385	B	UV 385nm, 7W	385	500	15	330
GCS-0385-11-xxxx	385	B	UV 385nm, 11W	385	700	15.5	410
GCS-0385-13-xxxx	385	B	UV 385nm, 13W	385	3500	3.75	1180
GCS-0390-03-xxxx	390	A	UV 390nm	390	1000	3.1	165
GCS-0395-03-xxxx	395	A	UV 395nm	395	1000	3.1	180
GCS-0400-03-xxxx	400	A	UV 400nm, 3W	400	1000	3.1	175
GCS-0405-03-xxxx	405	A	UV 405nm	405	1000	3	215
GCS-0410-03-xxxx	410	A	410nm	410	1000	3	210
GCS-0415-03-xxxx	415	A	415nm	415	1000	3	210
GCS-0430-02-xxxx	430	A	430nm	430	500	3.8	130
GCS-0455-03-xxxx	455	A	Royal Blue	455	1000	3	300
GCS-0470-04-xxxx	470	A	Blue	470	1000	3.9	130
GCS-0470-15-xxxx	470	B	Blue, 15W	470	1000	15	400
GCS-0471-04-xxxx	471	A	Blue	471	350	3	95
GCS-0490-01-xxxx	490	A	490nm	490	350	3.5	85
GCS-0505-04-xxxx	505	A	Cyan	505	1000	3.9	30
GCS-0505-12-xxxx	505	B	Cyan	505	1000	12.2	200
GCS-0530-03-xxxx	530	A	Green	530	1000	2.85	120
GCS-0530-15-xxxx	530	B	Green, 15W	530	1000	15	180
GCS-0560-02-xxxx	560	A	560nm, broadband	560	700	2.9	120
GCS-0590-03-xxxx	590	A	Amber	590	1000	3.2	35
GCS-0617-03-xxxx	617	A	Red-Orange	617	1000	3	100
GCS-0617-10-xxxx	617	B	Red-Orange, 10W	617	1000	10.8	175
GCS-0625-03-xxxx	625	A	Red	625	1000	3	100
GCS-0625-07-xxxx	625	B	Red, 7W	625	700	9.6	200
GCS-0700-01-xxxx	700	A	700nm	700	500	2.1	35
GCS-0720-01-xxxx	720	A	720nm	720	600	2.2	50
GCS-0740-03-xxxx	740	A	740nm	740	1000	2.9	130
GCS-0810-02-xxxx	810	A	810nm	810	800	2.2	80
GCS-0850-02-xxxx	850	A	850nm	850	1000	2.1	125
GCS-0870-01-xxxx	870	A	870nm	870	700	1.9	75
GCS-0910-02-xxxx	910	A	910nm	910	1000	1.9	80
GCS-0940-02-xxxx	940	A	940nm	940	1000	2.4	125
GCS-0980-01-xxxx	980	A	980nm	980	500	1.4	20
GCS-3000-03-xxxx	3000	A	Warm White	3,000K	1000	2.8	80
GCS-3000-12-xxxx	3000	B	Warm White, 12W	3,000K	1000	12	240
GCS-4000-04-xxxx	4000	A	Warm White	4,000K	1000	3.9	95
GCS-5500-04-xxxx	5500	A	Cool White	5,500K	1000	3.9	95
GCS-5500-12-xxxx	5500	B	Cool White, 12W	5,500K	1000	12	300
GCS-6500-04-xxxx	6500	A	Glacier White	6,500K	1000	3.6	95
GCS-6500-15-xxxx	6500	B	Glacier White, 15W	6,500K	1000	15	300

Type-H GCS (high current, with a cooling fan)

Part Number	Wavelength Code	Type	Description	Peak Wavelength (nm)	Iop(A)	Vop(V)	Typical Radiant
Part Number	Wavelength Code	Type	Description	Peak Wavelength (nm)	Iop(A)	Vop(V)	Flux (mW) (3)
GCS-0365-76-xxxx	365	H	UV 365nm, 50W	365	18	4.2	2600
GCS-0405-65-xxxx	405	H	UV 405nm, 65W	405	18	3.6	1600
GCS-0470-50-xxxx	470	H	Blue, 50W	470	13	3.8	2000
GCS-0525-60-xxxx	525	H	Green, 60W	525	13	4.6	800
GCS-0560-68-xxxx	560	H	560nm Broadband, 70W	560	18	3.8	1700
GCS-0625-38-xxxx	625	H	Red, 40W	625	13	2.9	700
GCS-0730-77-xxxx	730	H	NIR, 80W	730	18	5.9	1100
GCS-6500-33-xxxx	6500	H	Glacier White, 30W	6,500K	9	3.7	1200
GCS-6500-65-xxxx	6500	H	Glacier White, 65W	6,500K	18	3.7	2200

Lightguide Adapters (for Type-A GCS only)

Adapter Code	For Ferrule Diameter(mm)	For Ferrule Length(mm)
A0510	5	≥10
A0610	6	≥10
A0710	7	≥10
A0810	8	≥10
A0815	8	≥15

Lightguide Collimators

Part Number	Focal Length (mm)	Clear Aperture (mm)	F# / NA	Lens Material	Wavelength Range (nm)	Lightguide Ferrule OD 1
LGC-019-022-05-V	19	22	0.86/0.5	B270	350 ~ 2,000	5mm
LGC-019-022-07-V	19	22	0.86/0.5	B270	350 ~ 2,000	7mm

Here are accessories for GCS-series lightguide coupled LED sources.

(1) ACC-GCS-C05: Electrical cable for GCS-series LEDs.

(2) ACC-LLG-HS-03: Heatsink for 3mm core liquid lightguides.

(3) Liquid lightguides.

· LLG-03-59-300-0650-1 Liquid lightguide, 3mm core, 0.59NA,

300-650nm,1 meter (ferrule diameter:5mm).

· LLG-03-59-300-0650-2: Liquid lightguide, 3mm core, 0.59NA,

300-650nm, 2 meters (ferrule diameter:5mm).

· LLG-03-59-340-0800-1: Liquid lightguide, 3mm core, 0.59NA,

340-800nm, 1 meter (ferrule diameter:5mm).

· LLG-03-59-340-0800-2: Liquid lightguide, 3mm core, 0.59NA,

340-800nm, 2 meters (ferrule diameter:5mm).

· LLG-03-59-420-2000-1: Liquid lightguide, 3mm core, 0.59NA,

420-2000nm,1 meter (ferrule diameter:5mm).

· LLG-03-59-420-2000-2: Liquid lightguide, 3mm core, 0.59NA,

420-2000nm, 2 meters (ferrule diameter:5mm).

· LLG-05-59-340-0800-1: Liquid lightguide, 5mm core, 0.59NA,

340-0800nm, 1 meter (ferrule diameter:7mm).

· LLG-05-59-420-2000-1: Liquid lightguide, 5mm core, 0.59NA,

420-2000nm, 1 meter (ferrule diameter:7mm).

· LLG-05-59-420-2000-2: Liquid lightguide, 5mm core, 0.59NA,

420-2000nm, 2 meter (ferrule diameter:7mm).

(4) Lightguide adapters for Type-A GCS source ONLY. Each Type-A GCS product

comes with a standard lightguide adapter for 5mm-diameter ferrule (A0510). Other adapters (as well as additional standard adapters) can be purchased separately,

as follows:

· ACC-GCS-A0510: Adapter for a lightguide with ferrule diameter of 5mm and ferrule length of 10mm or greater.

· ACC-GCS-A0610: Adapter for a lightguide with ferrule diameter of 6mm and ferrule length of 10mm or greater.

· ACC-GCS-A0710: Adapter for a lightguide with ferrule diameter of 7mm and ferrule length of 10mm or greater.

· ACC-GCS-A0810: Adapter for a lightguide with ferrule diameter of 8mm and ferrule length of 10mm or greater.

(5) Lightguide adapters for Type-B GCS sources.

· ACC-GCS-A0515, Adapter for lightguide with ferrule diameter of 5mm

and ferrule length of 15mm or greater, for Type-B GCS only.

· ACC-GCS-A0715, Adapter for lightguide with ferrule diameter of 7mm

and ferrule length of 15mm or greater, for Type-B GCS only.

· ACC-GCS-A0815, Adapter for lightguide with ferrule diameter of 8mm

and ferrule length of 15mm or greater, for Type-B GCS only.

· ACC-GCS-A1015, Adapter for lightguide with ferrule diameter of 10mm

and ferrule length of 15mm or greater, for Type-B GCS only.

Lightguide Collimator

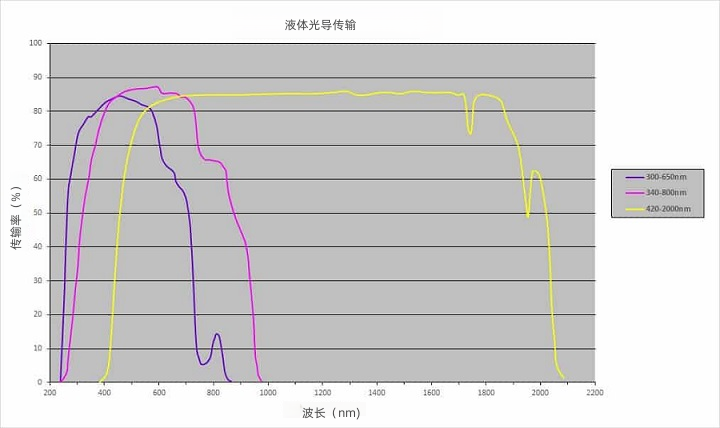

Light Guide Transmission
