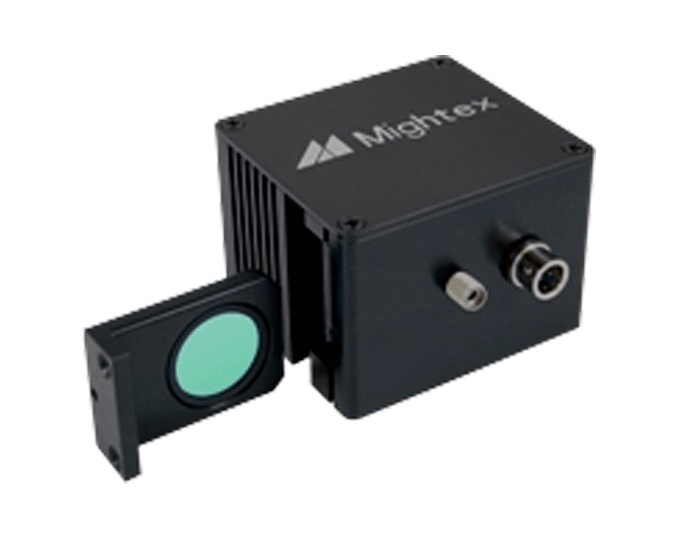

FFC-series filtered LED light sources employ the latest high-power LED technologies and a proprietary coupling optics to achieve maximum optical output power. Optical output is coupled into a fiber through a standard SMA fiber adaptor port (SMA fiber patch cords are sold separately). Users may insert an optical filter into the light source to tailor output spectrum and intensity. Example applications include fluorescence excitation with a bandpass filter, wavelength selection from a white LED, attenuating intensity with a neutral density filter, and polarized output with a polarizer.

Filters are not included in standard FFC products. Maximum filter diameter is 1”(25.4mm) and minimum diameter is 12mm. Maximum filter thickness is 5mm. Filters with diameters of 1” or 25mm can be directly loaded into the filter holder. Smaller filters may need an adapter.

FFC series also features a locking electrical connector for secured connection. FFC series are designed as a universal light source for general lab use and OEM applications. The one-piece machined housing features multiple mounting holes. All LED drivers such as the SLC series or other LED drivers and current sources can be used to drive the light sources.

To drive a FFC series LED source, one can use any one of the wide range of LED controllers.

· Software controlled LED controllers; or

· Manual LED drivers

Features:

· Allow insertion of optical filters

· High output power

· Broad wavelength selections in VIS, UV and NIR

· SMA port for up to 1500micron fiber core

· Interchangeable fiber patchcords

· Compact, machined metal housing with integrated heat sink

Applications:

· Microscopy

· Florescence

· Sensors

· Semiconductor equipment

· Testing instruments

· Medical instruments

· Machine vision

Electrical Pin Layout

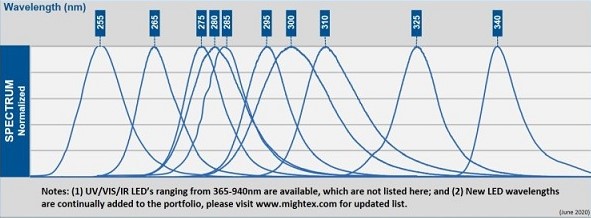

LED Wavelength	UV LED Wavelength

Product Brochure: Filtered High Power Fiber-Coupled LED

Wavelength Code	Description	Wavelength (nm)	Iop(mA)	Vop(V)	Typical Radiant Flux (mW) 1
0	Cool White	5,500K	1000	3.9	3
1	Warm White	4,000K	1000	3.9	3
0265-001	Deep UV	265	350	6.3	220µW
0275-001	Deep UV	275	600	6	385µW
0280-001	Deep UV	280	500	5.8	220µW
0295-001	Deep UV	295	600	5.8	275µW
0310-001	Deep UV	310	350	5.8	180µW
0325-001	Deep UV	325	500	5.4	150µW
0340-001	Deep UV	340	500	4.3	340µW
0365-001	UV 365nm	365	1000	3.65	2.2
0385-001	UV 385nm	385	1000	3.65	3.3
0400-002	UV 400nm, 3W	400	1000	3.1	5
455	Royal	455	1000	3	14
470	Blue	470	1000	3.9	4.2
490	Cyan	490	350	3.5	1.9
505	Cyan	505	1000	3.9	3
530	Green	530	1000	2.85	5
560	Green	560 broadband	700	2.9	5
590	Amber	590	1000	3.2	1.1
617	Red-Orange	617	1000	3	6
625	Red	625	1000	3	6
656	Deep Red	656	1000	3.1	6
680	Deep Red	680	600	2.7	1.2
0740-001	NIR	740	1000	2.5	3.1
780	NIR	780	800	2.5	2
850	NIR	850	1000	2.1	3.8
940	NIR	940	1000	2.4	3.8
