超高功率准直LED 365-980nm
Super High-Power Collimated LED's

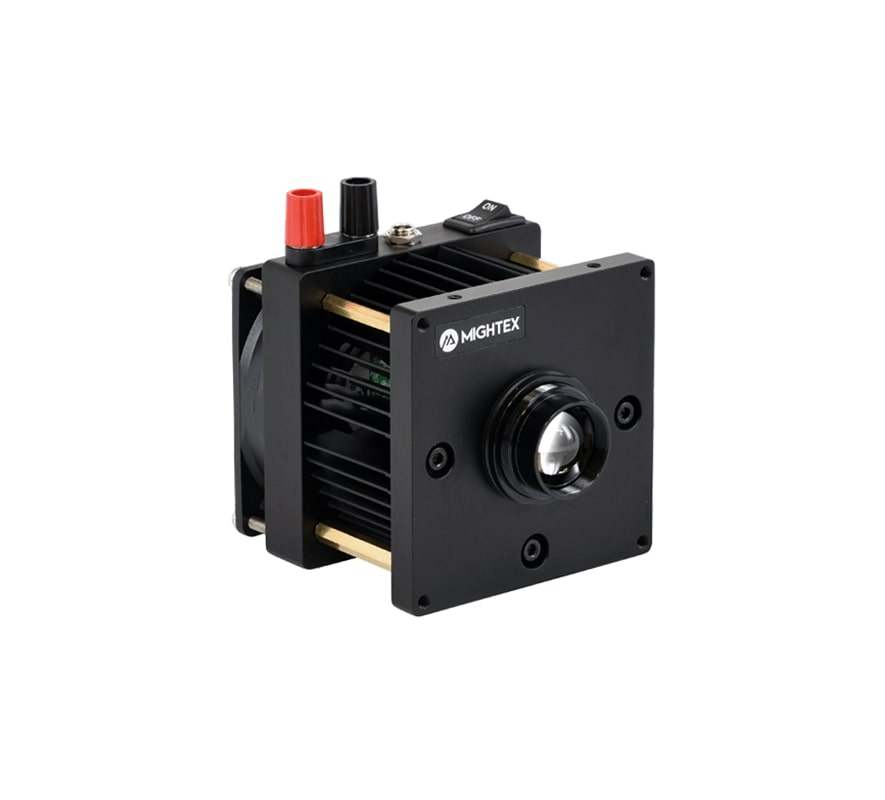

Super High-Power Collimated LED's picture










An LED collimator consists of a collimating lens and an LED emitter. The LED emitter is placed at the focal plane of the collimating lens. The collimating lens thus images the LED emitter into infinity. Mightex LED collimators employ a high-NA aspherical collimating lens for precision collimation and high light throughput.


New Type-H super high-power collimator LED sources with 30-50W emitters have been added to the product portfolio. These new collimator light sources produce a market-leading optical power output of up to 3.3W, which is up to 5 times from our existing high-power Type-B collimator LED sources. The LED emitters are mounted directly onto the metal base of the collimator which also features an integrated heat sink and a cooling fan. This configuration minimizes thermal resistance between the LED emitter and the heat sink resulting in better heat dissipation. The collimating lens can be adjusted if needed for precise collimation. A locking ring fixes the lens position after adjustment. The collimators have been pre-adjusted in the factory.


The new Type-H light sources are larger in dimensions compared with existing Type-A and Type-B light source. Please examine the installation drawings carefully. Power supply for the cooling fan is included in the price of the LED collimator sources. The LED collimators include a 1.5-meter cable with two bare-wire terminals at the end. The light sources can be driven by Mightex LED controllers or other LED controllers and current sources.


Collimator LEDs are compatible with a large number of optical accessories/adapters:

1. An optional focusing module can be mounted on the front of the LED collimator to focus light into a tight spot which is an image of the LED emitter. This is useful for application requiring very high optical density such as fluorescence spectroscopy, or to focus LED light into a fiber or a light guide.

2. Additional interchangeable collimating lenses are available to produce different beam sizes with the same light source.


IMPORTANT :

(1) LED’s can ONLY be driven by a constant-current source, and NOT a voltage source (e.g. a battery, or a AC/DC power supply etc.);

(2) Please always verify LED’s current rating first before applying current to the LED, and please always make sure NOT to apply current that is above the LED’s current rating.


Features:

 - Interchangeable aspherical collimating lens

 - High numerical aperture (NA)

 - High power emitter (up to 50W)

 - Up to 3.3W of collimated output

 - Up to 3.5W of collimated output (only for 38mm)

 - Optional Lightguide adaptor (only for 38mm)

 - Adjustable focus

 - Optional focusing module

 - Multiple mounting features for lab

   and OEM applications

 - Integrated heat sink and cooling fan

Applications:

 - Microscope illuminator

 - General purpose light source

 - Fiber coupling (with optional focusing module)




Please check the table below for individual specifications tied to individual products.

Product Brochure Links: Super High-Power LED Collimator


Performance Specifications


Part NumberTypeWavelength (nm)Half Diverging Angle(deg.)Iop(A)Vop(V)Typical Output Power (mW)2
φ 11mm 1φ   22mm 1φ   38mm 1φ   48mm1
LCS-0365-76-xxH36510532.2184.210000
LCS-0405-65-xxH40510532.2183.68300
LCS-0470-50-xxH47010532.2133.83300
LCS-0525-60-xxH52510532.2134.61300
LCS-0560-68-xxH560 broadband10532.2183.83500
LCS-0625-38-xxH62510532.2132.91100
LCS-0730-77-xxH73010532.2185.93500
LCS-6500-33-xxHglacier white, 6,500K10532.293.72000
LCS-6500-65-xxHglacier white, 6,500K10532.2183.73500


Product Drawings

Super High-Power LED Collimator φ 11mmSuper High-Power LED Collimator φ 11mm Drawing
Super High-Power LED Collimator φ 22mmSuper High-Power LED Collimator φ 22mm Drawing
Super High-Power LED Collimator φ 38mmSuper High-Power LED Collimator φ 38mm Drawing
Super High-Power LED Collimator φ 48mmSuper High-Power LED Collimator φ 48mm Drawing



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
LCS-0365-76-XX
Super High-Power Collimated LED's
4-6 Weeks Request for quote
LCS-0405-65-XX
Super High-Power Collimated LED's
4-6 Weeks Request for quote
LCS-0470-50-XX
Super High-Power Collimated LED's
4-6 Weeks Request for quote
LCS-0525-60-XX
Super High-Power Collimated LED's
4-6 Weeks Request for quote
LCS-0560-68-XX
Super High-Power Collimated LED's
4-6 Weeks Request for quote
LCS-0625-38-XX
Super High-Power Collimated LED's
4-6 Weeks Request for quote
LCS-0730-77-XX
Super High-Power Collimated LED's
4-6 Weeks Request for quote
LCS-6500-33-XX
Super High-Power Collimated LED's
4-6 Weeks Request for quote
LCS-6500-65-XX
Super High-Power Collimated LED's
4-6 Weeks Request for quote
