SIMTRUM offers a wide range of transimpedance Amplifers which employs precision differential or single ended transimpedance input stages to provide for low offset and high linearity throughout the full dynamic range. The single ended input stage is required for applications where the current source is inherently grounded externally. These ranges of transimpedance amplifiers are particularly useful for the measurement of current from photodiodes. Use the table below to find a device that matches your needs. Accessories, software, and drivers are available - complete your purchase with a packaged solution that meets your needs.
Input
TZA 200
TZA 400
TZA 500
Rise Time
35ns (10mHz)
1µs (G≤5x105)
45µs
Interfaces
DB9 (analogue outputs)
Hardwire interface (DB25)
USB & control interface (DB25)
Noise Equivalent Current
1µA (RMS)
500pA (RMS)
30pA (RMS)
Gain Control
No
Optionally 4 or 16 stages
6 gain stages
Bandwidth Control
4 Bandwidths
Polarity Control
Yes
Auto-null Function

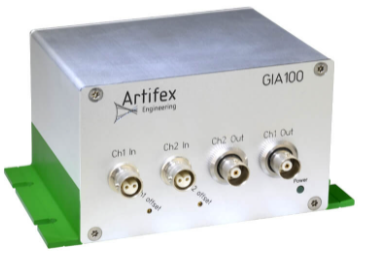

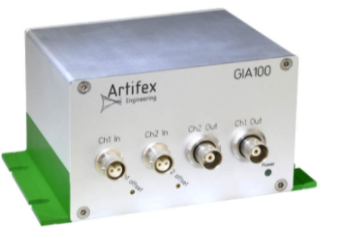

The Gated Integrated Amplifier GIA 100
Product Brochure:
Gated Integrating Amplifier | GIA100 Minimum Pulse Timing
employs dual monolithic switched integrators. When paired with a photodiode, the boxcar amplifier measures the energy of single optical pulses. The GIA100 design results in very low leakage error, charge injection error and pickup. The precision input stage may be configured for current or voltage inputs. It is also useful for signal processing in a wide range of applications such as photodiode monitoring and time domain signal analysis as the output is a voltage linearly proportional to the integral of the input during a period set by a TTL-compatible gate. The fast response time at high signal-noise-ratio makes the GIA series particularly useful in systems control feedback loops and online production control.
Characteristics
- Output: linear analogue proportional to integral of input
- Interfaces: DB37 (hardwire control and analogue outputs)
- Switching time: 1µs
- Gain control: 4 gain stages
Applications
- System control feedback loops
- Online production control
- Industrial Sector
- OEMs
Range (Min = noise equivalent input, Max = full scale)
1nA – 100µA
10µV – 1V
Connectors
BNC or BR2 (Adapters for other connector systems available)
Output
Range (full scale)
10V (Max)
Function
Linear analogue: Vout = factorscale ⁄ 100 pF ∫ Iin dt
Linear analogue: Vout = faktorscale ⁄ 1µs ∫ Vin dt
Output scale
1, 2, 5, 10 (typ.)
BNC and DB9 (Adapters for other connector systems available)
Max. repetition rate
285 kHz
Accuracy
± 3% (min)
Linearity
± 0,1% FSR (max)
Output impedance
1 Ω (max)
Logic
Switching time (integrate, hold, reset, gain)
1 µs (max)
Power supply
Type
Wall plug (supplied)
Dimensions
30 mm x 50 mm x 60 mm
2 channels
130 mm x 66 mm x 120 mm (w x h x l)
4 channels
130 mm x 106 mm x 120 mm (w x h x l)
> 4 channels
19″-rack, 3U

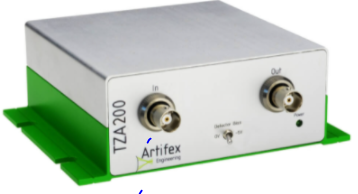

TZA 200 Transimpedance Amplifier
Product Brochure: TZA200englRevC1 | TZA200_engl_prospekt
The TZA200 is designed for precise, high speed measurement of current in the µA to mA range. The output is a
voltage linearly proportional to the input current to provide for low offset and high linearity throughout the full
dynamic range. The single ended input stage is required for applications where the current source is inherently
grounded externally.
-Receptacles: BNC (input and output)
-Rise time: 35ns (10MHz)
-Noise equivalent current: 1 µA(RMS)
-Gain control: None
- Industrial
-OEMs
Input range (full scale)
4.5
mA
Noise equivalent current (NEIRMS)
1
µA
BNC (Adapters for other connector systems available.)
Linear analogue : Vout = scale factor x Iin
Output range (full scale)
High-Z termination
4
V
50Ω termination
2
2.25
High Z-termination
V/mA
0.5
Rise /Fall time (10% – 90%)
Source capacitance < 100pF
35
ns
Setting time (1%)
100
± 1
%
50
Ω
1 channel
102 x 45 x 116 (w x h x l)
mm
102 x 106 x 116 (w x h x l)
19“ rack modules
3U

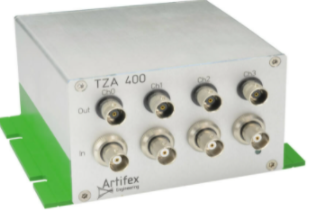

TZA 400 Transimpedance Amplifier
Product Brochures: tza400englrevb | tza400_engl_web
The TZA400 is designed for precise measurement of current, from pA to mA. The output is a voltage linearly proportional
to the input current. The gain of the TZA400 is controlled via a hard-wire interface on the back panel.
-Interface: Hard-wire (DB25)
-Rise time: 1µs (G≤5×105); 4µs (higher gains)
-Noise equivalent current: 500 p(ARMS)
-Gain control: 16 gain ranges in 1-2-5 pattern or 4 gain ranges in decade spacing
Current ranges (full scale)
Maximum range
3.7
Minimum range
37
nA
Noise equivalent current (NEPRMS)
Range: 3.7mA
2.5
Range: 37nA
500
pA
BNC (Adapters for other connector systems available)
0
BNC (Adapters for other connector systems available) und DB25
Output scale with 16 range option, range:
3.7mA
V / mA
1.85mA
740µA
5
370µA
0.01
V / µA
185µA
0.02
74µA
0.05
37µA
0.1
18.5µA
0.2
7.4µA
3.7µA
1.85µA
740nA
370nA
V / nA
185nA
74nA
37nA
Output scale with 4 range option, range:
10
Rise / Fall time (10% – 90%)
µs
Current required for switching
HI = 5V
-100
LO = 0V
Dead time during change of range
2 (Limited by setting time. The logical switch is complete within 20ns.)
103 x 45 x 116 (w x h x l)
103 x 106 x 116 (w x h x l)
19″- rack modules

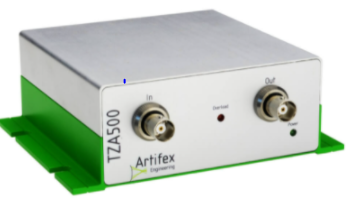

TZA 500 Transimpedance Amplifier
Product Brochure: tza500engl_revd | TZA500_engl
The TZA500 is designed for precise measurement of current, from pA to mA. The output is a voltage linearly proportional to the input current. The TZA500 is very flexible with USB and hard-wire interface control of gain, bandwidth, and polarity. A graphical user interface is delivered with the amplifier.
-Interfaces: USB and hard-wire (DB25)
-Rise time: 45µs
-Noise equivalent current: 30 p(ARMS)
-Gain, bandwidth, and polarity control: 6 gain ranges; 4 bandwidths; polarity inversion
-Auto-null function: up to 10V offset nulling
