2000nm 皮秒脉冲激光器

The Rainbow 2000 OEM is a miniaturized version of Rainbow 2000 Pro. The laser is highly compact and is specially developed for easy integration with multi-function spectroscopy systems. Rainbow 2000 OEM has flexible parameters upon user requests. The laser operates at a wavelength of 1970±20nm, and has spectral bandwidth up to 100nm, repetition rate of 80MHz and an average power up to 15mW. Rainbow 2000 OEM is ideal for applications such as Mid-IR frequency conversion, Nonlinear optics and Silicon photonics. It can meet a broad range of R&D requirements of the scientific community.

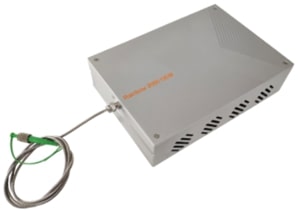

2000nm Picosecond Laser picture 1

Features

-Double Wavelength Outputs

-High Peak Power

-Linear Polarization

-Diffraction-Limited Beam

-Turn-Key System


Applications

-Mid-IR Frequency Conversion

-Nonlinear Optics

-Multiphoton Imaging

-Silicon Photonics


Laser Parameters

Operating Wavelength

Nm

1970±20nm

Spectral Bandwidth

Nm

>100

Pulse Width (FWHM)

Ps

<10 (can be compressed to the fs scale)

Repetition Rate

MHz

80

Average Power

mW

>15

Average Power Stability

% RMS

<0.1 (24h@25°C)

Single Pulse Energy

nJ

>0.18

Polarization Extinction Ratio

dB

>20

Beam Quality


TEM00, M2<1.2

Output Mode


PM1550 Fiber,FC/APC Connector

Electrical, Environmental and Mechanical Parameters

Trigger Signal

V

1 V @50 Ohm

Power Consumption

W

<150

Supply Voltage

VDC

12

Operational Temperature Range

°C

10-45

Operational Humidity Range

%

20~80 (Non-condensing)

Storage Temperature Range

°C

0-50

Storage Humidity Range

%

20~80 (Non-condensing)

Weight Laser Head

Kg

2

Dimensions Laser Head

Mm(LxWxH)

200x140x48

Cooling


Air-cooled

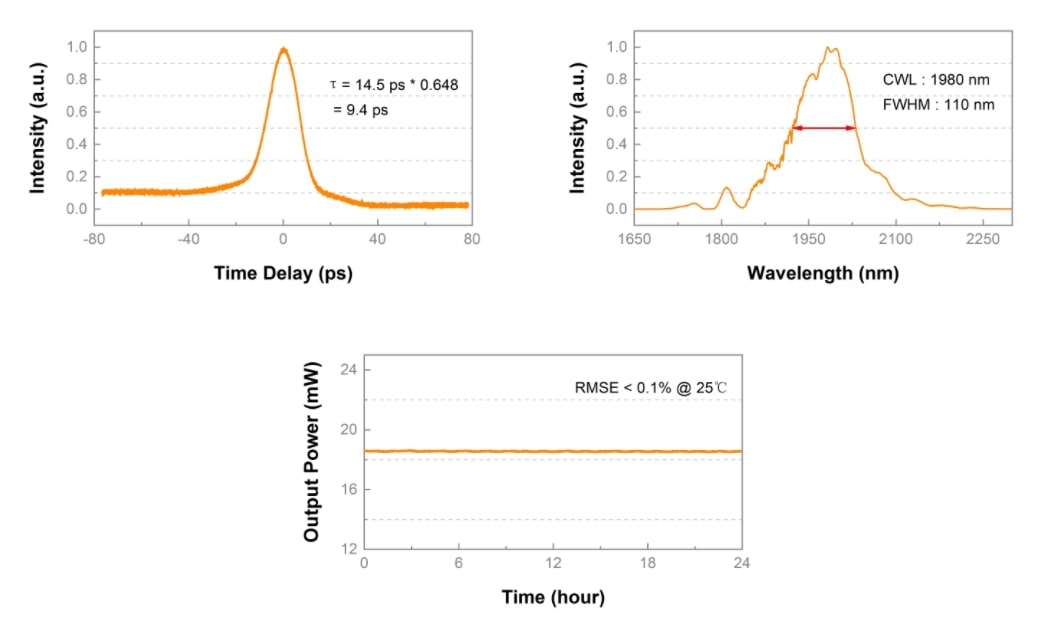

2000nm Picosecond Laser picture 2



TypeAverage PowerPulse EnergyPulse wdith Rep Rate
515/532nm Picosecond Pulse Laser (<200mW)  1-200mW<20nj10-100ps15-100Mhz
532/1064 Duel Output Picosecond laser (<1W)  <1W
<15ps20-50Mhz
532/1064nm High Power Picosecond Laser (>2W) >2W / >5W>60uJ<10ps1Mhz
1030/1064 Picosecond Pulse Laser (<1W)  10-2000mW>1 nJ10-100ps15-100Mhz
1035nm High Power Picosecond Laser (>10W)  >30W / >10W>375nJ<10ps80Mhz
1550nm High Speed Ps laser (Pulse & CW)  Pulse 1.5mW
CW -48 to -13dBm

30ps1 - 1250Mhz
10Mhz
1560nm Picosecond Pulse Laser  1-120mW>1nJ1-100ps80Mhz
2000nm Picosecond Laser  >15mW>0.18nJ<10ps80Mhz
DFB/FP Picosecond Laser (370-1550nm)  >0.5mW
<50ps0-40Mhz



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
OEM-2000-TEM-FC
2000nm Picosecond Laser
2-3 Weeks Request for quote
OEM-2000-M²-PM
2000nm Picosecond Laser
2-3 Weeks Request for quote
OEM-2000-M²-FC
2000nm Picosecond Laser
2-3 Weeks Request for quote
OEM-2000-TEM-PM
2000nm Picosecond Laser
2-3 Weeks Request for quote
OEM-2000-TEM-FC
2000nm Picosecond Laser
2-3 Weeks Request for quote
OEM-2000-M²-PM
2000nm Picosecond Laser
2-3 Weeks Request for quote
OEM-2000-M²-FC
2000nm Picosecond Laser
2-3 Weeks Request for quote
OEM-2000-TEM-PM
2000nm Picosecond Laser
2-3 Weeks Request for quote

OEM-2000-TEM-PM - Parameter

Average Power (mW)
> 15

Single Pulse Energy (uJ)
> 0.18

Rep Rate (MHz)
80

Polarization Extinction Ratio (dB)
> 20

Pulse Width (fs)
< 10

Beam Quality
TEM00

Working Wavelength (nm)
1970±20

Average Power Stability (%RMS)
< 0.1 (24h@25°C)

Supply Voltage (VDC)
12

Operating Temperature Range (°C)
10 to 45

Storage Humidity Range (%)
20 to 80

Weight Of Laser Head (kg)
2

Dimension Of Laser Head (mm)
200 x 140 x 48

Output Mode
PM1550 Fiber

Trigger Signal (V)
1V@50Ω

OEM-2000-M²-FC - Parameter

Average Power (mW)
> 15

Single Pulse Energy (uJ)
> 0.18

Rep Rate (MHz)
80

Polarization Extinction Ratio (dB)
> 20

Pulse Width (fs)
< 10

Beam Quality
M2<1.2

Working Wavelength (nm)
1970±20

Average Power Stability (%RMS)
< 0.1 (24h@25°C)

Supply Voltage (VDC)
12

Operating Temperature Range (°C)
10 to 45

Storage Humidity Range (%)
20 to 80

Weight Of Laser Head (kg)
2

Dimension Of Laser Head (mm)
200 x 140 x 48

Output Mode
FC/APC Connector

Trigger Signal (V)
1V@50Ω

OEM-2000-M²-PM - Parameter

Average Power (mW)
> 15

Single Pulse Energy (uJ)
> 0.18

Rep Rate (MHz)
80

Polarization Extinction Ratio (dB)
> 20

Pulse Width (fs)
< 10

Beam Quality
M2<1.2

Working Wavelength (nm)
1970±20

Average Power Stability (%RMS)
< 0.1 (24h@25°C)

Supply Voltage (VDC)
12

Operating Temperature Range (°C)
10 to 45

Storage Humidity Range (%)
20 to 80

Weight Of Laser Head (kg)
2

Dimension Of Laser Head (mm)
200 x 140 x 48

Output Mode
PM1550 Fiber

Trigger Signal (V)
1V@50Ω

OEM-2000-TEM-FC - Parameter

Average Power (mW)
> 15

Single Pulse Energy (uJ)
> 0.18

Rep Rate (MHz)
80

Polarization Extinction Ratio (dB)
> 20

Pulse Width (fs)
< 10

Beam Quality
TEM00

Working Wavelength (nm)
1970±20

Average Power Stability (%RMS)
< 0.1 (24h@25°C)

Supply Voltage (VDC)
12

Operating Temperature Range (°C)
10 to 45

Storage Humidity Range (%)
20 to 80

Weight Of Laser Head (kg)
2

Dimension Of Laser Head (mm)
200 x 140 x 48

Output Mode
FC/APC Connector

Trigger Signal (V)
1V@50Ω

OEM-2000-TEM-PM - Parameter

Average Power (mW)
> 15

Single Pulse Energy (uJ)
> 0.18

Rep Rate (MHz)
80

Polarization Extinction Ratio (dB)
> 20

Pulse Width (fs)
< 10

Beam Quality
TEM00

Working Wavelength (nm)
1970±20

Average Power Stability (%RMS)
< 0.1 (24h@25°C)

Supply Voltage (VDC)
12

Operating Temperature Range (°C)
10 to 45

Storage Humidity Range (%)
20 to 80

Weight Of Laser Head (kg)
2

Dimension Of Laser Head (mm)
200 x 140 x 48

Output Mode
PM1550 Fiber

Trigger Signal (V)
1V@50Ω

OEM-2000-M²-FC - Parameter

Average Power (mW)
> 15

Single Pulse Energy (uJ)
> 0.18

Rep Rate (MHz)
80

Polarization Extinction Ratio (dB)
> 20

Pulse Width (fs)
< 10

Beam Quality
M2<1.2

Working Wavelength (nm)
1970±20

Average Power Stability (%RMS)
< 0.1 (24h@25°C)

Supply Voltage (VDC)
12

Operating Temperature Range (°C)
10 to 45

Storage Humidity Range (%)
20 to 80

Weight Of Laser Head (kg)
2

Dimension Of Laser Head (mm)
200 x 140 x 48

Output Mode
FC/APC Connector

Trigger Signal (V)
1V@50Ω

OEM-2000-M²-PM - Parameter

Average Power (mW)
> 15

Single Pulse Energy (uJ)
> 0.18

Rep Rate (MHz)
80

Polarization Extinction Ratio (dB)
> 20

Pulse Width (fs)
< 10

Beam Quality
M2<1.2

Working Wavelength (nm)
1970±20

Average Power Stability (%RMS)
< 0.1 (24h@25°C)

Supply Voltage (VDC)
12

Operating Temperature Range (°C)
10 to 45

Storage Humidity Range (%)
20 to 80

Weight Of Laser Head (kg)
2

Dimension Of Laser Head (mm)
200 x 140 x 48

Output Mode
PM1550 Fiber

Trigger Signal (V)
1V@50Ω

OEM-2000-TEM-FC - Parameter

Average Power (mW)
> 15

Single Pulse Energy (uJ)
> 0.18

Rep Rate (MHz)
80

Polarization Extinction Ratio (dB)
> 20

Pulse Width (fs)
< 10

Beam Quality
TEM00

Working Wavelength (nm)
1970±20

Average Power Stability (%RMS)
< 0.1 (24h@25°C)

Supply Voltage (VDC)
12

Operating Temperature Range (°C)
10 to 45

Storage Humidity Range (%)
20 to 80

Weight Of Laser Head (kg)
2

Dimension Of Laser Head (mm)
200 x 140 x 48

Output Mode
FC/APC Connector

Trigger Signal (V)
1V@50Ω
