Characteristics

-Full polarization-maintaining Optical Path

-Self-start maintenance-free

-Greenlight Picoseconds

Applications

-Fluorescence Lifetime Microscopy

-OPA pump laser

-Seed Laser

Pulse

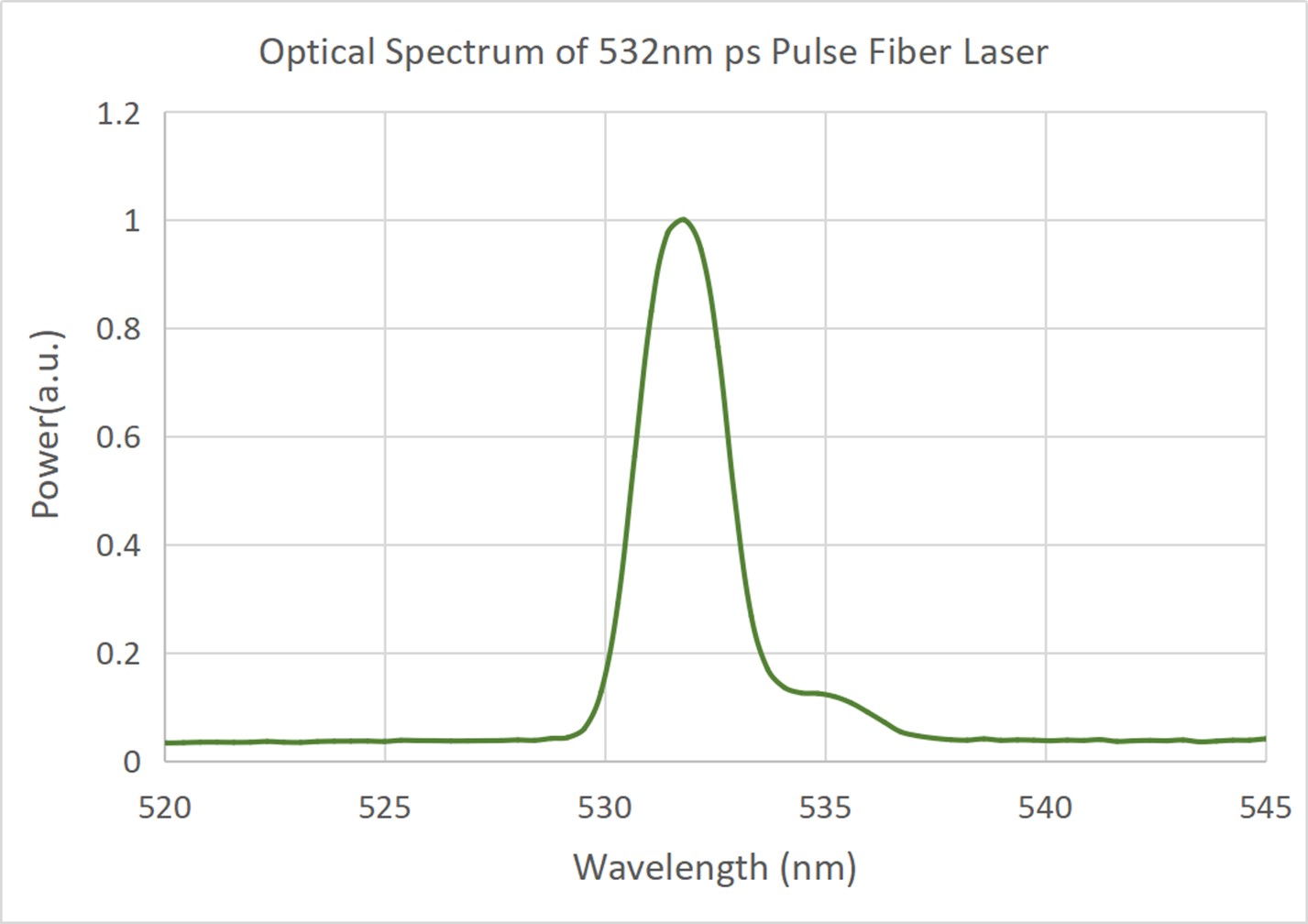

Optical Spectrum of 532nm

Center Wavelength

nm

515/532

Customizable

Spectrum Width

nm

0.3

Customizable

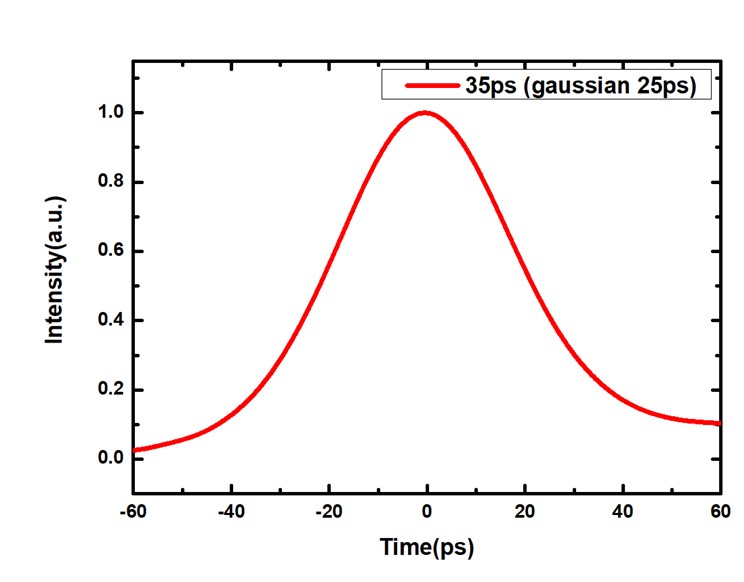

Pulse Duration

ps

10/20/50/100

Customizable

Average Power

mW

1~200

Customizable

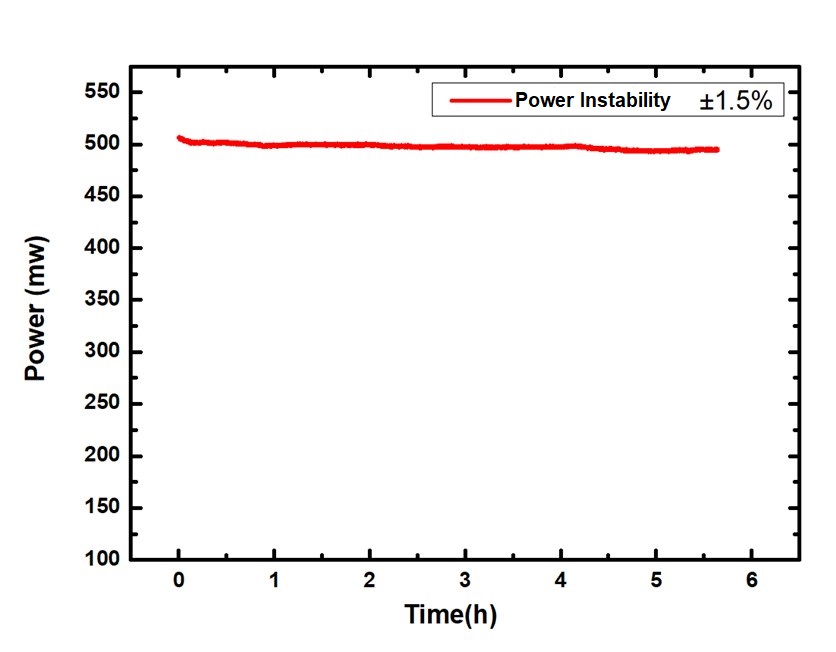

Power Instability

-

< ±1%

25℃

Repetition Rate

MHz

15~100

Customizable

Pulse Energy

nJ

>0.5

Mode Locking Time

s

<20

Polarization

-

Linear

Fiber  Type

-

PM Fiber、Free Space

Worm Up time

min

< 1

Control   function

Push Button in Front Panel

Push   Button in Front Panel

Synchronous   electrical signal port

SMA

SMA

Power   Supply

AC100~240V, <30W

DC5V, <20W

Dimensions

330(W)×398(D)×112(H)mm

200(W)×121(D)×65(H)mm

Operation   Temperature

5 ~ 35°C

Operation   Humidity

0~70%

PSPL

WL(nm)

Pulse Duration(fs)

Power(mW)

Freq(MHz)

Fiber

Packaging

515/532

10/20/50/100

10/50/200

15/50/100

FS – Space Light

B – Desktop

M - Modular
