1030/1064 皮秒脉冲激光器

Overview & Specifications Related Products Order Now!

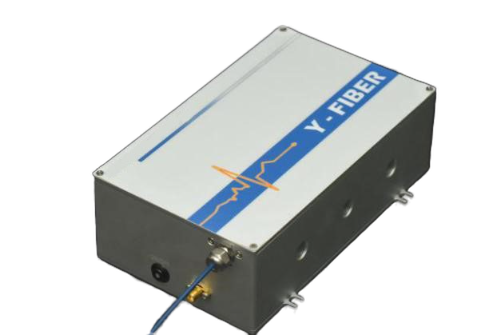

1030/1064nm Picosecond Pulse Fiber Lasers

The 1030/1064nm Picosecond Pulse Fiber Laser series ultrafast lasers use high-performance rare earth fiber as the working medium, combined with full polarization-maintaining mode-locking technology and active servo control system, to achieve a stable output of picosecond pulsed lasers in the 1030/1064nm band. It can be fully self-started and can work stably for a long time and has the characteristics of the narrow laser pulse and high pulse peak optical power. The light source can be used for scientific research in the fields of high-power laser, supercontinuum, and laser ranging.

* Accept customization of parameters such as pulse width, power, repetition frequency, etc.

Characteristics

-Ultra-short pulses

-Maintenance-free

-Full Polarization-maintaining High Stability

Applications

-Fiber laser pumping

-Super-continuous spectrum

-Seed laser pulse


Autocorrelation Curve	Power Instability


Optical Stectrum of 1030nm	Optical Stectrum of 1064nm

Paule Train

Product specifications and Brochures

Product Brochure Link:

Parameters	Unit	Typical Value	Remarks
Center Wavelength	nm	1030/1064	Customizable
Spectrum Width	nm	0.3	Customizable
Pulse Duration	ps	10/20/50/100	Customizable
Average Power	mW	10~2000	Customizable
Power Instability	-	< ±1%
Repetition Rate	MHz	15~100	Fundamental Freq
Repetition Rate turning range	kHz	Repetition Rate/N	by AOM，Low to 1kHz
Pulse Energy	nJ	>1
Polarization		Linear
Fiber Type	-	PM Fiber、Free Space
Worm Up time	min	< 1

* For Quotation Please let us know required Pulsed Width(Duration) , Repetion Rate and Power Level

General Parameters	Desktop	Module
Control function	Keystroke	Keystroke
Synchronous electrical signal port	SMA	SMA
Power Supply	AC100~240V, <30W	DC5V, <20W
Dimensions(mm)	260(W)×280(D)×120(H)	200(W)×121(D)×65(H)
Operation Temperature	5 ~ 35°C
Operation Humidity	0~70%

Ordering Information/Model Number

PSPL

WL(nm)

Pulse Duration(fs)

Power(mW)

Freq(MHz)

Fiber

Packaging

1030/

1064

10/20/50/100

10/50/200/

2000

15/50/100

B - Desktop

M - Module

Type	Average Power	Pulse Energy	Pulse wdith	Rep Rate
515/532nm Picosecond Pulse Laser (<200mW)	1-200mW	<20nj	10-100ps	15-100Mhz
532/1064 Duel Output Picosecond laser (<1W)	<1W		<15ps	20-50Mhz
532/1064nm High Power Picosecond Laser (>2W)	>2W / >5W	>60uJ	<10ps	1Mhz
1030/1064 Picosecond Pulse Laser (<1W)	10-2000mW	>1 nJ	10-100ps	15-100Mhz
1035nm High Power Picosecond Laser (>10W)	>30W / >10W	>375nJ	<10ps	80Mhz
1550nm High Speed Ps laser (Pulse & CW)	Pulse 1.5mW CW -48 to -13dBm		30ps	1 - 1250Mhz 10Mhz
1560nm Picosecond Pulse Laser	1-120mW	>1nJ	1-100ps	80Mhz
2000nm Picosecond Laser	>15mW	>0.18nJ	<10ps	80Mhz
DFB/FP Picosecond Laser (370-1550nm)	>0.5mW		<50ps	0-40Mhz

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

	Availability	Reference Price (USD)
PSPL-1030-10-B 1030 Picosecond Pulse Laser (<1W), Wavelength 1030 nm, Pulse Duration 10 fs	4-6 Weeks	Request for quote
PSPL-1030-20-B 1030 Picosecond Pulse Laser (<1W), Wavelength 1030 nm, Pulse Duration 20 fs	4-6 Weeks	Request for quote
PSPL-1030-50-B 1030 Picosecond Pulse Laser (<1W), Wavelength 1030 nm, Pulse Duration 50 fs	4-6 Weeks	Request for quote
PSPL-1030-100-B 1030 Picosecond Pulse Laser (<1W), Wavelength 1030 nm, Pulse Duration 100 fs	4-6 Weeks	Request for quote
PSPL-1064-10-B 1064 Picosecond Pulse Laser (<1W), Wavelength 1064 nm, Pulse Duration 10 fs	4-6 Weeks	Request for quote
PSPL-1064-20-B 1064 Picosecond Pulse Laser (<1W) , Wavelength 1064 nm, Pulse Duration 20 fs	4-6 Weeks	Request for quote
PSPL-1064-50-B 1064 Picosecond Pulse Laser (<1W), Wavelength 1064 nm, Pulse Duration 50 fs	4-6 Weeks	Request for quote
PSPL-1064-100-B 1064 Picosecond Pulse Laser (<1W), Wavelength 1064 nm, Pulse Duration 100 fs	4-6 Weeks	Request for quote

PSPL-1064-100-B - Parameter

Type

Desktop

Center Wavelength (nm)

1064

Warm-Up Time (min)

< 1

Operating Temperature (°C)

5 to 45

Output Power (mW)

10 to 2000

Pulse Width (fs)

100

Power Instability

< ±1%

Repeat Frequency (MHz)

15 to 100

Single Pulse Energy (nJ)

> 1

Laser Output

Secure fiber optic FC

Electrical Signal Interface

SMA

Wave Spectrum (nm)

0.3

Polarized State

Line Polarization

Lock Mode Stabilization Time (s)

< 20

PSPL-1064-50-B - Parameter

Type

Desktop

Center Wavelength (nm)

1064

Warm-Up Time (min)

< 1

Operating Temperature (°C)

5 to 45

Output Power (mW)

10 to 2000

Pulse Width (fs)

Power Instability

< ±1%

Repeat Frequency (MHz)

15 to 100

Single Pulse Energy (nJ)

> 1

Laser Output

Secure fiber optic FC

Electrical Signal Interface

SMA

Wave Spectrum (nm)

0.3

Polarized State

Line Polarization

Lock Mode Stabilization Time (s)

< 20

PSPL-1064-20-B - Parameter

Type

Desktop

Center Wavelength (nm)

1064

Warm-Up Time (min)

< 1

Operating Temperature (°C)

5 to 45

Output Power (mW)

10 to 2000

Pulse Width (fs)

Power Instability

< ±1%

Repeat Frequency (MHz)

15 to 100

Single Pulse Energy (nJ)

> 1

Laser Output

Secure fiber optic FC

Electrical Signal Interface

SMA

Wave Spectrum (nm)

0.3

Polarized State

Line Polarization

Lock Mode Stabilization Time (s)

< 20

PSPL-1064-10-B - Parameter

Type

Desktop

Center Wavelength (nm)

1064

Warm-Up Time (min)

< 1

Operating Temperature (°C)

5 to 45

Output Power (mW)

10 to 2000

Pulse Width (fs)

Power Instability

< ±1%

Repeat Frequency (MHz)

15 to 100

Single Pulse Energy (nJ)

> 1

Laser Output

Secure fiber optic FC

Electrical Signal Interface

SMA

Wave Spectrum (nm)

0.3

Polarized State

Line Polarization

Lock Mode Stabilization Time (s)

< 20

PSPL-1030-100-B - Parameter

Type

Desktop

Center Wavelength (nm)

1030

Warm-Up Time (min)

< 1

Operating Temperature (°C)

5 to 45

Output Power (mW)

10 to 2000

Pulse Width (fs)

100

Power Instability

< ±1%

Repeat Frequency (MHz)

15 to 100

Single Pulse Energy (nJ)

> 1

Laser Output

Secure fiber optic FC

Electrical Signal Interface

SMA

Wave Spectrum (nm)

0.3

Polarized State

Line Polarization

Lock Mode Stabilization Time (s)

< 20

PSPL-1030-50-B - Parameter

Type

Desktop

Center Wavelength (nm)

1030

Warm-Up Time (min)

< 1

Operating Temperature (°C)

5 to 45

Output Power (mW)

10 to 2000

Pulse Width (fs)

Power Instability

< ±1%

Repeat Frequency (MHz)

15 to 100

Single Pulse Energy (nJ)

> 1

Laser Output

Secure fiber optic FC

Electrical Signal Interface

SMA

Wave Spectrum (nm)

0.3

Polarized State

Line Polarization

Lock Mode Stabilization Time (s)

< 20

PSPL-1030-20-B - Parameter

Type

Desktop

Center Wavelength (nm)

1030

Warm-Up Time (min)

< 1

Operating Temperature (°C)

5 to 45

Output Power (mW)

10 to 2000

Pulse Width (fs)

Power Instability

< ±1%

Repeat Frequency (MHz)

15 to 100

Single Pulse Energy (nJ)

> 1

Laser Output

Secure fiber optic FC

Electrical Signal Interface

SMA

Wave Spectrum (nm)

0.3

Polarized State

Line Polarization

Lock Mode Stabilization Time (s)

< 20

PSPL-1030-10-B - Parameter

Type

Desktop

Center Wavelength (nm)

1030

Warm-Up Time (min)

< 1

Operating Temperature (°C)

5 to 45

Output Power (mW)

10 to 2000

Pulse Width (fs)

Power Instability

< ±1%

Repeat Frequency (MHz)

15 to 100

Single Pulse Energy (nJ)

> 1

Laser Output

Secure fiber optic FC

Electrical Signal Interface

SMA

Wave Spectrum (nm)

0.3

Polarized State

Line Polarization

Lock Mode Stabilization Time (s)

< 20

PSPL-1064-100-B - Download

PSPL-1064-50-B - Download

PSPL-1064-20-B - Download

PSPL-1064-10-B - Download

PSPL-1030-100-B - Download

PSPL-1030-50-B - Download

PSPL-1030-20-B - Download

PSPL-1030-10-B - Download
