实验室插座 | 瑆创光学电子商店

实验室插座



• 剪叉式升降机构,结构紧凑,承载能力强

• 由丝杠驱动的高度调节

• 以高性价比著称




手动载物台

旋转和倾斜平台

光机械学








Simtrum 零件编号 垂直行驶 (mm) 最小高度(mm) 最大高度(mm) 孔类型

平台尺寸

(mm)

最大负载

(N)

材料

平行度

(µm)

LB256080 25 54 79

顶部:M3,M4

底部:钻有沉孔,适用于M4盖帽螺丝

60x80 58.8 200
LB6580120 65 54 119

顶部:M3,M4



底部:钻有沉孔,适用于M4盖帽螺丝

80x120 73.5 200
LB6560120 65 54 119

顶部:M3,M4



底部:钻有沉孔,适用于M4盖帽螺丝

60x120 63.7 200
LB4580100 45 54 99

顶部:M3,M4



底部:钻有沉孔,适用于M4盖帽螺丝

80x100 68.6 200



上图中的信息是为您的运动设置选择合适的实验室插孔的一般指南。

如需帮助,请随时致电 +65-6996 0391 联系 Simtrum Pte Ltd 或发送电子邮件至 info@simtrum.com。我们的产品团队将很乐意帮助您做出正确的产品选择。




























LB256080

LB6580120

LB6560120

LB4580100




我们在这里为您服务!





给我们发电子邮件 info@simtrum.com 以获得今天最优惠的价格。   想要更多的技术信息?点击这里 获取专业定制系统/解决方案。




没有时间逐个搜索产品?不用担心。您可以下载全系列的瑆创产品线卡现在点击它。



想要更接近市场动态和技术发展吗?只需花5秒钟作为会员登录,我们将为您带来最新的新闻。​(屏幕右上方的登录按钮)



Search Reset
Compare Model Drawings & Specs Platform dimensions (mm) Hole Type Maximum Load (N) Vertical Travel (mm) Availability Reference Price
(USD)

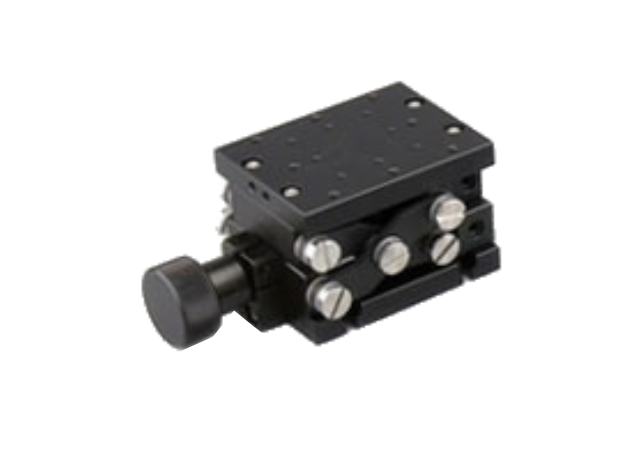

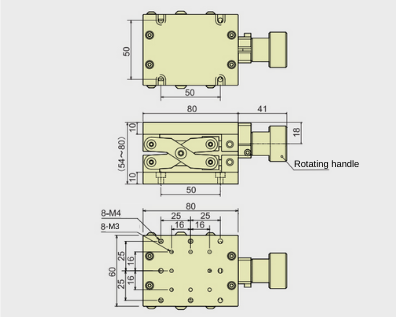

LB256080
Lab Jack, Vertical Travel=25mm, Vertical Travel=25mm, Platform dimensions=60mmx80mm
Top: M3, M4 Bottom: M4, Counter Bore for M4 Cap Screws25 4-6 Weeks $185.67

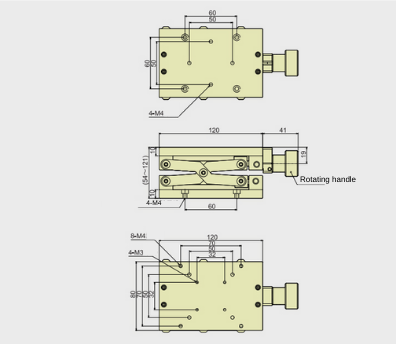

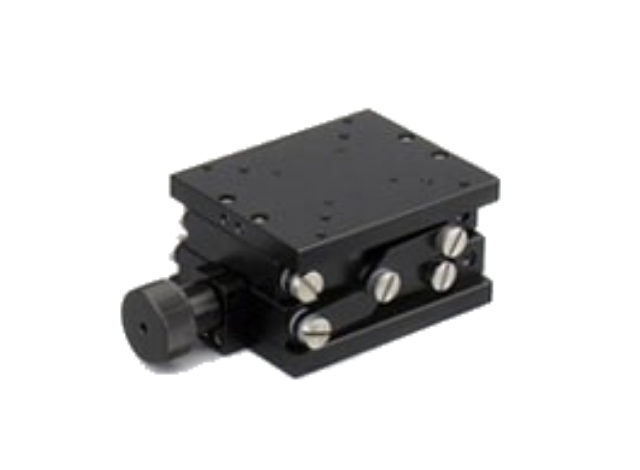

LB6580120
Lab Jack, Vertical Travel=65mm, Platform dimensions=80mmx120mm
Top: M3, M4 Bottom: M4, Counter Bore for M4 Cap Screws65 4-6 Weeks $225.67

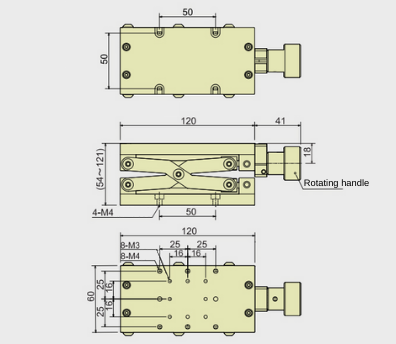

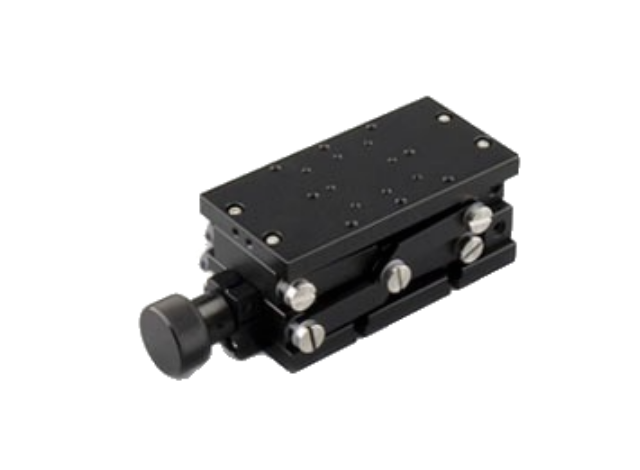

LB6560120
Lab Jack, Vertical Travel=65mm, Platform dimensions=60mmx120mm
Top:M3,M4 Bottom: Counter Bore for Cap Screws65 4-6 Weeks $225.67

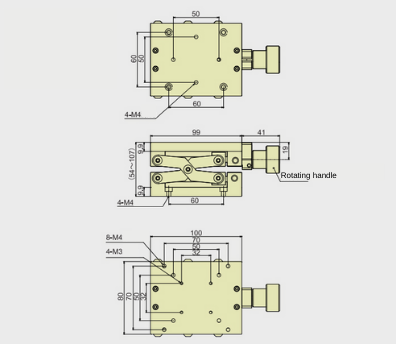

LB4580100
Lab Jack, Vertical Travel=45mm, Platform dimensions=80mmx100mm
Top: M3, M4 Bottom: M4, Counter Bore for M4 Cap Screws68.645 4-6 Weeks $208.36

LB4580100 - Parameter

Material
Aluminium, black anodized treatment

Platform dimensions (mm)

Hole Type
Top: M3, M4 Bottom: M4, Counter Bore for M4 Cap Screws

Maximum Load (N)
68.6

Parallelism (μm)
200

Vertical Travel (mm)
45

Min Height (mm)
54

LB6560120 - Parameter

Material
Aluminium, black anodized treatment

Platform dimensions (mm)

Hole Type
Top:M3,M4 Bottom: Counter Bore for Cap Screws

Maximum Load (N)

Parallelism (μm)
200

Vertical Travel (mm)
65

Min Height (mm)
54

LB6580120 - Parameter

Material
Aluminium, black anodized treatment

Platform dimensions (mm)

Hole Type
Top: M3, M4 Bottom: M4, Counter Bore for M4 Cap Screws

Maximum Load (N)

Parallelism (μm)
200

Vertical Travel (mm)
65

Min Height (mm)
54

LB256080 - Parameter

Material
Aluminium, black anodized treatment

Platform dimensions (mm)

Hole Type
Top: M3, M4 Bottom: M4, Counter Bore for M4 Cap Screws

Maximum Load (N)

Parallelism (μm)
200

Vertical Travel (mm)
25

Min Height (mm)
54

LB4580100 - Download

LB6560120 - Download

LB6580120 - Download

LB256080 - Download
