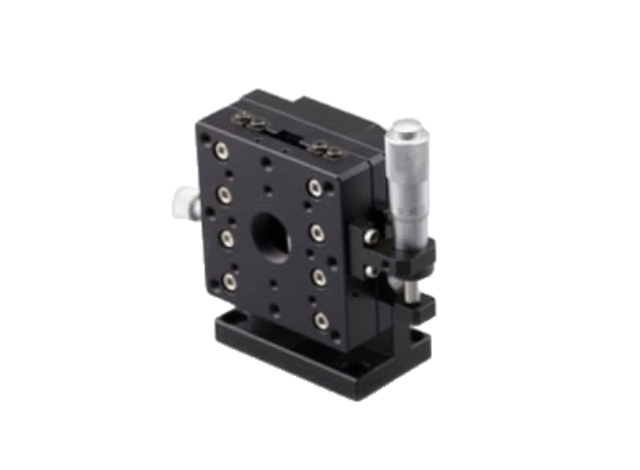

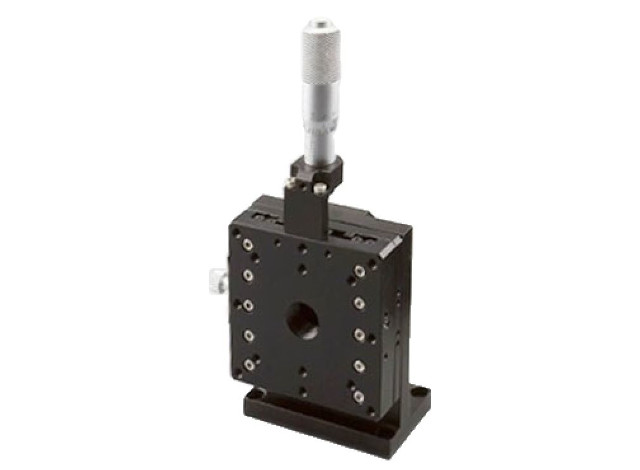

十字滚子轴承Z轴垂直台

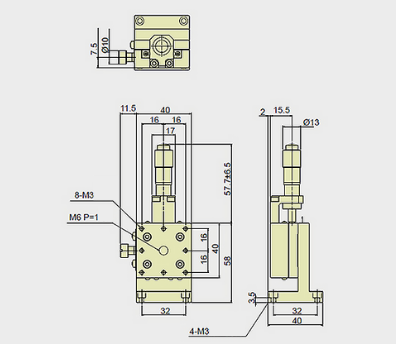

13mm 13mm 图纸 25mm 25mm 图纸 相关产品 联系下单！





• 13毫米垂直行程，由千分尺实现

• 高精度和高刚性

• 与 XY 线性平台兼容，可实现 X、Y、Z 方向的平移





选型指南

Simtrum

零件编号

 轴承类型 驱动方向 驱动(mm) 孔类型

平台尺寸

(mm)

最大负载

(N)

直线精度

(μm)

 材料

最小读数

(μm)

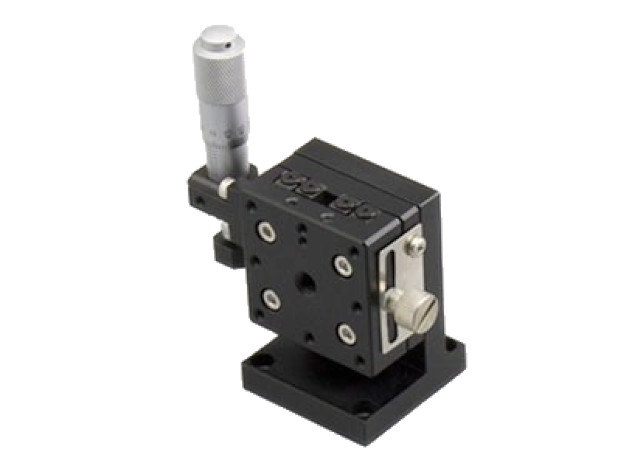

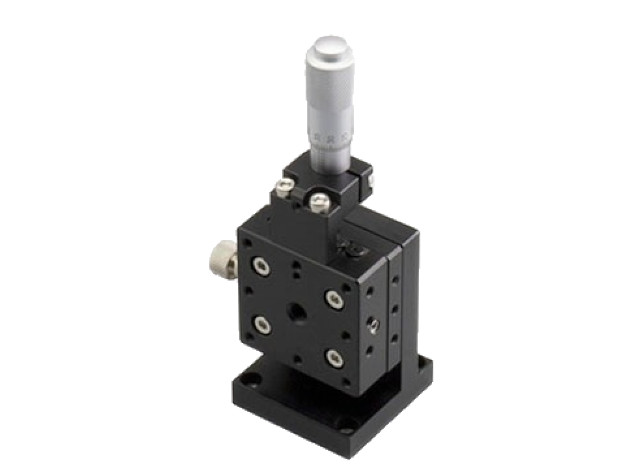

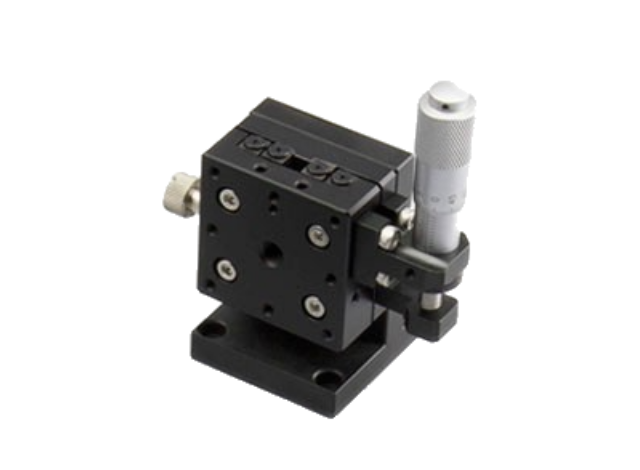

ZL134040 交叉滚柱导轨 左 13

顶部：M6，M3

底部：钻有沉孔，适用于M3盖帽螺丝

 40x40 9.8 3 铝 10
ZC134040 交叉滚柱导轨 中间 13

顶部：M6，M3

底部：钻有沉孔，适用于M3盖帽螺丝

 40x40 9.8 3 铝 10
ZR134040 交叉滚柱导轨 右 13

顶部：M6，M3

底部：钻有沉孔，适用于M3盖帽螺丝

 40x40 9.8 3 铝 10
ZC136060 交叉滚柱导轨 中间 13

顶部：M16,M4,M3

底部：钻有沉孔，适用于M4盖帽螺丝

 60x60 19.6 3 铝 10
ZR136060 交叉滚柱导轨 右 13

顶部：M16,M4,M3

底部：钻有沉孔，适用于M4盖帽螺丝

 60x60 19.6 3 铝 10
ZL136060 交叉滚柱导轨 左 13

顶部：M16,M4,M3

底部：钻有沉孔，适用于M4盖帽螺丝

 60x60 19.6 3 铝 10





上图中的信息是为您的光机械设置选择合适的 13 毫米交叉滚子轴承 Z 轴垂直平台的一般指南。

如需帮助，请随时致电 +65-6996 0391 联系 Simtrum Pte Ltd 或发送电子邮件至 info@simtrum.com。我们的产品团队将很乐意帮助您做出正确的产品选择。

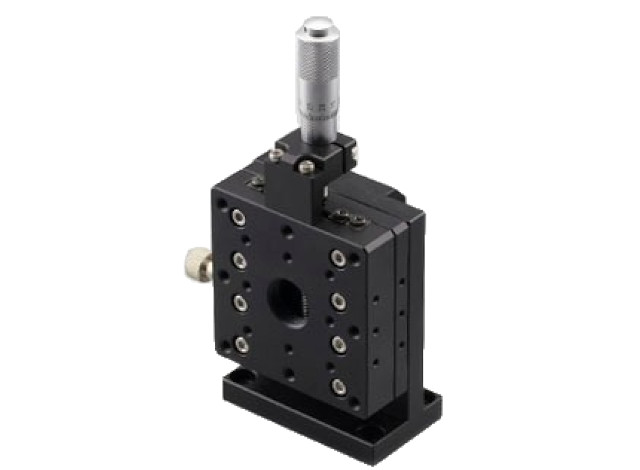

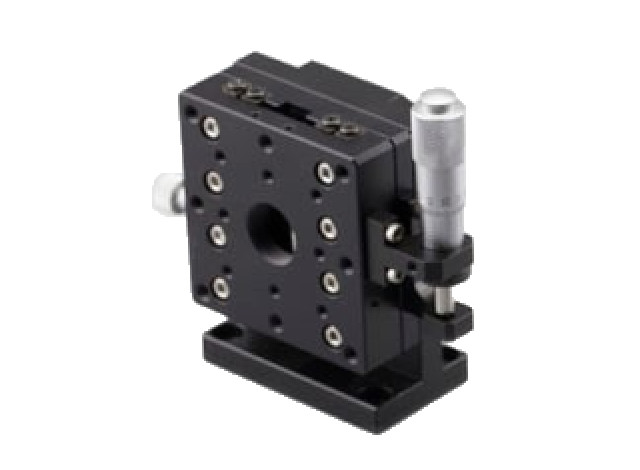

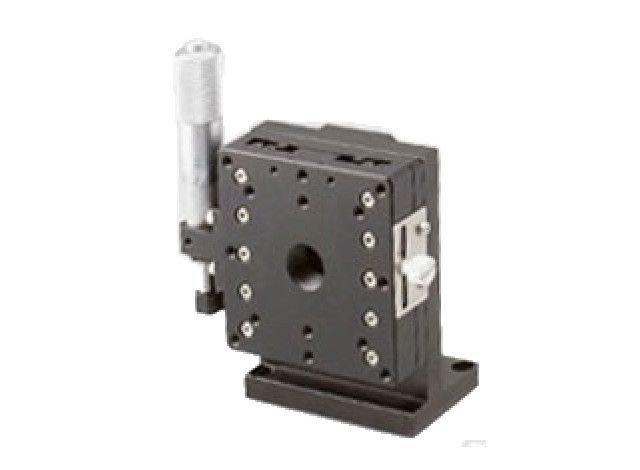

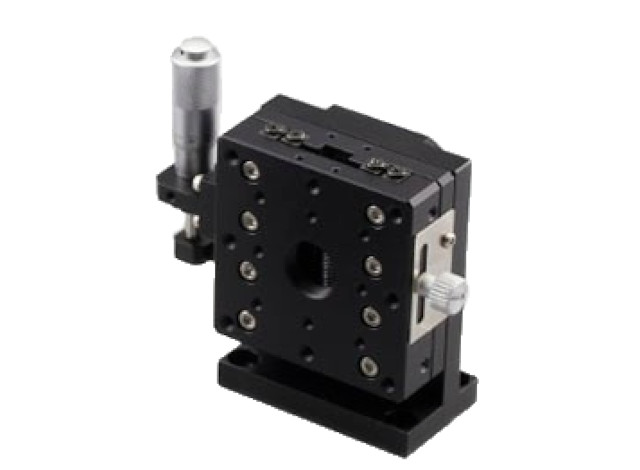

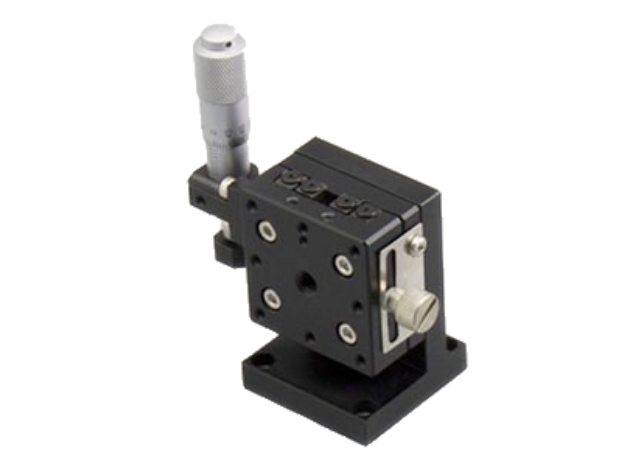

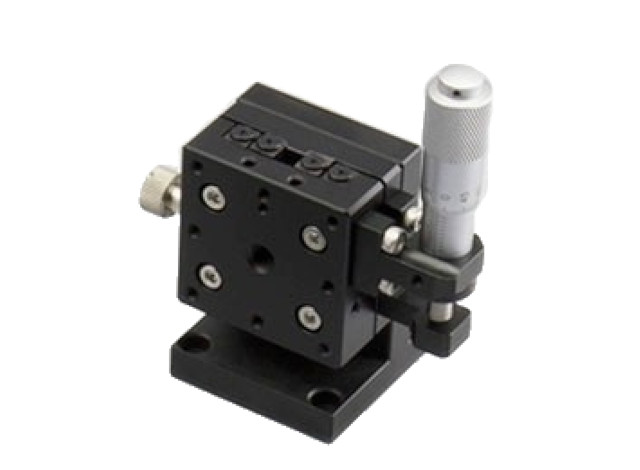

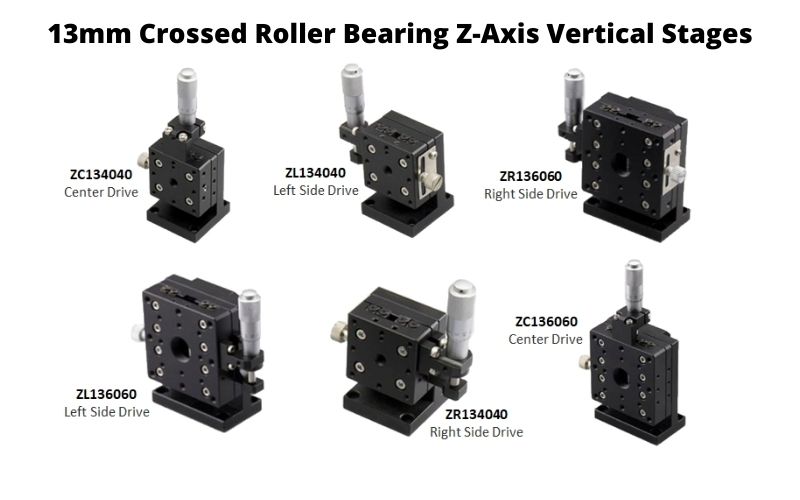

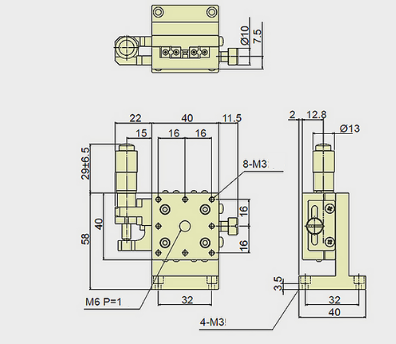

ZL134040

ZC134040

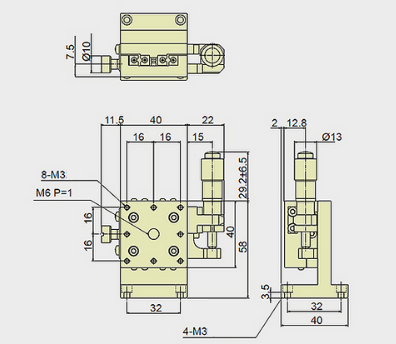

ZR134040

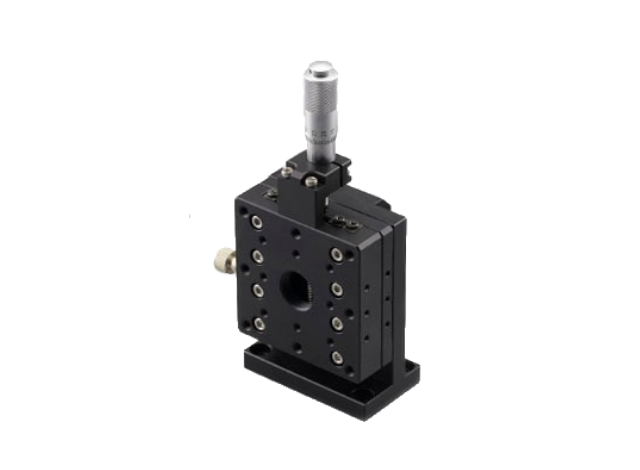

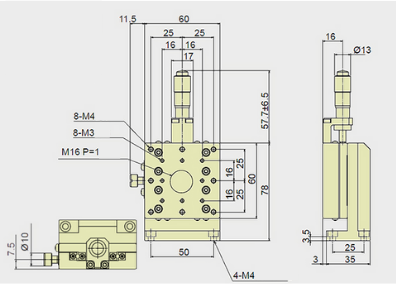

ZC136060

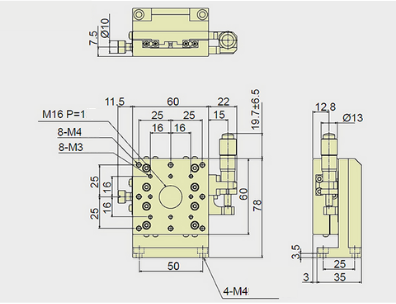

ZR136060

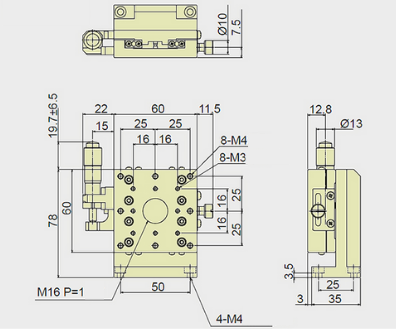

WB ZL136060.png

ZL136060












• 25mm 垂直行程，由千分尺实现

• 高精度和高刚性

• 与 XY 线性平台兼容，可实现 X、Y、Z 方向的平移





选型指南



Simtrum 零件编号 轴承类型  驱动器位置 驱动(mm) 孔类型

平台尺寸

(mm)

最大负载

(N)

直线精度

(μm)

 材料

最小读数

(μm)

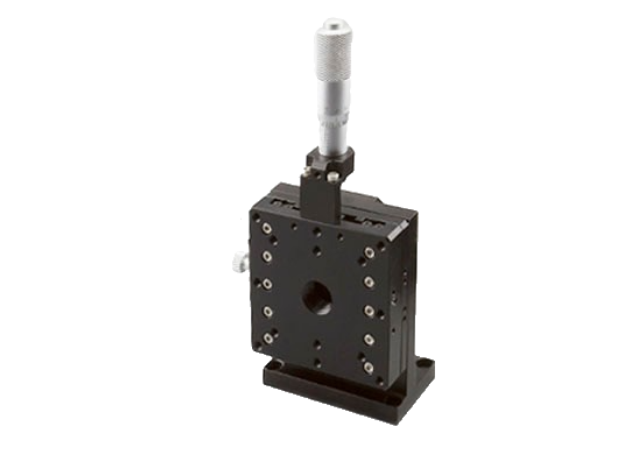

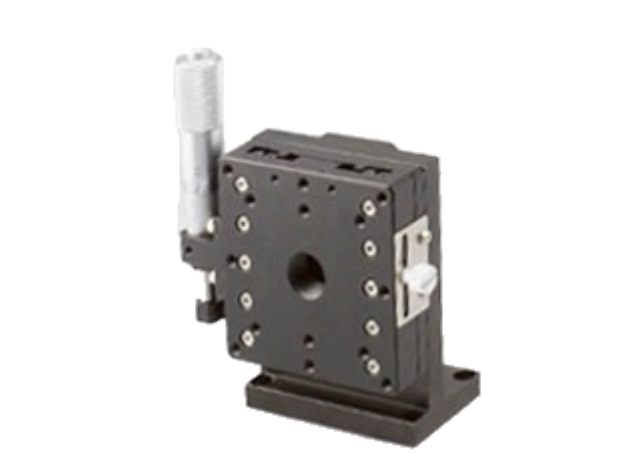

ZL258080 交叉滚柱导轨 左 25

顶部：M16, M4

底部：钻有沉孔，适用于M4盖帽螺丝

 80x80 49 3 铝 10
ZC258080 交叉滚柱导轨 中间 25

顶部：M16, M4

底部：钻有沉孔，适用于M4盖帽螺丝

 80x80 49 3 铝 10
ZR258080 交叉滚柱导轨 右 25

顶部：M16, M4

底部：钻有沉孔，适用于M4盖帽螺丝

 80x80 49 3 铝 10

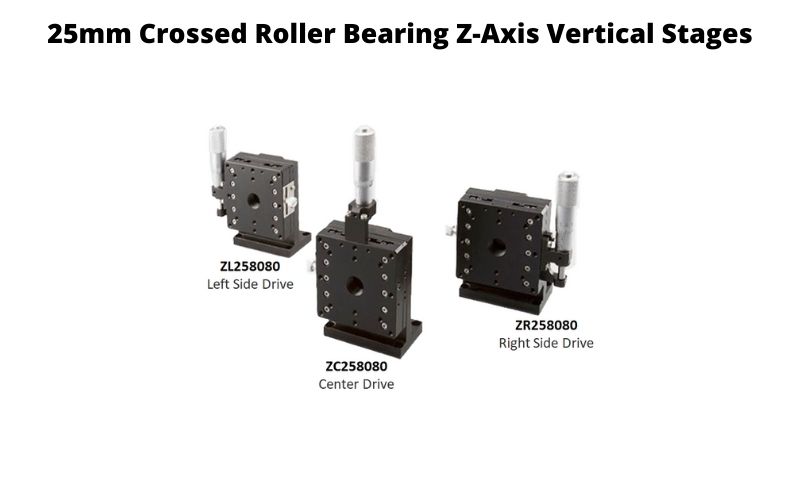

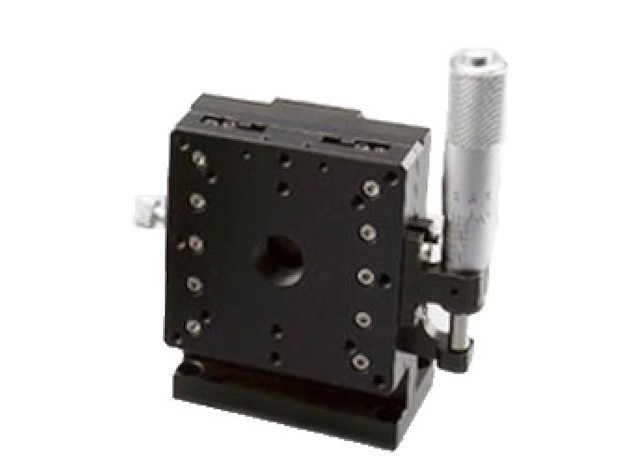

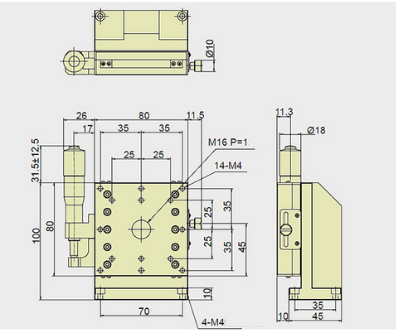

ZL258080

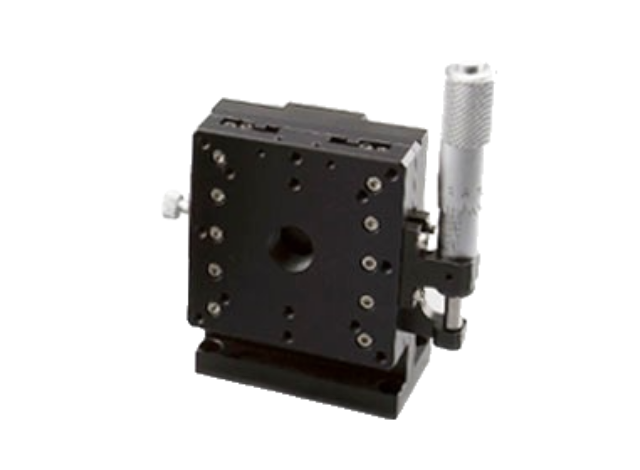

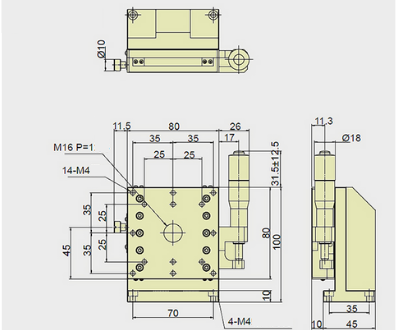

ZR258080

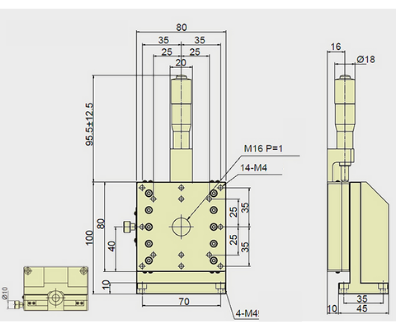

ZC258080




手动载物台

旋转和倾斜平台

光机械学








我们在这里为您服务！





给我们发电子邮件 info@simtrum.com 以获得今天最优惠的价格。   想要更多的技术信息?点击这里 获取专业定制系统/解决方案。




没有时间逐个搜索产品?不用担心。您可以下载全系列的瑆创产品线卡，现在点击它。



想要更接近市场动态和技术发展吗?只需花5秒钟作为会员登录，我们将为您带来最新的新闻。​(屏幕右上方的登录按钮)

Platform dimensions (mm)


Search Reset
Compare Model Drawings & Specs Bearing Type Travel (mm) Platform dimensions (mm) Hole Type Drive Direction Maximum Load (N) Availability Reference Price
(USD)
ZL134040
13mm Crossed Roller Guide Z-axis Vertical Stage, Left Side Drive, Platform dimensions=40x40mm 		Crossed Roller Guide1340x40Platform: M6,M3 Base: Counterbore for M3 Cap ScrewsLeft9.8 4-6 Weeks $185.57
ZC134040
13mm Crossed Roller Guide Z-axis Vertical Stage, Center Drive, Platform dimensions=40x40mm 		Crossed Roller Guide1340x40Platform: M6,M3 Base: Counterbore for M3 Cap ScrewsCenter9.8 4-6 Weeks $185.57
ZR134040
13mm Crossed Roller Guide Z-axis Vertical Stage, Right Side Drive, Platform dimensions=40x40mm 		Crossed Roller Guide1340x40Platform: M6,M3 Base: Counterbore for M3 Cap ScrewsRight9.8 4-6 Weeks $185.57
ZC136060
13mm Z-axis Vertical Stage, Center Drive, Platform dimensions=60x60mm 		Crossed Roller Guide1360x60Platform: M16, M4,M3 Base: Counterbore for M4 Cap ScrewsCenter19.6 4-6 Weeks $224.86
ZR136060
13mm Z-axis Vertical Stage, Right Side Drive, Platform dimensions=60x60mm 		Crossed Roller Guide1360x60Platform: M16, M4,M3 Base: Counterbore for M4 Cap ScrewsRight19.6 4-6 Weeks $224.86
ZL136060
13mm Z-axis Vertical Stage, Left Side Drive, Platform dimensions=60x60mm 		Crossed Roller Guide1360x60Platform: M16, M4,M3 Base: Counterbore for M4 Cap ScrewsLeft19.6 4-6 Weeks $224.86
ZL258080
25mm Crossed Roller Guide Z-axis Vertical Stage, Left Side Drive, Platform dimensions=80x80mm 		Crossed Roller Guide2580x80Platform: M16, M4 Base: Counterbore for M4 Cap Screws49 4-6 Weeks $258.71
ZC258080
25mm Crossed Roller Guide Z-axis Vertical Stage, Center Drive, Platform dimensions=80x80mm 		Crossed Roller Guide2580x80Platform: M16, M4 Base: Counterbore for M4 Cap Screws49 4-6 Weeks $258.71
ZR258080
25mm Crossed Roller Guide Z-axis Vertical Stage, Right Side Drive, Platform dimensions=80x80mm 		Crossed Roller Guide2580x80Platform: M16, M4 Base: Counterbore for M4 Cap Screws49 4-6 Weeks $258.71

ZR258080 - Parameter

Material
Aluminum

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
80x80

Drive Position
Right

Hole Type
Platform: M16, M4 Base: Counterbore for M4 Cap Screws

Straight Line Accuracy (μm)
3

Minimum reading (µm)
10

Maximum Load (N)
49

ZC258080 - Parameter

Material
Aluminum

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
80x80

Drive Position
Center

Hole Type
Platform: M16, M4 Base: Counterbore for M4 Cap Screws

Straight Line Accuracy (μm)
3

Minimum reading (µm)
10

Maximum Load (N)
49

ZL258080 - Parameter

Material
Aluminum

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
80x80

Drive Position
Left

Hole Type
Platform: M16, M4 Base: Counterbore for M4 Cap Screws

Straight Line Accuracy (μm)
3

Minimum reading (µm)
10

Maximum Load (N)
49

ZL136060 - Parameter

Material
Aluminium

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
60x60

Hole Type
Platform: M16, M4,M3 Base: Counterbore for M4 Cap Screws

Straight Line Accuracy (μm)
3

Drive Direction
Left

Minimum reading (µm)
10

Maximum Load (N)
19.6

ZR136060 - Parameter

Material
Aluminium

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
60x60

Hole Type
Platform: M16, M4,M3 Base: Counterbore for M4 Cap Screws

Straight Line Accuracy (μm)
3

Drive Direction
Right

Minimum reading (µm)
10

Maximum Load (N)
19.6

ZC136060 - Parameter

Material
Aluminium

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
60x60

Hole Type
Platform: M16, M4,M3 Base: Counterbore for M4 Cap Screws

Straight Line Accuracy (μm)
3

Drive Direction
Center

Minimum reading (µm)
10

Maximum Load (N)
19.6

ZR134040 - Parameter

Material
Aluminium

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
40x40

Hole Type
Platform: M6,M3 Base: Counterbore for M3 Cap Screws

Straight Line Accuracy (μm)
3

Drive Direction
Right

Minimum reading (µm)
10

Maximum Load (N)
9.8

ZC134040 - Parameter

Material
Aluminium

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
40x40

Hole Type
Platform: M6,M3 Base: Counterbore for M3 Cap Screws

Straight Line Accuracy (μm)
3

Drive Direction
Center

Minimum reading (µm)
10

Maximum Load (N)
9.8

ZL134040 - Parameter

Material
Aluminium

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
40x40

Hole Type
Platform: M6,M3 Base: Counterbore for M3 Cap Screws

Straight Line Accuracy (μm)
3

Drive Direction
Left

Minimum reading (µm)
10

Maximum Load (N)
9.8

ZR258080 - Download

ZC258080 - Download

ZL258080 - Download

ZL136060 - Download

ZR136060 - Download

ZC136060 - Download

ZR134040 - Download

ZC134040 - Download

ZL134040 - Download
