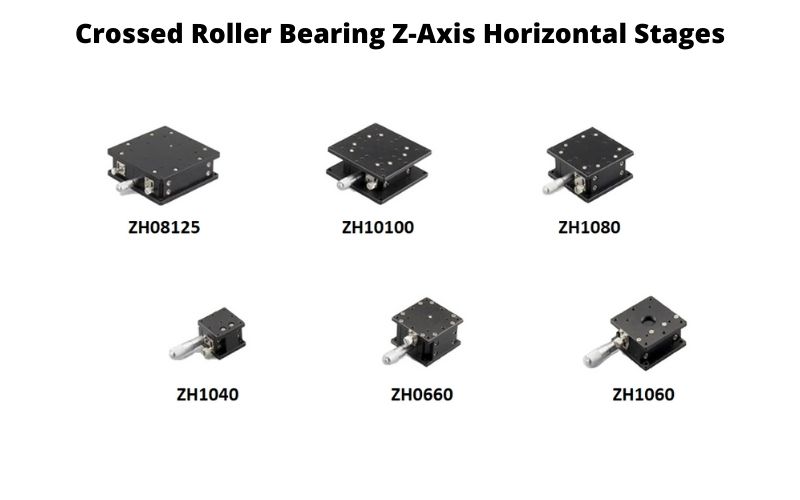

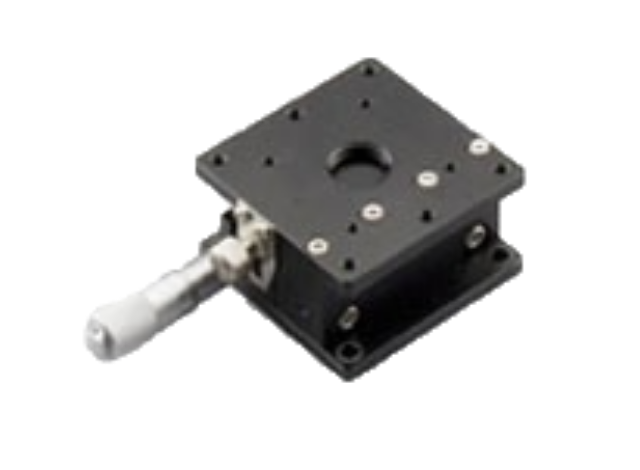

十字滚子轴承Z轴水平台

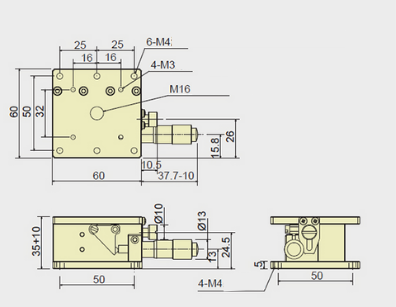

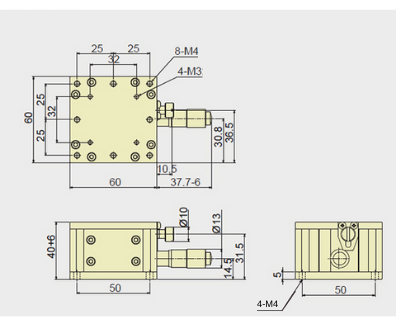

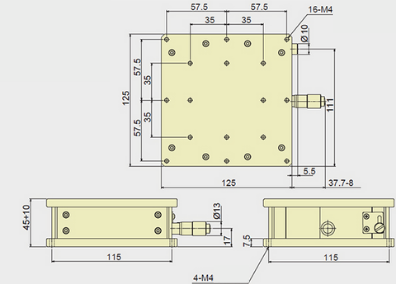

产品概述 相关产品 选型指南 技术图纸 联系下单！





• 通过千分尺实现垂直移动

• 交叉滚子轴承可实现高精度和高刚性

• 产品根据平台尺寸和垂直移动距离而有所不同






手动载物台

旋转和倾斜平台

光机械学








Simtrum 零件编号 轴承类型

驱动

(mm)

 孔类型

平台尺寸

(mm)

最大负载

(N)

平行度

(μm)

直线精度

(μm)

最小读数

(μm)

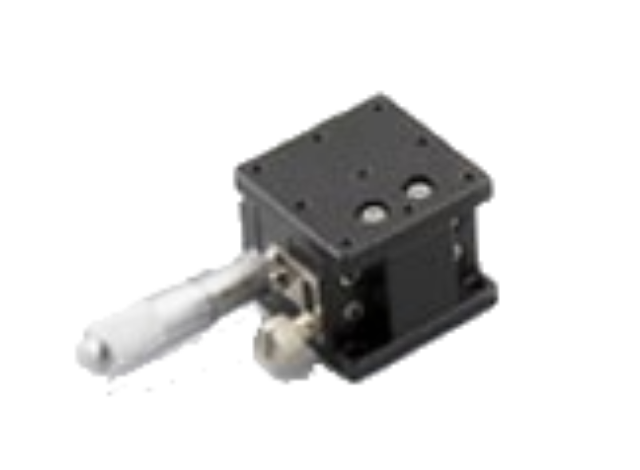

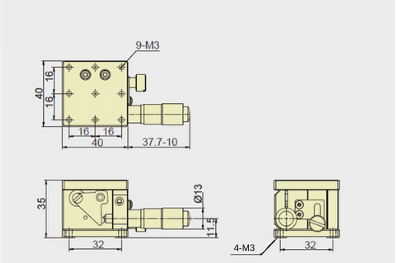

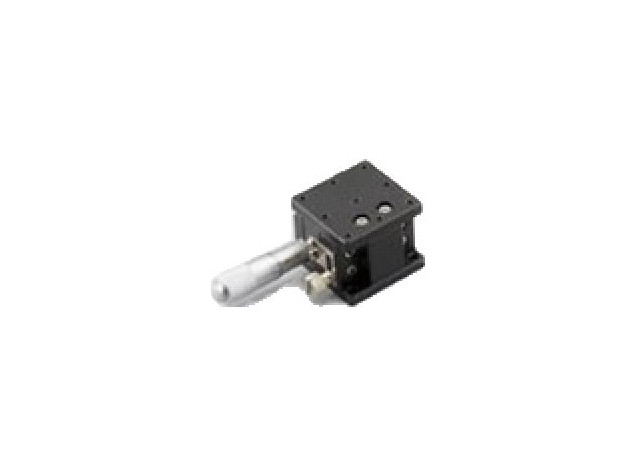

ZH1040 交叉滚子轴承 10

顶部：M3

底部：钻有沉孔，适用于M3盖帽螺丝

 40x40 9.8 100 3 10

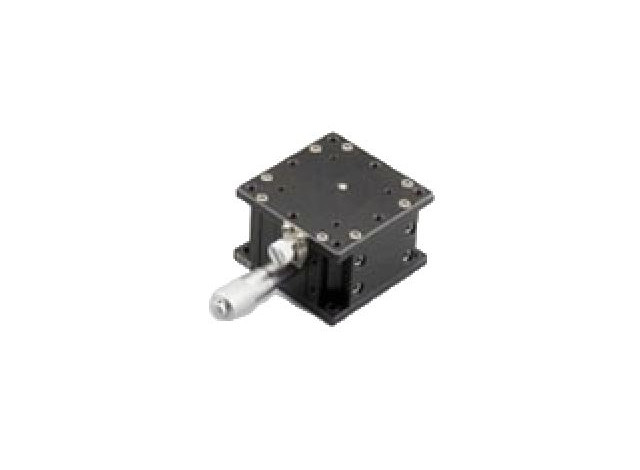

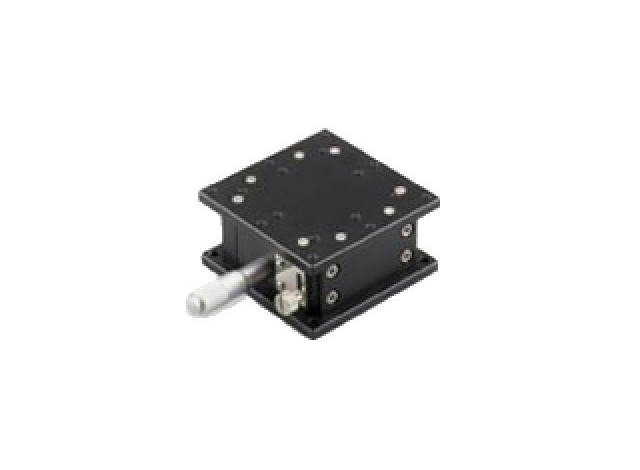

ZH0660 交叉滚子轴承 6

顶部：M4,M3

底部：钻有沉孔，适用于M4盖帽螺丝

 60x60 39.2 100 3 10

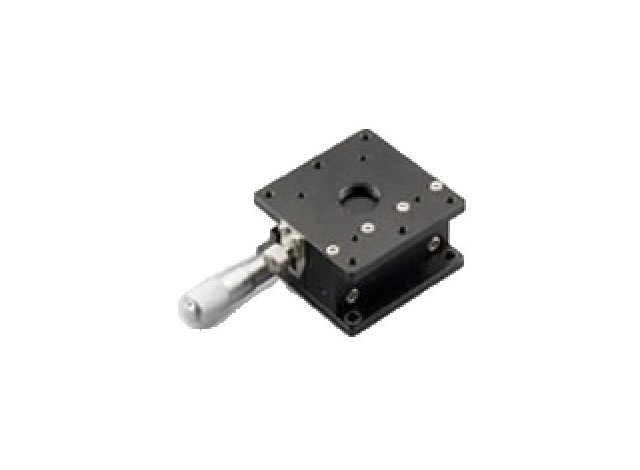

ZH1060 交叉滚子轴承 10

顶部：M16,M4,M3

底部：钻有沉孔，适用于M4盖帽螺丝

 60x60 39.2 100 3 10

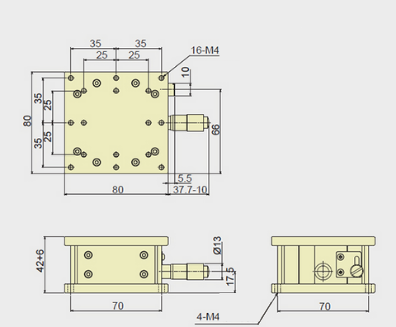

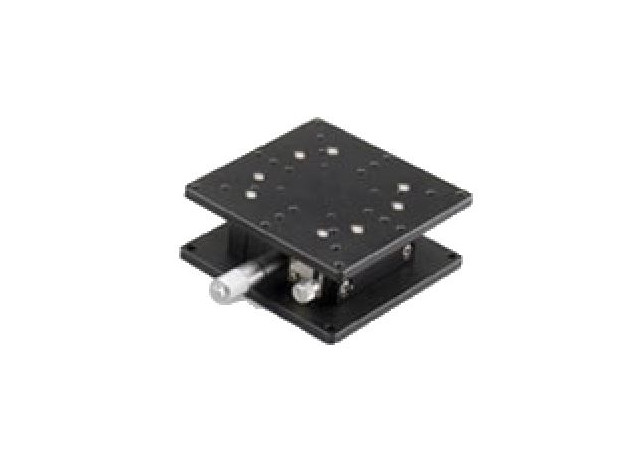

ZH1080 交叉滚子轴承 10

顶部：M4

底部：钻有沉孔，适用于M4盖帽螺丝

 80x80 39.2 100 3 10

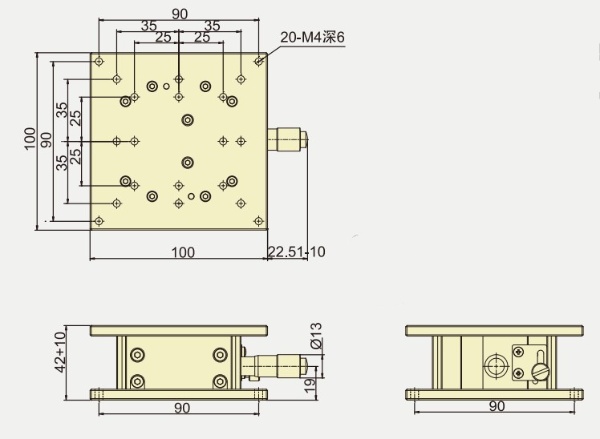

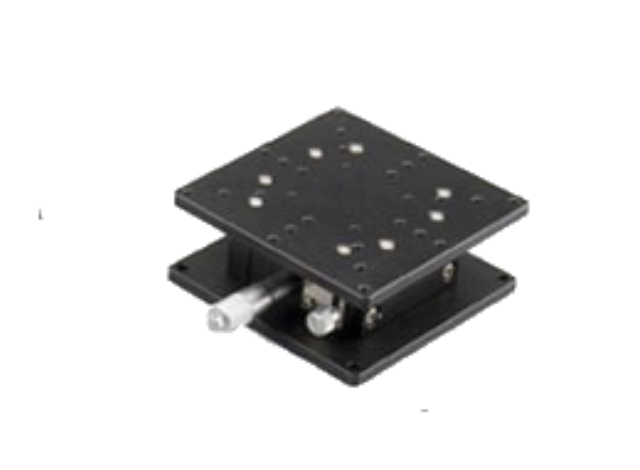

ZH10100 交叉滚子轴承 10

顶部：M4

底部：钻有沉孔，适用于M4盖帽螺丝

 100x100 39.2 100 3 10

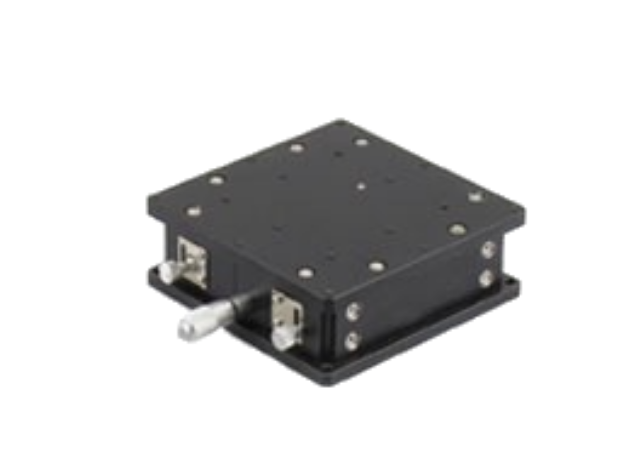

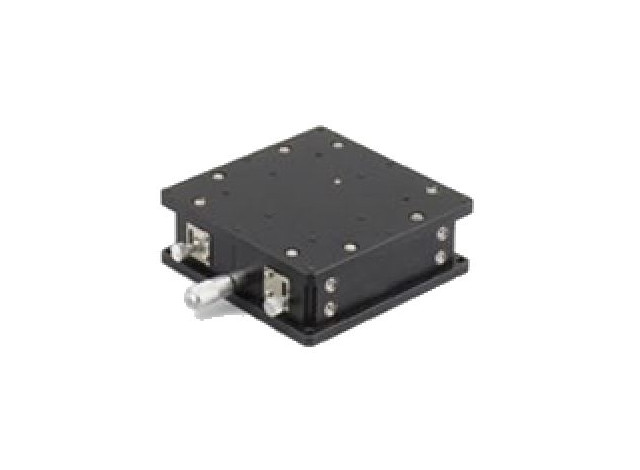

ZH08125 交叉滚子轴承 8

顶部：M4

底部：钻有沉孔，适用于M4盖帽螺丝

 125x125 39.2 100 3 10

上图中的信息是为您的光机械设置选择合适的交叉滚子轴承 z 轴水平平台的一般指南。

如需帮助，请随时致电 +65-6996 0391 联系 Simtrum Pte Ltd 或发送电子邮件至 info@simtrum.com。我们的产品团队将很乐意帮助您做出正确的产品选择。




ZH1040

ZH0660



ZH1060





ZH1080



ZH10100



ZH08125






我们在这里为您服务！





给我们发电子邮件 info@simtrum.com 以获得今天最优惠的价格。   想要更多的技术信息?点击这里 获取专业定制系统/解决方案。




没有时间逐个搜索产品?不用担心。您可以下载全系列的瑆创产品线卡，现在点击它。



想要更接近市场动态和技术发展吗?只需花5秒钟作为会员登录，我们将为您带来最新的新闻。​(屏幕右上方的登录按钮)

Platform dimensions (mm)


Search Reset
Compare Model Drawings & Specs Travel (mm) Platform dimensions (mm) Hole Type Maximum Load (N) Availability Reference Price
(USD)
ZH1040
10mm Crossed Roller Bearing z-axis Horizontal Stage, Platform dimensions=40x40mm 		1040x40Top: M3 Bottom: Counterbore holes for M3 cap screws9.8 4-6 Weeks $147.97
ZH0660
6mm Crossed Roller Bearing z-axis Horizontal Stage, Platform dimensions=60x60mm 		60x60Top: M4,M3 Bottom: Counterbore holes for M4 cap screws39.2 4-6 Weeks $254.58
ZH1060
10mm Crossed Roller Bearing z-axis Horizontal Stage, Platform dimensions=60x60mm 		1060x60Top: M16,M4,M3 Bottom: Counterbore holes for M4 cap screws39.2 4-6 Weeks $146.27
ZH1080
10mm Crossed Roller Bearing z-axis Horizontal Stage, Platform dimensions=80x80mm 		1080x80Top: M4 Bottom: Counterbore holes for M4 cap screws39.2 4-6 Weeks $269.08
ZH10100
10mm Crossed Roller Bearing z-axis Horizontal Stage, Platform dimensions=100x100mm 		10100x100Top: M4 Bottom: Counterbore holes for M4 cap screws39.2 4-6 Weeks $272.49
ZH08125
8mm Crossed Roller Bearing z-axis Horizontal Stage, Platform dimensions=125x125mm 		125x125Top: M4 Bottom: Counterbore for M4 cap screws39.2 4-6 Weeks $295.52

ZH08125 - Parameter

Material
Aluminium

Bearing Type
Crossed Roller Bearing

Travel (mm)

Platform dimensions (mm)
125x125

Hole Type
Top: M4 Bottom: Counterbore for M4 cap screws

Straight Line Accuracy (μm)
3

Minimum reading (µm)
10

Maximum Load (N)
39.2

Parallelism (μm)
100

ZH10100 - Parameter

Material
Aluminium

Bearing Type
Crossed Roller Bearing

Travel (mm)
10

Platform dimensions (mm)
100x100

Hole Type
Top: M4 Bottom: Counterbore holes for M4 cap screws

Straight Line Accuracy (μm)
3

Minimum reading (µm)
10

Maximum Load (N)
39.2

Parallelism (μm)
100

ZH1080 - Parameter

Material
Aluminium

Bearing Type
Crossed Roller Bearing

Travel (mm)
10

Platform dimensions (mm)
80x80

Hole Type
Top: M4 Bottom: Counterbore holes for M4 cap screws

Straight Line Accuracy (μm)
3

Minimum reading (µm)
10

Maximum Load (N)
39.2

Parallelism (μm)
100

ZH1060 - Parameter

Material
Aluminium

Bearing Type
Crossed Roller Bearing

Travel (mm)
10

Platform dimensions (mm)
60x60

Hole Type
Top: M16,M4,M3 Bottom: Counterbore holes for M4 cap screws

Straight Line Accuracy (μm)
3

Minimum reading (µm)
10

Maximum Load (N)
39.2

Parallelism (μm)
100

ZH0660 - Parameter

Material
Aluminium

Bearing Type
Crossed Roller Bearing

Travel (mm)

Platform dimensions (mm)
60x60

Hole Type
Top: M4,M3 Bottom: Counterbore holes for M4 cap screws

Straight Line Accuracy (μm)
3

Minimum reading (µm)
10

Maximum Load (N)
39.2

Parallelism (μm)
100

ZH1040 - Parameter

Material
Aluminium

Bearing Type
Crossed Roller Bearing

Travel (mm)
10

Platform dimensions (mm)
40x40

Hole Type
Top: M3 Bottom: Counterbore holes for M3 cap screws

Straight Line Accuracy (μm)
3

Minimum reading (µm)
10

Maximum Load (N)
9.8

Parallelism (μm)
100

ZH08125 - Download

ZH10100 - Download

ZH1080 - Download

ZH1060 - Download

ZH0660 - Download

ZH1040 - Download
