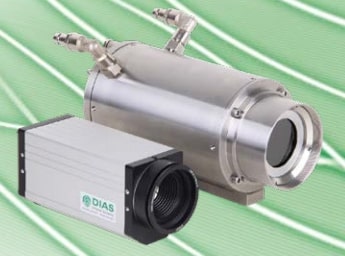

红外线摄像机 PYROVIEW 512N 600-3000°C
512N protection - Parameter
Temperature Range
600 °C to 1500 °C,1400 °C to 3000 °C
Housing

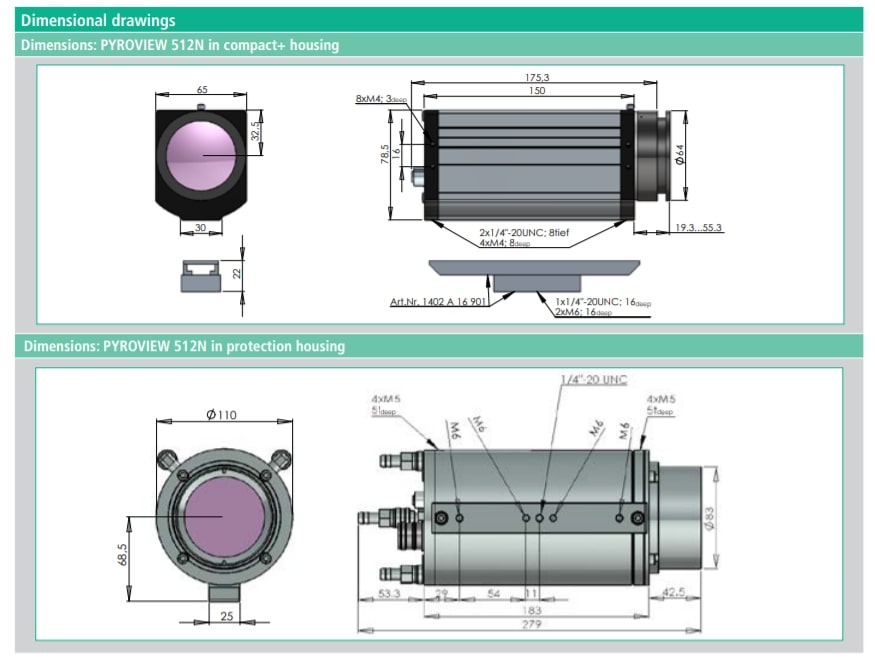

industry protection housing IP65, stainless steel, with protection window, air purge and optional water cooling, diameter 110 mm, length 280 mm (without mechanical mounting and connectors), 6 bar max. water pressure, 2 bar max. air pressure
Measurement Uncertainty
2 % of measured value in °C
Response time
internal 33 ms , selectable: 2 / measurement frequency
Spectral range (µm)
0.8 µm to 1.1 µm
Operating temperature
–10 °C to 50 °C (without water cooling), –25 °C to 150 °C (with water cooling)
512N compact+ - Parameter
Temperature Range
600 °C to 1500 °C,1400 °C to 3000 °C
Housing
industry protection housing IP65, stainless steel, with protection window, air purge and optional water cooling, diameter 110 mm, length 280 mm (without mechanical mounting and connectors), 6 bar max. water pressure, 2 bar max. air pressure
Measurement Uncertainty
2 % of measured value in °C
Response time
internal 33 ms , selectable: 2 / measurement frequency
Spectral range (µm)
0.8 µm to 1.1 µm
Operating temperature
–10 °C to 50 °C (without water cooling), –25 °C to 150 °C (with water cooling)
512N protection - Download
