STPM-Z65M-C(A)

Products / 光学元件 /视觉镜头 /变焦镜头 /Z65系列变焦镜头 / STPM-Z65M-C(A) /

STPM-Z65M-C(A)，Type Coaxial lllumination+Motorized Zoom，Optical Magnification Range 0.7X~4.5X，Working Distance 80±2mm，Zoom Control Motorized zoom

MODEL:STPM-Z65M-C(A)

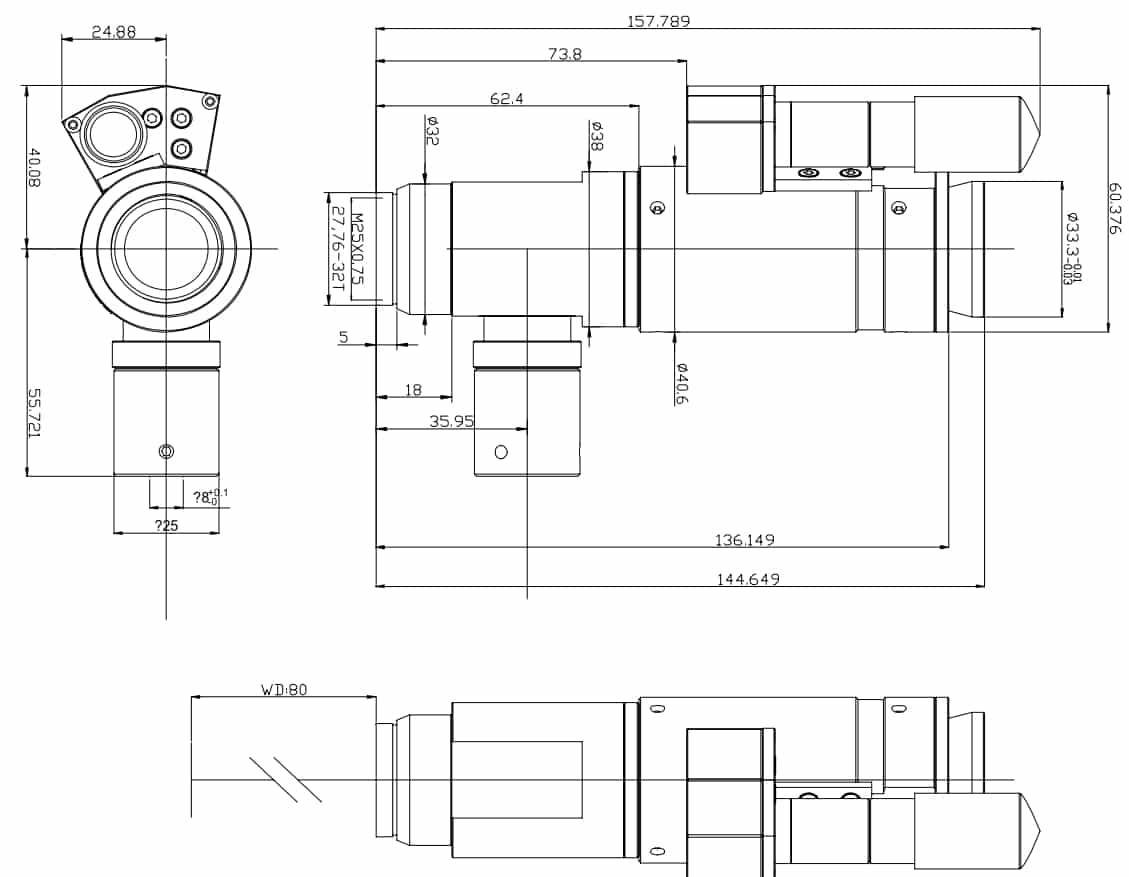

4-6 Weeks Drawings

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page


Related Products Detailed Introduction
Compare Model Drawings & Specs Availability Reference Price
STPM-Z65F-RS
STPM-Z65F-RS，Type Zoom Lens With Magnification RS232 Output，Optical Magnification Range 0.7X~4.5X，Working Distance 90±2mm，Zoom Control Manual Zoom 		4-6 Weeks Request for quote
STPM-Z65D-H3
STPM-Z65D-H3，Type Detented With 3mm Fine Focus，Optical Magnification Range 0.7X~4.5X，Working Distance 90±2mm，Zoom Control Manual Zoom，Focus Control 3mm Fine Focus 		4-6 Weeks Request for quote
STPM-Z65D-C
STPM-Z65D-C，Type Detented With Coaxial llumination，Optical Magnification Range 0.7X~4.5X，Working Distance 90±2mm，Zoom Control Manual Zoom 		4-6 Weeks Request for quote
STPM-Z65D
STPM-Z65D，Type Detented Zoom Lens，Optical Magnification Range 0.7X~4.5X，Working Distance 90±2mm，Zoom Control Manual Zoom 		4-6 Weeks Request for quote
STPM-Z65M-CH12M
STPM-Z65M-CH12M，Type Dual-motor Motorized Zoom，Optical Magnification Range 0.7X~4.5X，Working Distance 90±2mm，Zoom Control Motorized zoom，Focus Control Motorized 12mm 		4-6 Weeks Request for quote
STPM-Z65M-C
STPM-Z65M-C，Type Motorized Zoom Lens With Coaxial lllumination，Optical Magnification Range 0.7X~4.5X，Working Distance 90±2mm，Zoom Control Manual Zoom 		4-6 Weeks Request for quote
STPM-Z65M
STPM-Z65M，Type Motorized Zoom，Optical Magnification Range 0.7X~4.5X，Working Distance 90±2mm，Zoom Control Manual Zoom 		4-6 Weeks Request for quote
STPM65-ZC-H12
STPM-Z65C-H12，Type 12mm Fine Focus，Optical Magnification Range 0.7X~4.5X，Working Distance 90±2mm，Zoom Control Manual Zoom,Focus Control 12mm Fine Focus 		4-6 Weeks Request for quote
STPM-Z65C-H3
STPM-Z65C-H3，Type 3 mm Fine Focus，Optical Magnification Range 0.7X~4.5X，Working Distance 90±2mm，Zoom Control Manual Zoom,Focus Control 3mm Fine Focus 		4-6 Weeks Request for quote
STPMZ65C-C
STPMZ65C-C，Type Coaxial lllumination Zoom Lens，Optical Magnification Range 0.7X~4.5X，Working Distance 90±2mm，Zoom Control Manual Zoom 		4-6 Weeks Request for quote
STPMZ65C
STPMZ65C，Type Zoom Lens，Optical Magnification Range 0.7X~4.5X，Working Distance 90±2mm，Zoom Control Manual Zoom 		4-6 Weeks Request for quote

Compatible

Compare Model Drawings & Specs Availability Reference Price



Product specifications and Brochures

Product Brochure Link:



Model STPM-Z65M-C(A)
Type Coaxial lllumination+Motorized Zoom
Optical Magnification Range 0.7X~4.5X
Working Distance 80±2mm
Optical Magnification 0.7X 1.0X 1.5X 2.0X 2.5X 3.0X 3.5X 4.0X 4.5X
Telecentrity(degree) 0.68 0.185 0.7 1.075 0.8 0.75 0.7 0.81 0.87
Depth of View (mm) 1.9 0.952 0.44 0.29 0.23 0.16 0.13 0.12 0.1
N.A. 0.03 0.04 0.063 0.07 0.085 0.085 0.095 0.095 0.105
F .No. 11.7 12.7 11.95 14.4 15.3 17.6 18.5 20.8 21.3
Resolution (um) 11.18 7.99 5.59 4.79 4.79 3.95 3.95 3.95 3.95
TV Distortion 0.060% 0.020% 0.010% 0.030% 0.003% 0.002% 0.030% 0.030% 0.030%
Field of View(DxHxV) (mm) 2/3” 15.71x12.57x9.43 11.00x8.80x6.60 7.33x5.87x4.40 5.50x4.40x3.30 4.40x3.52x2.64 3.67x2.93x2.20 3.14x2.51x1.89 2.75x2.20x1.65 2.44x1.96x1.47
1/2” 11.43x9.14x6.86 8.00x6.40x4.80 5.33x4.27x3.20 4.00x3.20x2.40 3.20x2.56x1.92 2.67x2.13x1.60 2.29x1.83x1.37 2.00x1.60x1.20 1.78x1.42x1.07
1/3” 8.57x6.86x5.14 6.00x4.80x3.60 4.00x3.20x2.40 3.00x2.40x1.80 2.40x1.92x1.44 2.00x1.60x1.20 1.71x1.37x1.03 1.50x1.20x0.90 1.33x1.07x0.80
Max.Sensor Size 2/3'
Mount C-Mount
Zoom Control Motorized zoom
