STPM-45JC10M

Products / 光学元件 /视觉镜头 /FA透镜 /1/1.8" 机器视觉透镜 / STPM-45JC10M /

STPM-45JC10M,Sensor Size 1.8" (9mm),Focal Length 4.5 mm,Iris F2.8-16,Interface C-Mount

MODEL:STPM-45JC10M

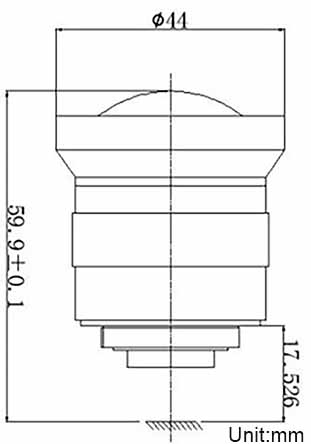

4-6 Weeks Drawings

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page


Related Products Detailed Introduction
Compare Model Drawings & Specs Availability Reference Price
STPM-35JC10M(H)
STPM-35JC10M(H),Sensor Size 1.8" (9mm),Focal Length 35 mm,Iris F2.8-16,Interface C-Mount 		4-6 Weeks Request for quote
STPM-25JC10M(H)
STPM-25JC10M(H),Sensor Size 1.8" (9mm),Focal Length 25 mm,Iris F2.8-16,Interface C-Mount 		4-6 Weeks Request for quote
STPM-16JC10M(H)
STPM-16JC10M(H),Sensor Size 1.8" (9mm),Focal Length 16mm,Iris F2.8-16,Interface C-Mount 		4-6 Weeks Request for quote

Compatible

Compare Model Drawings & Specs Availability Reference Price



Product specifications and Brochures

Product Brochure Link:



Model STPM-16JC10M(H) STPM-25JC10M(H) STPM-35JC10M(H) STPM-45JC10M
Sensor Size 1.8"(9mm)
Focal Length 16mm 25mm 35mm 4.5mm
Interface C-Mount
Iris F2.8-16
FOV  (Diagonal,Horizontal, Vertical) 1/1.8" 31.0°x27.5°x15.7° 20.4°x17.8°x10.0° 14.7°x12.6°x7.29 89.0°x81.9°x52.39
1/2” 28.3°x24.7x14.0° 18.1°x15.9°x8.9° 13°x11.4x6.4° 89°x81.9x52.3°
Back Focal Length (In Air) 13mm 12.2mm 11mm 8.4mm
Operation Mode Focus Manual
lris Manual
Distortion 1/1.8" -0.5%@y=4.5mm -0.1%@y=4.5mm -0.09%@y=4.5mm -1.2%@y=4.5mm
1/2” -0.48%@y=4.0mm -0.08%@y=4.0mm -0.08%@y=4.0mm 1.08%@y=4.0mm
Focus Range 0.1m~∞ 0.2m~∞ 0.2m~∞ 0.1m~∞
Filter Thread Diameter M25.5xP0.5 -　
Working Temperature -20°C~+60°C

STPM-45JC10M - Parameter

STPM-35JC10M(H) - Parameter

STPM-25JC10M(H) - Parameter

STPM-16JC10M(H) - Parameter

STPM-45JC10M - Download

STPM-35JC10M(H) - Download

STPM-25JC10M(H) - Download

STPM-16JC10M(H) - Download
