STPM-25LC8M

Products / 光学元件 /视觉镜头 /FA透镜 /1“机器视觉FA透镜 / STPM-25LC8M /

STPM-25LC8M, Resolution 8 MP,Focal Length 25 mm,Corresponding Wavelength 420-1000nm,lris Range F1.8-close,Max.Sensor Size 1"(16mm)

MODEL:STPM-25LC8M

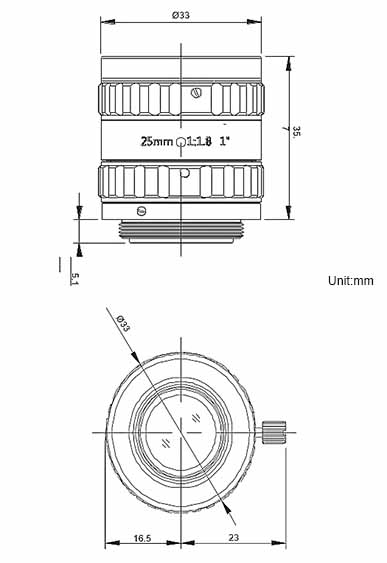

4-6 Weeks Drawings

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page


Related Products Detailed Introduction
Compare Model Drawings & Specs Availability Reference Price
STPM-50LC8M
STPM-50LC8M, Resolution 8 MP,Focal Length 50 mm,Corresponding Wavelength 420-1000 nm,lris Range F2.0-close,Max.Sensor Size 1"(16mm) 		4-6 Weeks Request for quote
STPM-35LC8M
STPM-35LC8M, Resolution 8 MP,Focal Length 35 mm,Corresponding Wavelength 420-1000 nm,lris Range F2.0-close,Max.Sensor Size 1"(16mm) 		4-6 Weeks Request for quote
STPM-16LC8M
STPM-16LC8M, Resolution 8 MP,Focal Length 16 mm,Corresponding Wavelength 420-1000nm,lris Range F2.0-close,Max.Sensor Size 1"(16mm) 		4-6 Weeks Request for quote
STPM-12LC8M
STPM-12LC8M, Resolution 8 MP,Focal Length 12 mm,Corresponding Wavelength 420-1000nm,lris Range F2.0-C,Max.Sensor Size 1"(16mm) 		4-6 Weeks Request for quote
STPM-25LC5M
STPM-25LC5M, Resolution 5 MP;160 lp/mm (center) 100 lp/mm (corner),Focal Length 25 mm,lris Range F1.6-F22,Max.Sensor Size 1"(12.8mmX9.6mm Ø16mm) 		4-6 Weeks Request for quote
STPM-20LC5M
STPM-20LC5M, Resolution 5 MP;160 lp/mm (center) 100 lp/mm (corner),Focal Length 20 mm,lris Range F1.6-F22,Max.Sensor Size 1"(12.8mmX9.6mm Ø16mm) 		4-6 Weeks Request for quote
STPM-16LC5M
STPM-16LC5M, Resolution 5 MP;160 lp/mm (center) 100 lp/mm (corner),Focal Length 16 mm,lris Range F1.6-F22,Max.Sensor Size 1"(12.8mmX9.6mm Ø16mm) 		4-6 Weeks Request for quote
STPM-12LC5M
STPM-12LC5M, Resolution 5 MP;160 lp/mm (center) 100 lp/mm (corner),Focal Length 12 mm,lris Range F1.6-F22,Max.Sensor Size 1"(12.8mmX9.6mm Ø16mm) 		4-6 Weeks Request for quote

Compatible

Compare Model Drawings & Specs Availability Reference Price



Product specifications and Brochures

Product Brochure Link:

Parameter STPM-12LC8M STPM-16LC8M STPM-25LC8M STPM-35LC8M STPM-50LC8M
Resolution 8MP
Focal Length (mm) 12 16 25 35 50
Corresponding Wavelength 　 420-1000nm
lris Range F2.0-C F2.0-close F1.8-close F2.0-close F2.0-close
Max.Sensor Size 1"(16mm)
 Imaging Range 　 0.1m~∞ 0.1m~∞ 0.15m~∞ 0.2m~∞ 0.25m~∞
Field of View (Diagonal x Horizontal x Verticle) 1" 69.63°×60.71°×40.33° 53.94°x43.92°x33.45° 36.21°x29.08°x21.86° 26.10°x20.83°x15.72 18.38°x14.70°x10.98°
1/2'' 37.32°×30.11°×22.74° 28.23°x22.62°x16.97° 18.45°x14.72°x11.08° 13.28°x10.65°x7.94° 9.34°x7.42°x5.5°
1/3'' -　 21.24°x16.98°x12.94° 13.81°x11.08°x8.34° 9.92”x7.92°x6.00° 6.96°x5.53x4.16°
Control Focus Manual
lris Manual M-lris
Object Size (mm) 1" 155.01×130.05×90.3  112.75x89.28x66.33  92.4x73.3x54.6  81.10x64.88x48.66  72.50x57.94x43.34
1/2'' 74.93×59.76×44.73  55.09x43.96x32.82  45.5x36.4x27.2  40.52x32.42x24.31  36.18x28.76x21.66
1/3'' 　 41.19x33.32x24.58  34.2x27.3x20.5  30.42x24.34x18.25  27.26x21.74x16.34
Distortion (mm) 1"  -1.27%@y=4.0  -2.02%@y=8  -1.41%@y=8  0.28%@y=8  -0.013%@y=8.0
1/2'' -4.1%@y=8  -0.68%@y=4.0  -0.32%@y=4.0  0.07%@y=4.0  0.010%@y=4.0
1/3'' 　 -0.39%@y=3.0  -0.18%@y=3.0  0.04%@y=3.0  0.04%@y=3.0
Effective lmage Dimension 16 -　 -　 　- -　

 Back Focal Length(in air) mm

 15.07 11.20 12.68 12.96 21.35
Mount C-mount
Filter Thread (mm) M35.5×0.5  M34x0.5  M30.5x0.5  M30.5x0.5  M37x0.5
Working Temperature  -20℃～+60℃
Weight -　 101.25g 73.65g 70.35g 105.25g
