STPM-50MC10M

Products / 光学元件 /视觉镜头 /FA透镜 /2/3“机器视觉FA透镜 / STPM-50MC10M /

STPM-50MC10M, Resolution 10 MP, Wavelength 420~1000nm,Focal Length 50 mm,lris Range F2.8-16,Max.Sensor Size 2/3"(11mm)

MODEL:STPM-50MC10M

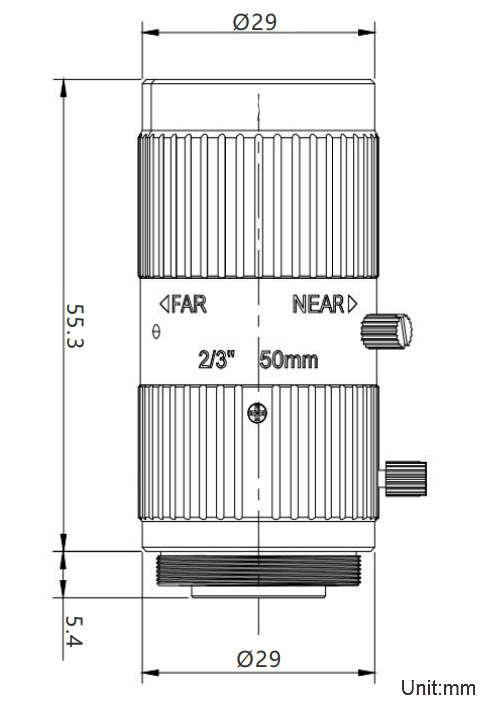

4-6 Weeks Drawings

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page


Related Products Detailed Introduction
Compare Model Drawings & Specs Availability Reference Price
STPM-35MC10M
STPM-35MC10M, Resolution 10 MP,Wavelength 420~1000nm,Focal Length 35 mm,lris Range F2.8-16,Max.Sensor Size 2/3"(11mm) 		4-6 Weeks Request for quote
STPM-25MC10M
STPM-16MC10M, Resolution 10 MP,Wavelength 420~1000nm,Focal Length 16 mm,lris Range F2.8-16,Max.Sensor Size 2/3"(11mm) 		4-6 Weeks Request for quote
STPM-16MC10M
STPM-16MC10M, Resolution 10 MP,Wavelength 420~1000nm,Focal Length 16 mm,lris Range F2.8-16,Max.Sensor Size 2/3"(11mm) 		4-6 Weeks Request for quote
STPM-12MC10M
STPM-12MC10M, Resolution 10 MP,Wavelength 420~1000nm,Focal Length 12mm,lris Range F2.8-16,Max.Sensor Size 2/3"(11mm) 		4-6 Weeks Request for quote
STPM-1236MC5M
STPM-1236MC5M Resolution 5 MP;160lpmm (center)125lp/mm (corner),Focal Length 12-36 mm,lris Range F2.8-F16,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm) 		4-6 Weeks Request for quote
STPM-75MC5M
STPM-75MC5M Resolution 5 MP;160lpmm (center)125lp/mm (corner),Focal Length 75 mm,lris Range F2.0-F22,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm) 		4-6 Weeks Request for quote
STPM-50MC5M
STPM-50MC5M Resolution 5 MP;160lpmm (center)125lp/mm (corner),Focal Length 50 mm,lris Range F1.8-F22,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm) 		4-6 Weeks Request for quote
STPM-35MC5M
STPM-35MC5M Resolution 5 MP;160lpmm (center)125lp/mm (corner),Focal Length 35 mm,lris Range F1.4-F22,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm) 		4-6 Weeks Request for quote
STPM-25MC5M
STPM-25MC5M Resolution 5 MP;160lpmm (center)125lp/mm (corner),Focal Length 25 mm,lris Range F1.4-F22,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm) 		4-6 Weeks Request for quote
STPM-12MC5M
STPM-12MC5M Resolution 5 MP;160lpmm (center)125lp/mm (corner),Focal Length 12 mm,lris Range F1.6-F22,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm) 		4-6 Weeks Request for quote
STPM-1236MC
STPM-1236MC Resolution 1.5 MP;125lp/mm (center)100lp/mm (corner),Focal Length 12-36 mm,lris Range F2.8-C,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm) 		4-6 Weeks Request for quote
STPM-75MC
STPM-75MC Resolution 1.5 MP;125lp/mm (center)100lp/mm (corner),Focal Length 75 mm,lris Range F2.8-C,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm) 		4-6 Weeks Request for quote
STPM-50MC
STPM-50MC Resolution 1.5 MP;125lp/mm (center)100lp/mm (corner),Focal Length 50 mm,lris Range F1.8-C,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm) 		4-6 Weeks Request for quote
STPM-35MC
STPM-35MC Resolution 1.5 MP;125lp/mm (center)100lp/mm (corner),Focal Length 35 mm,lris Range F1.4-C,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm) 		4-6 Weeks Request for quote
STPM-16MC
STPM-16MC Resolution 1.5 MP;125lp/mm (center)100lp/mm (corner),Focal Length 16.33mm,lris Range F1.4-C,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm) 		4-6 Weeks Request for quote
STPM-12MC
STPM-12MC Resolution 1.5 MP;125lp/mm (center)100lp/mm (corner),Focal Length 12.3mm,lris Range F1.4-C,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm) 		4-6 Weeks Request for quote

Compatible

Compare Model Drawings & Specs Availability Reference Price

Product specifications and Brochures

Product Brochure Link:

Parameter STPM-12MC10M STPM-16MC10M STPM-25MC10M STPM-35MC10M STPM-50MC10M
Resolution 10MP
Wavelength 420~1000nm
Focal Length 12mm 16mm 25mm 35mm 50mm
lris Range F2.8-16
Max.Sensor Size 2/3"(11mm)
Field of View (H x V) 2/3" 49.2°x40.3°x30.8° 37.9°x30.7°x23.3° 24.78°x19.94°x15.0 18.39°x14.8°x11.1 12.57°x10,08°x7.57
1/2” 36.9°x29.9°x22.7° 28.1°x22.6°x17.1° 18.16°x14.57°x11.0° 13.4°x10.8°x8.1° 9.16°x7.34°x5.51°
1/3" 28.1°x22.7°x17.1° 21.2°x17.0°x12.8° 13.67°x10.9°x8.2 10.1°x8.1°x6.1° 6.89°x5.51°x4.13
Focus Range 0.15m~∞ 0.15m~∞ 0.15m~∞ 0.20m~∞ 0.30m~∞
Object Dimensions  (at the nearest focusing distance) 2/3" 140.5x112.4x84.3  107.9x86.3x64.7  58.9x47.1x35.3  54.1x43.3x32.5  54.1x43,3x32.5
1/2" 101.7x81.4x61.0  78.1x62.5x46.9  42.8x34.3x25.7  39.3x31.5x23.6  43.4x34.7x26.0
1/3" 76.1x60.9x45.7  65.8x52.6x39.5  32.1x25.68x19.3  29.5x23.6x17.7  32.5x26.0x19.5
Control Focus Manual
lris Manual
Distortion 2/3” 0.037%@y=5.5  0.29%@y=5.5  -0.016%@y=5.5  -0.172%@y=5.5  0.094%@y=5.5
1/2” -0.17%@y=4.0  0.15%@y=4.0  -0.019%@y=4.0  -0.077%@y=4.0  0.055%@y=4.0
1/3" -0.15%@y=3.0  0.08%@y=3.0  -0.013%@y=3.0  -0.045%@y=3.0  0.025%@y=3.0
Optical Back Focal Length(in air) 8.43 8.63 10.31 13.63 14.24
Mount C-Mount
Filter Thread M27xP0.5
Working Temperature -20℃~+60°C



Model ExtensionRing (mm) WorkingDistance Magnification FOV Model ExtensionRing (mm) WorkingDistance Magnification FOV
2/3" 1/2" 2/3" 1/2"
H (8.45mm) V (7.07mm) H (6.22mm) V (4.67mm) H (8.45mm) V (7.07mm) H (6.22mm) V (4.67mm)
STPM-12MC10M 0 1000mm -0.01198X 708.14 588.59 515.01 428.06 STPM-25MC10M 0 600mm -0.04285X 197.68 164.31 143.77 119.5
950mm -0.01261X 672.94 559.33 489.41 406.78 550mm -0.04685X 180.77 150.25 131.47 109.27
900mm -0.01331X 637.65 529.99 463.74 385.45 500mm -0.05169X 163.85 136.18 119.16 99.04
850mm -0.01409X 602.33 500.63 438.06 364.1 450mm -0.05764X 146.94 122.13 106.87 88.82
800mm -0.01497X 566.98 471.25 412.35 342.73 400mm -0.06515X 130.01 108.06 94.55 78.59
750mm -0.01596X 517.93 441.96 376.67 321.43 350mm -0.07490X 113.08 93.99 82.24 68.35
700mm -0.01709X 496.55 412.72 361.13 300.16 300mm -0.08808X 96.17 79.93 69.94 58.13
650mm -0.01840X 461.2 383.34 335.42 278.79 250mm -0.10688X 79.25 65.87 57.64 47.9
600mm -0.01993X 425.81 353.92 309.68 257.4 200mm -0.13592X 62.31 51.79 45.32 37.67
550mm -0.02172X 390.63 324.68 284.09 236.13 150mm -0.18666X 45.38 37.72 33 27.43
500mm -0.02389X 355.22 295.25 258.34 214.73 3 100mm -0.29000X 29.26 24.32 21.28 17.69
450mm -0.02651X 320.03 266 232.75 193.46 STPM-35MC10M 0 1000mm -0.03513X 241.13 200.42 175.36 145.76
400mm -0.02980X 284.64 236.58 207.01 172.06 950mm -0.03704X 228.65 190.05 166.29 138.22
350mm -0.03405X 249.22 207.14 181.25 150.65 900mm -0.03918X 216.19 179.69 157.23 130.68
300mm -0.03964X 214.05 177.91 155.68 129.39 850mm -0.04158X 203.73 169.33 148.16 123.15
250mm -0.04749X 178.67 148.5 129.94 108 800mm -0.04429X 191.26 158.97 139.1 115.61
200mm -0.05914X 143.47 119.25 104.34 86.73 750mm -0.04737X 178.8 148.61 130.04 108.08
150mm -0.07844X 108.18 89.91 78.68 65.39 700mm -0.05092X 166.33 138.25 120.97 100.54
0.5 100mm -0.11104X 76.42 63.51 55.58 46.19 650mm -0.05505X 153.86 127.88 111.9 93.01
STPM-16MC10M 0 1000mm -0.01591X 532.24 442.39 387.09 321.74 600mm -0.05991X 141.39 117.52 102.83 85.47
950mm -0.01675X 505.68 420.3 367.77 305.68 550mm -0.06569X 128.93 107.16 93.77 77.94
900mm -0.01768X 479.18 398.28 348.5 289.66 500mm -0.07273X 116.45 96.79 84.69 70.39
850mm -0.01870X 453.04 376.56 329.48 273.86 450mm -0.08145X 103.99 86.44 75.63 62.86
800mm -0.01986X 426.58 354.56 310.24 257.86 400mm -0.09255X 91.53 76.07 66.57 55.32
750mm -0.02116X 400.27 332.69 291.1 241.96 350mm -0.10714X 79.06 65.69 57.5 47.78
700mm -0.02266X 373.82 310.71 271.87 225.97 300mm -0.12720X 66.59 55.34 48.43 40.25
650mm -0.02439X 347.33 288.69 252.61 209.96 250mm -0.15650X 54.12 44.98 39.36 32.72
600mm -0.02639X 320.91 266.73 233.39 193.99 200mm -0.20333X 41.66 34.62 30.29 25.18
550mm -0.02877X 294.38 244.68 214.1 177.95 3 150mm -0.28202X 30.03 24.96 21.84 18.15
500mm -0.03160X 268.08 222.82 194.96 162.05 STPM-50MC10M 0 1000mm -0.0515 164.78 136.96 119.84 99.61
450mm -0.03504X 241.71 200.9 175.79 146.11 950mm -0.05429 156.29 129.9 113.66 94.47
400mm -0.03935X 215.24 178.9 156.53 130.11 900mm -0.0574 147.82 122.86 107.5 89.35
350mm -0.04486X 188.83 156.95 137.33 114.14 850mm -0.06091 139.32 115.8 101.32 84.21
300mm -0.05216X 162.39 134.97 118.1 98.16 800mm -0.06485 130.84 108.75 95.16 79.09
250mm -0.06227X 136.03 113.06 98.93 82.23 750mm -0.06935 122.36 101.7 88.99 73.96
200mm -0.07734X 109.52 91.03 79.65 66.21 700mm -0.07452 113.87 94.65 82.82 68.84
150mm -0.10195X 83.08 9.05 60.42 50.22 650mm -0.08051 105.39 87.6 76.65 63.71
0.5 100mm -0.14288X 59.28 49.27 43.11 35.83 600mm -0.08756 96.9 80.54 70.48 58.58
STPM-25MC10M 0 1000mm -0.02543X 333.01 276.79 242.19 201.3 550mm -0.09606 88.42 73.49 64.3 53.45
950mm -0.02678X 316.24 262.85 229.99 191.16 500mm -0.10635 79.93 64.44 58.13 46.86
900mm -0.02831X 299.19 248.67 217.59 180.85 450mm -0.11898 71.45 59.38 51.96 43.19
850mm -0.03001X 282.26 234.6 205.28 170.62 400mm -0.13503 62.96 52.33 45.79 38.06
800mm -0.03192X 265.35 220.55 192.98 160.4 350mm -0.15608 54.46 45.27 39.61 32.92
750mm -0.03410X 248.42 206.48 180.67 150.17 300mm -0.18542 45.97 38.21 33.43 27.79
700mm -0.03659X 231.49 192.41 168.36 139.93 2 250mm -0.22768 37.47 31.14 27.25 22.65
650mm -0.03947X 214.59 178.36 156.06 129.71 5 200mm -0.29512 28.96 24.07 21.06 17.51
600mm -0.04285X 197.68 164.31 143.77 119.5
