Products / 光学分析 /光电探测器 /光电倍增管 (PMTs) /光电倍增管头戴式(仅限管) / STN4021-1 /

Photomultipliers Tube Head-On (Tube Only), Diameter 2", Cathode Effective Diameter Min. 46mm, Spectral Response Range 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Min. 60μA/lm, Cathode Blue Sensitivity Min. 10.5μA/lmf, Anode Sensitivity Typ. 2000A/lm, Gain Typ. 2.5×10^7, Rise Time Min. 7ns

MODEL:STN4021-1

6-8 weeks Drawings

Compare

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page

Related Products Detailed Introduction

	Availability	Reference Price
STN4031 Photomultipliers Tube Head-On (Tube Only), Diameter 3", Spectral Response Range 290-650nm, Peak Wavelength of Radiant Sensitivity Typ. 420nm, Cathode Blue Sensitivity Typ.11.5μA/lmf, Anode Sensitivity Typ. 30A/lm, Gain Typ. 2.73×10^5 Rise Time Typ. 6ns	6-8 weeks	Request for quote
STN4022 Photomultipliers Tube Head-On (Tube Only), Diameter 2", Spectral Response Range 290-650nm, Peak Wavelength of Radiant Sensitivity Typ. 420nm, Cathode Blue Sensitivity Typ.10μA/lmf, Anode Sensitivity Typ. 30A/lm, Gain Typ. 2.73×10^5 Rise Time Typ. 6ns	6-8 weeks	Request for quote
STN4021-3 Photomultipliers Tube Head-On (Tube Only), Diameter 2", Cathode Effective Diameter Min. 46mm, Spectral Response Range 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Min. 60μA/lm, Cathode Blue Sensitivity Min. 7μA/lmf, Anode Sensitivity Typ. 400A/lm, Gain Typ. 1.6×10^6, Rise Time Min. 7ns	6-8 weeks	Request for quote
STN4021-2 Photomultipliers Tube Head-On (Tube Only), Diameter 2", Cathode Effective Diameter Min. 46mm, Spectral Response Range 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Min. 60μA/lm, Cathode Blue Sensitivity Min. 9μA/lmf, Anode Sensitivity Typ. 1250A/lm, Gain Typ. 1.6×10^7, Rise Time Min. 7ns	6-8 weeks	Request for quote
STN2041 Photomultipliers Tube Head-On (Tube Only), Diameter 4", Spectral Response Range 290-650nm, Quantum Efficiency@410nm Typ.28%, Top Detection Efficiency Typ. 24%, Top Collection Efficiency 90%, Gain Typ. 5×10^6, Dark Count Rate@0.2pe at Room Temperature Max. 1000Hz, Anode Pulse Rise Time Typ. 2.7ns	6-8 weeks	Request for quote
STN2031 Photomultipliers Tube Head-On (Tube Only), Diameter 3", Spectral Response Range 290-650nm, Quantum Efficiency@410nm Typ.28%, Quantum Efficiency@450nm Typ. 24%, Gain Typ. 1×10^7, Rise Time 1.9ns	6-8 weeks	Request for quote
STN2021 Photomultipliers Tube Head-On (Tube Only), Diameter 2.5", Cathode Effective Diameter Min. 58mm, Spectral Response Range 290-650nm, Quantum Efficiency 18%, Cathode Luminous Sensitivity Typ. 70μA/lm, Cathode Blue Sensitivity Typ. 9μA/lmf, Anode Sensitivity Typ. 35A/lm, Gain Typ. 5×10^5, Rise Time 1.8ns	6-8 weeks	Request for quote
STN2018 Photomultipliers Tube Head-On (Tube Only), Diameter 1", Cathode Effective Diameter Min. 22mm, Spectral Response Range 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Quantum Efficiency 12%, Cathode Luminous Sensitivity @25℃ Typ. 40μA/lm, Cathode Blue Sensitivity @25℃ Typ. 6μA/lm, Anode luminous sensitivity@25℃ Typ. 20A/lm, Gain@25℃ Typ. 5×10^5, Rise Time 1.5ns	6-8 weeks	Request for quote
STN2017 Photomultipliers Tube Head-On (Tube Only), Diameter 1", Cathode Effective Diameter Min. 22mm, Spectral Response Range 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Typ. 60μA/lm, Cathode Blue Sensitivity Typ. 10μA/lm, Gain Typ. 7×10^6, Rise Time 1.4ns	6-8 weeks	Request for quote
STN2016 Photomultipliers Tube Head-On (Tube Only), Diameter 1", Cathode Effective Diameter Min. 25mm, Spectral Response Range 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Typ. 80μA/lm, Cathode Blue Sensitivity Typ. 11μA/lm, Anode Sensitivity Typ. 200A/lmf, Gain Typ. 4×10^6, Rise Time 1.9ns	6-8 weeks	Request for quote
STN2014-3 Photomultipliers Tube Head-On (Tube Only), Diameter 1", Cathode Effective Diameter Min. 22mm, Spectral Response Range 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Typ. 60μA/lm, Cathode Blue Sensitivity Typ. 9μA/lm, Anode Blue Sensitivity Typ. 30A/lm, Gain Typ. 7×10^6, Anode Dark Current @1100V Max. 20nA, Rise Time 1.2ns	6-8 weeks	Request for quote
STN2014-2 Photomultipliers Tube Head-On (Tube Only), Diameter 1", Cathode Effective Diameter Min. 22mm, Spectral Response Range 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Typ. 60μA/lm, Cathode Blue Sensitivity Typ. 9μA/lm, Anode Blue Sensitivity Typ. 30A/lm, Gain Typ. 7×10^6, Anode Dark Current @1050V Typ. 3nA, Dark Count Rate Max. 500Hz, Rise Time 1.2ns	6-8 weeks	Request for quote
STN2014-1 Photomultipliers Tube Head-On (Tube Only), Diameter 1", Cathode Effective Diameter Min. 22mm, Spectral Response Range 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Typ. 60μA/lm, Cathode Blue Sensitivity Typ. 9μA/lm, Anode Blue Sensitivity Typ. 30A/lm, Gain Typ. 7×10^6, Anode Dark Current @1000V Typ. 3nA, Dark Count Rate Max. 100Hz, Rise Time 1.2ns	6-8 weeks	Request for quote
STN2013-3 Photomultipliers Tube Head-On (Tube Only), Diameter 1 1/8", Cathode Effective Diameter Min. 25mm, Spectral Response Rang 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Typ. 80μA/lm, Cathode Blue Sensitivity Typ. 11μA/lmf, Anode Blue Sensitivity Typ. 30A/lmf, Gain Typ. 7×10^6, Dark Count Rate Max. 1000Hz, Rise Time Typ. 1.9ns	6-8 weeks	Request for quote
STN2013-2 Photomultipliers Tube Head-On (Tube Only), Diameter 1 1/8", Cathode Effective Diameter Min. 25mm, Spectral Response Rang 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Typ. 80μA/lm, Cathode Blue Sensitivity Typ. 11μA/lmf, Anode Blue Sensitivity Typ. 30A/lmf, Gain Typ. 7×10^6, Dark Count Rate Max. 300Hz, Rise Time Typ. 1.9ns	6-8 weeks	Request for quote
STN2013-1 Photomultipliers Tube Head-On (Tube Only), Diameter 1 1/8", Cathode Effective Diameter Min. 25mm, Spectral Response Rang 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Typ. 80μA/lm, Cathode Blue Sensitivity Typ. 11μA/lmf, Anode Blue Sensitivity Typ. 30A/lmf, Gain Typ. 7×10^6, Dark Count Rate Max. 140Hz, Rise Time Typ. 1.9ns	6-8 weeks	Request for quote
STN2002 Photomultipliers Tube Head-On (Tube Only), Diameter 0.5", Cathode Effective Diameter 10mm, Spectral Response Range 290-650 nm, Quantum Efficiency Peak Wavelength 380nm, Cathode Luminous Sensitivity Typ. 100μA/lm, Cathode Blue Sensitivity Typ. 8 μA/lmf, Anode Sensitivity Typ 100 A/lm, Gain 6×10^6, Anode Dark Current Typ. 1nA, Rise Time 2.1ns	6-8 weeks	Request for quote

Compatible

Compare	Model		Drawings & Specs	Availability	Reference Price

Photomultipliers Tube (Tube Only) – STN4021

This STN4021(including STN4021-1,STN4021-2,STN4021-3) is a head-on side photomultiplier tube with 2" diameter and 10 stages.

Feature

• High gain

• High collection efficiency

Application

• Scintillation counting

• Radiation measurement

Product Specifications

Parameter			Description
Type			Head-on Type
Diameter			2"
Window Material			Borosilicate Glass
Photocathode Material			Bialkali
Dynode Structure			Box-and-Grid Focused
Stage			10
STN4021			Min.	Typ.	Max.	Unit.
Cathode Parameters	Cathode Effective Diameter		46	/	/	mm
	Spectral Response Range		290-650			nm
	Quantum Efficiency Peak Wavelength		/	380	/	nm
	Luminous Sensitivity		60	/	/	μA/lm
	Blue Sensitivity	N4021-1	10.5	/	/	μA/lmf
		N4021-2	9	/	/
		N4021-3	7	/	/
Anode Parameters	Anode Sensitivity	N4021-1	1500	2000	/	A/lm
		N4021-2	1000	1250	/
		N4021-3	100	400	/
	Supply Voltage		/	1250	1500	V
	Gain	N4021-1	/	2.5×10⁷	/	/
		N4021-2	/	1.6×10⁷	/	/
		N4021-3	/	1.6×10⁶	/	/
	Anode Dark Current	N4021-1	/	/	30	nA
		N4021-2	/	/	50
		N4021-3	/	/	100
Time Response	Rise Time		7	/	/	ns
Operating Ambient Temperature			-30~+50			℃
Storage Temperature			-50~+50			℃

Spectral Graph

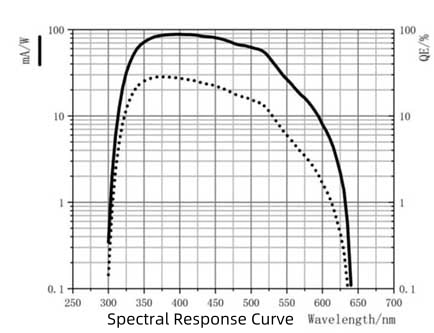

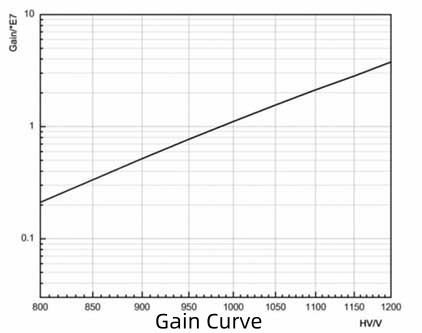

Typical Spectral Response Curve	Typical Gain Curve(STN4021-2)

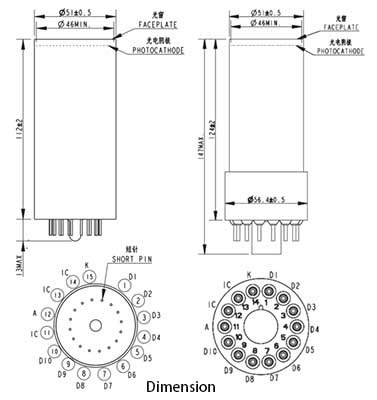

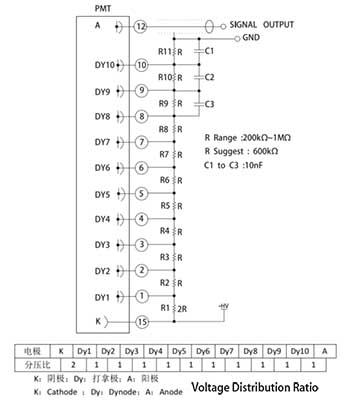

Voltage Distribution Ratio	Dimension
