STN2013-3

Products / 光学分析 /光电探测器 /光电倍增管 (PMTs) /光电倍增管头戴式(仅限管) / STN2013-3 /

Photomultipliers Tube Head-On (Tube Only), Diameter 1 1/8", Cathode Effective Diameter Min. 25mm, Spectral Response Rang 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Typ. 80μA/lm, Cathode Blue Sensitivity Typ. 11μA/lmf, Anode Blue Sensitivity Typ. 30A/lmf, Gain Typ. 7×10^6, Dark Count Rate Max. 1000Hz, Rise Time Typ. 1.9ns

MODEL:STN2013-3

6-8 weeks Drawings

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page


Related Products Detailed Introduction
Compare Model Drawings & Specs Availability Reference Price
STN4031
Photomultipliers Tube Head-On (Tube Only), Diameter 3", Spectral Response Range 290-650nm, Peak Wavelength of Radiant Sensitivity Typ. 420nm, Cathode Blue Sensitivity Typ.11.5μA/lmf, Anode Sensitivity Typ. 30A/lm, Gain Typ. 2.73×10^5 Rise Time Typ. 6ns 		6-8 weeks Request for quote
STN4022
Photomultipliers Tube Head-On (Tube Only), Diameter 2", Spectral Response Range 290-650nm, Peak Wavelength of Radiant Sensitivity Typ. 420nm, Cathode Blue Sensitivity Typ.10μA/lmf, Anode Sensitivity Typ. 30A/lm, Gain Typ. 2.73×10^5 Rise Time Typ. 6ns 		6-8 weeks Request for quote
STN4021-3
Photomultipliers Tube Head-On (Tube Only), Diameter 2", Cathode Effective Diameter Min. 46mm, Spectral Response Range 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Min. 60μA/lm, Cathode Blue Sensitivity Min. 7μA/lmf, Anode Sensitivity Typ. 400A/lm, Gain Typ. 1.6×10^6, Rise Time Min. 7ns 		6-8 weeks Request for quote
STN4021-2
Photomultipliers Tube Head-On (Tube Only), Diameter 2", Cathode Effective Diameter Min. 46mm, Spectral Response Range 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Min. 60μA/lm, Cathode Blue Sensitivity Min. 9μA/lmf, Anode Sensitivity Typ. 1250A/lm, Gain Typ. 1.6×10^7, Rise Time Min. 7ns 		6-8 weeks Request for quote
STN4021-1
Photomultipliers Tube Head-On (Tube Only), Diameter 2", Cathode Effective Diameter Min. 46mm, Spectral Response Range 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Min. 60μA/lm, Cathode Blue Sensitivity Min. 10.5μA/lmf, Anode Sensitivity Typ. 2000A/lm, Gain Typ. 2.5×10^7, Rise Time Min. 7ns 		6-8 weeks Request for quote
STN2041
Photomultipliers Tube Head-On (Tube Only), Diameter 4", Spectral Response Range 290-650nm, Quantum Efficiency@410nm Typ.28%, Top Detection Efficiency Typ. 24%, Top Collection Efficiency 90%, Gain Typ. 5×10^6, Dark Count Rate@0.2pe at Room Temperature Max. 1000Hz, Anode Pulse Rise Time Typ. 2.7ns 		6-8 weeks Request for quote
STN2031
Photomultipliers Tube Head-On (Tube Only), Diameter 3", Spectral Response Range 290-650nm, Quantum Efficiency@410nm Typ.28%, Quantum Efficiency@450nm Typ. 24%, Gain Typ. 1×10^7, Rise Time 1.9ns 		6-8 weeks Request for quote
STN2021
Photomultipliers Tube Head-On (Tube Only), Diameter 2.5", Cathode Effective Diameter Min. 58mm, Spectral Response Range 290-650nm, Quantum Efficiency 18%, Cathode Luminous Sensitivity Typ. 70μA/lm, Cathode Blue Sensitivity Typ. 9μA/lmf, Anode Sensitivity Typ. 35A/lm, Gain Typ. 5×10^5, Rise Time 1.8ns 		6-8 weeks Request for quote
STN2018
Photomultipliers Tube Head-On (Tube Only), Diameter 1", Cathode Effective Diameter Min. 22mm, Spectral Response Range 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Quantum Efficiency 12%, Cathode Luminous Sensitivity @25℃ Typ. 40μA/lm, Cathode Blue Sensitivity @25℃ Typ. 6μA/lm, Anode luminous sensitivity@25℃ Typ. 20A/lm, Gain@25℃ Typ. 5×10^5, Rise Time 1.5ns 		6-8 weeks Request for quote
STN2017
Photomultipliers Tube Head-On (Tube Only), Diameter 1", Cathode Effective Diameter Min. 22mm, Spectral Response Range 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Typ. 60μA/lm, Cathode Blue Sensitivity Typ. 10μA/lm, Gain Typ. 7×10^6, Rise Time 1.4ns 		6-8 weeks Request for quote
STN2016
Photomultipliers Tube Head-On (Tube Only), Diameter 1", Cathode Effective Diameter Min. 25mm, Spectral Response Range 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Typ. 80μA/lm, Cathode Blue Sensitivity Typ. 11μA/lm, Anode Sensitivity Typ. 200A/lmf, Gain Typ. 4×10^6, Rise Time 1.9ns 		6-8 weeks Request for quote
STN2014-3
Photomultipliers Tube Head-On (Tube Only), Diameter 1", Cathode Effective Diameter Min. 22mm, Spectral Response Range 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Typ. 60μA/lm, Cathode Blue Sensitivity Typ. 9μA/lm, Anode Blue Sensitivity Typ. 30A/lm, Gain Typ. 7×10^6, Anode Dark Current @1100V Max. 20nA, Rise Time 1.2ns 		6-8 weeks Request for quote
STN2014-2
Photomultipliers Tube Head-On (Tube Only), Diameter 1", Cathode Effective Diameter Min. 22mm, Spectral Response Range 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Typ. 60μA/lm, Cathode Blue Sensitivity Typ. 9μA/lm, Anode Blue Sensitivity Typ. 30A/lm, Gain Typ. 7×10^6, Anode Dark Current @1050V Typ. 3nA, Dark Count Rate Max. 500Hz, Rise Time 1.2ns 		6-8 weeks Request for quote
STN2014-1
Photomultipliers Tube Head-On (Tube Only), Diameter 1", Cathode Effective Diameter Min. 22mm, Spectral Response Range 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Typ. 60μA/lm, Cathode Blue Sensitivity Typ. 9μA/lm, Anode Blue Sensitivity Typ. 30A/lm, Gain Typ. 7×10^6, Anode Dark Current @1000V Typ. 3nA, Dark Count Rate Max. 100Hz, Rise Time 1.2ns 		6-8 weeks Request for quote
STN2013-2
Photomultipliers Tube Head-On (Tube Only), Diameter 1 1/8", Cathode Effective Diameter Min. 25mm, Spectral Response Rang 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Typ. 80μA/lm, Cathode Blue Sensitivity Typ. 11μA/lmf, Anode Blue Sensitivity Typ. 30A/lmf, Gain Typ. 7×10^6, Dark Count Rate Max. 300Hz, Rise Time Typ. 1.9ns 		6-8 weeks Request for quote
STN2013-1
Photomultipliers Tube Head-On (Tube Only), Diameter 1 1/8", Cathode Effective Diameter Min. 25mm, Spectral Response Rang 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Typ. 80μA/lm, Cathode Blue Sensitivity Typ. 11μA/lmf, Anode Blue Sensitivity Typ. 30A/lmf, Gain Typ. 7×10^6, Dark Count Rate Max. 140Hz, Rise Time Typ. 1.9ns 		6-8 weeks Request for quote
STN2002
Photomultipliers Tube Head-On (Tube Only), Diameter 0.5", Cathode Effective Diameter 10mm, Spectral Response Range 290-650 nm, Quantum Efficiency Peak Wavelength 380nm, Cathode Luminous Sensitivity Typ. 100μA/lm, Cathode Blue Sensitivity Typ. 8 μA/lmf, Anode Sensitivity Typ 100 A/lm, Gain 6×10^6, Anode Dark Current Typ. 1nA, Rise Time 2.1ns 		6-8 weeks Request for quote

Compatible

Compare Model Drawings & Specs Availability Reference Price

Photomultipliers Tube (Tube Only) - STN2013

This STN2013(including STN2013-1,STN2013-2,STN2013-3) is a head-on side photomultiplier tube with 1 1/8" diameter and 11 stages.



Feature

• Fast response, low noise

Application

• Scintillation counting, high energy physics





Product Specifications

Parameter Description
 Type Head-on Type
 Diameter 1 1/8"
 Window Material Borosilicate Glass
 Photocathode Material Bialkali
 Dynode Structure Box and Liinear Focused
 Stage 11
STN2013 Min. Typ. Max. Unit.
Cathode Parameters  Cathode Effective Diameter 25 / / mm
 Spectral Response Range 290-650 nm
 Quantum Efficiency  Peak Wavelength / 380 / nm
 Luminous Sensitivity / 80 / μA/lm
 Blue Sensitivity 9 11 / μA/lmf
Anode Parameters  Anode Blue Sensitivity / 30 / A/lmf
 Supply Voltage / / 1150 V
 Gain / 7×106 / Hz
 Dark Count Rate N2013-1 / / 140
N2013-2 / / 300
N2013-3 / / 1000
 Anode Dark Current / 2 10 nA
Time
Response		  Rise Time / 1.9 / ns
 TTS / 3 / ns
 Operating Ambient Temperature -30~+50 ℃
 Storage Temperature -50~+50 ℃





Spectral Graph

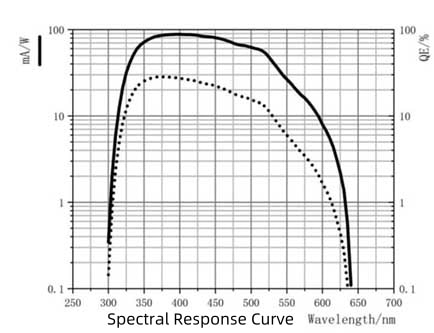

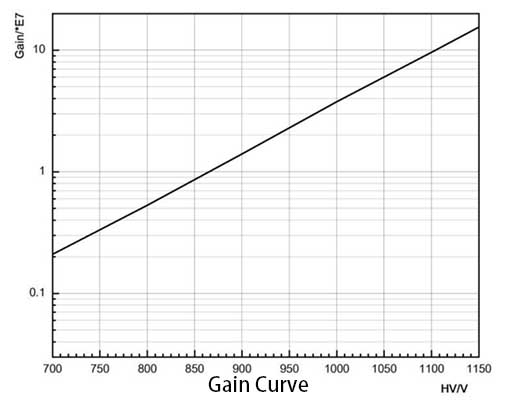

Typical Spectral Response Curve     Typical Gain Curve

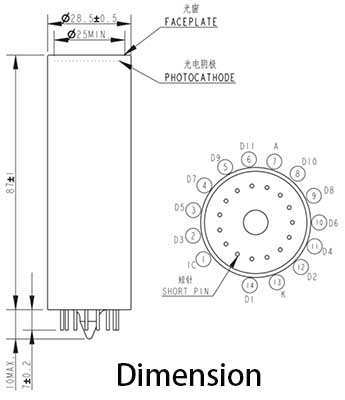

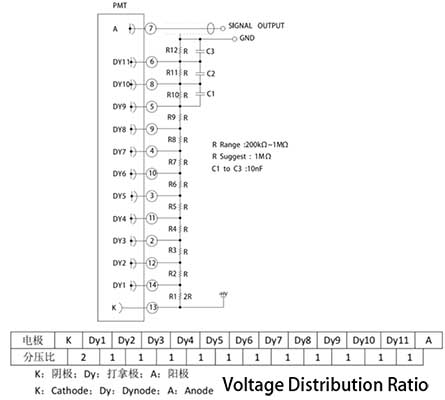

Voltage Distribution Ratio Dimension
