STPM-Z125D-C

Products / 光学元件 /视觉镜头 /变焦镜头 /Z125系列变焦镜头 / STPM-Z125D-C /

STPM-Z125D-C，Type Detented with Coaxial llumination Zoom Lens，Optical Magnification Range 0.58X~7.5X，Working Distance 84±2mm，Zoom Control Manual Zoom

MODEL:STPM-Z125D-C

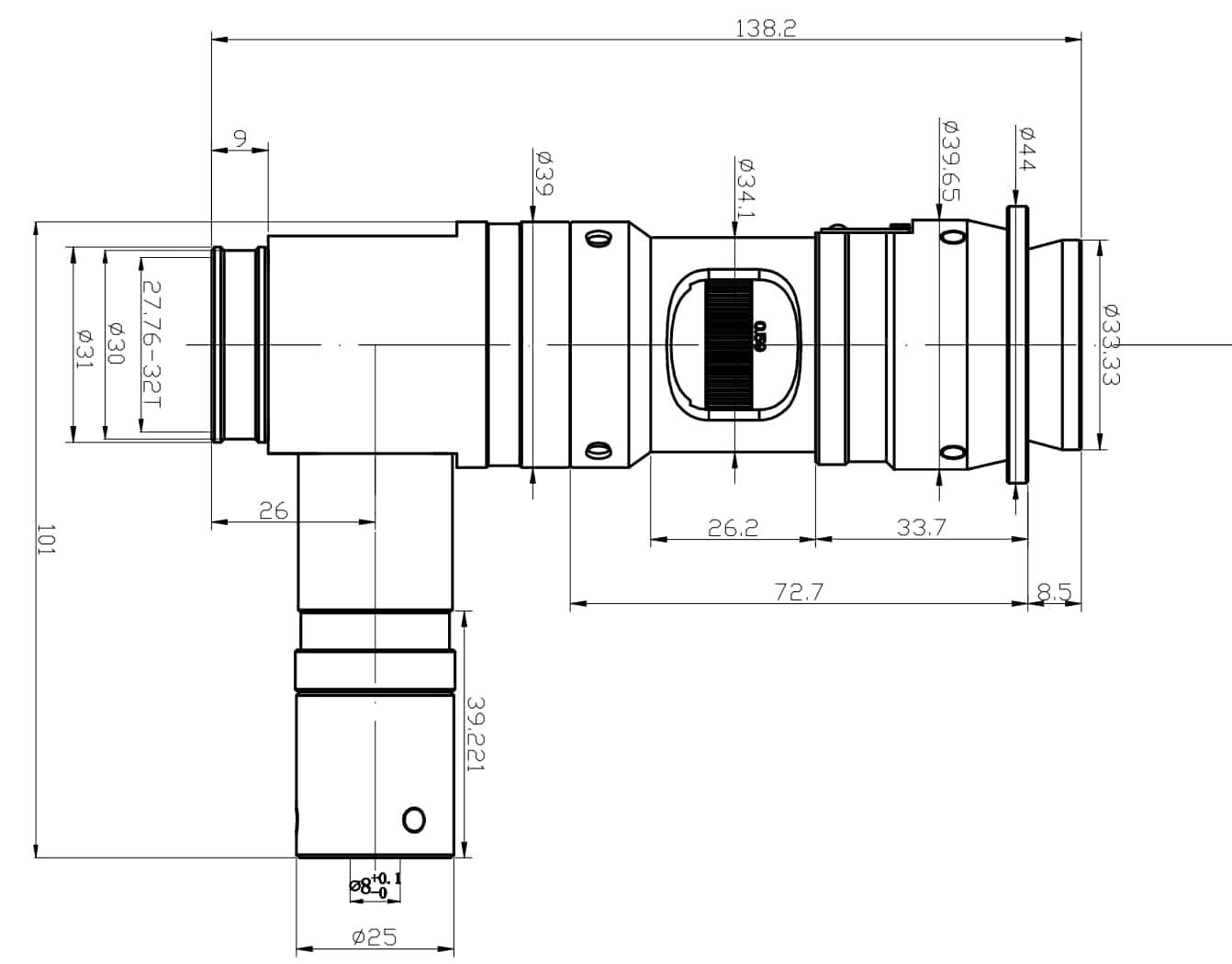

4-6 Weeks Drawings

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page


Related Products Detailed Introduction
Compare Model Drawings & Specs Availability Reference Price
STPM-Z125D
STPM-Z125D，Type Detented Zoom Lens，Optical Magnification Range 0.58X~7.5X，Working Distance 84±2mm，Zoom Control Manual Zoom 		4-6 Weeks Request for quote
STPM-Z125M/C
STPM-Z125M/C，Type Motorized With Coaxial lllumination，Optical Magnification Range 0.58X~7.5X，Working Distance 84±2mm，Zoom Control Motorized zoom 		4-6 Weeks Request for quote
STPM-Z125M
STPM-Z125M，Type Detented Zoom Lens，Optical Magnification Range 0.58X~7.5X，Working Distance 84±2mm，Zoom Control Motorized zoom 		4-6 Weeks Request for quote

Compatible

Compare Model Drawings & Specs Availability Reference Price



Product specifications and Brochures

Product Brochure Link:

Model STPM-Z125M STPM-Z125M/C STPM-Z125D-C STPM-Z125D
Type Detented Zoom  Lens Motorized With Coaxial lllumination Detented with Coaxial llumination Zoom Lens Detented Zoom Lens
Optical Magnification Range 0.58X~7.5X
Working Distance 84±2mm
Optical Magnification 0.58X 0.6X 1X 1.5X 2X 2.5X 3X 3.5X 4X 4.5X 5X 5.5X 6X 6.5X 7X 7.5X
Depth of View (mm) 2.75 2.67 0.95 0.43 0.27 0.2 0.15 0.12 0.1 0.081 0.073 0.066 0.061 0.056 0.052 0.05
N.A. 0.025 0.025 0.043 0.063 0.074 0.082 0.09 0.097 0.1 0.11 0.11 0.11 0.11 0.11 0.11 0.11
F .No. 12.5 12.5 11.85 11. 95 13.65 15.3 16.5 18.4 19.9 20.4 22.45 22.7 26.8 29.4 31.7 33.9
Resolution(um) 13 13 7.8 5.3 4.53 4.09 3.73 3.46 3.36 3.05 3.05 3.05 3.05 3.05 3.05 3.05
TV Distortion 0.050% 0.050% 0.002% 0.010% 0.020% 0.003% 0.020% 0.020% 0.018% 0.020% 0.010% 0.010% 0.001% 0.010% 0.005% 0.005%
Field of View(DxHxV)       (mm) Diagonal 18.97 18.33 11 7.33 5.5 4.4 3.67 3.14 2.75 2.44 2.2 2 1.83 1.69 1.57 1.47
Horizontal 15.17 14.67 8.8 5.87 4.4 3.52 2.93 2.51 2.2 1.96 1.76 1.6 1.47 1.35 1.26 1.17
vertical 11.38 11 6.6 4.4 3.3 2.64 2.2 1.89 1.65 1.47 1.32 1.2 1.1 1.02 0.94 0.88
Max.Sensor Size 2/3"
Mount C-Mount
Zoom Control Motorized Zoom Manual Zoom
