SpinDisk Advance

Spinning Disk Confocal Microscope, SpinDisk Advance Series, Image frame rate 100fps@2048x2048, Resolution ~230nm, image depth <200um, No. of Laser - 4, Wavelength choice 405/445/470/520/528/555/640nm, Dual sCMOS Camera detectors (single sCOMS optional), Inverted or upright microscope, XYZ motorized stages, Motorized filter electronics system, high image contrast, upgrade to SpinDisk SIM 100nm resolution, customized option

MODEL:SpinDisk Advance

6-10 Weeks Drawings

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page


Compare Model Drawings & Specs Availability Reference Price
转盘共聚焦显微镜
Spinning Disk Confocal Microscope, SpinDisk Basic Series, Image frame rate 100fps@2048x2048, Resolution ~230nm, image depth <200um, No. of Laser - 4, Wavelength choice 405/445/488/525/561/640nm, sCMOS Camera detectors, Inverted or upright microscope, XYZ motorized stages, high image contrast, customized option
6-10 Weeks Request for quote

Compatible

Compare Model Drawings & Specs Availability Reference Price

Product specifications and Brochures





Parameters SpinDisk Basic
SpinDisk Advance
SpinDisk SIM
Imaging Modalities Widefield / Confocal Widefield / Confocal / Super-resolution
(in combination with SIM Basic add-on module)
Super-resolution | Confocal spinning disk | Widefield
Compatible Microscopes Full range of upright and   inverted microscopes Full range of upright and   inverted microscopes Inverted microscopes
FOV Up to 25mm diameter Up to 25mm diameter 1024 x 1024pixel (66 x 66 µm   100X | 333 x 333µm 20X)
Light Source LASER with 1,5mm SMA | LED with   3mm LLG Multi mode lasers with SMA   coupling Multi mode lasers with SMA   coupling
Spectral Range

Excitation 400-750 nm / Emission 400-850 nm

Excitation 400-750 nm / Emission 400-850 nm Excitation: 400-750 nm; emission: 400-850 nm
Camera

Compatible with CCD/EMCCD cameras

 and sCMOS cameras

Compatible with CCD/EMCCD  cameras and sCMOS cameras

Dual-camera view: simultaneous dual-camera imaging up to 25 mm

Any triggerable camera having   6.5 µm pixel size
Dual camera option available*
Disk Speed / Scan Rate 15000 RPM / > 1000 fps 15000 RPM / > 1000 fps 13fps (1024 x 1024 px)
Spinning Disk Geometry
(Diamater/Spacing)
50/250 slit for high throughput   & live imaging applications
50/250 µm pinholes optimized for LASER light source
60/220 µm pinholes optimized for LED light source
Custom geometry and double pattern disks available on demand
50/250 slit spirals for high   throughput applications
50/250 µm pinholes for routine imaging
50/400 µm with wider spacing for deep imaging
50/250 slit spirals for high   throughput applications
50/250 µm pinholes for routine imaging
50/400 µm with wider spacing for deep imaging
Resolution Lateral Resolution (FWHM): ~230   nm (High NA 1.4)
Axial Resolution (FWHM): ~600 nm (High NA 1.4)
Lateral Resolution (FWHM): ~230   nm (High NA 1.4)
Axial Resolution (FWHM): ~600 nm (High NA 1.4)
Lateral Resolution (FWHM): ~100   nm (100X NA 1.45)
Axial Resolution (FWHM): ~300 nm (100X NA 1.45)
Filter Wheels Motorized filter wheels:   4-positions cleanup filter wheel, 3-positions    dichroic filter wheel, 8-positions emission filter wheel. Motorized filter wheels and   slider: 4-positions cleanup filter wheel, 3-positions dichroic filter wheel, 8-positions emission filter wheel, 3 positions slider for dual   camera use Motorized filter wheels and slider: 4-positions cleanup filter wheel,  3-positions dichroic filter wheel, 8-positions emission filter wheel,  3 positions slider for dual camera use
Software Nikon NIS-Elements / Micro-Manager / MetaMorph / Volocity / VisiView Nikon NIS-Elements / Micro-Manager / MetaMorph / Volocity / VisiView µManager /VisiView® / NIS Elements
Recommended   Installation Conditions Temperature 23 ± 5˚C, Humidity 70% RH or less (no condensation) Temperature 23 ± 5˚C, Humidity 70% RH or less (no condensation) Temperature 23 ± 5°C, Humidity 70% RH or less
Weight 11.0 Kg (24.3 lbs) 26.0 Kg (57 lbs) 20 Kg (44 Ibs)
Dimensions 11.2 (w) x 15.9 (L) x 8.9 (h)   inches
 286.7 (w) x 405.1 (L) x 226.5 (h) mm
14 (w) x 23.9 (L) x 8.9 (h)   inches
357.0 (w) x 606.0 (L) x 225.0 (h) mm
14.0 (w) x 17.1 (L) x 11.4 (h)   inches
356.0 (w) x 435.0 (L) x 290.5 (h) mm

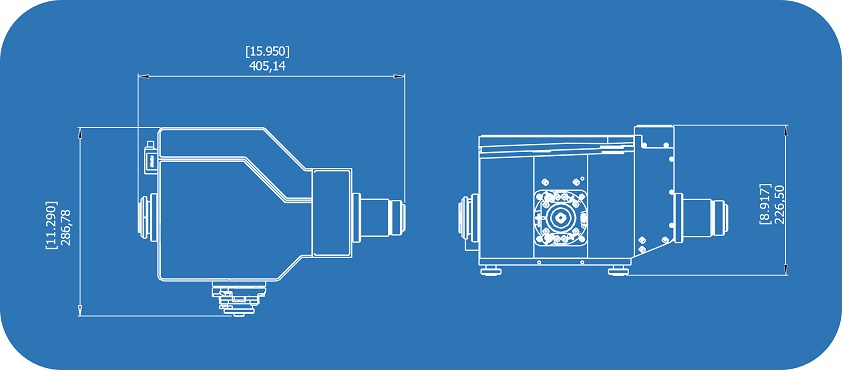

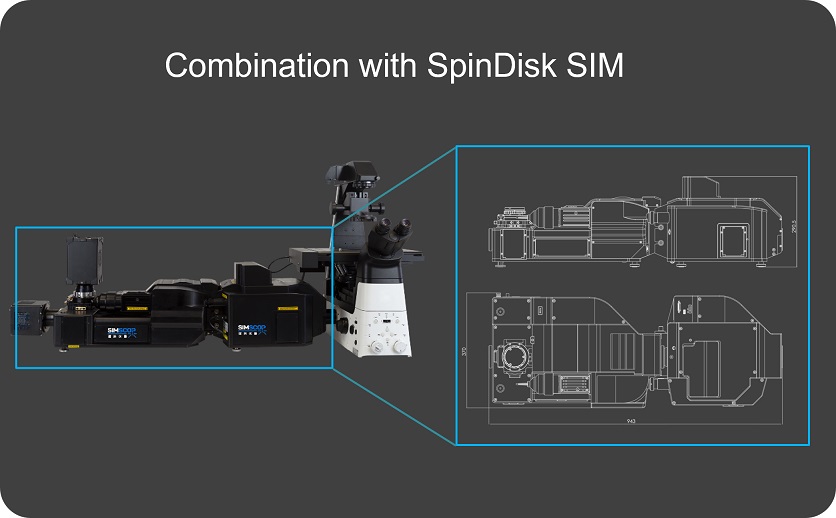

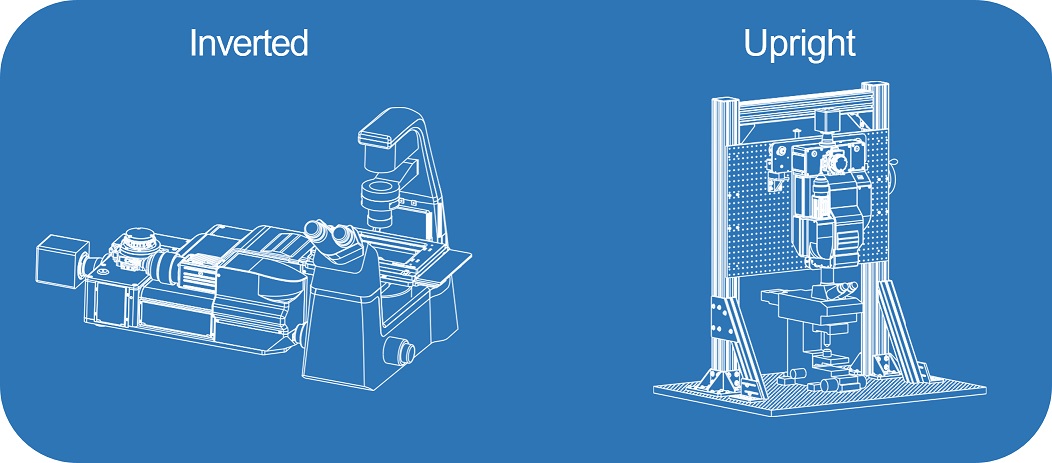

Layout


Related Product

Parameters

Basic

P Series Box

Basic

P Series

Advance

P Series

Basic

L Series

Advance

L Series

SpinDisk

Basic

SpinDisk

 Advance

SIM Basic SpinDisk SIM
Image Frame Rate 4fps@512x512 4fps@512x512 4fps@512x512 10fps@1024x1024 14fps@1024x1024 100fps@2048x2048 100fps@2048x2048 13fps@1024x1024 13fps@1024x1024
Resolution ~230 nm  ~230 nm  ~230 nm  ~230 nm  150-200nm ~230 nm  ~230 nm  ~100 nm  ~100 nm
Image Depth <100µm <100µm <100µm <100µm <600µm <200µm <200µm <50µm <200µm
No. of Laser  1 1 4 1 4 4 4 4 4
Wavelength Choice

405/445/488

/525/561/640(nm)

405/445/488/

525/561/640(nm)

405/488/561/

640(nm)

405/445/488/

525/561/640(nm)

405/488/561/

640(nm)

405/445/470/520/

528/555/640(nm)

405/445/470/520/

528/555/640(nm)

405/445/470/520/

528/555/640(nm)

405/445/470/520/

528/555/640(nm)

Detectors Detector Detector Detector CMOS Camera sCMOS Camera sCMOS Camera Dual sCMOS Camera(Single sCMOS optional) sCMOS Camera Dual sCMOS Camera(Single sCMOS optional)
Microscope  Non Inverted (Upright Customizeable) Inverted (Upright Customizeable) Inverted (Upright Customizeable) Inverted (Upright Customizeable)

Inverted or

Upright

Inverted or

Upright

Inverted or

Upright

Inverted
Stages Non

Z Motorized

XY Manual

XYZ Motorized  Z Motorized
XY Manual
XYZ Motorized  XYZ Motorized  XYZ Motorized  XYZ Motorized  XYZ Motorized
Electronics system     Motorized Filter
Motorized Pin hole
  Motorized Filter Motorized Filter Motorized Filter Motorized Filter Motorized Filter
image contrast Medium Medium High Medium High High High High High
Upgrade option Non Non Upgrade to 30fps high Speed  Non Non Non Upgrade to SPIN Disk SIM 100nm resolution Upgrade to SPIN Disk SIM 100nm resolution Non
Customized Option     Yes   Yes Yes Yes
Applications Biomedicine: monochromatic fluorescence microscopic   observation of cells, 3D scanning; Biomedicine: monochromatic fluorescence microscopic   observation of cells, 3D scanning;
Biomedicine: three-dimensional fluorescence microscopy imaging observation of cells and tissues, multi-channel fluorescence detection
Reflective 3D microscopic imaging, surface shape detection,   rapid analysis and measurement of materials and microelectronic device   surface shape Fast 3D imaging of thick tissue, 3D histopathological image   detection, 3D histomorphological research of small animal tissues and organs   such as brain neurons, liver, kidney, etc. Dynamic fluorescence imaging of living cells/tissues,   microscopic observation of small animals such as zebrafish and nematodes Dynamic fluorescence imaging of living cells/tissues,   microscopic in vivo observation of small animals such as zebrafish and   nematodes, and in vivo observation of multi-channel fluorescent organelles. Dynamic fluorescence super-resolution imaging of living cells   can be used for live cell dynamics, allowing tracking of biological changes   at cellular and subcellular levels Dynamic fluorescence super-resolution imaging of living cells,   3D imaging of tissues, organoids, spheroids and small organisms.



SpinDisk Advance - Parameter

转盘共聚焦显微镜 - Parameter

SpinDisk Advance - Download

转盘共聚焦显微镜 - Download
