NIR Hyperspectral Camera RGB (950 to 1700nm)--瑆创科技-专注于显微与光谱

MIR Hyperspectral Camera (2900 – 4200 nm)
Wavelength Range 2900 – 4200 nm 320 x 256 Pixel, up to 383 FPS, Spectral Resolution 18 nm

4-6 Weeks

Request for quote

NIR Hyperspectral Camera EXT (1200 to 2200nm)
Wavelength Range 1200 to 2200nm, 320 x 256 Pixel, up to 3300 FPS, Spectral Resolution 13 nm

4-6 Weeks

Request for quote

NIR Hyperspectral Camera HiRes (950 to 1700nm)
Wavelength Range 950 to 1700 nm, 640 x 512 Pixel, up to 4200 FPS, Spectral Resolution 10 nm

4-6 Weeks

Request for quote

NIR Hyperspectral Camera STD (950 to 1700nm)
Wavelength Range 950 to 1700 nm, 320 x 256 Pixel, up to 4200 FPS, Spectral Resolution 10 nm

4-6 Weeks

Request for quote

OrangeEye Hyperspectral Camera (580-1000nm)
Wavelength Range 580-1000nm 1312 x 1082 Pixel, up to 54 FPS, Spectral Resolution 10 nm

4-6 Weeks

Request for quote

GreenEye Hyperspectral Camera (400-1000nm)
Wavelength Range 400-1000nm 1312 x 1082 Pixel, up to 54 FPS, Spectral Resolution 10 nm

4-6 Weeks

Request for quote

BlueEye UV Scientific (220 – 380 nm)
Wavelength Range 220 – 380 nm , 4XTEC cooling -100 degrees, 1056 x 1027 Pixel, 5FPS, Spectral Resolution <1nm

6 - 10 Weeks

Request for quote

BlueEye UV TEC (220 – 380 nm)
Wavelength Range 220 – 380 nm , TEC cooling -25 degrees, 2048 x 2048 Pixel, 40FPS, Spectral Resolution <2nm

6 - 10 Weeks

Request for quote

BlueEye UV STD (220 – 380 nm)
Wavelength Range 220 – 380 nm , Passive cooling, 2048 x 2048 Pixel, 40FPS, Spectral Resolution <2nm

6 - 10 Weeks

Request for quote

	Availability	Reference Price
RGB/LED lighting Flash sequence 2	In Stock	Request for quote
Halogen light bar Option Halogen light bar Length option 0.5m, 1m ,1.5m or 2m	In Stock	Request for quote
MIR light bar 1 m Different dimensions available	In Stock	Request for quote
White reference (Spectral on 50x20cm) White reference (Spectral on 50x20cm)	In Stock	Request for quote
Speccer Basic Speccer Basic	In Stock	Request for quote
NIR Len C-Mount NIR Len C-Mount Focal Length Option 8mm ,12mm, 16mm, 25mm, 35mm, 50mm, 75mm	In Stock	Request for quote
VIS Len C mount VIS Len C mount Focal length option 5 mm & 25mm	In Stock	Request for quote
UV 35 mm F/2.8 1/2" C-Mount UV 35 mm F/2.8 1/2" C-Mount	In Stock	Request for quote
VIS-NIR Len C-Mount VIS-NIR Len Focal Length 16mm, 25mm, 35 mm, 50mm	In Stock	Request for quote

Name	NIR Hyperspectral Imaging camera	Sensor	InGaAs	Temperature (operating)	-5°C to + 40°C
Spectral range	950 to 1700 nm	Pixels in full frame	321 x 256	Temperature (storage)	-10 to + 45
Dispersion	106 nm/mm	Pixel size	31 x 30 µm	Dimensions l x w x h (mm)	368 x 130 x 145
Spectral resolution	10 nm (with 80 µm slit)	Bit depth	14 bit	Weight	4.3 kg
Spatial resolution	rms spot radius < 35 µm	Frame rate	330 fps (full frame) / 4200 fps (4 bands)	Lens mount	Standard C-mount
Smile	< 60 µm	Data interface	Gigabit Ethernet (GigE Vision standard)	Protection type	IP65 and IP67
Keystone	< 50 µm	Power supply	12 - 36 V DC
F-number	2.6	Cooling	1-Stage TEC
Slit width, default	80 µm (others on request)

Sign In

Register

Retrieve password

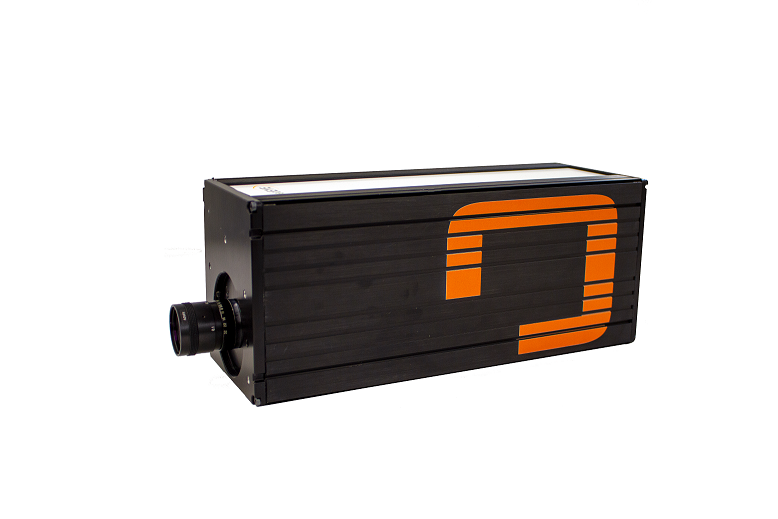

NIR Hyperspectral Camera RGB (950 to 1700nm)

Wavelength Range 950 to 1700 nm, 320 x 256 Pixel, up to 4200 FPS, Spectral Resolution 10 nm, Additional RGB information in the same beam path

MODEL:NIR Hyperspectral Camera RGB (950 to 1700nm)
