Products / 显微镜 /共聚焦显微镜 /SIMSCOP单点共聚焦显微镜 / SIMSCOP P Series /

Laser Scanning Confocal Microscope, Standard Wavelength 405/488/561/640nm(638nm), dual-axis XY high-speed optical scanning galvanometer, field of view 15x15mm, scanning pixels 512x512 ~4096x4096, scan speed up to 4fps, stroke: X-110mm, Y-75mm, Z-9mm

MODEL:SIMSCOP P Series

In Stock Drawings

Compare

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page

Compatible

Compare	Model		Drawings & Specs	Availability	Reference Price

Product specifications and Brochures

Product Brochure Link:

Confocal Microscope Specification
Laser Light Source	405 nm (20 mW ); 488 nm (20 mW ); 561 nm (20 mW ); 640 nm (20 mW ); Analog /TTL level modulation , intensity adjustable (0-100%); Single-mode fiber , FC/APC connector.
Scan Module	Dual-axis XY high-speed optical scanning galvanometer Field of view 15mm X 15mm , scanning pixels 512 x 512 ~ 4096 x 4096 Pixel time 0.5 μs -100 μs , standard scan speed: up to 4fps ( 512 x 512)
Scan Mode	XY, XYT, XYZ, XYZT
Pinhole Choice	Diameter: 10/20/30/40/50 μm
Detector	SiPMT , QE>25%@500nm, GaAsP PMT, QE>45%@500nm
Filter Unit	DAPI(445nm/40); FITC(530nm/43); TRITC(605nm/60); CY5(695nm/40)
XYZ Translation Stage	Minimum step size 50 nm; repeatability +/- 0.1 μm Maximum speed 100 mm/s Stroke : X : 110mm , Y : 75mm , Z : 9mm
Software Feature	Multicolor fluorescence colocalization processing, Z - stack processing analysis, large image stitching, Filtering processing, Imaging parameter management, etc.

Professional Software UI Design SIMSCOP CM Series Confocal Microscope Software Key Features

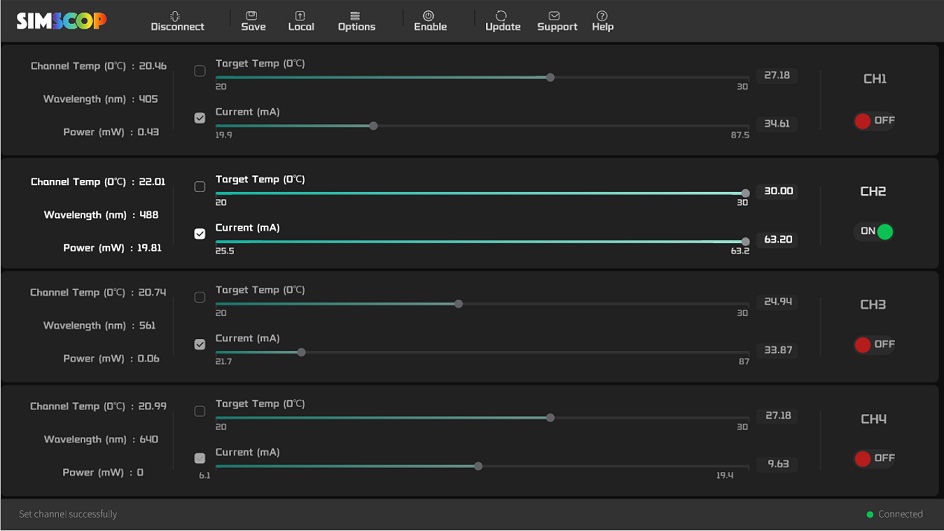

Laser Control Panel


Image Processing & Deconvolution

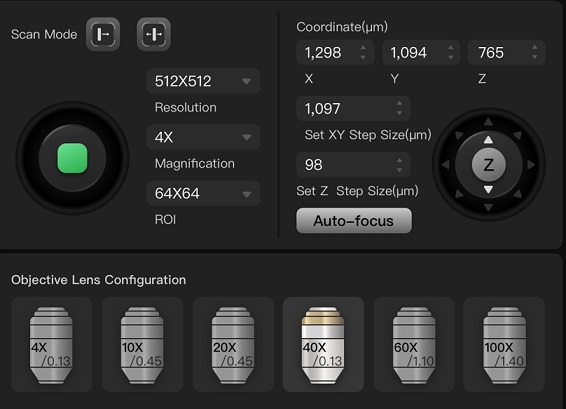

	Functional GUI Panel

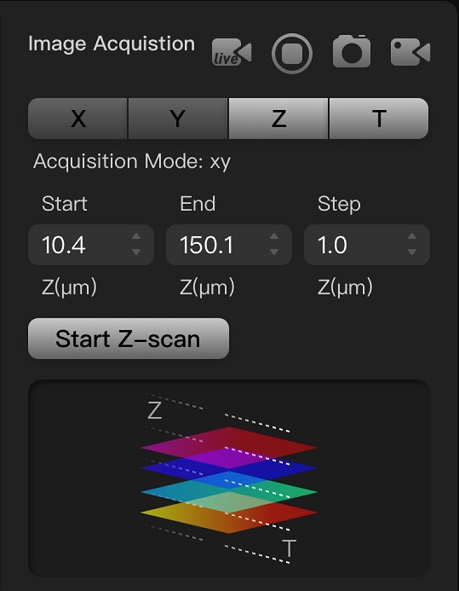

Easy-to-recognize display for setting lasers, detectors, etc.	Scanning parameter settings	Image processing & deconvolution
