Products / 光学分析 /光谱仪 /高光谱相机（220nm-4.2μm） /显微镜快照高光谱相机(450-950nm) / FireflEYE185-IP40 Housing /

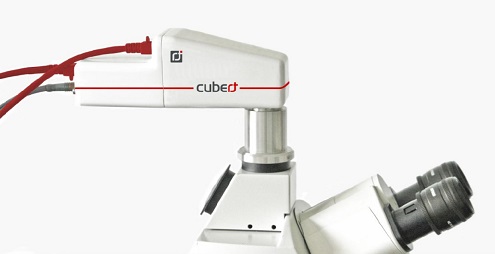

SnapShot Hyperspectral Camera for Microscope (450-950nm), wavelength 450-950 nm, Spatial resolution 50 X 50px, Spectral sampling 4nm, Spectral resolution 8nm@532nm, with standard lightweight housing IP40

MODEL:FireflEYE185-IP40 Housing

4-6 Weeks Drawings

Compare

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page

Compatible

Compare	Model		Drawings & Specs	Availability	Reference Price

Parameters	FireflEYE 185
Technology	Multipoint Spectrometer
Number of Sensors	2
Wavelength Range	450 - 950 nm
Spectral Bands	125
Spectral Sampling	4 nm
Spectral Resolution (FWHM)	8 nm @ 532 nm
Spatial Resolution	50 x 50 pixel
Spatial Resolution 2nd Sensor	1000 x 1000 pixel
Total Spectra / Image	2500
Total Data Points / Cube	0.3 Million
Data Depths	12 bit / 14 bit
Readout	Global shutter
Max Frame Rate	25 Hz
Integration Time	0.1 – 1000 ms
Field of View (FOV)	30°, 20°, 13°, 7°, Lens selectable
Power Consumption	7 W
Data Link	2 GigE
Weight	490 g
Size	200 x 67 x 60 mm

Model Housing Guide

Standard Lightweight Housing IP40	Industrial Housing IP65	Waterproof Housing IP68
Weighing Less than 490g, the camera is perfectly suited for mobile applications, such as deployment on a UAV.	To meet the requirements of harsh industrial environments. a special rugged, robust housing is available, ensuring optimal protection.	Upgrade the FireflEYE185 to IP68 and use it underwater to a depth of 10m for 10h

Model Housing Guide

For the FireflEYE different lenses are possible, ranging from 10 mm focal length up to 50 mm focal length. Attaching a Relay Lens to the FireflEYE provides full interchangeability for C-mount lenses. Mount the camera on your microscope or endoscope without the need for additional calibration. In lab use the FireflEYE can be equipped with Close-Up Lenses, allowing a macroscopic scale view with a spot size of only a few mm to cm.

Compare	Model		Drawings & Specs	Availability	Reference Price
		FireflEYE185-IP68 Housing SnapShot Hyperspectral Camera for Microscope (450-950nm), wavelength 450-950 nm, Spatial resolution 50 X 50px, Spectral sampling 4nm, Spectral resolution 8nm@532nm, with waterproof housing IP68		4-6 Weeks	Request for quote
		FireflEYE185-IP65 Housing SnapShot Hyperspectral Camera for Microscope (450-950nm), wavelength 450-950 nm, Spatial resolution 50 X 50px, Spectral sampling 4nm, Spectral resolution 8nm@532nm, with industrial housing IP65		4-6 Weeks	Request for quote
